537Continued
Handling the Unexpected

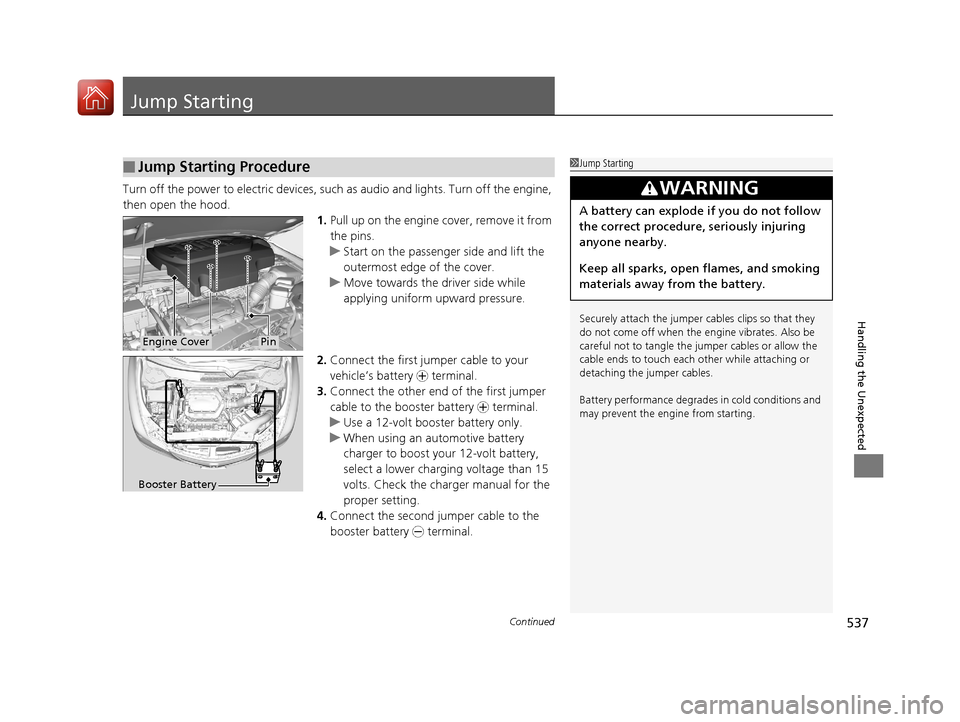

Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Pull up on the engine cover, remove it from
the pins.
u Start on the passenger side and lift the
outermost edge of the cover.
u Move towards the driver side while
applying uniform upward pressure.
2. Connect the first jumper cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15
volts. Check the ch arger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Engine CoverPin
Booster Battery
17 ACURA MDX-31TZ56300.book 537 ページ ２０１６年５月１３日　金曜日　午後７時４６分

538
uuJump Starting u
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.
6. If your vehicle is connected to another
vehicle, start the assi sting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle’s engine has started, remove the jumper cabl es in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
17 ACURA MDX-31TZ56300.book 538 ページ ２０１６年５月１３日　金曜日　午後７時４６分

541
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 473
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
17 ACURA MDX-31TZ56300.book 541 ページ ２０１６年５月１３日　金曜日　午後７時４６分

543
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Speed-Sensitive Electric Power Steering (EPS)
System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
17 ACURA MDX-31TZ56300.book 543 ページ ２０１６年５月１３日　金曜日　午後７時４６分

545
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire
* is installed, the indicator
blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, ch ange the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Indicator Blinks along with the
Warning Message
■Reasons for the indicator to blink
There is a problem with the transmission.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Select
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 367
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 554
* Not available on all models
17 ACURA MDX-31TZ56300.book 545 ページ ２０１６年５月１３日　金曜日　午後７時４６分

553
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 546 to P. 552.
There is a fuse puller in the engine compartment fuse
box.
If the radio fuse is remove d, the audio system will
disable itself.
Combined
Fuse Blown Fuse
Fuse Puller
Blown Fuse
17 ACURA MDX-31TZ56300.book 553 ページ ２０１６年５月１３日　金曜日　午後７時４６分

574
Index
Compass.................................................... 344
Console Compartment ............................. 203
Controls ..................................................... 133
Coolant (Engine) ....................................... 477
Adding to the Radiator ............................ 478
Adding to the Reserve Tank ..................... 477
Overheating............................................. 539
Creeping (Automatic Transmission) ........ 373
Cross Traffic Monitor ................................ 451
Cup Holders ............................................... 205
Customized Features ........................ 123, 285
D
Daytime Running Lights ........................... 170
Dead Battery ............................................. 537
Defrosting the Windshield and Windows .................................................. 220
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 563
Dimming
Headlights ............................................... 167
Rearview Mirror ....................................... 183
Dipstick (Engine Oil) ................................. 473
Directional Signals (Turn Signal) .............. 166
Door Mirrors ............................................. 184
Doors ......................................................... 135
Auto Door Locking .................................. 149
Auto Door Unlocking ............................... 149
Door Open Message .................................. 32
Keys ........................................................ 135 Locking/Unlocking the Doors from the
Inside .............................................. 13, 146
Locking/Unlocking the Doors from the Outside ................................................. 138
Lockout Prevention System ...................... 144
DOT Tire Quality Grading ........................ 493
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 347
Automatic Transmission .......................... 373
Braking ................................................... 428
Off-Highway Driving Guidelines............... 365
Shifting Gear ........................................... 374
Starting the Engine.................................. 367
Driving Position Memory System ............ 180
Dust and Pollen Filter ............................... 505
Dynamic Mode button ............................. 387
E
Elapsed Time............................................. 120
Electric Parking Brake
Indicator.................................................... 76
Switch ..................................................... 428
Electric Parking Brake System
Indicator.................................................... 76
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 554
Emissions Testing (Readiness Codes) ....... 565
Engine ....................................................... 562
Coolant ................................................... 477
Jump Starting .......................................... 537 Oil .......................................................... 472
Remote Engine Start ............................... 369
Starting................................................... 367
Engine Compartment Cover .................... 471
Engine Coolant ........................................ 477
Adding to the Radiator ........................... 478
Adding to the Reserve Tank .................... 477
Overheating ............................................ 539
Temperature Gauge ................................ 116
Engine Oil ................................................. 472
Adding ................................................... 474
Checking ................................................ 473
Displaying Oil Life ................................... 465
Low Oil Pressure Indicator ................. 78, 541
Recommended Engine Oil ....................... 472
ENGINE START/STOP Button .................... 163
EPS (Electric Power Steering)
System ............................................... 84, 543
Exhaust Gas Hazard (Carbon Monoxide) .. 71
Exterior Care (Cleaning) .......................... 508
Exterior Mirrors ........................................ 184
F
Features.................................................... 227
Filters Dust and Pollen....................................... 505
Oil .......................................................... 475
Flat Tire ............................................. 515, 522
Floor Mats ................................................ 507
17 ACURA MDX-31TZ56300.book 574 ページ ２０１６年５月１３日　金曜日　午後７時４６分

577
Index
Lights On Indicator.................................... 85
Turn Signals ............................................ 166
Load Limits ............................................... 351
Locking/Unlocking ................................... 135
Auto Door Locking/Unlocking ................. 149
Childproof Door Locks ............................ 148
From Inside ............................................. 146
From Outside .......................................... 138
Keys........................................................ 135
Using a Key............................................. 144
Lockout Prevention System ..................... 144
Low Battery Charge ................................. 541
Low Fuel Indicator ..................................... 81
Low Oil Pressure Indicator ................. 78, 541
Lower Anchors ..................................... 61, 66
Lubricant Specifications Chart ................ 561
Luggage (Maximum Load Limit) ............. 351
Lumbar Support ....................................... 186
M
Maintenance............................................ 461
Battery .................................................... 499
Brake Fluid .............................................. 480
Cleaning ................................................. 506
Climate Control System .......................... 505
Coolant .................................................. 477
Maintenance Minder
TM............................ 465
Oil .......................................................... 473
Precautions ............................................. 462
Radiator .................................................. 478 Remote Control ....................................... 503
Remote Transmitter ......................... 501, 502
Replacing Light Bulbs ............................... 481
Safety ...................................................... 463
Service Items ........................................... 467
Tires ........................................................ 490
Transmission Fluid ................................... 479
Under the Hood ...................................... 469
Wireless Headphone ................................ 504
Malfunction Indicator Lamp .............. 78, 542
Map Lights ................................................ 201
Maximum Load Limit ............................... 351
Meters, Gauges ......................................... 116
MID (Multi-information Display) ............. 117
Mirrors ....................................................... 183
Adjusting ................................................. 183
Door........................................................ 184
Exterior .................................................... 184
Interior Rearview ..................................... 183
Modifications (and Accessories) .............. 511
Moonroof .................................................. 162
MP3 ................................................... 260, 270
Multi-function Steering-wheel Controls ................................................... 117
Multi-Information Display (MID) ............. 117
Multi-View Rear Camera .......................... 455N
Numbers (Identification).......................... 562
O
Odometer................................................. 118
Off-Highway Driving Guidelines ............. 365
Oil (Engine) ............................................... 472
Adding .................................................... 474
Checking................................................. 473
Displaying Oil Life .................................... 465
Low Oil Pressure Indicator ................. 78, 541
Recommended Engine Oil ....................... 472
Viscosity .................................................. 472
On Demand Multi-Use Display
TM............. 233
Opening/Closing Hood....................................................... 470
Moonroof ............................................... 162
Power Windows ...................................... 160
Tailgate ................................................... 150
Operating the Switches Around the
Steering Wheel ....................................... 163
Outside Temperature Display .................. 119
Overheating .............................................. 539
P
Paddle Shifters (Sequential Mode) .......... 381
Pandora ®................................................... 268
Panic Mode ............................................... 159
Parking ...................................................... 445
Parking Brake ........................................... 428
Parking Brake and Brake System Indicator ............................................ 74, 543
Parking Sensor System ............................. 447
17 ACURA MDX-31TZ56300.book 577 ページ ２０１６年５月１３日　金曜日　午後７時４６分
