2017 Acura MDX navigation

| 81
NAVIGATION
Learn how to enter a destination and operate the navigation system.
Basic Navigation Operation
A real-time navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination. You can operate the system
using voice commands or the system controls.
To reduce the potential for driver distraction, certain manual functions may
be inoperable or grayed out while the vehicle is moving. Voice commands are
always available.

Steering Wheel Controls
Use the steering wheel controls to give voice
commands. For a full list of navigation voice
commands, see page 157.
Hang-Up/Back button: Press to cancel a command
or operation.
Talk button: Press to say navigation commands
from the Voice Portal screen.
Talk Button Tips
•
When using the T
alk button, wait for the beep before saying a command.
•
To bypass

the system prompts, simply press the Talk button again to say your
command.
•
Speak in a clear, natural v

oice.
•
Reduce all background noise.
•
Adjust the dashboard

vents away from the microphone in the ceiling.
•
Close the windows and moonr

oof.
NAVIGATION*
Using the navigation system while driving can take your attention away from
the road, causing a crash in which you could be seriously injured or killed.
Only operate system controls when the conditions permit you to safely do so.
WARNING
*if equipped
Back
button
Talk
button

82 |
NAVIGATION
Navigation Display and Controls
Use the controls to enter information and make selections.
REAR
AUDIO
FRONT
AUDI O
NAVFFFFAAAAAAAAAREARAUDIOFAAFRONTAUDI
OAANAVNAVFRONT
AUDIOREAR
AU DIO
NAV button: Display
the map screen or
directions when en
route. INFO button:
Select items such as
traffic incidents and
AcuraLink messages.
BA
CK button: Go back
to the previous display. MENU button:
Enter destination
information.
button: Change
screen brightness. Use
the interface dial to make
adjustments.
Interface dial (from the map screen):
Rotate to zoom in or out of the map.
Press to display the map menu. Rotate
and press to make and enter selections.
GPS signal
strength Traffic
incident icon*
Traffic
status* Traffic flow*
Current
map scale
Current
vehicle
position
Map orientation
Current
street
Landmark
icon
*subscription feature
SETTINGS button:
Choose Navi Settings.

| 83
NAVIGATION

System Guidance Volume
Adjust the navigation system guidance volume. This does not affect audio or
Bluetooth
® HandsFreeLink® volume, which is controlled by the volume knob. Use
the interface dial to make and enter selections.
1.
From the

map screen, press the interface dial to
display the Map Menu.
2.
Select Guidance Volume.
3.
Adjust the v

olume to your preferred level.
4.
Press BACK

to exit the menu.
Voice Prompt Turn the voice prompt feature on or off. Use the interface dial to make and enter
selections.
1.
Press SETTINGS.
2.
Select System Settings.
3.
Select Voice R

eco.
4.
Select Off or On.
ON: Pr

ovides voice prompts.
OFF:

Voice prompts are disabled.

84 |
NAVIGATION
Entering a Destination
Use several methods to enter a destination.
Home Address
Store your home address in the system so you can easily route to it. Use the
interface dial to make and enter selections.
1.
Press SETTINGS.
2.
Select Navi Settings.
3.
Select Personal Info.
4.
Select Edit Go Home.
5.
Enter the address and select

OK.
When your home address is stored, you can press the Talk
button and say
“Navigation

” and then “Go home” at any time. You can also select Go Home from
the destination menu.
Street Address
Enter a street address using voice commands (U.S. models only). Press the Talk
button to enter the Voice Portal screen.
You can also enter the address manually when the vehicle is stopped. While on
the map screen, press MENU and use the interface dial to select Address. Follow
the prompts.
1.
From

the Voice Portal screen, say “Navigation”
and then “Address.”
2.
The system prompts y

ou to say the entire
address. For example, say “1-2-3-4 Main Street, Los
Angeles, California.”
3.
The system interprets the addr

ess by state, city,
street, and address number. If necessary, you
may have to clarify similar matches.
4.
Say “S

et as destination” to set the route.
9:30

| 85
NAVIGATION
Place Category
Enter a point of interest using voice commands (U.S. models only). Press the Talk
button to enter the Voice Portal screen
1.
From

the Voice Portal, say “Navigation” and then
“Place name.”
2.
Say a category. For example,

“ATM/Bank.”
3.
Say the name of the point of

interest. For
example, “ABC Bank.”
4.
The system interprets the name. If necessary

,
you may have to clarify similar matches. If
there is more than one point of interest with
the name, a list of matches appears in order of
closest distance. Use the interface dial to select
an entry.
5.
Use the interface dial to select “

Set as
destination” to set the route.
You can also enter the place name manually
when the vehicle is stopped. While on the
map screen, press the MENU button and use
the interface dial to select Place Name. Enter
the name one letter at a time, and follow the
prompts.
Find Nearest Place
Enter a destination by category and distance using voice commands. Press the
Talk button to enter the Voice Portal screen.
1.
Say “Navigation

” and then “Find nearest POI
category” and a place. For example, “Find
nearest ATM.”
2.
A list of the near

est places in your area is
displayed by shortest distance to destination.
3.
Use the interface dial

to select an entry.
4.
Use the interface dial to select “

Set as destination” to set the route.
ODMD Shortcuts
You can add up to six destinations to the Shortcuts (Places tab) in the ODMD.
The addresses must be previously stored in your navigation system address book.
1.
Select Shortcuts.
2.
Select Places.
3.
Store a previousl

y stored address book entry, or
select the shortcut to route to it.

86 |
NAVIGATION

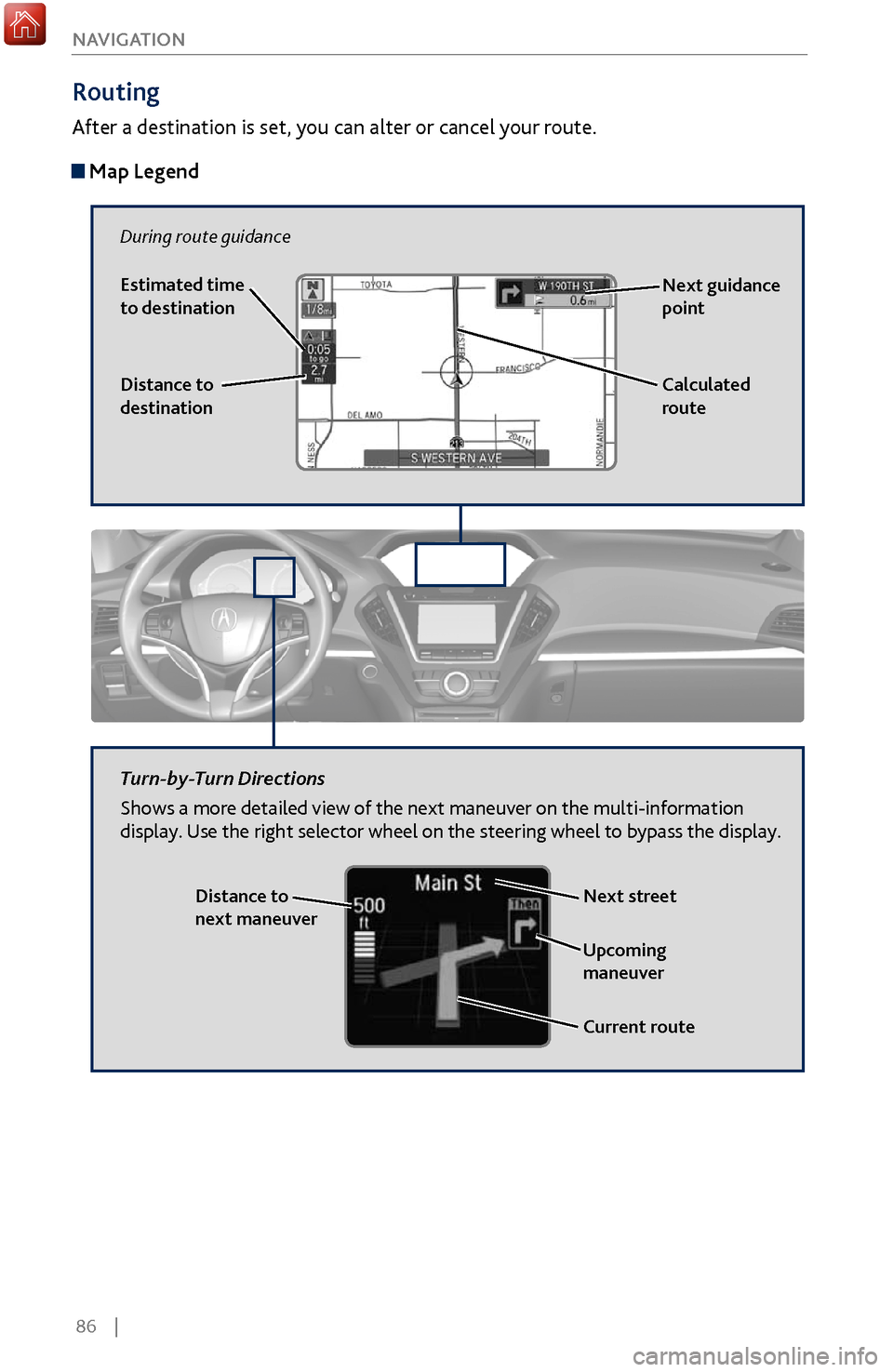

Routing
After a destination is set, you can alter or cancel your route.
Map Legend
During route guidance
Next guidance
point
Distance to
destination Calculated
route
Estimated time
to destination
Distance to
next maneuver
Turn-by-Turn Directions
Shows a more detailed view of the next maneuver on the multi-information
display. Use the right selector wheel on the steering wheel to bypass the display.
Upcoming
maneuver
Current route
Next street

| 87
NAVIGATION
Taking a
Detour
You can calculate a detour route manually if you encounter a road closure or
other obstacle. Use the interface dial to make and enter selections.
1.
When en route, press

the MENU button.
2.
Select Detour. The system attempts

to calculate
a new route by avoiding the next 5 miles (8 km)
while on a freeway or 1 mile (1 km) while on a
surface street.
Traffic Rerouting™
View traffic flow, incidents, and construction in major metro areas. You can also
route around congestion or incidents when a destination is set. Use the interface
dial to make and enter selections. Traffic information is available in certain
areas in the lower 48 states, Hawaii and some cities in Canada..
1.
From the

map screen, press the interface dial to
enter the map menu. Select Traffic Incidents.
2.
A list of incidents on

your route appears. Select
the incident you want to avoid.
3.
Select Av

oid. Repeat as necessary to select other
incidents.
4.
Select Recalculate Route.
Canceling Your Route You can cancel your route at any time.
1.
When en route, press

the MENU button.
2.
Select Cancel Route.

The route is cleared and the
map screen returns.

154 |
CLIENT INFORMATION
Learn about information specific to you as an Acura client and how to get help.
Frequently Asked Questions/Troubleshooting
Below are some frequently asked questions and troubleshooting items that you
may have about the vehicle.
Q: How do I set the vehicle clock?
A:
For vehicles without navigation, see page 55. For vehicles with navigation, the


time is automatically set using GPS signals.
Q:

Why doesn’t the vehicle start when I press the ENGINE START/STOP button?
A: The brake pedal must be pressed to start the engine.
Q: What is the AUTO setting on my headlight lever?
A: When in the AUTO position, the vehicle’s exterior lights will automatically turn


on or off depending on the ambient lighting.
Q:

Why won’t the driver’s door unlock when I grab the door handle, even though the


keyless ac

cess remote is within range?
A: If you pull the handle too quickly, the system may not have time to confirm the


door is unlocked. W

ait to hear a beep to confirm the door is unlocked. If you are


wearing gloves,

the system may be slow to respond.
Q: After my battery was disconnected or went dead, the audio system is asking for a


code. Wher

e do I find this?
A: In most cases, you do not need to enter a code. Turn on the vehicle and the audio


system, and press and hold the power button until

the system reactivates.
Q: Why can’t I operate Pandora* through the audio system?
A: Audio may be streaming through Bluetooth® Audio. Make sure Pandora mode


is selected and the phone cable is properl

y connected to the USB adapter. Some


phones may prompt y

ou to “Allow” a connection.
Q: Is my phone compatible with Bluetooth features?
A: Visit www.acura.com/handsfreelink (U.S) or www.handsfreelink.ca (Canada) to


check phone compatibility for Bluet

ooth® Audio, Bluetooth® HandsFreeLink®,


and SMS text messaging.
Q:

Every time I press the Talk button, the system gives me voice prompts. Can I turn


these off?*
A: Pr

ess SETTINGS. Use the interface dial to select System Settings then Voice Rec.


For the V

oice Prompt option, select Off.
CLIENT INFORMATION
*if equipped
