2017 Acura ILX parking sensors

403
uuParking Your Vehicle uCross Traffic Monitor*
Continued
Driving
Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.
The system is convenient when you are backing out of a parking space.1Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
17 ACURA ILX-31TX66400.book 403 ページ ２０１６年３月１５日　火曜日　午後５時０分

uuParking Your Vehicle uCross Traffic Monitor*
404
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 405
2 Customized Features* P. 245
•The shift lever is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not detect or provide aler ts for a vehicle that is moving away from
your vehicle, and it may detect or alert for pedestrians, bicycles, or stationary
objects.
■How the System Works1 Cross Traffic Monitor*
Cross traffic monitor may not detect or may delay
detecting an approaching vehicle, or may alert
detection without an appr oaching vehicle under the
following conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 and 16 mph (10 and 25 km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilt ed due to a heavy load in the rear.
•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
•The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have a vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
17 ACURA ILX-31TX66400.book 404 ページ ２０１６年３月１５日　火曜日　午後５時０分

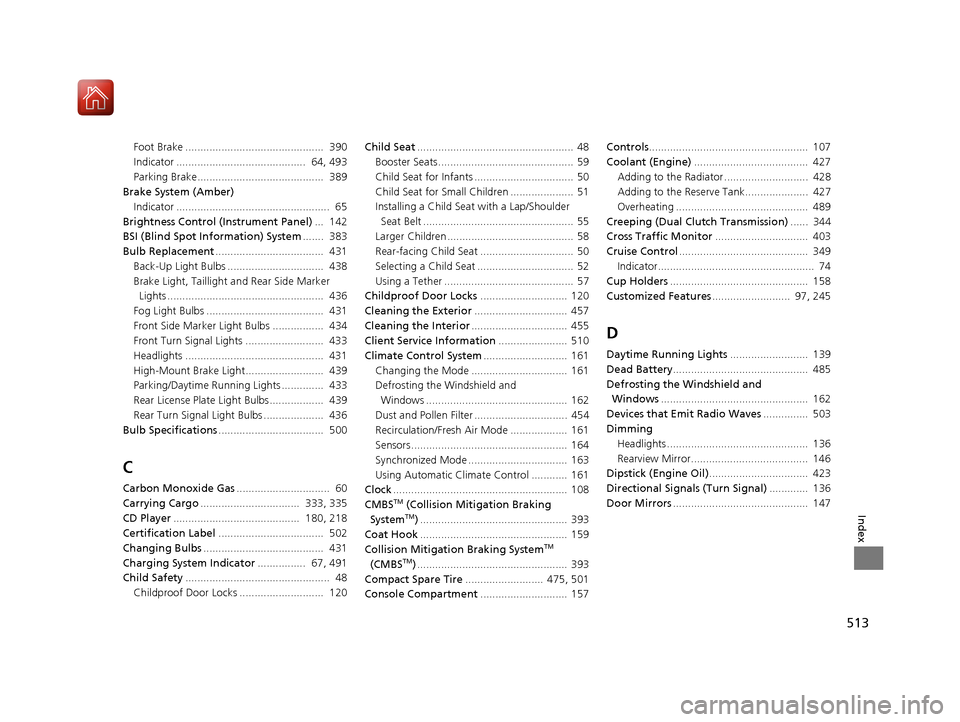

513
Index
Foot Brake .............................................. 390
Indicator ........................................... 64, 493
Parking Brake.......................................... 389
Brake System (Amber) Indicator ................................................... 65
Brightness Control (Instrument Panel) ... 142
BSI (Blind Spot Information) System ....... 383
Bulb Replacement .................................... 431
Back-Up Light Bulbs ................................ 438
Brake Light, Taillight a nd Rear Side Marker
Lights .................................................... 436
Fog Light Bulbs ....................................... 431
Front Side Marker Light Bulbs ................. 434
Front Turn Signal Lights .......................... 433
Headlights .............................................. 431
High-Mount Brake Light.......................... 439
Parking/Daytime Running Lights .............. 433
Rear License Plate Light Bulbs.................. 439
Rear Turn Signal Light Bulbs .................... 436
Bulb Specifications ................................... 500
C
Carbon Monoxide Gas ............................... 60
Carrying Cargo ................................. 333, 335
CD Player .......................................... 180, 218
Certification Label ................................... 502
Changing Bulbs ........................................ 431
Charging System Indicator ................ 67, 491
Child Safety ................................................ 48
Childproof Door Locks ............................ 120 Child Seat
.................................................... 48
Booster Seats ............................................. 59
Child Seat for Infants ................................. 50
Child Seat for Small Children ..................... 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 55
Larger Children .......................................... 58
Rear-facing Child Seat ............................... 50
Selecting a Child Seat ................................ 52
Using a Tether ........................................... 57
Childproof Door Locks ............................. 120
Cleaning the Exterior ............................... 457
Cleaning the Interior ................................ 455
Client Service Information ....................... 510
Climate Control System ............................ 161
Changing the Mode ................................ 161
Defrosting the Windshield and
Windows ............................................... 162
Dust and Pollen Filter ............................... 454
Recirculation/Fresh Air Mode ................... 161
Sensors .................................................... 164
Synchronized Mode ................................. 163
Using Automatic Climate Control ............ 161
Clock .......................................................... 108
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 393
Coat Hook ................................................. 159
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 393
Compact Spare Tire .......................... 475, 501
Console Compartment ............................. 157 Controls
..................................................... 107
Coolant (Engine) ...................................... 427
Adding to the Radiator ............................ 428
Adding to the Reserve Tank..................... 427
Overheating ............................................ 489
Creeping (Dual Clutch Transmission) ...... 344
Cross Traffic Monitor ............................... 403
Cruise Control ........................................... 349
Indicator.................................................... 74
Cup Holders .............................................. 158
Customized Features .......................... 97, 245
D
Daytime Running Lights .......................... 139
Dead Battery ............................................. 485
Defrosting the Windshield and Windows ................................................. 162
Devices that Emit Radio Waves ............... 503
Dimming Headlights ............................................... 136
Rearview Mirror....................................... 146
Dipstick (Engine Oil) ................................. 423
Directional Signals (Turn Signal) ............. 136
Door Mirrors ............................................. 147
17 ACURA ILX-31TX66400.book 513 ページ ２０１６年３月１５日　火曜日　午後５時０分
