2017 Acura ILX display

89
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Multi-Information Display
The multi-information displa y shows the odometer, trip meter, outside temperature
indicator, and other gauges. It also displa ys important messages such as warnings
and other helpful information.
17 ACURA ILX-31TX66400.book 89 ページ ２０１６年３月１５日　火曜日　午後５時０分

90
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Main displays
Press the (information) button to change the display.

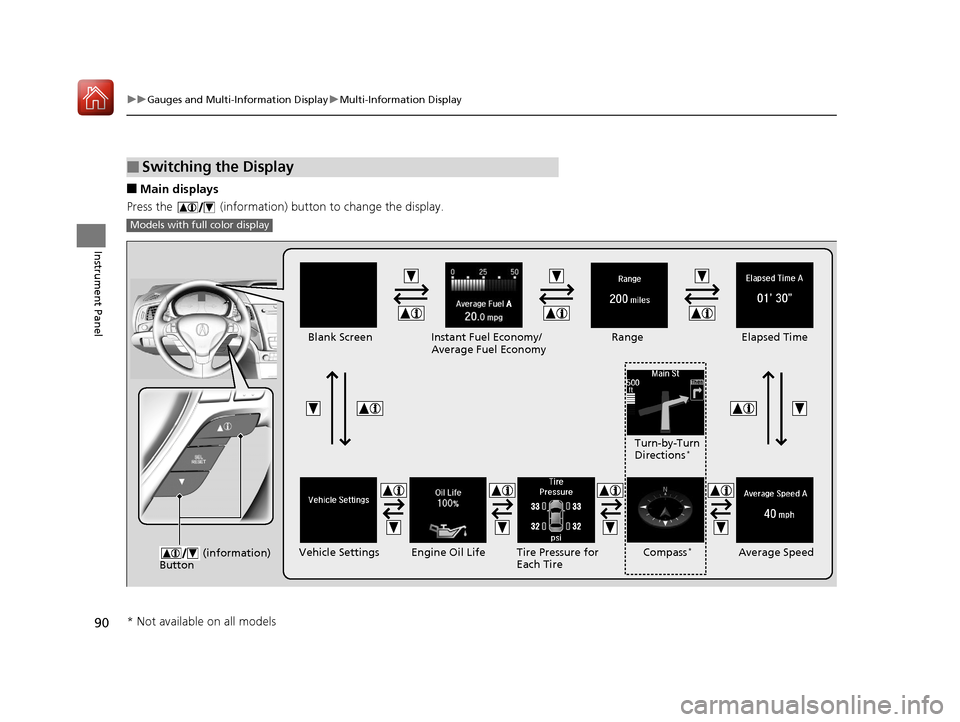

■Switching the Display
Models with full color display
QP QQ
QP
QQ
(information)
ButtonEngine Oil Life
Vehicle Settings Elapsed Time
Blank Screen
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass*Tire Pressure for
Each TireTurn-by-Turn
Directions
*
* Not available on all models
17 ACURA ILX-31TX66400.book 90 ページ ２０１６年３月１５日　火曜日　午後５時０分

91
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Models without fu ll color display
Engine Oil Life
Vehicle Settings Elapsed Time
Blank Screen
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Tire Pressure for
Each Tire
(information)
Button
17 ACURA ILX-31TX66400.book 91 ページ ２０１６年３月１５日　火曜日　午後５時０分

92
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Lower displays
Press the SEL/RESET button to change the display.
Models with full color display
Odometer Trip ATrip B
Outside temperature
SEL/RESET Button
SEL/RESET
Button SEL/RESET

Button
SEL/RESET Button
17 ACURA ILX-31TX66400.book 92 ページ ２０１６年３月１５日　火曜日　午後５時０分

93
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Models without fu ll color display
Odometer Trip ATrip B
Outside temperature
SEL/RESET Button
SEL/RESET Button
SEL/RESET
Button SEL/RESET
Button
17 ACURA ILX-31TX66400.book 93 ページ ２０１６年３月１５日　火曜日　午後５時０分

uuGauges and Multi-Information Display uMulti-Information Display
94
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F (U.S.) or ± 3°C (Canada) if the
temperature reading seems incorrect.
Shows the estimated average fuel econom y of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display’s customized
features to correct the temperature.
2 Customized Features P. 97, 245
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 97, 245
17 ACURA ILX-31TX66400.book 94 ページ ２０１６年３月１５日　火曜日　午後５時０分

Continued95
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining power and fuel. This
distance is estimated from the fuel economy of your previous trips.
Shows the time elapsed since the Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km /h (Canada) since the Trip A or Trip B
was reset.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Turn-by-Turn Directions*
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 97, 245
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 97, 245
1Turn-by-Turn Directions*
The multi-information disp lay shows a compass when
the route guidance is not used.
You can select whether the turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 97, 245
* Not available on all models
17 ACURA ILX-31TX66400.book 95 ページ ２０１６年３月１５日　火曜日　午後５時０分

96
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows each tire’s pressure.
2 Tire Pressure Monitor P. 386
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 415
■Tire Pressure Monitor
■Engine Oil Life
17 ACURA ILX-31TX66400.book 96 ページ ２０１６年３月１５日　火曜日　午後５時０分
