206Vehicle careFront arm position of the lifting
platform at the underbody.

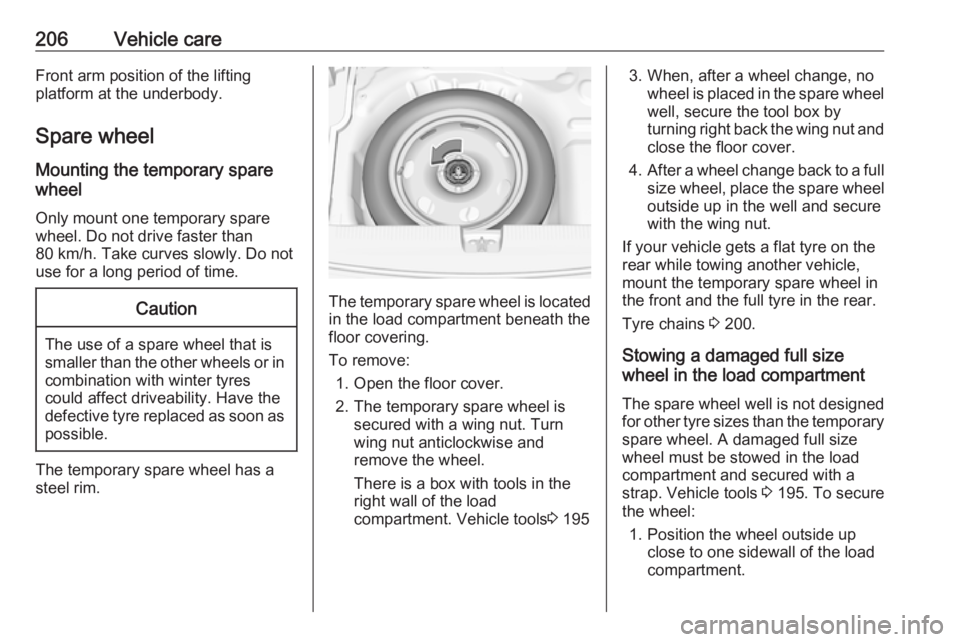

Spare wheel Mounting the temporary spare
wheel
Only mount one temporary spare
wheel. Do not drive faster than
80 km/h. Take curves slowly. Do not
use for a long period of time.Caution
The use of a spare wheel that is smaller than the other wheels or in
combination with winter tyres
could affect driveability. Have the defective tyre replaced as soon as
possible.
The temporary spare wheel has a
steel rim.
The temporary spare wheel is located in the load compartment beneath the
floor covering.
To remove: 1. Open the floor cover.
2. The temporary spare wheel is secured with a wing nut. Turn
wing nut anticlockwise and
remove the wheel.
There is a box with tools in the
right wall of the load
compartment. Vehicle tools 3 195
3. When, after a wheel change, no
wheel is placed in the spare wheel
well, secure the tool box by
turning right back the wing nut and
close the floor cover.
4. After a wheel change back to a full
size wheel, place the spare wheel
outside up in the well and secure
with the wing nut.
If your vehicle gets a flat tyre on the
rear while towing another vehicle,
mount the temporary spare wheel in
the front and the full tyre in the rear.
Tyre chains 3 200.
Stowing a damaged full size
wheel in the load compartment
The spare wheel well is not designed for other tyre sizes than the temporaryspare wheel. A damaged full size
wheel must be stowed in the load
compartment and secured with a
strap. Vehicle tools 3 195. To secure
the wheel:
1. Position the wheel outside up close to one sidewall of the load
compartment.
238IndexAAccessories and vehicle modifications .......................... 175
Adaptive forward lighting ...........109
AdBlue .................................. 90, 137
Adjustable air vents ...................124
Advanced parking assist ............154
Airbag and belt tensioners ...........87
Airbag deactivation ................56, 88
Airbag label................................... 52 Airbag system .............................. 52
Air conditioning regular operation ................................ 126
Air conditioning system .............. 116
Air intake .................................... 125
Air vents...................................... 124
Antilock brake system ................ 144
Antilock brake system (ABS) .......89
Anti-theft alarm system ................33
Anti-theft locking system .............. 32
Appearance care ........................211
Armrest ................................... 47, 48
Ashtrays ....................................... 79
Automatic anti-dazzle ..................37
Automatic light control ...............108
Automatic locking ........................29
Automatic transmission .............140
Autostop ............................... 91, 132
Auxiliary heater ........................... 123B
Battery discharge protection ......114
Battery voltage ............................. 99
Belts.............................................. 49
BlueInjection ............................... 137
Bonnet ....................................... 177
Brake and clutch fluid .................215
Brake and clutch system .............89
Brake assist ............................... 145
Brake fluid .................................. 180
Brakes ............................... 144, 180
Breakdown.................................. 209
Bulb replacement ....................... 183
C Capacities .................................. 228
Catalytic converter .....................137
Central locking system ................25
Centre console lighting ..............114
Centre console storage ...............65
Changing tyre and wheel size ...199
Charging system .......................... 88
Child locks ................................... 30
Child restraint installation locations ................................... 61
Child restraints.............................. 58
Child restraint systems ................58
Climate control ............................. 16
Climate control systems .............115
Clock............................................. 78
