2017.5 VAUXHALL VIVARO key

30Keys, doors and windowsfive seconds. When closing the rear
doors/tailgate, they are locked
automatically.
Automatic locking 3 30.
Handsfree operation is automatically
disabled when e is pressed. To re-
enable handsfree operation, restart
the engine.
Electronic key system 3 22.
Automatic locking
Automatic locking after driving off This security feature can be
configured to automatically lock the
doors and load compartment as soon as the vehicle is driven.
Activation
With the ignition switched on, press and hold e on the central locking
switch for approx. 5 seconds. An audible signal confirms activation.Deactivation
With the ignition switched on, press and hold e on the central locking
switch for approx. 5 seconds. An
audible signal confirms deactivation.
Central locking switch 3 24.
Child locks
The child safety lock for the sliding
side door is located on its rearward
facing edge.
To prevent the sliding side door from being opened from the inside, open
the door and engage the child lock.
9 Warning
Use the child locks whenever
children are occupying the rear
seats, to prevent unintentional
opening from the inside.
Using a suitable tool, turn the child
lock switch in the sliding side door to
the locked position; the door cannot
be opened from the inside.
The child lock remains engaged even after unlocking the vehicle with the
remote control. The door can only be
opened from outside.
To disengage, turn the child lock
switch to the unlocked position.

Keys, doors and windows31Doors
Sliding door
Open and close the sliding side door
only when the vehicle is at a standstill
with the parking brake applied.
Pull the handle towards the rear to
unlock and open from the inside.
The door can be locked from inside
the vehicle with the interior lock
switch.
Central locking system 3 24.
9 Warning
Take care when operating the
sliding side door. Risk of injury.
Ensure that nothing becomes
trapped during operation and no-
one is standing within the moving
area.
If the vehicle is parked on a slope,
open sliding doors may move
accidentally on account of their
weight.
Close the sliding doors before
driving off.
Rear doors
The rear doors can only be opened if
the vehicle is unlocked. Central
locking system, manual key operation 3 24.
To open the left-hand rear door, pull
the outside handle.
The door is opened from inside the
vehicle by pulling the interior handle.
The right-hand rear door is released
using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.

32Keys, doors and windows
The doors are retained in the 90º
position by locking stays. To open the
doors to 180º or further, pull the door
release handles and swing open to
the desired position.
9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
When closing the doors, secure each locking stay to the catch on the door
frame.
Always close the right-hand door
before the left-hand door.
Door locks 3 24, Central locking
system 3 24.
Driving with an open load
compartment
In exceptional cases only, to drive
with the right-hand rear door open
(e.g. if long objects need to be
transported), open the left-hand
followed by the right-hand rear door,
then close the left-hand rear door.
Notice
Do not use the left-hand rear door to
hold objects in place.
If possible, secure objects with
lashing straps attached to lashing
eyes 3 77.

Keys, doors and windows33
Engage the interior lock in its housing
by turning the handle clockwise to the locked position. The door is bolted
and cannot be opened from outside.
Notice
The number plate is only
distinguishable and illuminated
correctly if the rear doors are closed.
Disengage the lock by turning the
handle anticlockwise, to enable the
door to be opened.
Caution
Always make sure that the load in
the vehicle is securely stowed
when driving with an open load compartment.
For further information, refer to
"Loading information" 3 80.
Always comply with local or national regulations.
9 Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless and could be fatal if inhaled.
When driving with an open load
compartment, exhaust gases
could enter the vehicle. Open the
windows.
Load compartment
Tailgate Opening
After unlocking, press tailgate button
and lift tailgate to the fully open
position.
The tailgate can be also opened from inside the vehicle by operating the
tailgate interior release.
Notice
In very cold climates, the opening
assistance provided by the tailgate
hydraulic struts may be reduced.
Central locking system 3 24.

34Keys, doors and windowsClosing
Lower the tailgate using the interior
strap.
Caution
Place fingers through the strap
before pulling, to avoid damage to the strap.
Release strap when tailgate is
lowered and push tailgate to close
fully.
Central locking system 3 24.
Emergency tailgate opening from
inside the vehicle
Depending on model, prise off the
cover on the inside of the tailgate.
Then grasp the metal string and pull
it downwards to unlock. Push the
tailgate to open.
General hints for operating
tailgate9 Danger
Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which can not be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.
Caution
Before opening the tailgate, check overhead obstructions, e.g. a
garage door, to avoid damage to
the tailgate.
Ensure there is adequate
clearance both above (at least
2.15 metres) and behind when
opening tailgate.

Keys, doors and windows35Notice
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.Vehicle security
Anti-theft locking system9 Warning
Do not use the system if there are
people in the vehicle! The doorscannot be unlocked from the
inside.
The system deadlocks all doors and the load compartment.
All doors and the load compartment
must be closed or the system cannot
be activated.
Notice
The anti-theft locking system cannot be activated when the hazard
warning lights or sidelights are
switched on.
Activation and deactivation are not possible with the central locking
switch.
Central locking system 3 24.
2-button and 3-button remote
control operation
Operation is confirmed by the hazard warning flashers flashing five times.
Activation
Press e twice.
- or -
Turn manual key in driver's door lock
towards rear of vehicle twice.
Deactivation
Unlock the doors by pressing c on the
remote control or by turning the
manual key in driver's door lock
towards front of vehicle.

36Keys, doors and windowsElectronic key system operationOperation is confirmed by the hazard
warning flashers.
Activation

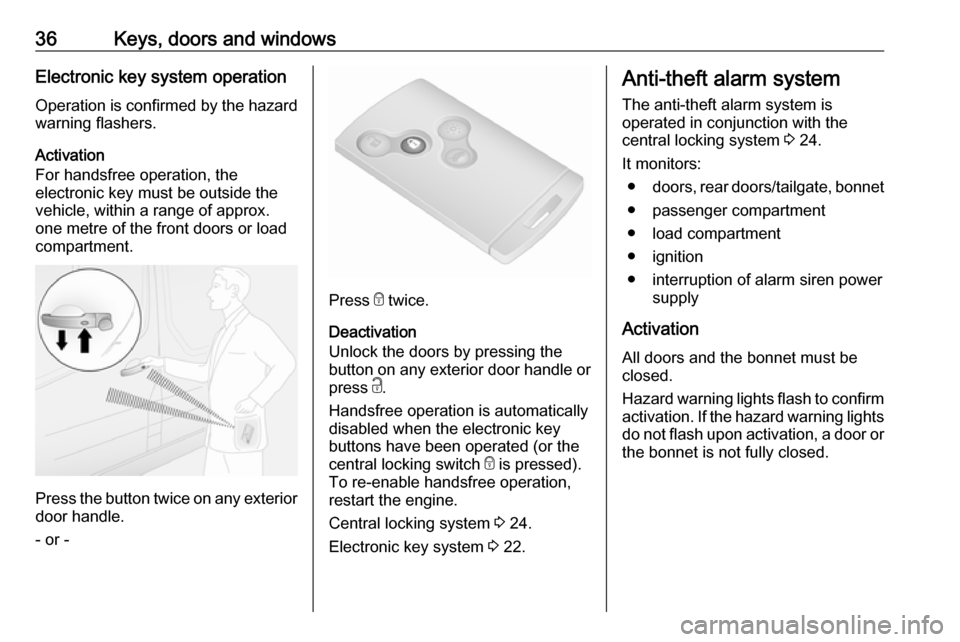

For handsfree operation, the
electronic key must be outside the
vehicle, within a range of approx.
one metre of the front doors or load compartment.
Press the button twice on any exterior
door handle.
- or -
Press e twice.
Deactivation
Unlock the doors by pressing the
button on any exterior door handle or
press c.
Handsfree operation is automatically disabled when the electronic key
buttons have been operated (or the
central locking switch e is pressed).
To re-enable handsfree operation,
restart the engine.
Central locking system 3 24.
Electronic key system 3 22.
Anti-theft alarm system
The anti-theft alarm system is
operated in conjunction with the
central locking system 3 24.
It monitors: ● doors, rear doors/tailgate, bonnet
● passenger compartment
● load compartment
● ignition
● interruption of alarm siren power supply
Activation
All doors and the bonnet must be
closed.
Hazard warning lights flash to confirm activation. If the hazard warning lights do not flash upon activation, a door or
the bonnet is not fully closed.

Keys, doors and windows372-button and 3-button remote control
Press e to activate the anti-theft alarm
system.
Electronic key
For handsfree operation, the
electronic key must be outside the
vehicle, within a range of approx.
one metre of the front doors or load compartment.
Press the button on any exterior door
handle.
- or -
Press e to activate the anti-theft alarm
system.
Electronic key system 3 22.
Deactivation
Unlocking the vehicle (with c or the
button on any exterior door handle) or switching on the ignition deactivates
the anti-theft alarm system. Hazard
warning lights flash to confirm
deactivation.
The system is not deactivated when
unlocking the driver's door with the
key or with the central locking switch
in the passenger compartment.
Notice
If the alarm has been triggered,
unlocking the vehicle with the key
will not stop the alarm siren. To stop the siren, switch on the ignition. The
hazard warning lights will not flash
upon deactivation if the alarm has
been triggered.
