2017.5 OPEL MOVANO_B display

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.
● The table of contents at the beginning of this manual and
within each section shows where the information is located.● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the factory engine designations. The
corresponding sales
designations can be found in the
section "Technical data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● The vehicle display screens may not support your specific
language.
● Display messages and interior labelling are written in bold
letters.

In brief111Fixed air vents .................... 130
2 Headlight range
adjustment ......................... 110
Ultrasonic parking assist .....163
Traction control system ......156
Electronic Stability
Program ............................. 157
3 Side air vents .....................129
4 Light switch ........................ 108
Turn and lane-change
signals ................................ 111
High beam and low beam,
headlight flash ....................109
Sidelights ............................ 108
Automatic light control .......108
Exit lighting ......................... 115
Front fog lights ...................112
Rear fog light ...................... 112
High beam assist ................109
5 Instruments .......................... 89
Transmission display ............93Driver Information Centre .... 102
Trip computer ...................... 104
6 Horn ..................................... 84
Driver airbag ........................ 60
7 Remote control on
steering wheel .......................84
Cruise control .....................159
8 Windscreen wiper,
windscreen washer system ..85
Trip computer ...................... 104
9 Coin tray ............................... 72
10 Power outlet, USB slot ..........87
11 Centre air vents .................. 129
12 Storage compartment ...........72
13 Info-display .......................... 102
14 Front passenger airbag .........60
15 Storage compartment ..........72
16 Glovebox .............................. 73
17 Seat belt reminder ................. 96
Front passenger airbag
deactivation ........................... 61
18 Cupholders ........................... 7319Climate control system ....... 116
Electronic climate control
system ................................. 118
20 Cigarette lighter .................... 89
Power outlet ......................... 87
21 Gear lever, Manual
transmission ........................ 150
Manual transmission
automated ........................... 150
22 Cruise control and speed
limiter ................................. 159
Manual transmission
automated,
Winter and Laden modes ....152
Idle speed control ...............136
Stop-start system ................136
ECO mode .......................... 133
23 Ignition switch with
steering wheel lock ............134
24 Steering column controls .....84
25 Steering wheel adjustment ..84
26 Bonnet release lever ..........176
27 Auxiliary heater ...................123

Seats, restraints45
● Sit with buttocks as far backagainst the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when pressing
the pedals. Slide the front
passenger seat as far back as
possible.
● Set seat height high enough to have a clear field of vision on allsides and of all display
instruments. There should be at
least one hand of clearance
between head and the roof
frame. Thighs should rest lightly
on the seat without pressing into
it.
● Sit with shoulders as far back against the backrest as possible.Set the backrest rake so that it is
possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when turning the steering wheel. Do
not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
● Adjust seat and steering wheel in
a way that the wrist rests on top
of the steering wheel while the
arm is fully extended and
shoulders on the backrest.
● Adjust the steering wheel 3 84.
● Adjust the head restraint 3 43.
● Adjust the height of the seat belt 3 54.
● Adjust the lumbar support so that
it supports the natural shape of
the spine 3 45.
Seat adjustment Drive only with engaged seats and
backrests.Longitudinal adjustment
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.

Instruments and controls83Instruments and
controlsControls ....................................... 84
Steering wheel adjustment ........84
Steering wheel controls .............84
Horn ........................................... 84
Steering column controls ...........84
Windscreen wiper/washer .........85
Outside temperature ..................86
Clock ......................................... 87
Power outlets ............................. 87
Cigarette lighter ......................... 89
Ashtrays .................................... 89
Warning lights, gauges and indi‐
cators ........................................... 89
Instrument cluster ......................89
Speedometer ............................. 89
Odometer .................................. 90
Trip odometer ............................ 90
Tachometer ............................... 90
Fuel gauge ................................ 91
AdBlue gauge ............................ 91
Engine coolant temperature gauge ....................................... 91
Engine oil level monitor .............92
Service display .......................... 92Transmission display .................93
Control indicators ......................93
Turn signal ................................. 96
Seat belt reminder .....................96
Airbag and belt tensioners .........96
Airbag deactivation ....................96
Charging system .......................97
Malfunction indicator light ..........97
Service vehicle soon .................97
Stop engine ............................... 98
Brake system ............................. 98
Antilock brake system (ABS) .....98
Upshift ....................................... 98
Lane departure warning ............98
Electronic Stability Program ......99
Electronic Stability Program off ............................................. 99
Engine coolant temperature ......99
Preheating ................................. 99
AdBlue ....................................... 99
Tyre pressure monitoring system ...................................... 99
Engine oil pressure ..................100
Low fuel ................................... 100
Stop-start system ....................100
Exterior light ............................ 101
High beam ............................... 101
High beam assist .....................101
Fog light ................................... 101
Rear fog light ........................... 101Cruise control.......................... 101
Tachograph ............................. 101
Door open ................................ 101
Information displays ...................102
Driver Information Centre ........102
Info display .............................. 102
Vehicle messages ......................103
Warning chimes .......................103
Trip computer ............................. 104
Tachograph ................................ 106

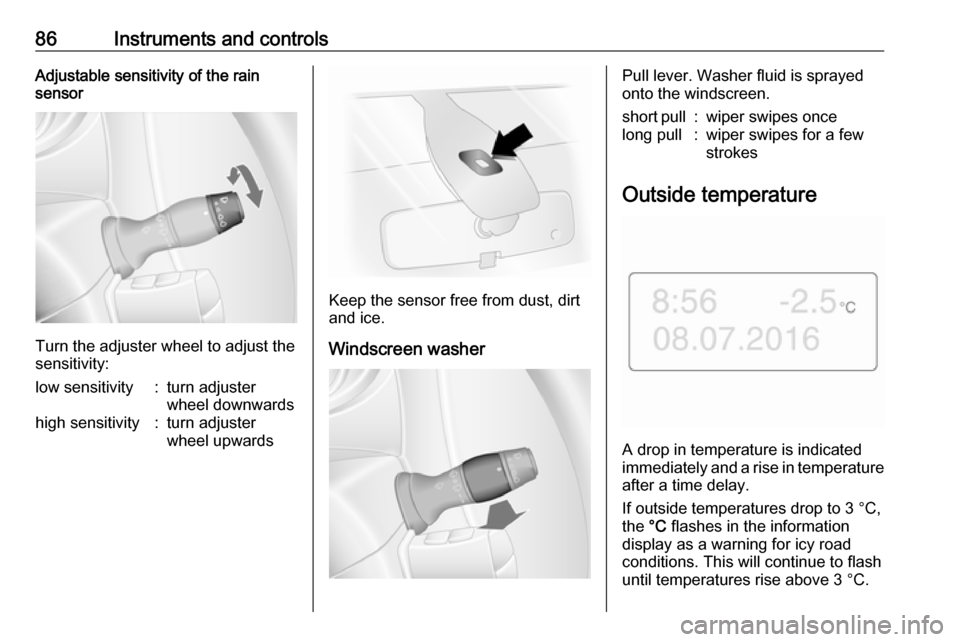

86Instruments and controlsAdjustable sensitivity of the rain
sensor
Turn the adjuster wheel to adjust the
sensitivity:
low sensitivity:turn adjuster
wheel downwardshigh sensitivity:turn adjuster
wheel upwards
Keep the sensor free from dust, dirt
and ice.
Windscreen washer
Pull lever. Washer fluid is sprayed
onto the windscreen.short pull:wiper swipes oncelong pull:wiper swipes for a few
strokes
Outside temperature
A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.
If outside temperatures drop to 3 °C, the °C flashes in the information
display as a warning for icy road
conditions. This will continue to flash until temperatures rise above 3 °C.

Instruments and controls879Warning
The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.
Clock
Depending on vehicle, the current
time and/or date may appear in the information display 3 102 or the
Driver Information Centre 3 102.
Set time and date in information
display
Hours and minutes can be adjusted
by pressing the appropriate buttons
by the display or with the Infotainment
system controls.
Further information is available in the
Infotainment manual.
Set time in Driver Information
Centre
Display the clock function by pressing button repeatedly on end of wiper
lever. When the time flashes (after
approx. two seconds):
● Press and hold the bottom button.
● Hours flash.
● Press top button to change hours.
● Press and hold bottom button to set hours.
● Minutes flash.
● Press top button to change minutes.
● Press and hold bottom button to set minutes and exit setting
mode.
Power outlets
12 V power outlets are located on top
of the instrument panel, or beside the gearshift lever.

90Instruments and controlsSpeed limiterMaximum speed may be restricted by
a speed limiter. As a visible indication
of this, a warning label is located on
the instrument panel.
A warning buzzer will sound for
ten seconds if the vehicle briefly
exceeds the set limit.
Note
Under certain conditions (e.g. steep
inclines) the vehicle speed may
exceed the set limit.
Speed limiter 3 163, cruise control
speed limiter 3 159.Odometer
Displays the recorded distance in km.
Trip odometer
The trip odometer displays the
distance travelled since the last reset.
Press button once on end of
windscreen wiper lever to display the
trip odometer.
To reset, with the trip odometer
displayed, press and hold button for a few seconds with the ignition on. The
display will flash and the value will
reset to zero.
Tachograph 3 106.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine at risk.

Instruments and controls91Fuel gauge
Displays fuel level in the tank.
Control indicator Y illuminates if the
level in the tank is low. Refuel
immediately 3 169.
Never run the tank dry. Diesel fuel
system, bleeding 3 183.
Because of the fuel remaining in the
tank, the top-up quantity may be less
than the specified tank capacity.
AdBlue gauge
In versions without AdBlue level
warnings in the Driver Information
Centre, an AdBlue gauge is present,
which shows the current AdBlue fluid
level remaining in the tank.
Control indicator Y 3 99 illuminates
if the level in the tank is low. Refill AdBlue as soon as possible to avoid
prevention of engine starts.
AdBlue 3 143.
Engine coolant temperature
gauge
Displays the coolant temperature.
left area:engine operating
temperature not yet
reachedcentral
area:normal operating
temperatureright area:temperature too high
Control indicator W illuminates if the
temperature is too high 3 98,
3 99.
