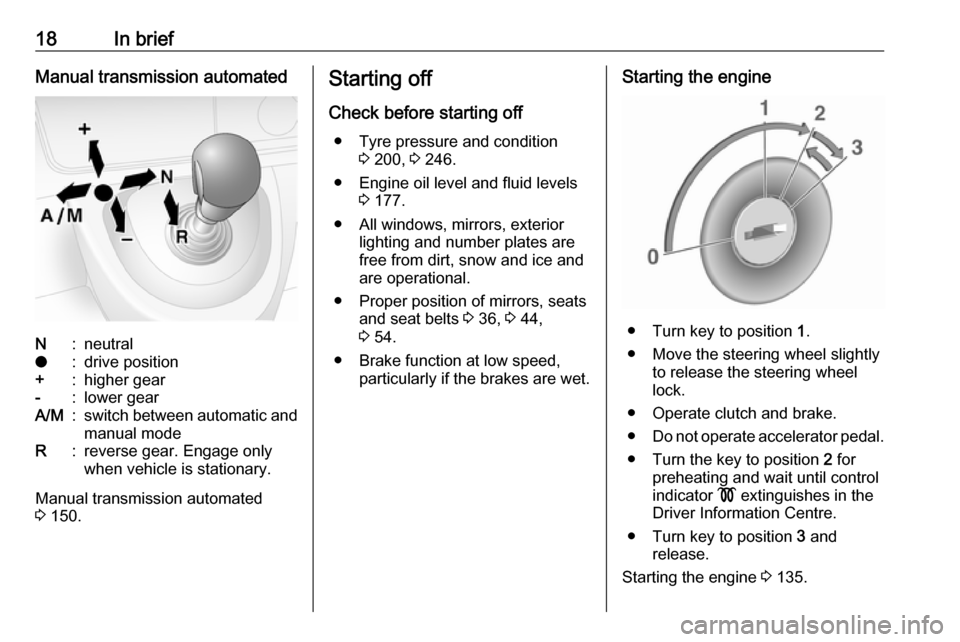

18In briefManual transmission automatedN:neutralo:drive position+:higher gear-:lower gearA/M:switch between automatic and
manual modeR:reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 150.
Starting off
Check before starting off ● Tyre pressure and condition 3 200, 3 246.
● Engine oil level and fluid levels 3 177.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 36, 3 44,
3 54.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre.
● Turn key to position 3 and
release.
Starting the engine 3 135.

Instruments and controls103Vehicle messages
Messages appear in the Driver
Information Centre, in combination
with control indicator A or C.
Information messagesInformation messagesBATTERY MODE: ECONOMYESP OFFAUTO LIGHTS DEACTIVATEDOIL LEVEL CORRECT
Fault messages Displayed in combination with control
indicator A. Drive with caution and
seek the assistance of a workshop.
To remove fault message, press
button on end of wiper lever. After a
few seconds the message may
disappear automatically and A
remains illuminated. The fault will
then be stored in the on board
system.
Fault messagesCHECK ESPCHECK FUEL FILTERCHECK GEARBOXCHECK AUTO LIGHTS
Warning messages
These may appear with control
indicator C or in combination with
other warning messages, control
indicators or an audible warning. Stop engine immediately and seek the
assistance of a workshop.
Warning messagesINJECTION FAULTENGINE OVERHEATINGGEARBOX OVERHEATING
Tyre pressure monitoring system
3 201.
Warning chimes
When starting the engine or whilst
driving
Only one warning chime will sound at a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
● If seat belt is not fastened 3 54.
● If a certain speed is exceeded with the parking brake applied
3 155.
● If the parking assist detects an object or a fault is present
3 163.
● If the vehicle has manual transmission automated and the
clutch temperature is too high
3 150.
● If the vehicle speed briefly exceeds a set limit 3 89.
● During closing of the power sliding door 3 28.
● If the sliding door is open and the
parking brake is released 3 28.

174Vehicle careVehicle careGeneral Information...................175
Accessories and vehicle modifications .......................... 175
Vehicle storage ........................175
End-of-life vehicle recovery .....176
Vehicle checks ........................... 176
Performing work ......................176
Bonnet ..................................... 176
Engine oil ................................. 177
Engine coolant ......................... 178
Power steering fluid .................179
Washer fluid ............................ 180
Brakes ..................................... 180
Brake fluid ............................... 180
Vehicle battery ......................... 181
Diesel fuel filter ........................183
Diesel fuel system bleeding .....183
Wiper blade replacement ........184
Bulb replacement .......................185
Headlights ............................... 185
Adaptive forward lighting .........187
Fog lights ................................. 188
Front turn signal lights .............188
Tail lights ................................. 189
Side turn signal lights ..............190Centre high-mounted brake
light ......................................... 191
Number plate light ...................192
Interior lights ............................ 192
Instrument panel illumination ...193
Electrical system ........................194
Fuses ....................................... 194
Engine compartment fuse box . 195
Instrument panel fuse box .......195
Load compartment fuse box ....196
Vehicle tools .............................. 198
Tools ........................................ 198
Wheels and tyres .......................199
Tyres ....................................... 199
Winter tyres ............................. 200
Tyre designations ....................200
Tyre pressure .......................... 200
Tyre pressure monitoring system .................................... 201
Tread depth ............................. 203
Changing tyre and wheel size . 203 Wheel covers ........................... 204
Tyre chains .............................. 204
Tyre repair kit .......................... 204
Wheel changing .......................208
Spare wheel ............................ 210
Jump starting ............................. 213Towing....................................... 215
Towing the vehicle ...................215
Towing another vehicle ...........216
Appearance care .......................217
Exterior care ............................ 217
Interior care ............................. 219

Vehicle care177
Pull the safety catch, located slightly
left of centre, and open the bonnet.
Pull up the support rod from its holder,
then secure it in the right side hook on the underside of the bonnet.
If the bonnet is opened during an Autostop, the engine will be restarted
automatically for safety reasons.
Stop-start system 3 136.Caution
Ensure the windscreen wiper is
switched off before opening the
bonnet 3 85.
Closing
Before closing the bonnet, press the
support into the holder.
Lower the bonnet and allow it to drop into the catch from a low height
(20-25 cm). Check that the bonnet is
engaged.
Caution
Do not press the bonnet into the
latch, to avoid dents.
9 Warning
In the event of even a minor head-
on collision, have the bonnet
safety catch checked by a
workshop.
Engine oil
Check the engine oil level manually on a regular basis to prevent damage
to the engine.
Ensure that the correct specification
of oil is used. Recommended fluids
and lubricants 3 222.
The maximum engine oil
consumption is 0.6 litres per
1000 km.
Check with the vehicle on a level
surface. The engine must be at
operating temperature and switched
off for at least ten minutes.
Pull out the dipstick, wipe it clean,
insert it to the stop on the handle, pull
out and read the engine oil level.
