2016 YAMAHA YZF-R1M clock setting

Instrument and control functions
4-8
1
2
345
6
7
8
9
10
11
12
EAU65991
Oil pressure and coolant tempera-
ture warning light
This warning light comes on if the en-
gine oil pressure is low or if the coolant
temperature is high. If this occurs, stop
the engine immediately.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on again after going off briefly, and then
remain on until the engine is started. If
the warning light does not come on ini-
tially when the key is turned to “ON”,
have a Yamaha dealer check the elec-
trical circuit.NOTICE
ECA22441
If the oil pressure and coolant warn-
ing light does not go off after start-
ing the engine or if it comes on while
the engine is running, stop the vehi-
cle and engine immediately.
If the engine is overheating, the
coolant temperature warning
icon will come on. Let the en-
gine cool. Check the coolant
level (see page 7-38).

If the engine oil pressure is low, the oil pressure warning icon
will come on. Check the oil level
(see page 7-12).

If the warning light remains on
after letting the engine cool and
confirming the proper oil level,
have a Yamaha dealer check the
vehicle. Do not continue to op-erate the vehicle!
EAU66002
Engine trouble and system warning
light
If a problem is detected in any of the cir-
cuits monitoring the engine or YRC sys-
tems, this warning light will come on
and the display will switch to error
mode. (See page 4-14.)
The electrical circuit of the warning light
can be checked by turning the key to
ON. The light should come on briefly
and then go off. If the indicator does not
come on or remains on, have a
Yamaha dealer check the vehicle.
EAU66326
DisplayThe display has two different main
screen display modes, STREET
MODE and TRACK MODE. Most of the
functions are viewable in either mode,
but the layout differs slightly. The fol-
lowing items can be found on the dis-
play.
Speedometer

Tachometer

Information display

Transmission gear display

Front brake pressure indicator

Acceleration indicator

YRC setting display MODE/PWR/
TCS/SCS

YRC setting display LCS/QS/LIF

ERS indicator (ERS-equipped
models)

GPS indicator (CCU-equipped
models)

Clock

Revolution peak hold indicator

Lap timer

Oil pressure warning icon

Coolant temperature warning icon

Error mode display
2CR-9-E1.book 8 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-9
1
2
34
5
6
7
8
9
10
11
12
TIPThis model uses a thin-film-transistor
liquid-crystal display (TFT LCD) for
good contrast and readability in various
lighting conditions. However, due to the
nature of this technology, it is normal
for a small number of pixels to be inac-tive. STREET MODE TRACK MODE
WARNING
EWA18210
Stop the vehicle before making any
setting changes. Changing settings
while riding can distract the opera-
tor and increase the risk of an acci-
1. YRC items LCS/QS/LIF
2. ERS indicator (YZF-R1M)
3. Speedometer
4. GPS indicator (CCU-equipped models)
5. Logging indicator (CCU-equipped models)
6. Clock
7. Revolution peak hold indicator
8. Front brake pressure indicator
9. Acceleration indicator
10.Transmission gear display
11.YRC items MODE/PWR/TCS/SCS
12.Information display
13.Tachometer
ODO
12345
km
TRIP-2
1234.5
km
1
Ny
2 km/h
·1000 r/minMODE -
A
PWR
1
TCS
1
SCS
1
A
-
1
LCS
QS
LIF
GPS
12 :
00
7
11 1 089
4
1
2
36
5
1312
1. YRC items LCS/QS/LIF
2. ERS indicator (YZF-R1M)
3. Lap timer
4. Coolant temperature warning “ ”
5. Oil pressure warning “ ”
6. Clock
7. Transmission gear display
8. Information display
9. YRC items MODE/PWR/TCS/SCS
10.Speedometer
11.Tachometer
MODE -
A
PWR
1
TCS
1
SCS
1
km/h
123
ODO
km
7890
GEARN
LAP 09
LATEST12
12 34
·1000 r/min
A
-
1
LC LCS
QS
LIF
12 :
00
11109
8
5
4
1
2
36
7
2CR-9-E1.book 9 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-15
1
2
34
5
6
7
8
9
10
11
12
EAU67631
MENU screenThe MENU screen contains the follow-
ing setting modules. Select a module to
make related setting changes. Al-
though some settings can be changed
or reset via the main screen, the MENU
screen offers access to all display and
control settings. MENU access and operation
The following wheel switch operations
are common operations for accessing,
selecting, and moving within the MENU
screen and its modules.
Long push - press and hold the wheel
switch for one second to access the
MENU screen or exit MENU entirely.
Select - rotate the wheel switch up or
down to highlight the desired module or
setting item and then short push the
wheel switch (briefly press the wheel
switch inward) to confirm the selection.
Triangle mark
- certain setting screens
have an upward pointing triangle mark item. Select the triangle mark to exit
that screen and move back one screen
(or long push the wheel switch to exit
MENU entirely).
TIPShould vehicle motion be detected, the
screen will automatically exit MENUand change to the main screen.
“Display Mode”
There are two main screen display
modes, STREET MODE and TRACK
MODE.
To set the main screen display mode1. Long push the wheel switch to en-
ter the MENU screen.
2. Select “Display Mode”.
Display Description
Display Mode Switch the main screen
display between street and
track modes.
YRC Setting Adjust YRC settings (all
models) and ERS settings
(YZF-R1M).
Lap Time View and reset lap times.
Logging Turn vehicle information
logging function on/off
(CCU-equipped models).
Maintenance View and reset three
maintenance item
intervals.
Unit Set fuel consumption and
distance units.
Wallpaper Set background colors.
Shift Indicator Turn the shift indicator on/
off and adjust tachometer
settings.
Display Setting Set the multi-function
display window items.
Brightness Adjust screen brightness. Clock Adjust the clock.
All Reset Return all settings to
factory default settings.
2CR-9-E1.book 15 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-29
1
2
34
5
6
7
8
9
10
11
12 To set the brightness
1. Select “Brightness”.
2. Select the desired brightness level
by rotating the wheel switch, and
then short push the wheel switch
to fix the setting.
“Clock”
The clock uses a 12-hour system. To set the clock
1. From the MENU screen, select
“Clock”.
2. When “Clock” is selected, the hours figure will be highlighted.
3. Set the hour by rotating and then short push the wheel switch. 4. The minutes figure will become
highlighted.
5. Set the minutes figure by rotating and then short push the wheel
switch.
2CR-9-E1.book 29 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-30
1
2
345
6
7
8
9
10
11
12

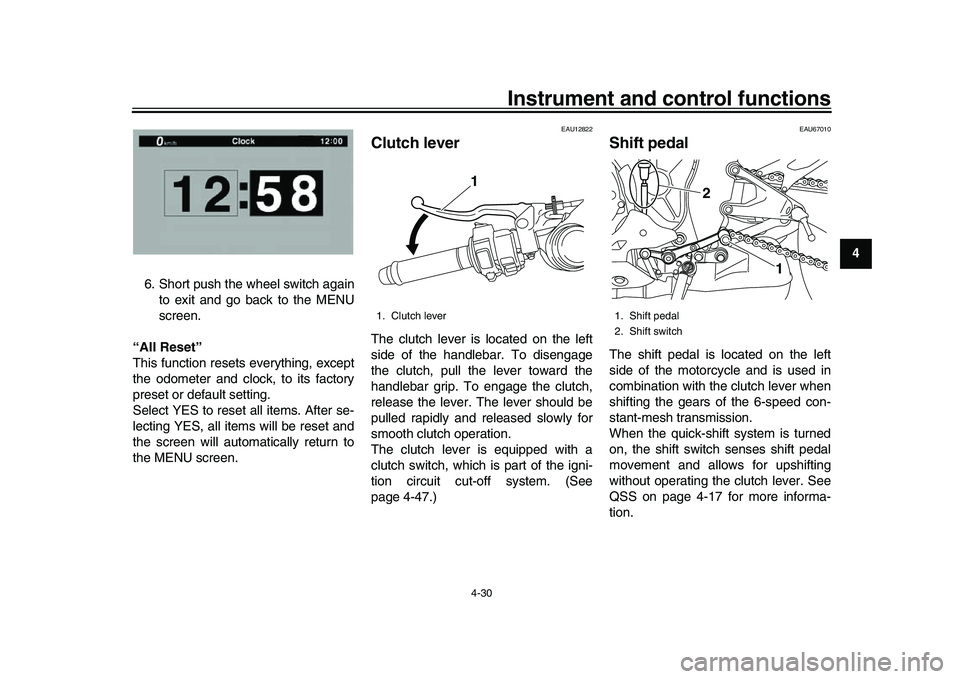

6. Short push the wheel switch again
to exit and go back to the MENU
screen.
“All Reset”
This function resets everything, except
the odometer and clock, to its factory
preset or default setting.
Select YES to reset all items. After se-
lecting YES, all items will be reset and
the screen will automatically return to
the MENU screen.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 4-47.)
EAU67010
Shift pedalThe shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission.
When the quick-shift system is turned
on, the shift switch senses shift pedal
movement and allows for upshifting
without operating the clutch lever. See
QSS on page 4-17 for more informa-
tion.
1. Clutch lever
1
1. Shift pedal
2. Shift switch
1
2
