2016 YAMAHA YZF-R1M engine

Periodic maintenance and adjustment
7-13
1
2
3
4
5
67
8
9
10
11
12

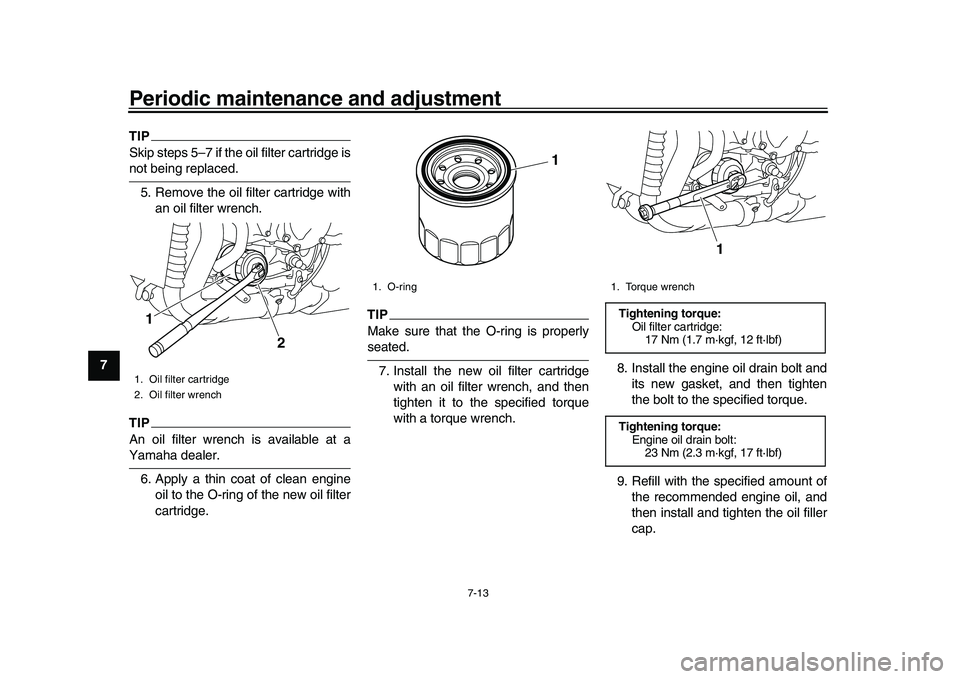

TIPSkip steps 5–7 if the oil filter cartridge isnot being replaced. 5. Remove the oil filter cartridge with an oil filter wrench.TIPAn oil filter wrench is available at aYamaha dealer.
6. Apply a thin coat of clean engine oil to the O-ring of the new oil filter
cartridge.
TIPMake sure that the O-ring is properlyseated.
7. Install the new oil filter cartridge with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench. 8. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
9. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
1. Oil filter cartridge
2. Oil filter wrench1
2
1. O-ring
1
1. Torque wrenchTightening torque:Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque: Engine oil drain bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2CR-9-E1.book 13 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-14
1
2
3
4
5
678
9
10
11
12
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.NOTICE
ECA11621

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-rial enters the crankcase.
10. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
TIPAfter the engine is started, the oil pres-
sure and coolant temperature warning
light should go off if the oil level is suffi-cient.NOTICE
ECA22490
If the oil pressure and coolant tem-
perature warning light flickers or re-
mains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer checkthe vehicle.
11. Turn the engine off, wait a few min- utes until the oil settles, and then
check the oil level and correct it if
necessary.
12. Install the cowling and panel.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU66510
To check the coolant level 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool- ant reservoir.
TIPThe coolant should be between theminimum and maximum level marks.
Recommended engine oil:Full synthetic
10W-40, 15W-50
Oil quantity:
Oil change: 3.90 L (4.12 US qt, 3.43 Imp.qt)
With oil filter removal:
4.10 L (4.33 US qt, 3.61 Imp.qt)
2CR-9-E1.book 14 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-15
1
2
3
4
5
67
8
9
10
11
12 3. If the coolant is at or below the
minimum level mark, remove cowl-
ing B. (See page 7-8.)
4. Remove the coolant reservoir cap, add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is
hot.
[EWA15162]
NOTICE: If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
5. Install the cowling.
EAU66520
To change the coolant
1. Place the vehicle on a level sur- face and let the engine cool if nec-
essary.
2. Remove cowling B and panel D. (See page 7-8.)
3. Place a container under the engine to collect the used coolant.
4. Remove the radiator cap.
WARNING! Never attempt to re-
move the radiator cap when the
engine is hot.
[EWA10382]
5. Remove the coolant drain bolt andits gasket to drain the cooling sys-
tem.
1. Maximum level mark
2. Minimum level mark1
2
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
1
1. Radiator cap
1
2CR-9-E1.book 15 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-16
1
2
3
4
5
678
9
10
11
12
6. Remove the coolant reservoir cap.
7. Remove the coolant reservoir by
removing the bolts, and then turn
the reservoir upside down to emp-
ty it. 8. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
9. Install the coolant reservoir by in- stalling the bolts.
10. Install the coolant drain bolt and its new gasket, and then tighten the
bolt to the specified torque.
11. Pour the specified amount of the recommended coolant into the ra-
diator and reservoir. 12. Install the coolant reservoir cap.
13. Loosen the air bleed bolt to allow
any trapped air to escape from the
water pump.
14. When coolant begins to flow out, tighten the air bleed bolt to the
1. Coolant drain bolt
2. Gasket
1. Coolant reservoir cap
121
1. Coolant reservoir
2. BoltTightening torque:Coolant drain bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2
Antifreeze/water mixture ratio: 1:1
Recommended antifreeze: High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator (including all routes):2.25 L (2.38 US qt, 1.98 Imp.qt)
Coolant reservoir (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)1. Air bleed bolt
1
2CR-9-E1.book 16 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-17
1
2
3
4
5
67
8
9
10
11
12 specified torque.
15. Pour the specified coolant into the radiator until it is full.
16. Install the radiator cap.
17. Start the engine, let it idle for sev-
eral minutes, and then turn it off.
18. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
19. Start the engine, and then check the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
20. Install the cowling and panel.
EAU36765
Air filter elementThe air filter element must be replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the air
filter element.
EAU44735
Checking the engine idling
speedCheck the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
Tightening torque: Air bleed bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Engine idling speed:
1200–1400 r/min
2CR-9-E1.book 17 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-18
1
2
3
4
5
678
9
10
11
12
EAU21386
Checking the throttle grip free
playMeasure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
EAU21402
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU70961
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA18370

Operation of this vehicle with
improper tire air pressure may
cause severe injury or death
from loss of control.

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambienttemperature).
1. Throttle grip free playThrottle grip free play: 3.0–5.0 mm (0.12–0.20 in)
1
2CR-9-E1.book 18 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-27
1
2
3
4
5
67
8
9
10
11
12
EAU23026
Cleaning and l ubricating the
drive chainThe drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.NOTICE
ECA10584
The drive chain must be lubricated
after washing the motorcycle, ridingin the rain or riding in wet areas.
1. Clean the drive chain with kero- sene and a small soft brush.
NOTICE: To prevent damaging
the O-rings, do not clean the
drive chain with steam cleaners,
high-pressure washers or inap-
propriate solvents.
[ECA11122]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri-
cants for the drive chain, as they may contain substances that
could damage the O-rings.
[ECA11112]
EAU23098
Checking and lubricating the
cablesThe operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in in-
ternal rusting and cause interfer-
ence with cable movement. Replace
damaged cables as soon as possi-
ble to prevent unsafe condi-
tions.
[EWA10712]
Recommended lubricant:
Yamaha cable lubricant or other suit-
able cable lubricant
2CR-9-E1.book 27 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-31
1
2
3
4
5
67
8
9
10
11
12
EAU23285
Checking the steeringWorn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart. 1. Raise the front wheel off the ground. (See page 7-36.)
WARNING! To avoid injury, se-
curely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. Hold the lower ends of the frontfork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23292
Checking the w heel bearingsThe front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU68230
BatteryNOTICE
ECA22960
Use only the specified genuine
YAMAHA battery. Using a different
battery may cause the IMU to fail andthe engine to stall.
The battery is located under the rider
seat. (See page 4-36.)NOTICE
ECA22970
The IMU is located under the battery.
It is not user serviceable and very
sensitive, so we advise against re-1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery
1
2
3
2CR-9-E1.book 31 ページ ２０１５年８月２０日　木曜日　午後４時４６分
