2016 YAMAHA YZF-R1M check engine

Periodic maintenance and adjustment7-38
1
2
3
4
5
678
9
10
11
12
Engine overheating
WARNING
EWAT1041

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the capwhile turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily
used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
2CR-9-E1.book 38 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Motorcycle care and storage
8-4
1
2
3
4
5
6
789
10
11
12
EAU26183

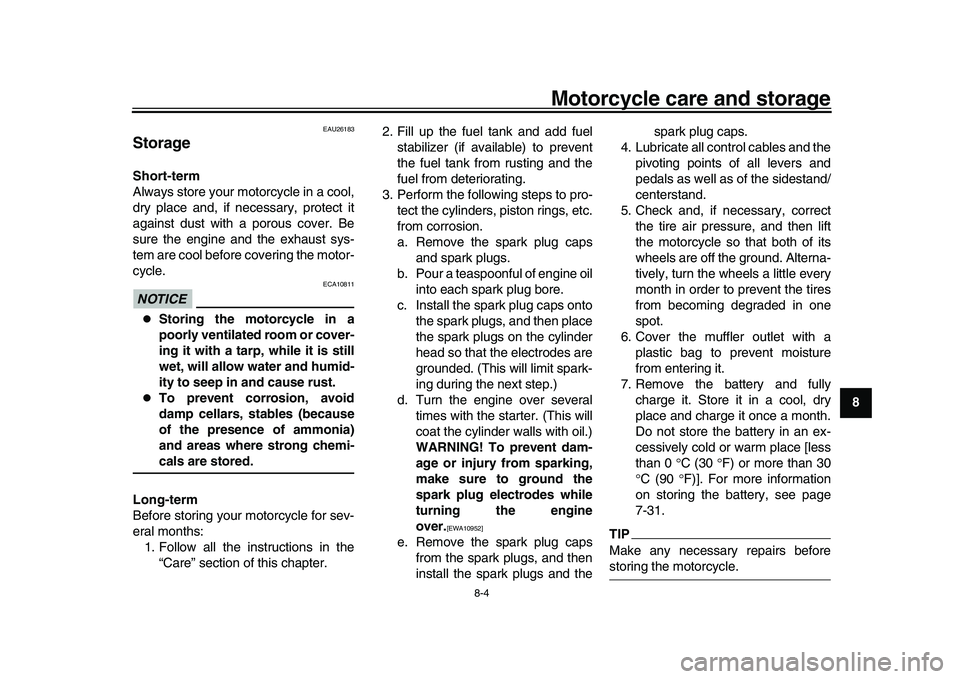

StorageShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the motor-
cycle.NOTICE
ECA10811

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter. 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine
over.
[EWA10952]
e. Remove the spark plug capsfrom the spark plugs, and then
install the spark plugs and the spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 C (30 F) or more than 30
 C (90 F)]. For more information
on storing the battery, see page
7-31.
TIPMake any necessary repairs beforestoring the motorcycle.
2CR-9-E1.book 4 ページ ２０１５年８月２０日　木曜日　午後４時４６分

11-1
1
2
3
4
5
6
7
8
9
101112
Index
AABS warning light ...................................... 4-7
Air filter element....................................... 7-17
Auxiliary DC connector ............................ 4-46BBattery ..................................................... 7-31
Brake and clutch levers, checking and lubricating .............................................. 7-29
Brake and shift pedals, checking and lubricating .............................................. 7-28
Brake fluid, changing ............................... 7-25
Brake fluid level, checking ....................... 7-24
Brake lever .............................................. 4-31
Brake lever free play, checking ............... 7-22
Brake light switches ................................. 7-23
Brake pedal ............................................. 4-31
Brake system ........................................... 4-32CCables, checking and lubricating ............. 7-27
Care ........................................................... 8-1
Catalytic converter ................................... 4-36
CCU ......................................................... 4-38
Clutch lever.............................................. 4-30
Clutch lever free play, adjusting .............. 7-22
Coolant .................................................... 7-14
Cowlings and panels, removing and installing .................................................. 7-8DDimmer switch ........................................... 4-4
Display, main screen ................................. 4-8
Display, menu screen .............................. 4-15
Document storage ................................... 4-39
Drive chain, cleaning and lubricating ....... 7-27
Drive chain slack ..................................... 7-25
EEngine break-in ......................................... 6-4
Engine idling speed, checking................. 7-17
Engine oil and oil filter cartridge .............. 7-12
Engine serial number .............................. 10-1
Engine trouble and system warning light ......................................................... 4-8
EXUP system .......................................... 4-45FFront and rear brake pads, checking ...... 7-23
Front fork, adjusting ................................ 4-40
Front fork, checking................................. 7-30
Fuel ......................................................... 4-34
Fuel consumption, tips for reducing .......... 6-4
Fuel level warning light .............................. 4-6
Fuel tank breather hose and overflow
hose ...................................................... 4-35
Fuel tank cap........................................... 4-33
Fuses, replacing ...................................... 7-33GGlossary .................................................... 3-3HHandlebar switches ................................... 4-4
Hazard switch............................................ 4-5
High beam indicator light ........................... 4-6
Horn switch ............................................... 4-4IIdentification numbers ............................. 10-1
Ignition circuit cut-off system ................... 4-47
Immobilizer system ................................... 4-1
Immobilizer system indicator light ............. 4-7
Indicator lights and warning lights ............. 4-6MMain switch/steering lock .......................... 4-2 Maintenance and lubrication, periodic .......7-4
Maintenance, emission control system ......7-3
Matte color, caution ...................................8-1
Model label ..............................................10-2
NNeutral indicator light .................................4-6OOil pressure and coolant temperature
warning light ............................................4-8PParking.......................................................6-5
Part locations .............................................2-1
Pass/LAP switch ........................................4-4RRear view mirrors..................................... 4-39SSafety information ......................................1-1
Seats........................................................ 4-36
Shifting .......................................................6-2
Shift pedal ................................................4-30
Shift timing indicator light ...........................4-7
Shock absorber assembly, adjusting .......4-42
Sidestand .................................................4-46
Sidestand, checking and lubricating ........7-29
Spark plugs, checking ..............................7-11
Special features .........................................3-1
Specifications.............................................9-1
Stability control indicator light ....................4-7
Starting the engine.....................................6-1
Steering, checking ................................... 7-31
Stop/Run/Start switch ................................4-4
Storage ......................................................8-4
Supporting the motorcycle .......................7-36
Swingarm pivots, lubricating .................... 7-30
