2016 YAMAHA YFM700R engine

EBU2914A
Read this manual carefully before operating this vehicle. This manual should stay with this ve-
hicle if it is sold.
EN15997, ANSI/SVIA 1-2010
General Manager
RV Engineering Division
Business Development Operations
YAMAHA MOTOR CO., LTD.
(YFM70RSS) (JY4AM87W0E0500781–)
YFM700R (YFM70RSB) (JY4AM77W0E0500701–)
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
(Make, model)
(If applicable)
and to the other relevant Directives of EEC
2004/108/EC
(Title and/or number and date of issue of the other Directives of EEC)
(If applicable)YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
Signature
Akihiro Tsuzuki
Date of Issue
to which this declaration applies, conforms to the essential health
and safety requirements of Directive 2006/42/EC
To effect correct application of the essential health and safety requirements
stated in the Directives of EEC, the following-standards and/or technical
specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
Authorized Representative
YAMAHA MOTOR MANUFACTURING CORPORATION OF AMERICA
1000 GA Highway 34 East, Newnan, Georgia 30265-1320, U.S.A.
Manufacturer
EC Declaration of Conformity
conforming to Directive 2006/42/EC
12 March, 2015
U2LS61E0.book Page 1 Friday, April 17, 2015 8:25 AM

EBU17421
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS .............................. 1-1
SAFETY INFORMATION ................................ 2-1

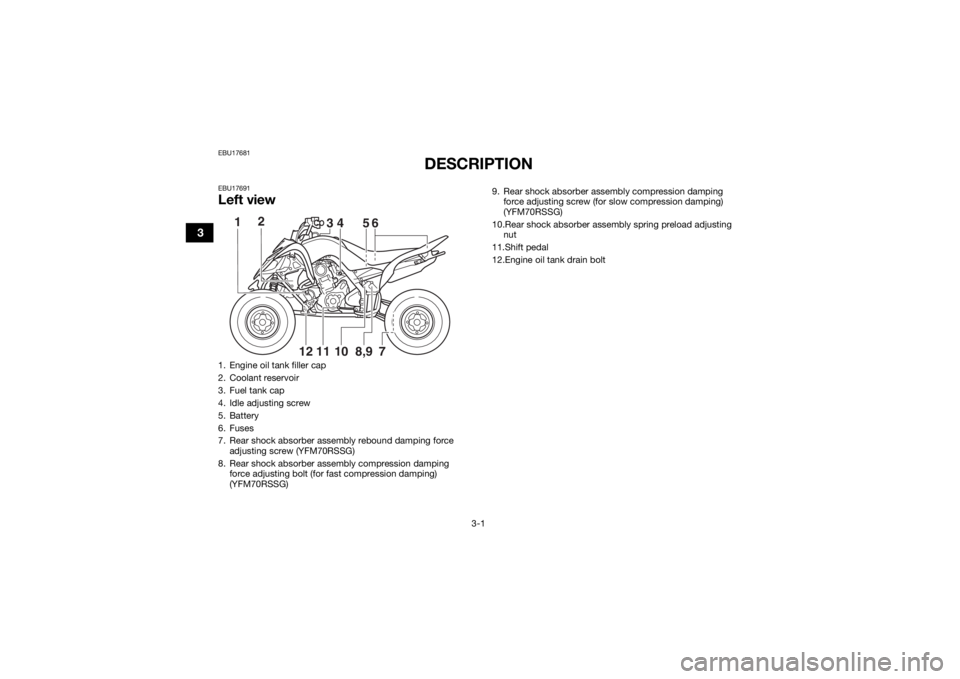

DESCRIPTION................................................ 3-1Left view ...................................................... 3-1
Right view.................................................... 3-2
Controls and instruments............................ 3-3
INSTRUMENT AND CONTROL
FUNCTIONS ................................................... 4-1 Main switch ................................................. 4-1
Indicator lights and warning lights .............. 4-2
Self-diagnosis device .................................. 4-3
Handlebar switches .................................... 4-4
Throttle lever ............................................... 4-4
Speed limiter ............................................... 4-5
Clutch lever ................................................. 4-6
Brake lever .................................................. 4-6
Brake pedal ................................................. 4-7
Parking brake lever ..................................... 4-8
Shift pedal ................................................... 4-9
Reverse knob “REV” ................................... 4-9 Fuel tank cap ............................................ 4-10
Fuel ........................................................... 4-10
Seat .......................................................... 4-12
Adjusting the front shock absorber
assemblies (YFM70RSBG) ..................... 4-13
Adjusting the front shock absorber assemblies (YFM70RSSG) ..................... 4-15
Adjusting the rear shock absorber assembly (YFM70RSBG) ........................ 4-20
Adjusting the rear shock absorber assembly (YFM70RSSG) ........................ 4-22
PRE-OPERATION CHECKS .......................... 5-1 Fuel ............................................................. 5-4
Engine oil .................................................... 5-4
Coolant ....................................................... 5-4
Front and rear brakes ................................. 5-4
Throttle lever ............................................... 5-5
Drive chain .................................................. 5-5
Tires ............................................................ 5-5
Chassis fasteners ....................................... 5-7
Instruments, lights and switches ................ 5-8U2LS61E0.book Page 1 Friday, April 17, 2015 8:25 AM

OPERATION ................................................... 6-1Starting the engine ...................................... 6-1
Shifting ........................................................ 6-2
Operating the reverse knob and driving in reverse ...................................................... 6-4
Engine break-in ........................................... 6-5
Parking ........................................................ 6-6
Parking on a slope ...................................... 6-6
Accessories and loading ............................. 6-7
RIDING YOUR ATV ........................................ 7-1 GETTING TO KNOW YOUR ATV ................ 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............... 7-8
TURNING YOUR ATV................................ 7-11
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL .................................. 7-16
CROSSING A SLOPE................................ 7-17
CROSSING THROUGH SHALLOW WATER .................................................... 7-18
RIDING OVER ROUGH TERRAIN ............. 7-20
SLIDING AND SKIDDING.......................... 7-20
WHAT TO DO IF... ..................................... 7-21
WHAT TO DO... ......................................... 7-22 PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for the emission control system ........................... 8-3
General maintenance and lubrication chart.......................................................... 8-5
Removing and installing the panel............ 8-10
Checking the spark plug........................... 8-10
Engine oil and oil filter element................. 8-13
Coolant ..................................................... 8-17
Cleaning the air filter element ................... 8-21
Cleaning the spark arrester ...................... 8-25
Adjusting the engine idling speed ............ 8-27
Adjusting the throttle lever free play ......... 8-28
Valve clearance......................................... 8-29
Adjusting the reverse lock release cable ....................................................... 8-29
Brakes....................................................... 8-29
Checking the front and rear brake pads... 8-29
Checking the brake fluid level .................. 8-31
Changing the brake fluid .......................... 8-33
Checking the front brake lever free play... 8-33
Checking the brake pedal height.............. 8-34
Adjusting the parking brake free play ....... 8-34
Brake light switches ................................. 8-36
Adjusting the clutch lever free play .......... 8-36U2LS61E0.book Page 2 Friday, April 17, 2015 8:25 AM

2-1
2
EBU17432
SAFETY INFORMATION
SAFETY INFORMATION
EBU26685AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
low the operating procedures described.
 Never operate an ATV without proper training or
instruction. Take a training course. Beginners
should receive training from a certified instruc-
tor. Contact an authorized ATV dealer to find
out about the training courses nearest you.
 Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc. 
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
 Never carry a passenger on an ATV.
 This vehicle is intended for off-road use only. Do
not operate on any paved surfaces such as:
sidewalks, driveways, parking lots, paved
roads, public streets or other motorway.
 Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.
 Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly.
You should also wear eye protection (goggles
or face shield), gloves, boots, a long-sleeved
shirt or a jacket, and long pants.
 Never consume alcohol or drugs before or while
operating this ATV.U2LS61E0.book Page 1 Friday, April 17, 2015 8:25 AM

2-4
2

Never maintain an ATV without proper knowl-
edge. Contact an authorized ATV dealer to in-
form you on basic ATV maintenance. Certain
maintenance can only be carried out by certified
staff.
In the event of an accident 1. If serious injuries are incurred, you may be safer staying next to your vehicle; it may
shield you from oncoming riders. Depending
on your injuries and position in the trail; you
must make a judgment call as to whether you
should move to a position off the trail. If you
have sustained head, neck, or back injuries,
or cannot feel your limbs, you should not
move. Keep your helmet on and remain mo-
tionless. Lie down next to your vehicle and
wait for help.
2. If less serious injuries are incurred and you can walk, then move to a position off the trail.
Check yourself for injuries and apply first aid
as needed.
3. If your injuries are light, when safe to do so, move your vehicle off the trail to avoid colli-
sions with oncoming riders. Check for injuries
and apply first aid as necessary. If you can
physically operate your vehicle, inspect your vehicle. If the vehicle is in safe operating con-
dition and you can safely operate it, restart it
and ride gently back to camp or other known
location where you can receive medical at-
tention. If necessary, contact your riding party
or local authorities to let them know where
you are and what has happened.
In the event of a breakdown 1. If your vehicle will not restart or is not in safe operating condition, turn off the main switch
and engine stop switch. If the breakdown oc-
curs at twilight or night, leave the main switch
on so that your lights may warn other riders of
your stopped vehicle.
2. Get out of danger. Check for oncoming vehi- cles and when safe, push your vehicle to the
side of the trail or even off the main trail to
avoid any possible collisions with oncoming
riders. If you cannot move your vehicle by
yourself, when safe, walk to the nearest van-
tage point and signal an oncoming rider to
help you push your vehicle to a safe place off
the trail.
3. Inspect your vehicle for any immediate haz- ardous conditions. The most obvious hazard-
ous conditions are leaking fuel and
U2LS61E0.book Page 4 Friday, April 17, 2015 8:25 AM

2-5
2ungrounded or broken wiring. Visually check
for broken wiring and leaking fuel. Leaking
fuel can be confirmed by the odor of gasoline.
4. Once immediate safety hazards are con- firmed not to exist, you may remove your hel-
met to more closely inspect your vehicle.
Check for external signs of wear, broken
parts, fluid leaks, cracks in the frame, sus-
pension damage, wheel damage, and so on.
Fuel, oil, and coolant usually give off a notice-
able odor.
5. If your vehicle will not restart or if it is unsafe to ride, then turn off all vehicle systems (en-
gine stop switch, main switch, and fuel cock),
and then signal or go for help.
Aftermarket Parts, Accessories, and Modifica-
tions
While you may find aftermarket products similar in
design and quality to genuine Yamaha accesso-
ries, recognize that some aftermarket accessories
or modifications are not suitable because of po-
tential safety hazards to you or others. Installing
aftermarket products or having other modifica-
tions performed to your vehicle that change any of
the vehicle’s design or operation characteristics
can put you and others at greater risk of serious injury or death. You are responsible for injuries re-
lated to changes in the vehicle. Keep the following
guidelines in mind, as well as those provided un-
der “Loading” when mounting accessories.

Never install accessories that would impair the
performance of your ATV. Carefully inspect the
accessory before using it to make sure that it
does not in any way reduce ground clearance,
limit suspension travel, steering travel or control
operation.
 Accessories fitted to the ATV can create insta-
bility due to improper weight distribution.
 Bulky or large accessories may seriously affect
the stability of the ATV.
 Certain accessories can displace the operator
from his or her normal riding position. This im-
proper position limits the freedom of movement
of the operator and may limit control ability,
therefore, such accessories are not recom-
mended.
 Use caution when adding electrical accesso-
ries. If electrical accessories exceed the capac-
ity of the ATV’s electrical system, an electric
failure could result, which could cause a dan-
gerous loss of lights or engine power.
U2LS61E0.book Page 5 Friday, April 17, 2015 8:25 AM

2-6
2
WARNING
EWB00073Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.
Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.
 Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports. 
Do not run engine outdoors where engine
exhaust can be drawn into a building through
openings such as windows and doors.

U2LS61E0.book Page 6 Friday, April 17, 2015 8:25 AM

3-1
3
EBU17681
DESCRIPTION
EBU17691Left view1. Engine oil tank filler cap
2. Coolant reservoir
3. Fuel tank cap
4. Idle adjusting screw
5. Battery
6. Fuses
7. Rear shock absorber assembly rebound damping force adjusting screw (YFM70RSSG)
8. Rear shock absorber assembly compression damping force adjusting bolt (for fast compression damping)
(YFM70RSSG)
1 2
4
3
658,9
10
11
7
12
9. Rear shock absorber assembly compression damping
force adjusting screw (for slow compression damping)
(YFM70RSSG)
10.Rear shock absorber assembly spring preload adjusting nut
11.Shift pedal
12.Engine oil tank drain bolt
U2LS61E0.book Page 1 Friday, April 17, 2015 8:25 AM
