2016 YAMAHA XVS1300CU check engine

Periodic maintenance an d a djustment
6-13
6
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU42635
To check the coolant level
1. Place the vehicle on a level surfa- ce and hold it in an upright posi-
tion.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the mi-
nimum and maximum level marks.
3. If the coolant is at or below the mi-nimum level mark, remove panel
A. (See page 6-8.)
4. Remove the coolant reservoir cap, add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the ra diator
cap when the en gine is hot.
[EWA15162]
NOTICE: If coolant is not
availa ble, use distille d water or
soft tap water instea d. Do not
use har d water or salt water
since it is harmful to the en gine.
If water has been used instead of coolant, replace it with cool-
ant as soon as possi
ble, other-
wise the coolin g system will not
b e protecte d a gainst frost an d
corrosion. If water has been
a dd ed to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possi ble, otherwise the
effectiveness of the coolant will
b e re duce d.
[ECA10473]
5. Install the panel.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
23
1
1. Coolant reservoir cap
Coolant reservoir capacity (up to
the maximum level mark):
0.45 L (0.48 US qt, 0.40 Imp.qt)
1
U2SSE2E0.book Page 13 Monday, July 20, 2015 2:28 PM

Periodic maintenance an d a djustment
6-15
6
EAU21385
Checkin g the throttle grip free
playThe throttle grip free play should mea-
sure 4.0–6.0 mm (0.16–0.24 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha deal-
er adjust it.
EAU21402
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU64240
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control.  The tire air pressure must be
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
 The tire air pressure must be
a d juste d in accor dance with the
ri din g spee d an d with the total
1. Throttle grip free play
1
U2SSE2E0.book Page 15 Monday, July 20, 2015 2:28 PM

Periodic maintenance an d a djustment
6-32
6
EAU70570
Turn si gnal li ght an d b rake/tail
li g htThis model is equipped with LED-type
turn signal lights and an LED-type
brake/tail light.
If a turn signal light or the brake/tail
light does not come on, have a
Yamaha dealer check it.
EAU24331
License plate li ghtIf the license plate light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
EAU24351
Supportin g the motorcycleSince this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy- cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
U2SSE2E0.book Page 32 Monday, July 20, 2015 2:28 PM

Periodic maintenance an d a djustment
6-34
6
EAU42505

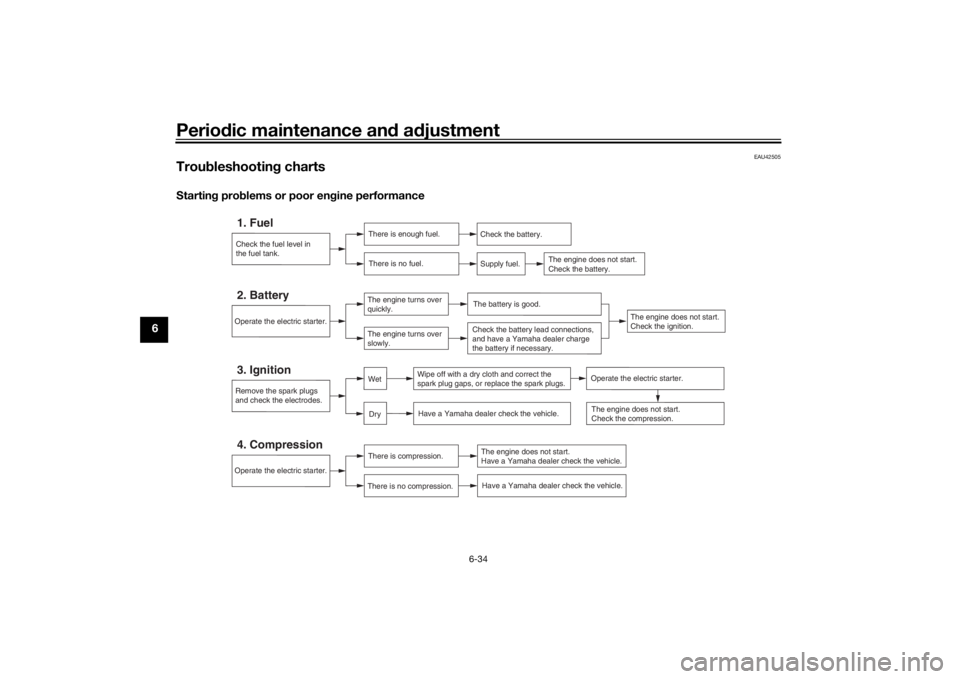

Trou bleshootin g chartsStartin g pro blems or poor en gine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The engine does not start.
Check the ignition.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the electric starter.
U2SSE2E0.book Page 34 Monday, July 20, 2015 2:28 PM

Periodic maintenance an d a djustment
6-35
6
En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press down on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U2SSE2E0.book Page 35 Monday, July 20, 2015 2:28 PM

Motorcycle care and stora ge
7-4
7
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then pla-
ce the spark plugs on the cylin-
der head so that the electrodes
are grounded. (This will limit
sparking during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turning the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover each muffler outlet with a plastic bag to prevent moisture
from entering them.
7. Remove the battery and fully char- ge it. Store it in a cool, dry place
and charge it once a month. Do
not store the battery in an exces-
sively cold or warm place [less
than 0 °C (30°F) or more than 30
°C (90°F)]. For more information
on storing the battery, see page
6-27.
TIPMake any necessary repairs before
storing the motorcycle.
U2SSE2E0.book Page 4 Monday, July 20, 2015 2:28 PM

10-1
10
Index
AAir filter element, replacing ................... 6-14
Auxiliary light bulb, replacing ............... 6-31BBattery .................................................. 6-27
Brake and clutch levers, checking and
lubricating........................................... 6-24
Brake and shift pedals, checking and lubricating........................................... 6-23
Brake fluid, changing............................ 6-21
Brake fluid level, checking.................... 6-20
Brake lever............................................ 3-10
Brake lever free play, checking ............ 6-18
Brake light switches ............................. 6-19
Brake pedal .......................................... 3-10CCables, checking and lubricating ......... 6-23
Care ........................................................ 7-1
Catalytic converter ............................... 3-13
Clutch lever............................................. 3-9
Clutch lever free play, adjusting ........... 6-17
Coolant ................................................. 6-13
Coolant temperature warning light ......... 3-3DDimmer switch........................................ 3-8
Drive belt slack ..................................... 6-22EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ........... 6-10
Engine serial number .............................. 9-1
Engine stop switch ................................. 3-8
Engine trouble warning light ................... 3-4FFront and rear brake pads, checking ... 6-19 Front fork, checking ............................. 6-26
Fuel ...................................................... 3-11
Fuel consumption, tips for reducing ...... 5-3
Fuel level warning light........................... 3-3
Fuel tank breather/overflow hose ........ 3-13
Fuel tank cap........................................ 3-11
Fuses, replacing ................................... 6-28
HHandlebar switches ............................... 3-8
Hazard switch ........................................ 3-9
Headlight bulb, replacing ..................... 6-30
Helmet holder....................................... 3-15
High beam indicator light ....................... 3-3
Horn switch ............................................ 3-8IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-17
Indicator lights and warning lights ......... 3-2LLicense plate light ................................ 6-32MMain switch/steering lock ...................... 3-1
Maintenance and lubrication, periodic... 6-4
Maintenance, emission control
system ................................................. 6-3
Matte color, caution ............................... 7-1
Model label............................................. 9-1
Multi-function meter unit ........................ 3-4NNeutral indicator light ............................. 3-2OOil level warning light ............................. 3-3PPanel, removing and installing ............... 6-8 Parking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch............................................. 3-8
RRear suspension, lubricating ................ 6-25
RESET switch ......................................... 3-9SSafety information................................... 1-1
Seat....................................................... 3-14
SELECT switch ....................................... 3-9
Shifting.................................................... 5-2
Shift pedal............................................. 3-10
Shock absorber assembly, adjusting ... 3-15
Sidestand.............................................. 3-16
Sidestand, checking and lubricating .... 6-25
Spark plugs, checking ............................ 6-8
Specifications ......................................... 8-1
Starting the engine ................................. 5-1
Start switch ............................................. 3-8
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Supporting the motorcycle ................... 6-32
Swingarm pivots, lubricating ................ 6-25TThrottle grip and cable, checking and
lubricating ........................................... 6-23
Throttle grip free play, checking ........... 6-15
Tires ...................................................... 6-15
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-33
Troubleshooting charts ......................... 6-34
Turn signal indicator light ....................... 3-2
Turn signal light and brake/tail light...... 6-32
Turn signal switch ................................... 3-8
U2SSE2E0.book Page 1 Monday, July 20, 2015 2:28 PM
