Page 3 of 78
Important manual information
EJU3008D

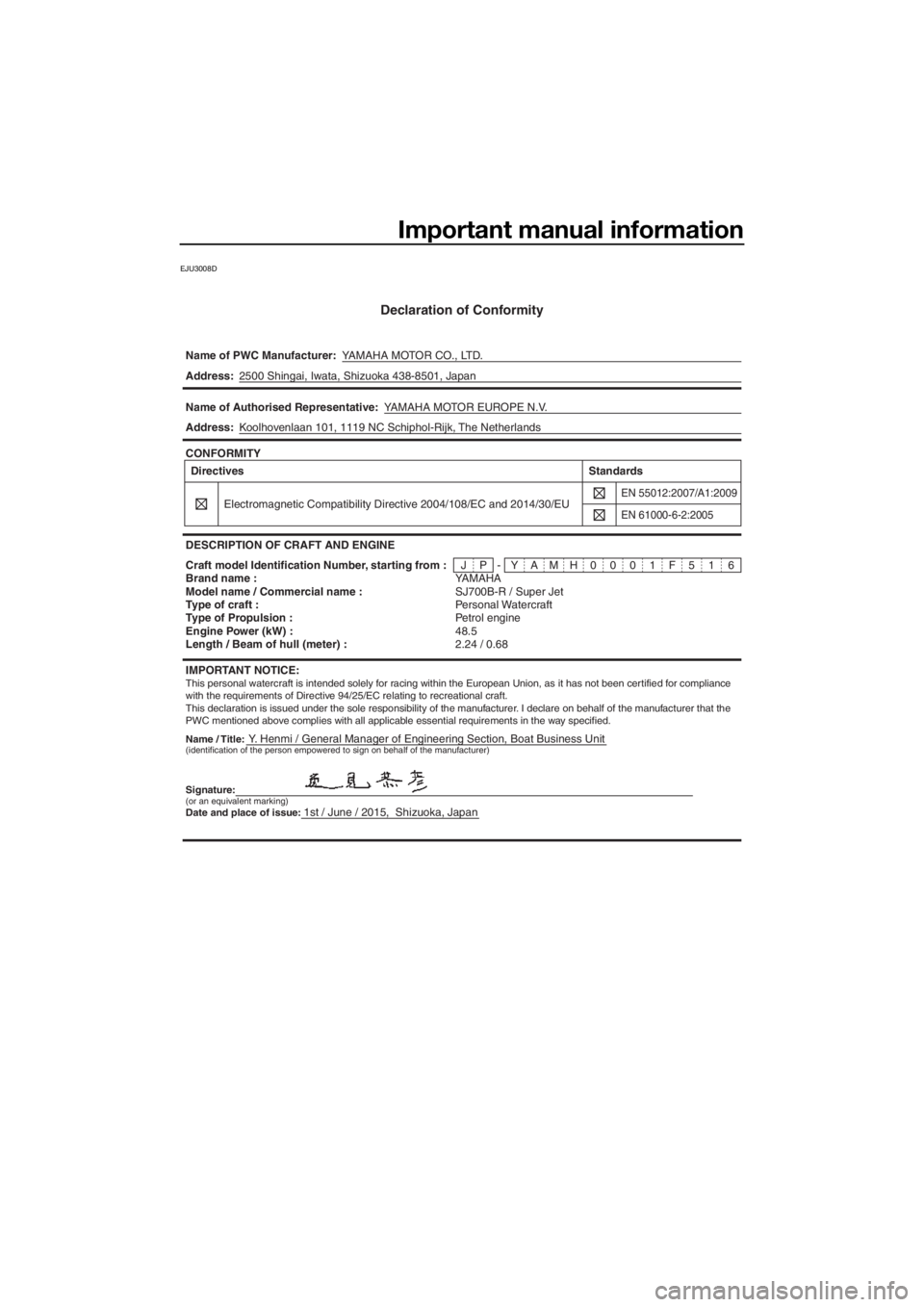

Declaration of Conformity
Name of PWC Manufacturer:YAMAHA MOTOR CO., LTD.
Name / Title:Y. Henmi / General Manager of Engineering Section, Boat Business Unit
Address:
2500 Shingai, Iwata, Shizuoka 438-8501, Japan
Name of Authorised Representative: YAMAHA MOTOR EUROPE N.V.
Address: Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
JP-YAMH0001F516
CONFORMITY
DESCRIPTION OF CRAFT AND ENGINE
Craft model Identification Number, starting from :
YAMAHA
Brand name :
SJ700B-R / Super Jet
Model name / Commercial name :
Personal Watercraft
Type of craft :
Petrol engine
Type of Propulsion :
48.5
Engine Power (kW) :
2.24 / 0.68
Length / Beam of hull (meter) : Directives
Electromagnetic Compatibility Directive 2004/108/EC and 2014/30/EU
EN 55012:2007/A1:2009
Standards
EN 61000-6-2:2005
IMPORTANT NOTICE:This personal watercraft is intended solely for racing within the European Union, as it has not been certified for compliance
with the requirements of Directive 94/25/EC relating to recreational craft.
This declaration is issued under the sole responsibility of the manufacturer. I declare on behalf of the manufacturer that the
PWC mentioned above complies with all applicable essential requirements in the way specified.
(identification of the person empowered to sign on behalf of the manufacturer)
Signature:(or an equivalent marking)Date and place of issue:1st / June / 2015, Shizuoka, Japan
UF4D72E0.book Page 1 Tuesday, September 1, 2015 3:23 PM
Page 19 of 78
Safety information
13
EJU30851
Hazard information
When transporting or storing your water-
craft, always turn the fuel cock knob to
“OFF”, otherwise gasoline may overflow
from the carburetor.
Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.
EJU30881
Watercraft characteristics
Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
You may still have some turning ability im-
mediately after releasing the throttle lever,
but once the engine slows down, the wa-
tercraft will no longer respond to handlebar
input until you apply throttle again or you
reach trolling speed.
Practice turning in an open area without
obstacles until you have a good feel for this
maneuver.
This watercraft is water-jet propelled. The
jet pump is directly connected to the en-
gine. This means that jet thrust will produce
some movement whenever the engine is
running. There is no “neutral” position.
Keep away from the intake grate while the
engine is on. Items such as long hair, loose
clothing, or PFD straps can become entan-
gled in moving parts, resulting in severe in-
jury or drowning.
Never insert any object into the jet thrust
nozzle while the engine is running. Severe
injury or death could result from coming in
UF4D71E0.book Page 13 Thursday, April 23, 2015 1:48 PM
Page 69 of 78
Specifications
63
EJU34543
Specifications
Watercraft capacity:
Maximum people on board:
1 person
Dimensions:
Length:
2240 mm (88.2 in)
Width:
680 mm (26.8 in)
Height:
660 mm (26.0 in)
Dry weight:
139 kg (306 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
48.5 kW@6250 r/min
Maximum fuel consumption:
29.0 L/h (7.7 US gal/h, 6.4 Imp.gal/h)
Cruising range at full throttle:
0.62 hour
Trolling speed:
1300 ±50 r/min
Engine:
Engine type:
2-stroke
Number of cylinders:
2
Engine displacement:
701 cm³
Bore × stroke:
81.0 × 68.0 mm (3.19 × 2.68 in)
Compression ratio:
7.2 : 1
Lubrication system:
Pre-mixed fuel and oil
Cooling system:
Water
Starting system:
Electric
Ignition system:
C.D.I.
Spark plug:
BR7HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Battery capacity:
12 V, 19 AhCharging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
P1: 14.4+14.4°
P2: 17.3+17.3°
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil:
YAMALUBE 2-W or TC-W3 outboard motor
oil or equivalent
Fuel mixing ratio (fuel to oil):
50 :1
Fuel tank total capacity:
18 L (4.8 US gal, 4.0 Imp.gal)
Fuel tank reserve capacity:
5.5 L (1.5 US gal, 1.2 Imp.gal)
UF4D71E0.book Page 63 Thursday, April 23, 2015 1:48 PM
Page 74 of 78
Trouble recovery
68
(4) Open the fuse holder and replace the
fuse with one of the correct amperage.
WARNING! Do not use fuses of a dif-
ferent amperage than recommended.
Substitution with a fuse that has an
improper rating can cause extensive
electrical system damage and possi-
ble fire.
[EWJ00803]
(5) Insert the fuse holder into the electrical
box.
(6) Securely install the cap by tightening it
until it stops.
(7) Securely install the hood in its original
position.
EJU34705Towing the watercraft
WARNING
EWJ00812
The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the operator on the water-
craft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the com-
bined length of the towing boat and the wa-
tercraft.
(1) Securely attach the towline to the bow
rope hole of the watercraft being towed.
(2) Ride the watercraft with your body
weight supported on the riding tray. Hold
on to the handlebars in order to balance
the watercraft and keep the bow up out
of the water. NOTICE: The bow must be
kept up out of the water during tow-
ing, otherwise water could flood the
engine compartment or water could
flow back into the engine, causing se-
vere engine damage.
[ECJ01331]
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01322]
1Fuse holder
2Electrical box
3Fuse
4Cap
Fuse amperage:
Battery fuse:
10 A1Bow rope hole
UF4D71E0.book Page 68 Thursday, April 23, 2015 1:48 PM
