7. Install the bulb holder cover and the cover at
the rear of the headlight. NOTICE: Make
sure the headlight bulb holder cover is se-
curely fitted over the bulb holder and seat-
ed properly.
[ECB00672]
8. Adjust the headlight beam if necessary.
Center headlight bulb (YFM70KPXG /
YFM70KPHG / YFM70KPSG) 1. Remove the headlight cover by removing the quick fasteners.
2. Remove the headlight bulb holder cover by pulling it off. 3. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise.1. Headlight cover
2. Quick fastener
1
2
2
1. Headlight bulb holder cover
1. Headlight bulb holder
1
1
UB1660E0.book Page 61 Thursday, February 26, 2015 4:01 PM

8-62
84. Remove the burnt-out bulb by pulling it out.
5. Place a new headlight bulb into position.
NOTICE: Do not touch the glass part of the
headlight bulb to keep it free from oil, oth-
erwise the transparency of the glass, the
luminosity of the bulb, and the bulb life will
be adversely affected. Thoroughly clean
off any dirt and fingerprints on the head-
light bulb using a cloth moistened with al-
cohol or thinner.
[ECB00652]
6. Install the bulb holder by pushing it in and turning it clockwise. 7. Install the bulb holder cover.
NOTICE: Make
sure the headlight bulb holder cover is se-
curely fitted over the bulb holder and seat-
ed properly.
[ECB00672]
8. Install the headlight cover as shown, and then install the quick fasteners.
9. Adjust the headlight beam if necessary.EBU25553Adjusting a headlight beamNOTICEECB00691It is advisable to have a Yamaha dealer make
this adjustment.
1. Do not touch the glass part of the bulb.
1. Headlight cover
1
UB1660E0.book Page 62 Thursday, February 26, 2015 4:01 PM

8-63
8
To raise a headlight beam, turn the headlight
beam adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
YFM70KPXG / YFM70KPHG / YFM70KPSG
EBU25614Replacing the tail/brake light bulbIf the tail/brake light bulb burns out, replace it as
follows.
1. Remove the tail/brake light bulb holder (to- gether with the bulb) by turning it counter-
clockwise.
1. Headlight beam adjusting screw
(b)
(a)
1
1. Headlight beam adjusting screw
(b)
(a)
1
UB1660E0.book Page 63 Thursday, February 26, 2015 4:01 PM

8-64
82. Remove the burnt-out bulb by pushing it in
and turning it counterclockwise. 3. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
4. Install the bulb holder (together with the bulb) by turning it clockwise.
EBU25652Removing a wheel1. Place the ATV on a level surface.
2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable standunder the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.

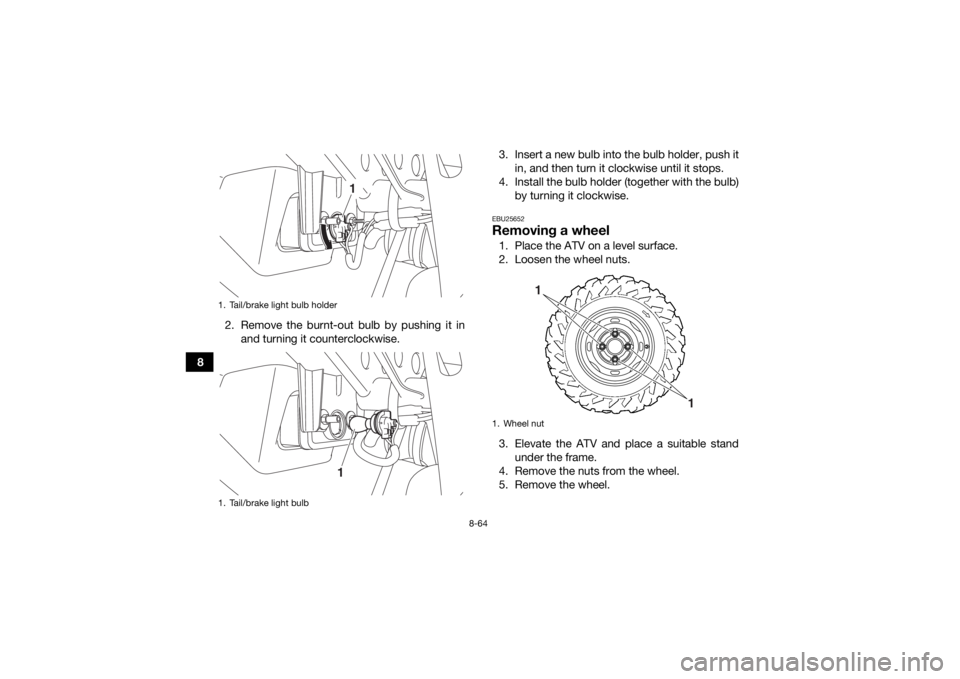

1. Tail/brake light bulb holder
1. Tail/brake light bulb
1
1
1. Wheel nut
1
1
