2016 YAMAHA GRIZZLY 350 air filter

8-20
8
1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-14.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders. 4. Pull the air filter element out of the air filter
case.
1. Air filter case check hose
1. Air filter case cover holder
2. Air filter case cover
U1NS64E0.book Page 20 Thursday, June 25, 2015 8:36 AM

8-21
85. Pull off the air filter element lock plate, and
then remove the sponge material from the air
filter element frame. 6. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01942]
7. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
1. Air filter element
1. Air filter element frame
2. Sponge material
3. Air filter element lock plate
U1NS64E0.book Page 21 Thursday, June 25, 2015 8:36 AM

8-22
8
8. Check the sponge material and replace it if
damaged.
9. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.
TIPThe sponge material should be wet but not drip-
ping. 10. Pull the sponge material over the air filter ele- ment frame, and then install the lock plate.
11. Insert the air filter element into the air filter case, and then install the air filter case cover
by hooking the holders onto the air filter case.
NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter case. Never operate the engine with the air
filter element removed. This will allow un-
filtered air to enter the engine, causing
rapid engine wear and possible engine
damage. Additionally, operation without
the air filter element will affect carburetor
jetting with subsequent poor performance
and possible engine overheating.
[ECB00462]
12. Install the seat.TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely
dusty areas. Each time the air filter element main-
tenance is performed, check the air inlet of the air
filter case for obstructions. Check the air filter
case rubber joint to the carburetor fittings and the
rubber joint manifold fittings for an air-tight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. EBU27083Cleaning the spark arresterBe sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the tailpipe bolts.
U1NS64E0.book Page 22 Thursday, June 25, 2015 8:36 AM

10-2
10

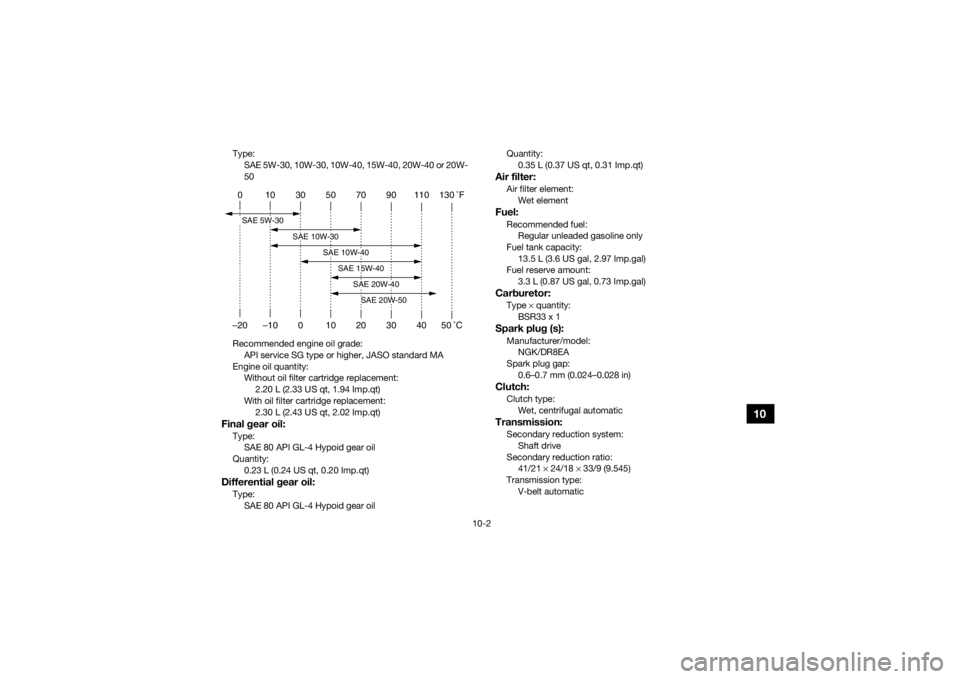

Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.23 L (0.24 US qt, 0.20 Imp.qt)Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil Quantity:
0.35 L (0.37 US qt, 0.31 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity:
13.5 L (3.6 US gal, 2.97 Imp.gal)
Fuel reserve amount: 3.3 L (0.87 US gal, 0.73 Imp.gal)Carburetor:Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model: NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, centrifugal automaticTransmission:Secondary reduction system:Shaft drive
Secondary reduction ratio: 41/21 × 24/18 × 33/9 (9.545)
Transmission type:
V-belt automatic
0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U1NS64E0.book Page 2 Thursday, June 25, 2015 8:36 AM
