To the owner/operator
Thank you for choosing a Yamaha watercraft.
This owner’s/operator’s manual contains in-
formation you will need for proper operation,
maintenance, and care. If you have any ques-
tions about the operation or maintenance of
your watercraft, please consult a Yamaha
dealer.
This manual is not a course on boating safety
or seamanship. If this is your first watercraft,
or if you are changing to a type of watercraft
you are not familiar with, for your own com-
fort and safety, please ensure that you obtain
proper training or practice before operating
the watercraft by yourself. In addition, a
Yamaha dealer or boating organization will be pleased to recommend local sea schools, or
competent instructors.
In this manual, information of particular im-
portance is distinguished in the following
ways:
This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING
EWJ00072
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECJ00092
A NOTICE indicates special precautions
that must be taken to avoid damage to the
watercraft or other property.
TIP:
A TIP provides key information to make pro-
cedures easier or clearer.
EJU40411
Because Yamaha has a policy of continuing
product improvement, this product may not
be exactly as described in this owner’s/oper-
ator’s manual. Specifications are subject to
change without notice.
This manual should be considered a perma-
nent part of this wate rcraft and should remain
with it even if the watercraft is subsequently
sold.
EJU30233
WaveRunner FX SVHO / FX Cruiser SVHO
OWNER’S/OPERATOR’S MANUAL
©2015 by Yamaha Motor Co., Ltd. 1st Edition, September 2015 All rights reserved.
Any reprinting or unauthorized use without the written permission of Ya m a h a M o t o r C o . , L t d .
is expressly prohibited. Printed in U.S.A.
UF3J73E0.book Page 2 Tuesday, September 8, 2015 9:12 AM

Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number............................................ 1
Craft Identification Number (CIN) ....... 1
Engine serial number.......................... 1
Manufactured date label .................... 2
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 4
Warning labels.................................... 5
Other labels ........................................ 9
Safety information ........................... 11
Limitations on who may operate
the watercraft ............................. 11
Cruising limitations ........................ 12
Operation requirements ................ 13
Recommended equipment ........... 15
Hazard information........................ 16
Watercraft characteristics ............. 16
Wakeboarding and water-skiing ... 18
Safe boating rules ......................... 19
Enjoy your watercraft
responsibly ................................. 20
Description....................................... 21
Watercraft glossary ....................... 21
Location of main components ...... 22
Control function operation ............. 26
Watercraft control functions ......... 26
Remote control transmitter .............. 26
Yamaha Security System ................. 27
Engine stop switch .......................... 28
Engine shut-off switch .................... 28
Start switch ..................................... 28
Throttle lever .................................... 29
RiDE lever ......................................... 29
Steering system ............................... 29
Adjustable tilt steering system ......... 30
Cooling water pilot outlets ............... 31
Water separator................................ 31
Watercraft operation ...................... 32
Watercraft operation functions ..... 32
Shift system...................................... 32
Electric trim system .......................... 34
Watercraft operation modes ......... 36
Low RPM Mode ............................... 36
No-wake mode ................................. 37
Cruise assist ..................................... 38
Instrument operation ...................... 40
Multifunction information center ... 40
Analog speedometer/tachometer..... 40
Information display ........................... 41
Multifunction display ........................ 45
Equipment operation ...................... 50
Equipment..................................... 50
Seats ................................................ 50
Handgrip........................................... 51
Reboarding grip................................ 51
Reboarding step ............................... 51
Bow eye............................................ 52
Stern eyes ........................................ 52
Cleat ................................................. 52
Pull-up cleats (FX Cruiser SVHO) ..... 53
Storage compartments .................... 53
Fire extinguisher holder and cover ... 58
Operation and handling
requirements ................................... 59
Fuel requirements ......................... 59
Fuel................................................... 59
Engine oil requirements ................ 61
Engine oil .......................................... 61
Draining the bilge water ................ 63
Draining the bilge water on land....... 63
Draining the bilge water on water .... 63
UF3J72E0.book Page 1 Friday, May 1, 2015 11:54 AM

General and important labels
5

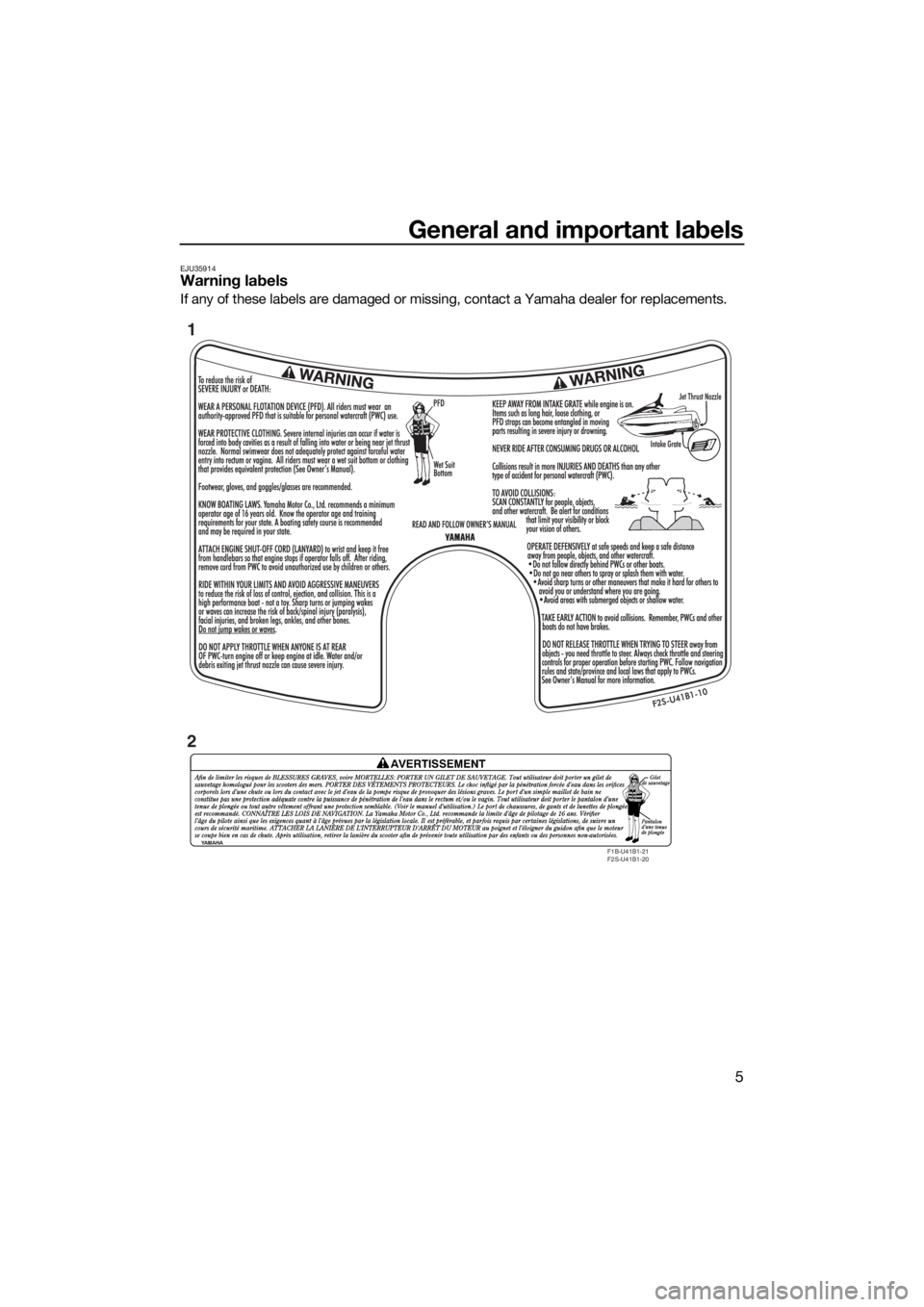

EJU35914Warning labels
If any of these labels are damaged or missing, contact a Yamaha dealer for replacements.
F1B-U41B1-21
F2S-U41B1-20
1
2
UF3J72E0.book Page 5 Friday, May 1, 2015 11:54 AM

Control function operation
30
zle is changed, and the direction of the water-
craft is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn,
except at trolling speed.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever. The OTS system assists in
turning by continuing to supply some thrust
while the watercraft is decelerating, but you
can turn more sharply if you apply throttle
while turning the handlebars. The OTS sys-
tem does not function below planing speeds
or when the engine is off. Once the engine
slows down, the watercraft will no longer turn
in response to handlebar input until you apply
throttle again or you reach trolling speed.EJU31294Adjustable tilt steering system
The position of the handlebars can be adjust-
ed back and forth by operating the tilt lever.
To adjust the handlebar position:
(1) Pull the tilt lever up to disengage the han-
dlebar lock, and then move the handle-
bars back or forth to the desired position.
WARNING! Never pull the tilt lever dur-
ing operation, otherwise the handle-
bars may suddenly change position,
which may lead to an accident.
[EWJ00042]
1Handlebar
2Jet thrust nozzle
1
2
1Tilt lever
1
UF3J72E0.book Page 30 Friday, May 1, 2015 11:54 AM

Watercraft operation
32
EJU40013
Watercraft operation functions
EJU43153Shift system
WARNING
EWJ01773
Make sure that there are no obstacles or
people behind you before shifting into
reverse.
Do not touch the reverse gate while the
RiDE lever is being operated, otherwise
you could be pinched.
If the RiDE lever and throttle lever are
being operated at the same time, do not
release only the RiDE lever. Otherwise,
the watercraft could accelerate more
quickly than expected, which may lead
to an accident.
The RiDE lever and throttle lever can be oper-
ated to change the forward or rearward
movement of the watercraft only when the
engine is running. When the RiDE lever is
squeezed, the reverse gate lowers and de-
flects the water jet being discharged from the
jet thrust nozzle so that the watercraft moves
in reverse or is in neutral. When the throttle le-
ver is squeezed, the reverse gate rises and
the watercraft moves forward.
TIP:
This model is equipped with a function
which limits the engine speed in reverse.
When the engine is started, the reverse
gate automatically moves to the neutral po-
sition.
To shift into reverse:
(1) Release the throttle lever.
(2) Squeeze the RiDE lever. The reverse
gate will lower, the engine speed will in-
crease, the watercraft will start moving inreverse, and the “R” (reverse) shift indi-
cator will be displayed.
To shift into neutral from reverse:
Release the RiDE lever. The reverse gate will
automatically return to the neutral position
1RiDE lever
1Reverse gate
2Reverse position
1“R” (Reverse position)
1
1
2
1
UF3J72E0.book Page 32 Friday, May 1, 2015 11:54 AM

Instrument operation
40
EJU42241
Multifunction information
center
The multifunction information center displays
various watercraft information.
Multifunction information center initial op-
eration
When the multifunction information center is
activated, the analog speedometer/tachome-
ter makes one sweep, and all of the displaysegments and indicator lights come on. After
2 seconds, the “WARNING” indicator light
and the warning indicators in the information
display go off, and then the center starts to
operate normally.
TIP:
The “UNLOCK” indicator light will go off
when the engine is started.
Multifunction information center standby
state
If the multifunction information center does
not receive any operation input within 25 sec-
onds after the engine stops, the center will
turn off and enter a standby state. When the
engine is started again, the displays return to
their state before the center turned off, and
then the center starts to operate normally.
EJU42331Analog speedometer/tachometer
The analog speedometer/tachometer has
both a speedometer function and a tachom-
eter function. By switching the meter, it can
be used as either a speedometer or a ta-
chometer.
TIP:
The analog tachometer is selected at the
Yamaha factory.
Analog tachometer
The analog tachometer shows the engine
speed.
1Information display
2“UNLOCK” indicator light
3Analog speedometer/tachometer
4“WARNING” indicator light
5“L-MODE” indicator light
6Multifunction display
7“RPM” indicator light
8“SPEED” indicator light
1“SPEED/RPM” button
2“VOLT/HOUR” button
3“START/STOP” button
4“MODE/RESET” button
6134
87
25
1234
UF3J72E0.book Page 40 Friday, May 1, 2015 11:54 AM

Instrument operation
41
The large outer numbers on the meter show
the engine speed × 100 rpm (r/min).
The “RPM” indicator light comes on when the
analog tachometer is selected.
To switch to the tachometer from the speed-
ometer:
Push the “SPEED/RPM” button for at least 1
second after the multifunction information
center is activated. When the meter switches
to the analog tachometer function, the
“RPM” indicator light comes on.
Analog speedometer
The analog speedometer shows the water-
craft speed against water.
The small inner numbers on the meter show
the watercraft speed in kilometers per hour
“km/h” and the large outer numbers show the
speed in miles per hour “mph”.
The “SPEED” indicator light comes on when
the analog speedometer is selected.
To switch to the speedometer from the ta-
chometer:
Push the “SPEED/RPM” button for at least 1
second after the multifunction information
center is activated. When the meter switches
to the analog speedometer function, the
“SPEED” indicator light comes on if “km/h”
are selected as the display units. The
“SPEED” indicator light blinks three times,then comes on, if “mph” are selected as the
display units. (See page 41 for information on
switching the digital speedometer display
units.)
EJU35027Information display
The information display shows watercraft op-
erating conditions.
EJU42361Digital speedometer
The digital speedometer shows the water-
craft speed against water.
1“SPEED/RPM” button
2“RPM” indicator light
2
1
1“SPEED/RPM” button
2“SPEED” indicator light
1Fuel level meter
2Fuel indicator
3Hour meter/voltmeter
4Digital speedometer
5Engine overheat warning indicator
6Check engine warning indicator
7Oil pressure warning indicator
2
1
123
567
4
UF3J72E0.book Page 41 Friday, May 1, 2015 11:54 AM

Instrument operation
44
TIP:
The accuracy of the fuel level meter varies
depending on the operating conditions. Use
this function as a reference only.
EJU42342Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp.gal), the low-
est two fuel level segments, the fuel indicator,
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 59
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is re-
started.
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU42271Oil pressure warning
If the oil pressure drops significantly, the oil
pressure warning indicator and the “WARN-
ING” indicator light blink, and the buzzer
sounds intermittently. At the same time, the
engine speed is limited.
If the oil pressure warning is activated, imme-
diately reduce the engine speed, return to
shore, and then check the engine oil level.
(See page 61 for information on checking the
engine oil level.) If the oil level is sufficient,
have a Yamaha dealer check the watercraft.
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU42371Engine overheat warning
If the engine temperature rises significantly,
the engine overheat warning indicator and
the “WARNING” indicator light blink, and the
buzzer sounds intermittently. Then, the en-
gine overheat warning indicator and the
“WARNING” indicator light stop blinking and
remain on, and the buzzer sounds continu-
1Fuel level meter
1
UF3J72E0.book Page 44 Friday, May 1, 2015 11:54 AM
