Description
2-2
2
EAU63391
Right view
78 5,6
4
23
1
3
1. Storage compartment (page 3-38)
2. Fuel tank cap (page 3-31)
3. Electronically adjustable suspension system (page 3-43)
4. Windshield (page 3-13)
5. Fuses (page 6-33)
6. Battery (page 6-31)
7. Brake pedal (page 3-28)
8. Rear brake fluid reservoir (page 6-24)
UB95E0E0.book Page 2 Friday, February 19, 2016 2:15 PM

Instrument and control functions
3-50
3
EAU39656
Auxiliary DC jack
WARNING
EWA14361
To prevent electrical shock or short-
circuitin g, make sure that the cap is
installe d when the auxiliary DC jack
is not b eing use d.
NOTICE
ECA15432
The accessory connecte d to the
auxiliary DC jack shoul d not b e used
with the en gine turne d off, an d the
loa d must never exceed 30 W (2.5 A),
otherwise the fuse may blow or the
b attery may d ischarge.
This vehicle is equipped with an auxil-
iary DC jack in the accessory box.
A 12-V accessory connected to the
auxiliary jack can be used when the
key is in the “ON” position and should
only be used when the engine is run-
ning.
To use the auxiliary DC jack
1. Open the accessory box lid. (See page 3-39.)
2. Turn the key to “OFF”.
3. Remove the auxiliary DC jack cap.
4. Turn the accessory off. 5. Insert the accessory plug into the
auxiliary DC jack.
6. Turn the key to “ON”, and then start the engine. (See page 5-2.)
7. Turn the accessory on.
1. Auxiliary DC jack cap
1
1. Auxiliary DC jack
1
UB95E0E0.book Page 50 Friday, February 19, 2016 2:15 PM

Periodic maintenance an d a djustment
6-8

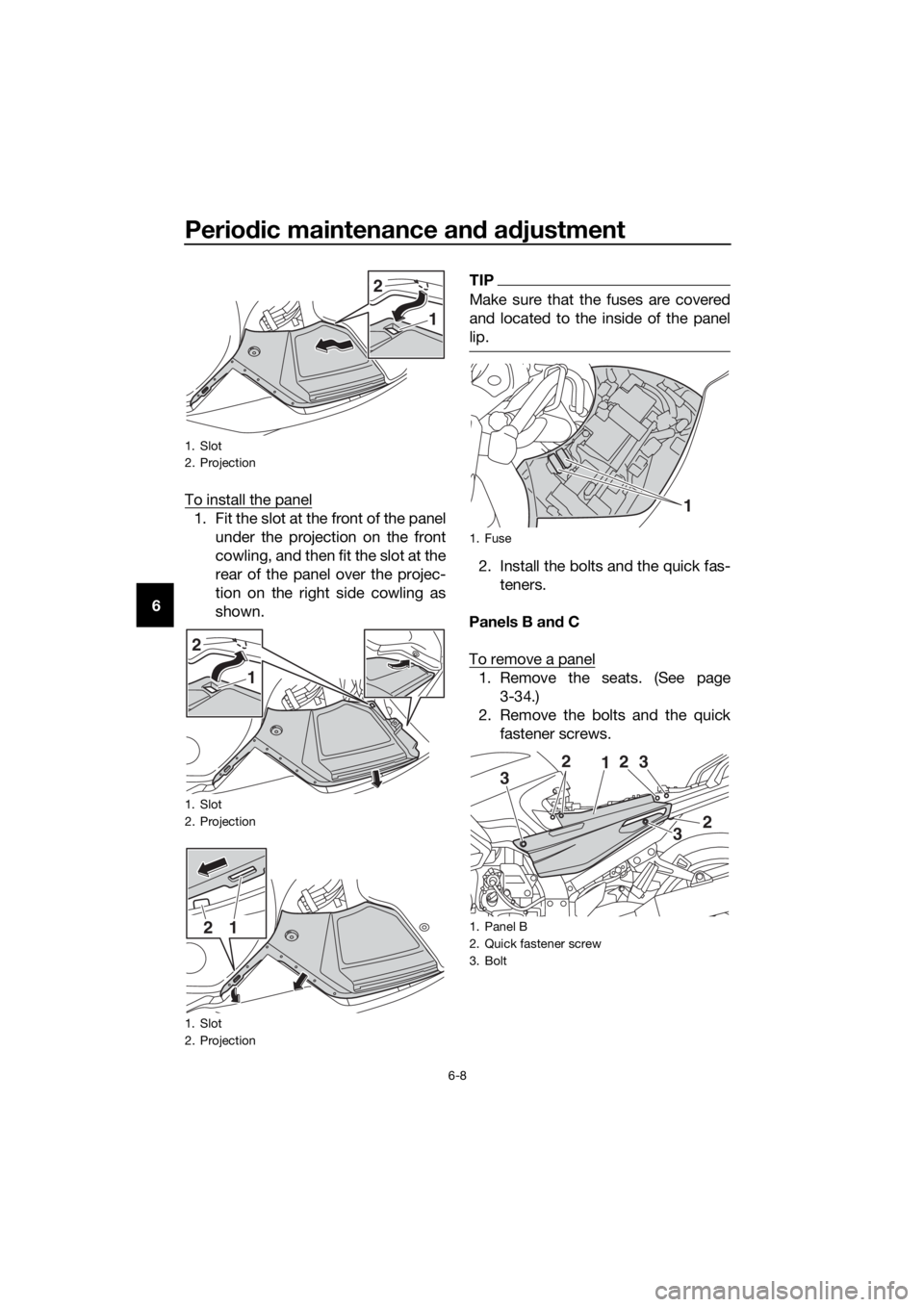

6 To install the panel
1. Fit the slot at the front of the panel
under the projection on the front
cowling, and then fit the slot at the
rear of the panel over the projec-
tion on the right side cowling as
shown.
TIP
Make sure that the fuses are covered
and located to the inside of the panel
lip.
2. Install the bolts and the quick fas-teners.
Panels B an d C
To remove a panel
1. Remove the seats. (See page 3-34.)
2. Remove the bolts and the quick fastener screws.
1. Slot
2. Projection
1. Slot
2. Projection
1. Slot
2. Projection
2
1
2
1
12
1. Fuse
1. Panel B
2. Quick fastener screw
3. Bolt
1
12
2
3
3
2
3
UB95E0E0.book Page 8 Friday, February 19, 2016 2:15 PM

Periodic maintenance an d a djustment
6-33
6
EAU54515
Replacin g the fuses
The fuse boxes and individual fuses
are located under panel A. (See page
6-7.)
If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive dam-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
1. Main fuse
2. Spare fuse
3. Cruise control fuse
4. Brake light fuse
5. Fuse box
6. Main fuse 2
5
1
3
4
2
5 26
1. ABS motor fuse
2. ABS solenoid fuse
3. Fuel injection system fuse
4. Backup fuse (for clock and immobilizer sys-
tem)
5. Electronic throttle valve fuse
6. Headlight fuse
7. Spare fuse
8. YCC-S motor control fuse
9. Suspension fuse
10.Signaling system fuse
11.Terminal fuse 1 (for auxiliary DC jack)
12.ABS control unit fuse
13.Ignition fuse
14.Right radiator fan motor fuse
15.Left radiator fan motor fuse
16.Hazard fuse
17.Windshield motor fuse
15 7
11
10121314
71716
8
1
9
234
5
67
7
UB95E0E0.book Page 33 Friday, February 19, 2016 2:15 PM

Periodic maintenance an d a djustment
6-34
6
3. Turn the key to “ON” and turn onthe electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU72980
Vehicle li ghts
This model is equipped with full-LED
lighting. There are no user replaceable
bulbs.
If a light does not come on, check the
fuses and then have a Yamaha dealer
check the vehicle.
NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the head light lens.
Specifie d fuses:
Main fuse: 50.0 A
Main fuse 2:
30.0 A
Te r m i n a l f u s e 1 : 3.0 A
Headlight fuse: 7.5 A
Brake light fuse:
1.0 A
Signaling system fuse: 7.5 A
Ignition fuse: 20.0 A
Radiator fan motor fuse:
10.0 A × 2
Backup fuse: 7.5 A
Hazard fuse: 7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
20.0 A
Suspension fuse: 15.0 A
YCC-S motor control fuse: 30.0 A
Cruise control fuse:
1.0 A
Windshield motor fuse: 20.0 A
Electronic throttle valve fuse: 7.5 A
UB95E0E0.book Page 34 Friday, February 19, 2016 2:15 PM

Specifications
8-3
8
Battery:
Model:GT14B-4
Voltage, capacity:
12 V, 12.0 Ah (10 HR)
Bul b watta ge × quantity:
Headlight:
LED
Brake/tail light:
LED
Front turn signal light: LED
Rear turn signal light: LED
Auxiliary light: LED
License plate light:
LED
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light:
LED
Oil level warning light: LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Cruise control “SET” indicator light: LED
Cruise control “ON” indicator light:
LED
Immobilizer system indicator light: LED
Traction control system indicator/warning
light: LED
Shift down indicator light: LED
YCC-S system warning light:
LED
Suspension warning light: LED
Fuse(s):
Main fuse:
50.0 A Main fuse 2:
30.0 A
Terminal fuse 1: 3.0 A
Headlight fuse:
7.5 A
Brake light fuse: 1.0 A
Signaling system fuse: 7.5 A
Ignition fuse:
20.0 A
Radiator fan motor fuse: 10.0 A × 2
Hazard fuse: 7.5 A
Fuel injection system fuse: 15.0 A
ABS control unit fuse:
7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse: 20.0 A
Suspension fuse:
15.0 A
Cruise control fuse: 1.0 A
YCC-S motor control fuse: 30.0 A
Backup fuse:
7.5 A
Windshield motor fuse: 20.0 A
Electronic throttle valve fuse: 7.5 A
