2016 VOLVO XC70 dimensions

Contents
9
11
11 Specifications
Label information.................................... 367
Dimensions............................................. 370
Weights................................................... 372
Engine specifications.............................. 373
Oil specifications..................................... 374
Oil volume............................................... 375
Coolant – specification and volume........ 376Transmission oil – specification and vol-
umes....................................................... 376
Brake fluid – specification and volume... 376
Power steering – specification................ 377Fuel tank volume – specification and vol-
ume......................................................... 377 Air conditioning – specification and vol-
ume......................................................... 377
Battery specifications............................. 378
Symbols – general information............... 379
Warning symbols.................................... 379
Indicator symbols.................................... 380
Information symbols............................... 381
Information symbols – ceiling console.... 382
Information symbols – center console.... 382
12
12 Index
Index....................................................... 384

09 Wheels and tires
09
294
Changing a wheel – spare wheel
Wheel changes should always be carried out correctly.
Spare tire
The spare tire in your vehicle2
is called a
"Temporary Spare". Recommended tire pressure (see the placard on the B-pillar or on the fuel filler door) shouldbe maintained irrespective of which positionon the vehicle the temporary spare tire isused on. In the event of damage to this tire, a new one can be purchased from your Volvo retailer.
WARNING
Current legislation prohibits the use of the "Temporary Spare" tire other than as atemporary replacement for a puncturedtire. It must be replaced as soon as possi-ble by a standard tire. Road holding andhandling may be affected with the "Tem-porary Spare" in use. Do not exceed50 mph (80 km/h).
CAUTION
The vehicle must not be driven with wheels of different dimensions or with a spare tireother than the one that came with the vehi-cle. The use of different size wheels canseriously damage your car's transmission.
Spare wheelThe spare wheel is only intended for tempo- rary use. Replace it with a normal wheel assoon as possible. The car's handling may bealtered by the use of the spare wheel. Thecorrect tire pressure for the spare wheel isstated in the tire pressure table, see Tire infla-tion – pressure table (p. 300) and in the tireinflation placard on the driver's side doorjamb at the rear of the driver's door opening.
WARNING
Current legislation prohibits the use of the “Temporary Spare” tire other than as atemporary replacement for a puncturedtire. It must be replaced as soon as possi-ble by a standard tire. Road holding andhandling may be affected with the “Tem-porary Spare” in use.
CAUTION
The vehicle must never be driven with more than one temporary spare wheel.
The spare wheel is located in the spare wheel well with the rim side down. There are twofoam blocks, one under the spare wheel andone over/inside. The upper one contains alltools. The same bolt runs through to secure the spare wheel and the foam blocks.
Related information
• Changing a wheel – installing a wheel (p. 295)
• Changing a wheel – removing wheel(p. 291)
2
Not on models equipped with the Tire sealing system.

11 Specifications
11
370

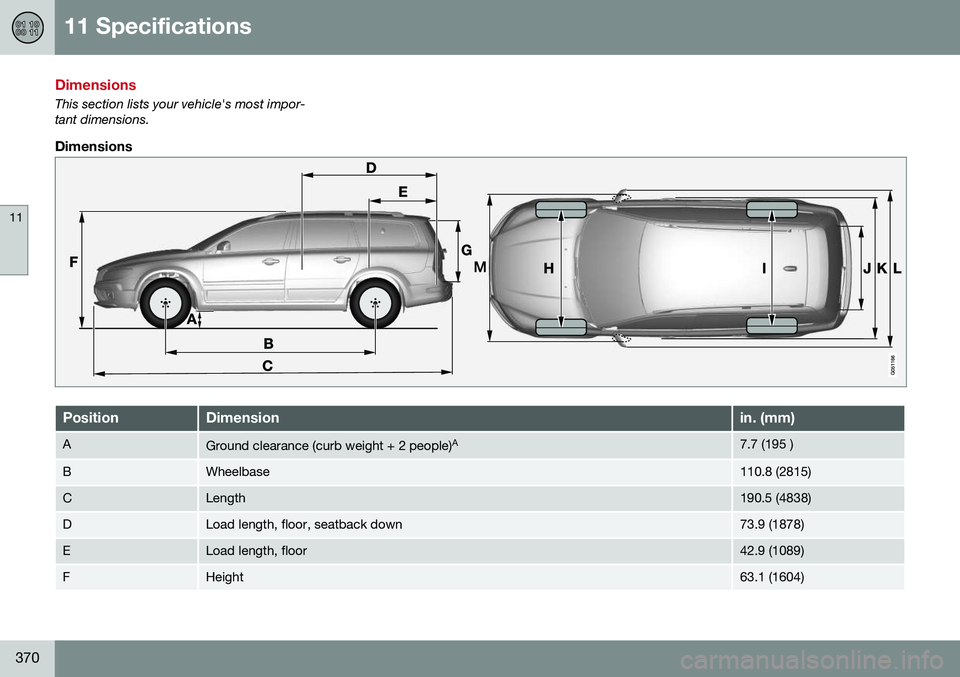

Dimensions
This section lists your vehicle's most impor- tant dimensions.
Dimensions
PositionDimensionin. (mm)
AGround clearance (curb weight + 2 people)A7.7 (195 )
BWheelbase110.8 (2815)
CLength190.5 (4838)
DLoad length, floor, seatback down73.9 (1878)
ELoad length, floor42.9 (1089)
FHeight63.1 (1604)

12 Index
12
385
Central locking system, introduction 152,
153, 156, 159
Chains...................................................... 304
Check Engine warning light....................... 73Child restraints recalls and registration......................... 47
Child restraint systems.............................. 47 booster cushions.................................. 53
convertible seats.................................. 51
infant seats........................................... 49
ISOFIX/LATCH anchors........................ 54
top tether anchors................................ 56
Child safety................................................ 45 booster cushions.................................. 53
child restraint systems.......................... 47
convertible seats.................................. 51
infant seats........................................... 49
Child safety locks...................................... 61
City safety........................................ 202, 203
Climate system........................................ 132 air distribution..................... 126, 133, 135
air vents.............................................. 126
Interior Air Quality System.................. 125
introduction......................................... 124
passenger compartment filter............ 125
refrigerant........................................... 124
Clock, setting............................................. 78
Cold weather driving................................ 274 Collision warning system.. 209, 211, 214,
215, 217, 218
Compass in rearview mirror..................... 105
Connected service booking..................... 325
Conserving electrical current................... 273
Convertible seats....................................... 51
Coolant............................................ 331, 376
Cooling system, general information....... 273
Courtesy lighting........................................ 96
Crash event data....................................... 18
Crash mode......................................... 44, 45
Cruise control.................................. 181, 183 adaptive.............................................. 184
Curb weight............................................. 301
Current, conserving................................. 273
Cyclist detection.............................. 213, 217
D
Daytime running lights............................... 89
Defroster.................................................. 132
Detachable key blade...................... 157, 158Dimensions XC70................................................... 370 Disconnecting the front passenger’s air-
bag............................................................. 36
Distance Alert.......................................... 198
Dome lighting............................................. 96
Door mirrors..................................... 102, 103
Driver alert....................... 222, 223, 224, 225
Lane Departure Warning..... 227, 229, 230
Driver distraction warning.......................... 23
Driving economically................................ 279
Driving in cold weather............................ 274
Driving through water.............................. 272
E
ECC......................................... 129, 130, 131
Eco (driving function)............................... 261
Eco coast................................................. 261
Eco guide................................................... 71
Economical driving.................................. 279
Electrically heated steering wheel............. 88
Electrical sockets..................................... 140
Electric parking brake...... 268, 269, 270, 271
Electronic Climate Control............... 128, 131 air distribution table............................ 135

12 Index
12
391
Trips, long distance................................. 273
Tunnel detection........................................ 92
Turn signals............................................... 95 changing bulbs................................... 338
indicator lights...................................... 73
Two-stage booster cushion........... 57, 59, 60
U
Uniform Tire Quality Grading................... 303
Unlocking the tailgate.............................. 168
Unlocking the vehicle...... 155, 165, 166, 167
V
Vanity mirror............................................ 141 changing bulbs................................... 341
Vehicle dimensions XC70................................................... 370
Vehicle Event Data..................................... 18
Vehicle information.................................... 20
Vehicle loading........................ 142, 143, 301 roof loads............................................ 142
Vehicle maintenance................................ 322 performed by the owner..................... 323 Vehicle weights........................................ 372
Ventilated seats....................................... 130
Volvo and the environment........................ 22
Volvo ID..................................................... 21
Volvo maintenance.................................. 322
Volvo On Call Roadside Assistance.......... 24
Volvo programs......................................... 24
Volvo Sensus........................................... 111
W
Warning flashers, hazard........................... 94
Warning lights................................ 68, 70, 74
Warning symbol......................................... 75
Warning system, collision........ 209, 211, 217
Warranties................................................ 322
Washer fluid............................................. 344Washers
headlight............................................... 99
windshield............................................. 98
Water, driving through............................. 272
Waxing..................................................... 361
Weights.................................................... 372 Wheels..................................................... 288
changing............................................. 291
storing................................................. 289
Whiplash Protection System..................... 42 Windows power.................................................. 100
sun shade........................................... 100
Windshield heated......................................... 104, 132
rain sensor............................................ 98
washers................................................ 99
wipers/washers..................................... 98
Windshield washer fluid........................... 344
Windshield wipers.................................... 342 service position................................... 342
Wiper blades replacing............................................. 342
replacing tailgate wiper...................... 344
