2016 VOLVO XC60 sensor

||
10 Maintenance and servicing
10
356* Option/accessory, for more information, see Introduction.
PosFunctionA
Controls in left rear passeng- er's door20
Keyless drive*20
Power driver's seat*20
Power front passenger's seat*20
-
Infotainment system display5
Infotainment system: amplifier, SiriusXM ™ satellite radio*10
Sensus control module15
Bluetooth hands-free system5
-
Laminated panoramic roof* Courtesy lighting, climate sys- tem sensor5
12-volt sockets in tunnel con- sole15
Heated rear seat* (passenger's side)15
Heated rear seat* (driver's side)15
PosFunctionA
-
Heated front passenger's seat*15
Heated driver's seat*15
Park assist* Blind Spot Information System (BLIS)*, park assist camera*5
All Wheel Drive* control mod- ule15
Active chassis system*10
Positions: fusebox B
PosFunctionA
Tailgate wiper15
-
Front courtesy lighting, driv- er's door power window con-trols, power seat(s)*,7.5
Instrument panel5
Adaptive cruise control/colli- sion warning*10
PosFunctionA
Courtesy lighting, rain sen- sor*, HomeLInk ®
Wireless
Control System*7.5
Steering wheel module7.5
Cental locking: fuel filler door10
Electrically heated steering wheel*15
Electrically heated windshield*15
Tailgate unlock10
Electrical folding rear seat outboard head restraints*10
Fuel pump20
Climate system control panel5
-
Alarm, On-board diagnostic system5
Satellite radio *, audio system amplifier10
Airbag system, occupant weight sensor10
Collision warning system*5

10 Maintenance and servicing
10
* Option/accessory, for more information, see Introduction.357
PosFunctionA
Accelerator pedal sensor, auto-dim mirror function,heated rear seats*7.5
-
Brake lights5
Laminated panoramic roof*20
Immobilizer5
Related information
• Fuses – engine compartment (p. 351)
• Fuses – cargo area/trunk (p. 358)
• Fuses – engine compartment cold zone (Start/Stop only) (p. 359)

10 Maintenance and servicing
10
362
Automatic car wash
The vehicle should be washed at regular inter- vals since dirt, dust, insects and tar spotsadhere to the paint and may cause damage.To help prevent corrosion, it is particularlyimportant to wash the car frequently in thewintertime.• We do NOT recommend washing your car in an automatic wash during the firstfew months (because the paint will nothave hardened sufficiently).
• An automatic wash is a simple and quickway to clean your car, but it is worthremembering that it may not be as thor-ough as when you yourself go over thecar with sponge and water. Keeping theunderbody clean is most important, espe-cially in the winter. Some automaticwashers do not have facilities for washingthe underbody.
NOTE
Condensation may form temporarily on the inside of the lenses of exterior lights suchas headlights, fog lights, or taillights. Thisis normal and the lights are designed towithstand moisture. Normally, condensa-tion will dissipate after the lights have beenon for a short time.
CAUTION
• Before driving into an automatic car wash, turn off the optional rain sensorto avoid damaging the windshield wip-ers.
• Make sure that side view mirrors, aux-iliary lamps, etc, are secure, and thatany antenna(s) are retracted orremoved. Otherwise there is risk of themachine dislodging them.
• Chromed wheels:
Clean chrome-
plated wheels using the same deter-gents used for the body of the vehicle.Aggressive wheel-cleaning agents canpermanently stain chrome-platedwheels.
WARNING
• When the vehicle is driven immediately after being washed, apply the brakes,including the parking brake, severaltimes in order to remove any moisturefrom the brake linings.
• Engine cleaning agents should not beused when the engine is warm. Thisconstitutes a fire risk.
Related information
•
Polishing and waxing (p. 362)
• Cleaning the interior (p. 363)
• Washing the car (p. 361)
Polishing and waxing
Normally, polishing is not required during the first year after delivery, however, waxing maybe beneficial.
• Before applying polish or wax the vehicle must be washed and dried. Tar spots canbe removed with kerosene or tar remover.Difficult spots may require a fine rubbingcompound.
• After polishing use liquid or paste wax.
• Several commercially available productscontain both polish and wax.
• Waxing alone does not substitute for pol-ishing a dull surface.
• A wide range of polymer-based waxescan be purchased today. These waxesare easy to use and produce a long-last-ing, high-gloss finish that protects thebodywork against oxidation, road dirt andfading.
• Do not polish or wax your vehicle in directsunlight (the surface of the vehicle shouldnot be warmer than 113 °F (45 °C).

11 Specifications
11
* Option/accessory, for more information, see Introduction.383
Symbols in the main instrument panel
Warning symbols in the instrument panel
SymbolDescriptionSee
Low oil pressure(p. 74)
Parking brake A(p. 74)
SRS airbags(p. 74)
Seat belt reminder(p. 74)
Generator not charg- ing(p. 74)
Fault in the brake sys- tem(p. 74)
Warning symbol(p. 74)
A
The symbol is Park only on models with the optional digital
instrument panel.
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 114)
Indicator symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Indicator symbols in the instrument
panel
SymbolDescriptionSee
Fault in the Active Bending Light(ABL)*system(p. 72)
Malfunction indicator light(p. 72)
Anti-lock brake sys- tem (ABS)(p. 72)
Rear fog lights on(p. 72)
SymbolDescriptionSee
Stability system, Hill Descent Control,Trailer StabilityAssist*(p. 72)
Tire pressure moni- toring sensor (TPMS)(p. 72)
Low fuel level(p. 72)
Information symbol, see text in informa-tion display(p. 72)
High beam indicator(p. 72)
Left turn signal indi- cator(p. 72)
Right turn signal indi- cator(p. 72)
Stability system , Sport mode(p. 175)
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 114)

11 Specifications
11
384* Option/accessory, for more information, see Introduction.
Information symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Information symbols in the instrument
panel
SymbolDescriptionSee
Adaptive Cruise Control *(p. 184)
Adaptive Cruise Control *(p. 184)
Adaptive Cruise Control *(p. 184)
Adaptive Cruise Control * (Distancealert)(p. 184)
Radar sensor*(p. 193)
SymbolDescriptionSee
Camera sensor, laser sensor(p. 215) (p. 208)
Collision Warning with Full Auto-brake and Pedes-trian Detection*(p. 220)
Active Bending Lights (ABL)*(p. 92)
Driver Alert Sys- tem*(p. 222)
Driver Alert Sys- tem*(p. 222)
Parking brake(p. 269)
Rain sensor*(p. 98)
Active High Beams (AHB)*(p. 90)
Windshield sensor*(p. 90)
SymbolDescriptionSee
Driver Alert Sys- tem* (LaneDeparture Warning)(p. 227)
Driver Alert Sys- tem* (LaneDeparture Warning)(p. 227)
Driver Alert Sys- tem* (LaneDeparture Warning)(p. 227)
Fuel tank on pas- senger's side of thevehicle(p. 278)
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 114)

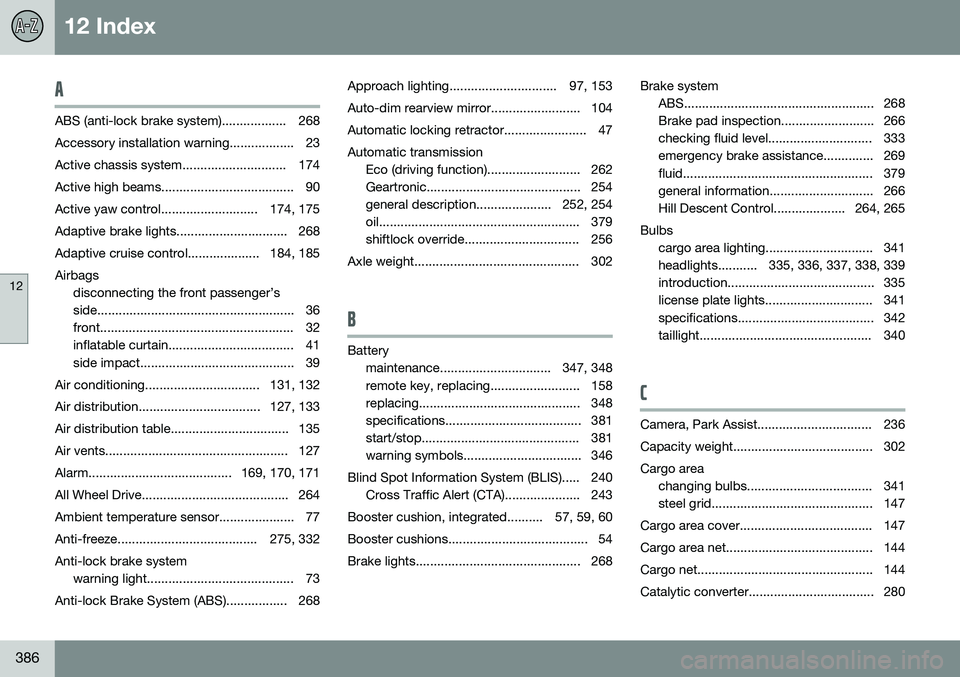

12 Index
12
386
A
ABS (anti-lock brake system).................. 268
Accessory installation warning.................. 23
Active chassis system............................. 174
Active high beams..................................... 90Active yaw control........................... 174, 175
Adaptive brake lights............................... 268
Adaptive cruise control.................... 184, 185Airbags disconnecting the front passenger’s
side....................................................... 36
front...................................................... 32
inflatable curtain................................... 41
side impact........................................... 39
Air conditioning................................ 131, 132
Air distribution.................................. 127, 133
Air distribution table................................. 135
Air vents................................................... 127
Alarm........................................ 169, 170, 171
All Wheel Drive......................................... 264
Ambient temperature sensor..................... 77
Anti-freeze....................................... 275, 332Anti-lock brake system warning light......................................... 73
Anti-lock Brake System (ABS)................. 268 Approach lighting.............................. 97, 153
Auto-dim rearview mirror......................... 104
Automatic locking retractor....................... 47Automatic transmission
Eco (driving function).......................... 262
Geartronic........................................... 254
general description..................... 252, 254
oil........................................................ 379
shiftlock override................................ 256
Axle weight.............................................. 302
B
Battery maintenance............................... 347, 348
remote key, replacing......................... 158
replacing............................................. 348
specifications...................................... 381
start/stop............................................ 381
warning symbols................................. 346
Blind Spot Information System (BLIS)..... 240 Cross Traffic Alert (CTA)..................... 243
Booster cushion, integrated.......... 57, 59, 60
Booster cushions....................................... 54
Brake lights.............................................. 268 Brake system
ABS..................................................... 268
Brake pad inspection.......................... 266
checking fluid level............................. 333
emergency brake assistance.............. 269
fluid..................................................... 379
general information............................. 266
Hill Descent Control.................... 264, 265
Bulbs cargo area lighting.............................. 341
headlights........... 335, 336, 337, 338, 339
introduction......................................... 335
license plate lights.............................. 341
specifications...................................... 342
taillight................................................ 340
C
Camera, Park Assist................................ 236
Capacity weight....................................... 302Cargo area changing bulbs................................... 341
steel grid............................................. 147
Cargo area cover..................................... 147
Cargo area net......................................... 144
Cargo net................................................. 144
Catalytic converter................................... 280

12 Index
12
388
Electronic oil level sensor........................ 331
Electronic stability control....................... 174Emergency locking retractor...................... 47
Emergency starting.................................. 251
Emergency towing........................... 285, 286
Emission inspection readiness................ 326Engine overheating........................................... 75
specifications...................................... 376
Start/Stop........... 257, 258, 259, 260, 261
starting................................................ 247
switching off............................... 249, 250
Engine compartment overview................ 329
Engine Drag Control (EDC)...................... 175
Engine oil................................................. 377 checking............................................. 330
low pressure warning light.................... 74
volumes.............................................. 378
Engine remote start (ERS)........................ 249
Environment............................................... 22
F
Federal Clean Air Act............................... 323 Flat tires repairing with tire sealing system....... 314 Floor mats
cleaning.............................................. 364
placing correctly................................. 247
Fluid specifications.......................... 379, 380
Fog lights................................................... 73 rear................................................ 94, 340
Four C (active chassis system)................ 174
Front airbags.............................................. 32 disconnecting passenger’s side airbag 36
Front park assist.............................. 232, 236
Front seats................................................. 80 heated................................................. 130
Fuel filler cap........................................... 279
Fuel filler door, opening................... 278, 279
Fuel level warning light.............................. 73
Fuel requirements............................ 276, 277
Fuel tank volume..................................... 380
Fuses....................................... 349, 351, 358
G
Garage door opener HomeLink ®
Wireless Control
System........................................ 109, 110
Gasoline requirements............................. 277
Gas tank volume...................................... 380 Gauges...................................................... 68
Geartronic................................................ 254
Geartronic automatic transmission.......... 254
Generator warning light............................. 75
Glossary of tire terminology..................... 303
Grocery bag holder.................................. 144
Gross vehicle weight............................... 302
H
Hazard warning flashers............................ 94 Headlights
Active Bending Lights........................... 92
active high beams................................. 90
changing bulbs........... 336, 337, 338, 339
daytime running lights.......................... 89
high/low beams.................................... 90
high beam flash.................................... 90
tunnel detection.................................... 92
Headlight washers..................................... 99
Head restraints, rear seat.................... 84, 85
Heated front seats................................... 130
Heated oxygen sensors........................... 280
Heated rear seats.................................... 130
Heated steering wheel............................... 88
Heated windshield........................... 104, 132

12 Index
12
390
Low beams................................................ 90Low oil pressure warning light................... 74
M
Main instrument panel..................... 113, 114
Maintenance............................................ 323 hoisting the vehicle............................. 325
performed by the owner..................... 324
Malfunction indicator light......................... 73
Messages in the instrument panel... 113, 114Mirrors defroster............................................. 104
power door................................. 102, 103
rearview, auto-dim function................ 104
retractable................................... 102, 103
vanity.................................................. 141
Motor oil checking............................................. 330
volumes.............................................. 378
N
Net in cargo area..................................... 144
O
Occupant safety........................................ 26
Occupant weight sensor............................ 36
Octane recommendations....................... 277
Odometer, trip........................................... 78Oilchecking............................................. 330
volumes.............................................. 378
Oil level sensor........................................ 331
Oil quality................................................. 377
OK button........................................ 113, 114
On Call Roadside Assistance.................... 24
Outside temperature sensor...................... 77
Overhead courtesy lighting........................ 96
Overheating, engine................................... 75
Ownership, changing................................. 18
Oxygen sensors, heated.......................... 280
P
Paint, touching up.................................... 365
Park assist....................................... 232, 236
Park Assist Camera................................. 236 Parking brake
electric, applying/releasing. 269, 270,
271, 272
warning light......................................... 74
Parking lights............................................. 93
Pedestrian detection........................ 214, 217
Polishing.................................................. 362Power front seat memory function................................... 81
Power meter.............................................. 71
Power mirrors.................................. 102, 103 defroster............................................. 104
Power steering adjustable........................................... 179
fluid..................................................... 334
Power steering fluid................................. 380
Power tailgate.......................... 167, 168, 169
Power windows....................................... 100 laminated glass................................... 101
Pregnancy, using seat belts during........... 30
Private locking......................................... 156
PROPOSITION 65 WARNING.. 251, 349, 381
