2016 VOLVO S60 remote control

||

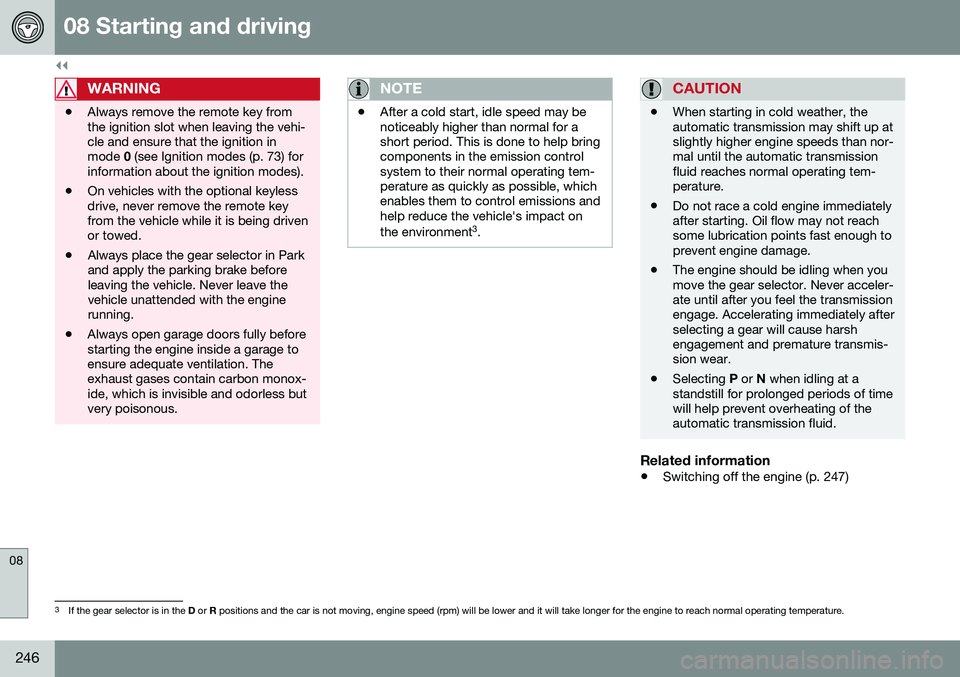

08 Starting and driving
08
246
WARNING
•Always remove the remote key from the ignition slot when leaving the vehi-cle and ensure that the ignition inmode
0 (see Ignition modes (p. 73) for
information about the ignition modes).
• On vehicles with the optional keylessdrive, never remove the remote keyfrom the vehicle while it is being drivenor towed.
• Always place the gear selector in Parkand apply the parking brake beforeleaving the vehicle. Never leave thevehicle unattended with the enginerunning.
• Always open garage doors fully beforestarting the engine inside a garage toensure adequate ventilation. Theexhaust gases contain carbon monox-ide, which is invisible and odorless butvery poisonous.
NOTE
•
After a cold start, idle speed may be noticeably higher than normal for ashort period. This is done to help bringcomponents in the emission controlsystem to their normal operating tem-perature as quickly as possible, whichenables them to control emissions andhelp reduce the vehicle's impact on the environment 3
.
CAUTION
• When starting in cold weather, the automatic transmission may shift up atslightly higher engine speeds than nor-mal until the automatic transmissionfluid reaches normal operating tem-perature.
• Do not race a cold engine immediatelyafter starting. Oil flow may not reachsome lubrication points fast enough toprevent engine damage.
• The engine should be idling when youmove the gear selector. Never acceler-ate until after you feel the transmissionengage. Accelerating immediately afterselecting a gear will cause harshengagement and premature transmis-sion wear.
• Selecting
P or N when idling at a
standstill for prolonged periods of timewill help prevent overheating of theautomatic transmission fluid.
Related information
• Switching off the engine (p. 247)
3
If the gear selector is in the D or R positions and the car is not moving, engine speed (rpm) will be lower and it will take longer for the engine to reach normal operating temperature.

08 Starting and driving
08
248* Option/accessory, for more information, see Introduction.
Engine Remote Start (ERS)* – starting the engine
Remote key buttons used for remote engine start
Lock
Approach lighting
Starting the engineThe maximum range for ERS is approximately 100 ft (30 meters) if the view of the vehicle isunobstructed. The vehicle must also be
locked. To start the engine:
1. Press the lock button (1 ) briefly.
2. Immediately press the approach lighting button (2) for approximately 2 seconds.
If the requirements for ERS have been met, the following will occur: 1. The turn signals will flash several times.
2. The engine will start.
3. The turn signals will illuminate for
3 seconds to indicate that the engine has started.
After the engine has started, the vehicle remains locked but the alarm is disarmed.
Active functionsWhen the engine is started with ERS, the fol- lowing functions are activated: • The climate control system
• The infotainment system.
Deactivated functionsWhen the engine is started with ERS, the fol- lowing functions are deactivated: •Headlights
• Parking lights
• License plate lights
• Windshield wipers
Related information
•
Engine Remote Start (ERS)* – switching off the engine (p. 248)
• Engine Remote Start (ERS)* – introduction(p. 247)
Engine Remote Start (ERS)* – switching off the engine
Any of the following will switch off the engine if it has been started with ERS:
• Pressing the lock button (1) or the unlock button (2) on the remote key
• Unlocking the vehicle
• Opening a door
• Depressing the accelerator or brake pedal
• Moving the gear selector from the
P posi-
tion
• If there are less than approx. 2.5 gallons(10 liters) of fuel in the tank
• More than 15 minutes have elapsed.
If the engine has been started with ERS and switches off, the turn signals will illuminate for3 seconds.
Message in the instrument panel
display
If ERS is interrupted, a text message will be displayed in the instrument panel.
Related information
• Engine Remote Start (ERS)* – introduction (p. 247)
• Engine Remote Start (ERS)* – starting theengine (p. 248)

08 Starting and driving
08
}}
267
NOTE
•In an emergency the parking brake can be applied when the vehicle is movingby holding in the control. Braking willbe interrupted when the acceleratorpedal is depressed or the control isreleased.
• An audible signal will sound during thisprocedure if the vehicle is moving atspeeds above 6 mph (10 km/h).
Related information
•
Parking brake – general information (p. 266)
• Parking brake – releasing (p. 267)
• Parking brake – symbols and messages(p. 269)
• Brakes – general (p. 262)
Parking brake – releasing
Releasing the electric parking brake
Parking brake control
Manual release1. Fasten the seat belt.
2. Insert the remote key in the ignition slot
and press the START/STOP ENGINE
button (or press the START/STOP
ENGINE button with a valid remote key in
the passenger compartment on vehicles with the optional keyless drive).
3. Press firmly on the brake pedal.
4. Pull the parking brake control.
Automatic release1. Start the engine.
NOTE
• For safety reasons, the parking brake is only released automatically if the engineis running and the driver is wearing aseat belt.
• The electric parking brake will bereleased immediately when the acceler-ator pedal is pressed and the gearselector is in position
D or R.
2. Fasten the seat belt.
3. Move the gear selector to position D or R
and press the accelerator pedal. The parking brake will release when the vehi-cle begins to move.
Heavy load uphillA heavy load, such as a trailer, can cause the vehicle to roll backward when the parkingbrake is released automatically on a steepincline. To help avoid this:
1. Keep the electric parking brake lever pushed in with the left hand while shifting into Drive with the right.
2. While pressing the accelerator pedal to pull away, release the parking brake leveronly after the vehicle begins to move.
Related information
• Parking brake – general information (p. 266)
• Parking brake – applying (p. 266)

08 Starting and driving
08
}}
281
be switched off (but will be on again the next time the engine is started)
• TSA may not intervene when the vehicleand trailer begin to sway if the driver triesto compensate for the swaying motion bymoving the steering wheel rapidly
How TSA worksOnce swaying has begun, it can be very diffi- cult to stop, which makes it difficult to controlthe vehicle and trailer. The TSA system continuously monitors the vehicle's movements, particularly lateralmovement. If the system detects a tendencyto sway, the brakes are applied individuallyon the front wheels, which has a stabilizingeffect on the vehicle and trailer. This is oftenenough to enable the driver to regain controlof the vehicle. If this is not adequate to stop the swaying motion, the brakes are applied to all of thewheels on the vehicle and on the trailer if it isequipped with brakes, and engine power istemporarily reduced. As the swaying motionbegins to decrease and the vehicle-trailerhave once again become stable, TSA will nowstop regulating the brakes/engine power andthe driver regains control of the vehicle.
Related information
• Towing a trailer (p. 279)
• Loading – general (p. 135)
Towing the vehicle
Always check with state and local authorities before attempting to tow another vehiclebecause this type of towing is subject to reg-ulations regarding maximum towing speed,length and type of towing device, lighting, etc.
1. With the remote key fully pressed into the
ignition slot 16
, press START/STOP
ENGINE for approximately 2 seconds to
activate ignition mode II. 2. The remote key must remain in the igni-
tion slot 17
for the entire time that the vehi-
cle is being towed.
3. Keep the tow rope taut when the towing vehicle slows down by applying light pressure on the brake pedal. This willhelp prevent jarring movements of thevehicle being towed.
4. Be prepared to apply the brakes to stop the vehicle being towed.
16Not necessary in vehicles with the optional keyless drive.

||
10 Maintenance and servicing
10
344* Option/accessory, for more information, see Introduction.
RemovalSwitch off the ignition, remove the remote key from the ignition slot and wait at least5 minutes before disconnecting the battery sothat all information in the vehicle's electricalsystem can be stored in the control modules.
Open the clips on the front cover and remove the cover.
Release the rubber molding so that the rear cover is free.
Remove the rear cover by pulling it away.
Detach the black negative cable.
Detach the red positive cable
Detach the ventilation hose from the
battery
Loosen the screw holding the battery
clamp.
Move the battery to the side and lift it up.
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
Rally bar R-Design models*
Rally bar and bulkhead hatch
Vehicles with the optional R-Design package are equipped with a rally bar in the enginecompartment that must be removed beforethe battery can be replaced.
1. Remove the hatch in the bulkhead on both sides of the engine compartment (pry them up carefully with a plastic knifeor similar object).
2. Remove the screw on each side of the engine compartment holding the rally barin place.
3. Lift out the rally bar. > The battery can now be removed (seethe instructions in the previous sec-tion).
• After a new battery has been installed (see the following section), reinstall therally bar in the reverse order.
NOTE
When reinstalling the rally bar, tighten the screws to 22 ft lbs (30 Nm).
Installation1. Lower the battery into the battery box.
2. Move the battery inward and to the side
until it reaches the rear edge of the box.
3. Tighten the clamp that secures the bat- tery.
4. Connect the ventilation hose. > Be sure that it is correctly connectedto the battery and the vent in the vehi- cle's body.
5. Connect the red positive cable.
6. Connect the black negative cable.
7. Press in the rear cover. (See Removal).
8. Reinstall the molding. (See Removal).
9. Reinstall the front cover and secure it with the clips. (See Removal).

12 Index
12
380
A
ABS (anti-lock brake system).................. 264
Accessory installation warning.................. 23
Active chassis system............................. 162
Active high beams..................................... 84Active yaw control........................... 162, 163
Adaptive brake lights............................... 265
Adaptive cruise control.................... 172, 173Airbags disconnecting the front passenger’s
side....................................................... 36
front...................................................... 33
inflatable curtain................................... 41
side impact........................................... 39
Air conditioning................................ 124, 125
Air distribution.................................. 121, 126
Air distribution table................................. 128
Air vents................................................... 121
Alarm................................ 157, 158, 159, 160
All Wheel Drive......................................... 262
Ambient temperature sensor..................... 71
Anti-freeze....................................... 272, 327Anti-lock brake system warning light......................................... 67
Anti-lock Brake System (ABS)................. 264 Approach lighting.............................. 91, 142
Auto-dim rearview mirror........................... 98
Automatic locking retractor....................... 47Automatic transmission
Eco (driving function).......................... 260
Geartronic........................................... 252
general description..................... 250, 252
oil........................................................ 373
shiftlock override................................ 254
Axle weight.............................................. 298
B
Battery maintenance............................... 342, 343
remote key, replacing......................... 147
replacing............................................. 343
specifications...................................... 375
start/stop............................................ 375
warning symbols................................. 341
Blind Spot Information System (BLIS)..... 238 Cross Traffic Alert (CTA)..................... 240
Booster cushions....................................... 54
Brake lights.............................................. 265Brake system ABS..................................................... 264
Brake pad inspection.......................... 263 checking fluid level............................. 328
emergency brake assistance.............. 265
fluid..................................................... 373
general information............................. 262
Bulbs headlights........... 330, 331, 332, 333, 334
introduction......................................... 330
license plate lights.............................. 336
specifications...................................... 337
taillight................................................ 335
trunk lighting....................................... 337
C
Camera, Park Assist................................ 234
Capacity weight....................................... 298
Catalytic converter................................... 277
Central locking system, introduction 139, 140, 143, 146
Chains...................................................... 301
Check Engine warning light....................... 67Child restraints recalls and registration......................... 47
Child restraint systems.............................. 47 booster cushions.................................. 54
convertible seats.................................. 51
infant seats........................................... 49

12 Index
12
382
Start/Stop........... 255, 256, 257, 258, 259
starting................................................ 245
switching off............................... 247, 248
Engine compartment overview................ 324
Engine Drag Control (EDC)...................... 163
Engine oil................................................. 371 checking............................................. 325
low pressure warning light.................... 68
volumes.............................................. 372
Engine remote start (ERS)........................ 247
Environment............................................... 22
F
Federal Clean Air Act............................... 318 Flat tires repairing with tire sealing system....... 310
Floor mats cleaning.............................................. 359
placing correctly................................. 245
Fluid specifications.......................... 373, 374
Fog lights................................................... 67 rear........................................................ 87
Four C (active chassis system)................ 162
Front airbags.............................................. 33 disconnecting passenger’s side airbag 36 Front park assist.............................. 225, 233
Front seats................................................. 74
heated................................................. 123
Fuel filler cap........................................... 276
Fuel filler door, opening................... 275, 276
Fuel level warning light.............................. 67
Fuel requirements............................ 273, 274
Fuel tank volume..................................... 374
Fuses....................................... 345, 346, 353
G
Garage door opener HomeLink ®
Wireless Control
System........................................ 102, 103
Gasoline requirements............................. 274
Gas tank volume...................................... 374
Gauges...................................................... 62
Geartronic................................................ 252
Geartronic automatic transmission.......... 252
Generator warning light............................. 69
Glossary of tire terminology..................... 299
Grocery bag holder.................................. 137
Gross vehicle weight............................... 298
H
Hazard warning flashers............................ 88 Headlights Active Bending Lights........................... 85
active high beams................................. 84
changing bulbs........... 331, 332, 333, 334
daytime running lights.......................... 82
high/low beams.................................... 83
high beam flash.................................... 83
tunnel detection.................................... 85
Headlight washers..................................... 93
Head restraints, rear seat.......................... 78
Heated front seats................................... 123
Heated oxygen sensors........................... 277
Heated rear seats.................................... 123
Heated steering wheel............................... 82
Heated windshield............................. 98, 125
High beams................................................ 83 active.................................................... 84
Hill Start Assist (HSA).............................. 250
Hoisting the vehicle................................. 320 HomeLink ®
Wireless Control
System............................................. 102, 103
Home safe lighting..................................... 91
Hood, opening/closing............................ 323

12 Index
12
384
Moonroof......................................... 100, 101Motor oil checking............................................. 325
volumes.............................................. 372
O
Occupant safety........................................ 26
Occupant weight sensor............................ 36
Octane recommendations....................... 274
Odometer, trip........................................... 72Oilchecking............................................. 325
volumes.............................................. 372
Oil level sensor........................................ 326
Oil quality................................................. 371
OK button........................................ 107, 108
On Call Roadside Assistance.................... 24
Outside temperature sensor...................... 71
Overhead courtesy lighting........................ 89
Overheating, engine................................... 69
Ownership, changing................................. 18
Oxygen sensors, heated.......................... 277
P
Paint, touching up.................................... 360
Park assist....................................... 225, 233
Park Assist Camera................................. 234
Park Assist Pilot....................................... 229Parking brake electric, applying/releasing. 266, 267, 269
warning light......................................... 68
Parking lights............................................. 87
Pedestrian detection........................ 202, 205
Polishing.................................................. 357Power front seat memory function................................... 75
Power meter.............................................. 65
Power mirrors...................................... 96, 97 defroster............................................... 98
Power moonroof.............................. 100, 101Power steering adjustable........................................... 167
fluid..................................................... 329
Power steering fluid................................. 374
Power windows......................................... 94
Pregnancy, using seat belts during........... 31
Private locking......................................... 145
PROPOSITION 65 WARNING.. 249, 344, 375
R
Rain sensor................................................ 92
Rear fog lights............................................ 87
Rear park assist............................... 225, 233Rear seats center head restraint............................. 78
folding............................................. 78, 80
heated................................................. 123
Rearview mirror auto-dim function................................. 98
compass............................................... 99
Rear window defroster.............................. 98
Recalls....................................................... 26
Recalls, child restraints.............................. 47
Refrigerant............................................... 374
Refueling.......................................... 273, 274 fuel filler cap....................................... 276
fuel filler door.............................. 275, 276
fuel tank volume................................. 374
Registering child restraints........................ 47 Remote control private locking.................................... 145
Remote key...................... 139, 140, 143, 146 approach lighting................................ 142
immobilizer......................................... 141
key blade.... 139, 140, 143, 144, 145, 146
