2016 TOYOTA VERSO window

492
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
16 SPARE 10 A Spare fuse
17 SPARE 30 A Spare fuse
18 SPARE 20 A Spare fuse
19 EFI MAIN
NO.2*17.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system
20 ECU-B2 10 A
Smart entry & start system, air con-
ditioning system, power windows,
gateway ECU
21 D.C.C SHORT No circuit
22 ECU-B 10 A
Gauges and meters, sub-battery,
steering sensor, double locking
system, wireless remote control,
smart entry & start system
23 RAD NO.1*220 A Audio system
24 DOME 10 A
Luggage compartment light, vanity
lights, front door courtesy lights,
personal/interior lights, foot lights
25 AM2 NO.2 7.5 A Starting system
26 TURN-HAZ 10 A Turn signal lights, emergency
flashers
27 ETCS*210 A Electronic throttle control system
28 AM2 30 A Starting system
29 STRG LOCK 20 A Steering lock system
30 IGT/INJ*215 A
Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
■ Under the instrument panel (type A)
FuseAmpereCircuit
1 TAIL 10 A
Front position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling system, instrument cluster
lights, glove box light, switch illumi-
nation, Toyota parking assist-sen-
sor ECU, PCS (Pre-Collision
System) switch
2 ECU-IG NO.3 10 A
Panoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system,
Stop & Start system*1, PCS (Pre-
Collision System), buzzer, gate-
way ECU
3 FR DOOR 20 A Power windows (front passenger
side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
6 CIG 15 A Power outlets
7 ACC 7.5 A
Shift lock system, audio system,
main body ECU, power outlet, out-
side rear view mirrors, Stop & Start
system*1, gateway ECU
8 MIR HTR 10 A Outside rear view mirror defoggers

496
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
9 RR FOG 7.5 A Rear fog light
10 IGN 7.5 A
Steering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, starting system,
gateway ECU
11 M E T E R 7 . 5 A Gauges and meters, Stop & Start
system*1
12 SEAT HTR 15 A Seat heaters
13 HTR-IG 10 A Air conditioning system, power
heater
14 WIPER 25 A Windshield wipers, rain-sensing
windshield wipers
15 RR WIPER 15 A Rear window wiper
16 WASHER 15 A Windshield washers, rear window
washer
17 ECU-IG NO.1 10 A
Main body ECU*2, electric cooling
fan(s), shift lock system, anti-lock
brake system, steering sensor, yaw
rate sensor, VSC+, headlight
cleaners, SEQUENTIAL switch,
automatic headlight leveling sys-
tem, electric power steering, tire
pressure warning system
18 ECU-IG NO.2 10 A
Back-up light, charging system*2,
emergency flashers, rear window
defogger, “PASSENGER AIRBAG”
indicator, air conditioning system,
Toyota parking assist-sensor indi-
cator, Toyota parking assist-sensor
switch, sub-battery
FuseAmpereCircuit

498
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E

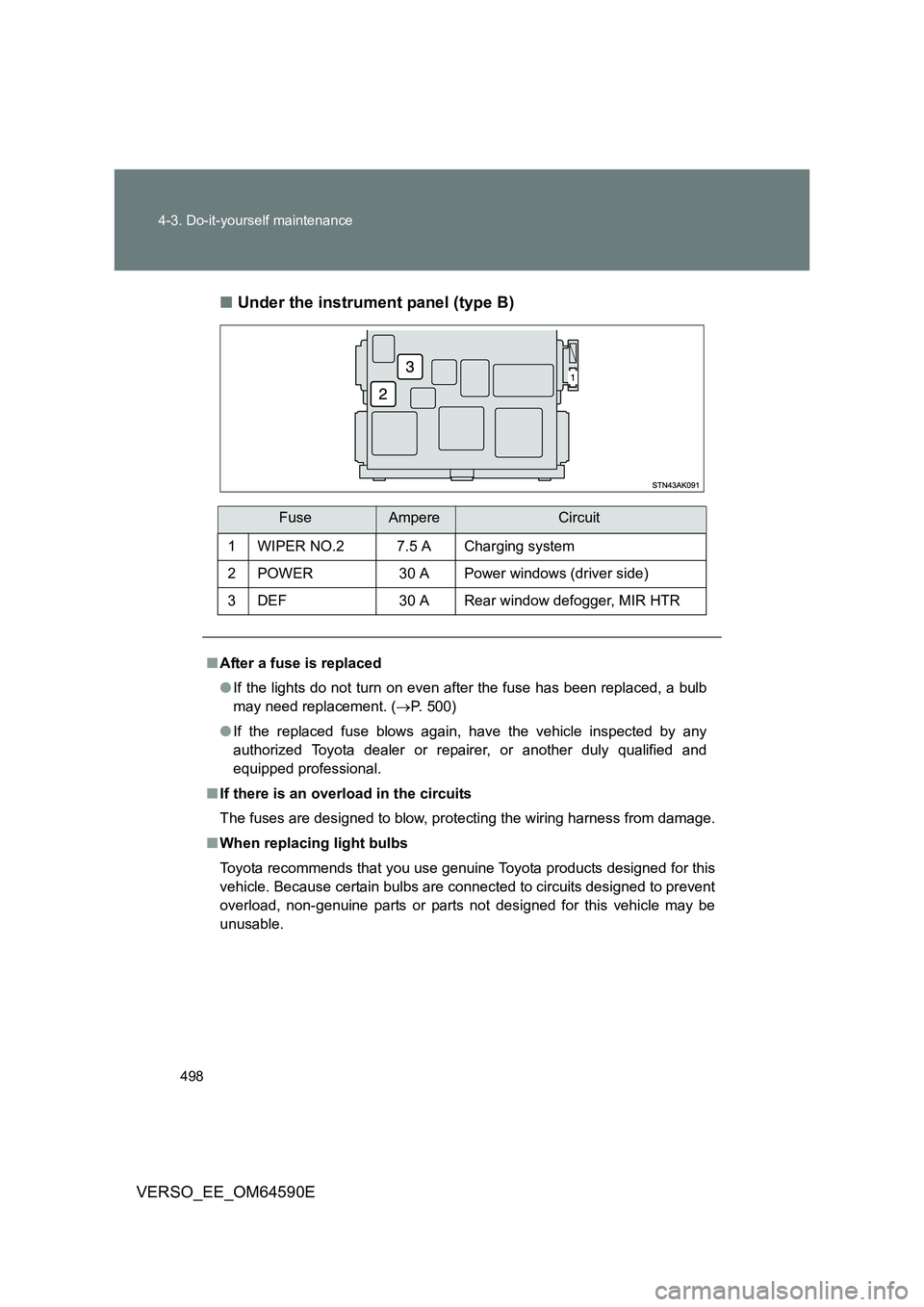

■ Under the instrument panel (type B)
FuseAmpereCircuit
1 WIPER NO.2 7.5 A Charging system
2 POWER 30 A Power windows (driver side)
3 DEF 30 A Rear window defogger, MIR HTR
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 500)
● If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.

5
543
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
■ If the tire pressure warning system is not functioning (vehicles with a
tire pressure warning light system)
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If tires not equipped with tire pressure warning valves and transmitters
are used
● If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
● If the tire inflation pressure is 380 kPa (3.9 kgf/cm2 or bar, 55 psi) or
higher
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
● If electronic devices or facilities using similar radio wave frequencies are
nearby
● If a radio set at a similar frequency is in use in the vehicle
● If a window tint that affects the radio wave signals is installed
● If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings
● If non-genuine Toyota wheels are used (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
● If tire chains are used
■ If the tire pressure warning light frequently comes on after blinking for
1 minute (vehicles with a tire pressure warning light system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch (vehicles without smart entry & start system)
or the “ENGINE START STOP” switch (vehicles with smart entry & start sys-
tem) is turned on, have it checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

649

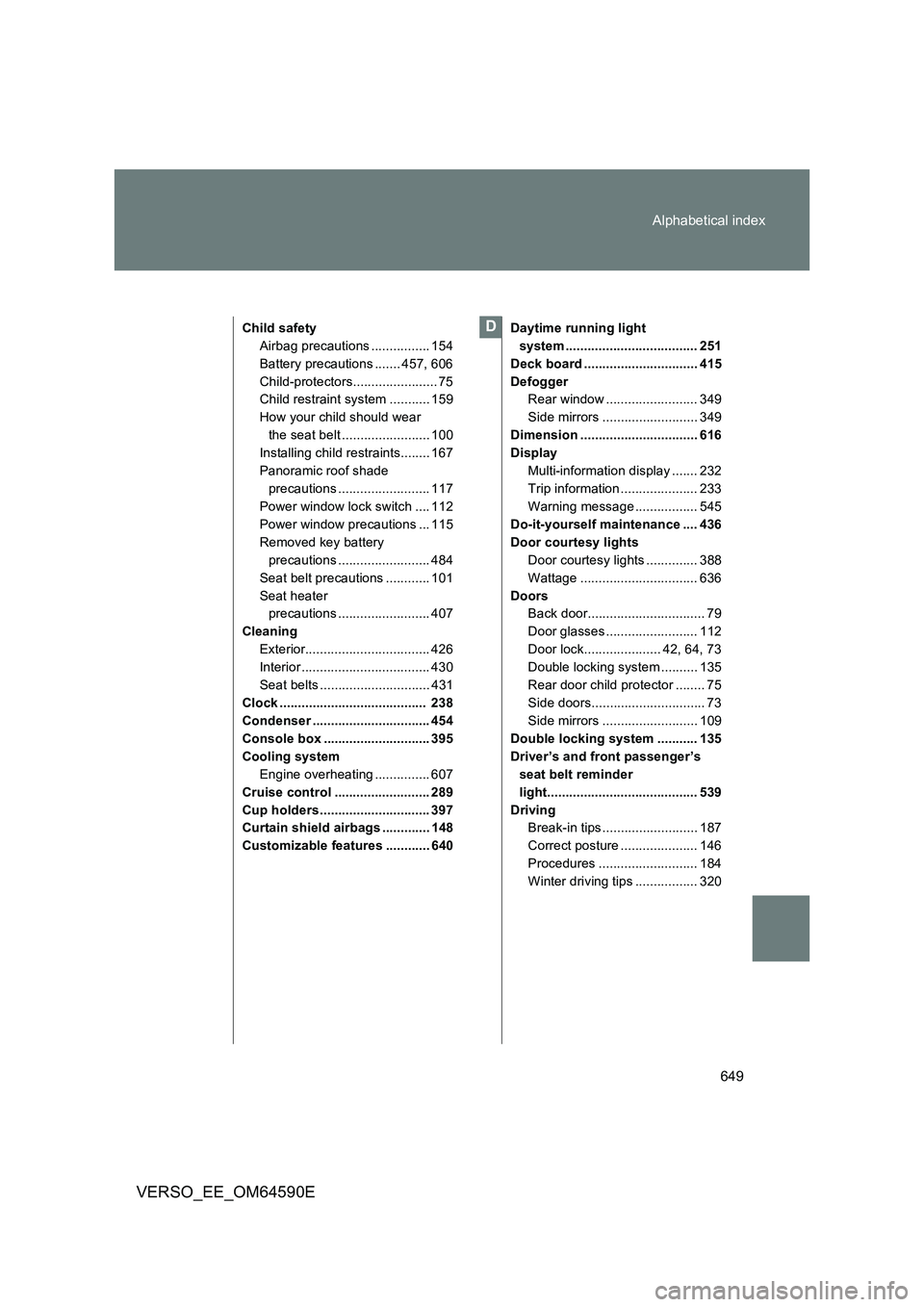

Alphabetical index
VERSO_EE_OM64590E
Child safety
Airbag precautions ................ 154
Battery precautions ....... 457, 606
Child-protectors....................... 75
Child restraint system ........... 159
How your child should wear
the seat belt ........................ 100
Installing child restraints........ 167
Panoramic roof shade
precautions ......................... 117
Power window lock switch .... 112
Power window precautions ... 115
Removed key battery
precautions ......................... 484
Seat belt precautions ............ 101
Seat heater
precautions ......................... 407
Cleaning
Exterior.................................. 426
Interior ................................... 430
Seat belts .............................. 431
Clock ........................................ 238
Condenser ................................ 454
Console box ............................. 395
Cooling system
Engine overheating ............... 607
Cruise control .......................... 289
Cup holders .............................. 397
Curtain shield airbags ............. 148
Customizable features ............ 640
Daytime running light
system .................................... 251
Deck board ............................... 415
Defogger
Rear window ......................... 349
Side mirrors .......................... 349
Dimension ................................ 616
Display
Multi-information display ....... 232
Trip information ..................... 233
Warning message ................. 545
Do-it-yourself maintenance .... 436
Door courtesy lights
Door courtesy lights .............. 388
Wattage ................................ 636
Doors
Back door................................ 79
Door glasses ......................... 112
Door lock..................... 42, 64, 73
Double locking system .......... 135
Rear door child protector ........ 75
Side doors............................... 73
Side mirrors .......................... 109
Double locking system ........... 135
Driver’s and front passenger’s
seat belt reminder
light......................................... 539
Driving
Break-in tips .......................... 187
Correct posture ..................... 146
Procedures ........................... 184
Winter driving tips ................. 320
D

654
Alphabetical index
VERSO_EE_OM64590E
Odometer .................................. 222
Oil
Engine oil .............................. 447
Opener
Fuel filler door ....................... 119
Hood ..................................... 440
Outside rear view mirrors
Adjusting and folding............. 109
Outside temperature
display .................................... 233
Overhead console.................... 397
Overheating, Engine ................ 607
Panoramic roof shade ............. 116
Parking brake ........................... 219
PCS (Pre-Collision System) .... 267
Function ................................ 267
PCS switch............................ 268
Warning light ......................... 539
Personal/interior lights
Switch ........................... 389, 390
Wattage................................. 636
Power heater ............................ 347
Power outlets ........................... 404
Power windows ........................ 112
Pre-Collision System (PCS) .... 267
Function ................................ 267
PCS switch............................ 268
Warning light ......................... 539
Radiator .................................... 454
Radio......................................... 353
Rear fog light
Replacing light bulb .............. 500
Switch ................................... 254
Wattage ................................ 636
Rear seats
Adjustment .............................. 86
Folding the seats .................... 89
Rear side sunshades............... 411
Rear turn signal lights
Replacing light bulbs............. 500
Switch ................................... 218
Wattage ................................ 636
Rear window defogger ............ 349
Rear window wiper and
washer .................................... 260
Replacing
Fuses .................................... 485
Key battery............................ 481
Light bulbs ............................ 500
Tires ...................................... 560
Roof luggage carrier ............... 317
O
P
R

656
Alphabetical index
VERSO_EE_OM64590E
Spare tire
Inflation pressure .................. 633
Storage location .................... 560
Spark plug ................................ 629
Specifications .......................... 616
Speed limiter ............................ 293
Speedometer ............................ 222
Steering wheel
Adjustment ............................ 104
Audio switches ...................... 385
Column lock release ..... 200, 205
Stop & Start cancel switch...... 305
Stop & Start system................. 304
Storage features ...................... 392
Storage precautions ................ 318
Stuck
If your vehicle becomes
stuck ................................... 611
Sun visors ................................ 402
Sunshades
Panoramic roof...................... 116
Rear side............................... 411
Switch
Airbag manual on/off............. 179
Emergency flasher switch ..... 526
Engine switch................ 198, 202
Fog light switch ..................... 254
Hazard light switch................ 526
Ignition switch ............... 198, 202
LDA (Lane Departure
Alert) switch ........................ 278
Light switches ....................... 248
PCS (Pre-Collision System)
switch ................................. 268
Power door lock switch ........... 73
Power window switches ........ 112
Rear window wiper and
washer switch ..................... 260
“SPORT” mode switch .......... 209
Stop & Start cancel switch .... 305
Tire pressure warning
reset switch ........................ 463
Window lock switch............... 112
Wipers and washer
switch ......................... 255, 260
