2016 TOYOTA TACOMA tow

REPLACING THE KEY
Upon purchase, each vehicle should have
two master keys and an aluminum tag
with a key-code imprinted on it.
To generate a fully functional replacement
key (one that will both open the doors and
start the engine), one of the master keys
is required. To make a key that will open
the door for retrieval of items locked
inside the vehicle, the aluminum key-code
tag can be used. If a master key or the
aluminum key-code tag is not available, a
Toyota dealer or certain registered
locksmiths can obtain the key code from a
restricted-access database. These
businesses can also access a service
utility to reprogram the immobilizer if all
registered master keys have been lost. If a
Toyota dealer is not available, please refer
towww.aloa.orgto find a
bonded/registered locksmith who performs
high security key service.
KEEPING THE KEY SAFE
Replacing an immobilizer key may be
costly. It is advisable to keep a spare
master key and the aluminum key-code
tag in a safe place. If you record the
key-code in more than one place, do not
record it in a way that can be easily
identified and associated with the vehicle.
It is wise to keep a copy of the key-code
outside of the vehicle.
If the vehicle was delivered with less than
two keys and the aluminum key-code tag,
consider having the Toyota dealer or a
qualified independent automotive
locksmith make a duplicate key before you
need it.
The Immobilizer Key
INTRODUCTION
8Introduction

Corrosion Perforation Warranty
This warranty covers repair or replacement
of any original body panel that develops
perforation from corrosion (rust-through),
subject to the exceptions indicated under
“What Is Not Covered” on pages 14-15.
Coverage is for 60 months, regardless of
mileage.
For information on how to protect your
vehicle from corrosion, refer to sections
related to maintenance and care in the
Owner’s Manual.
Towing
When your vehicle is inoperable due to
failure of a warranted part, towing service
to the nearest authorized Toyota dealership
is covered.
WHAT IS NOT COVERED
This warranty does not cover damage or
failures resulting directly or indirectly from
any of the following:
•Fire, accidents or theft
•Abuse or negligence
•Misuse — for example, racing or
overloading
•Improper repairs
•Alteration or tampering, including
installation of non-Genuine Toyota
Accessories
•Lack of or improper maintenance,
including use of fluids other than
those specified in the
Owner’s Manual
•Installation of non-Genuine Toyota
Parts
•Airborne chemicals, tree sap, road
debris (including stone chips), rail
dust, salt, hail, floods, wind storms,
lightning and other environmental
conditions
•Water contamination
This warranty also does not cover the
following:
Tires
Tires are covered by a separate warranty
provided by the tire manufacturer. See
page 29.
Normal Wear and Tear
Noise, vibration, cosmetic conditions and
other deterioration caused by normal wear
and tear.
New Vehicle Limited Warranty
WARRANTY
14Your Warranties in Detail

BY GEOGRAPHIC REGION
In the United States, U.S.
Territories, Canada and Mexico
To obtain warranty service in the United
States, U.S. territories, Canada or Mexico,
take your vehicle to an authorized Toyota
dealership. If your vehicle cannot be
driven, contact your nearest Toyota
dealership for towing assistance. You do
not have to pay for towing to the nearest
Toyota dealership if your vehicle is
inoperable due to failure of a warranted
part.
Outside the United States, U.S.
Territories, Canada and Mexico
If you are using your vehicle outside the
United States, U.S. territories, Canada and
Mexico and need warranty service, contact
a local Toyota dealership. Please note,
however, that your vehicle may not be
repaired free of charge because the local
Toyota distributor may have no obligation
to provide warranty service for your
vehicle, and/or your vehicle may not
comply with local regulatory or
environmental requirements.
EMERGENCY REPAIRS
If your vehicle is inoperable or unsafe to
drive and there is no Toyota dealership
reasonably available to make repairs, you
may perform the repairs yourself or have
them performed by another automotive
service provider. Toyota will reimburse you
for any of the repairs that are covered by
warranty. To receive reimbursement,
present to an authorized Toyota dealership
your paid repair invoices and any parts
that were removed from the vehicle. You
will be reimbursed for warranted parts at
the manufacturer’s suggested retail price
and warranted labor at a geographically
appropriate hourly rate multiplied by
Toyota’s recommended time allowance for
the repair.
If your vehicle requires emergency repair,
Toyota assumes no liability for subsequent
failures caused by improper repairs or the
use of non-Genuine Toyota Parts unless
you have the vehicle properly repaired in a
timely manner. To ensure that warranty
coverage remains intact, have your vehicle
inspected by an authorized Toyota
dealership as soon as possible after an
emergency repair.
Obtaining Warranty Service
WARRANTY
32Your Responsibilities

5,000 miles or 6 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
10,000 miles or 12 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed
if you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
38Maintenance Log

15,000 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots (4WD)
__ Engine coolant
4
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log39

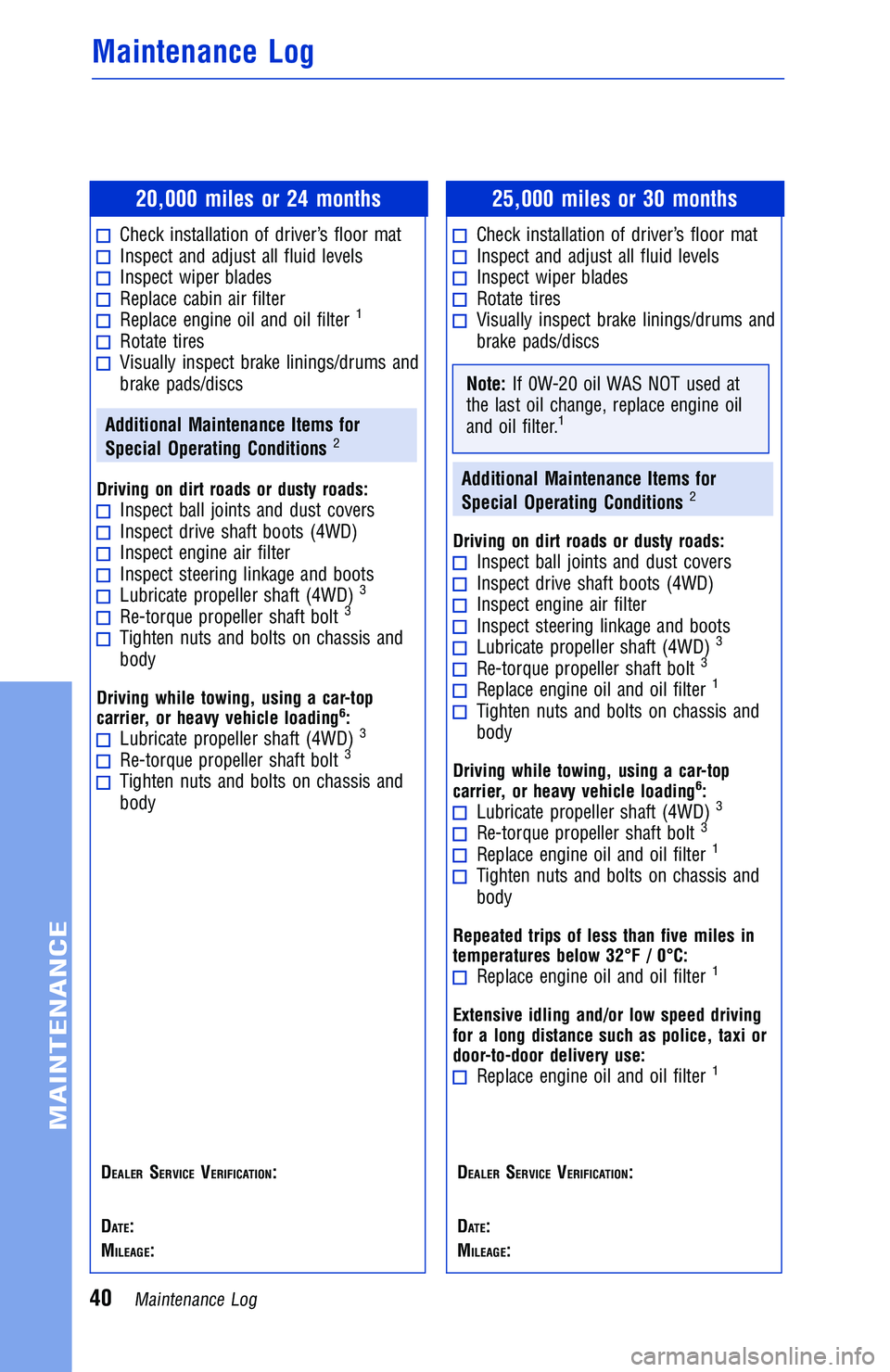

20,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
40Maintenance Log

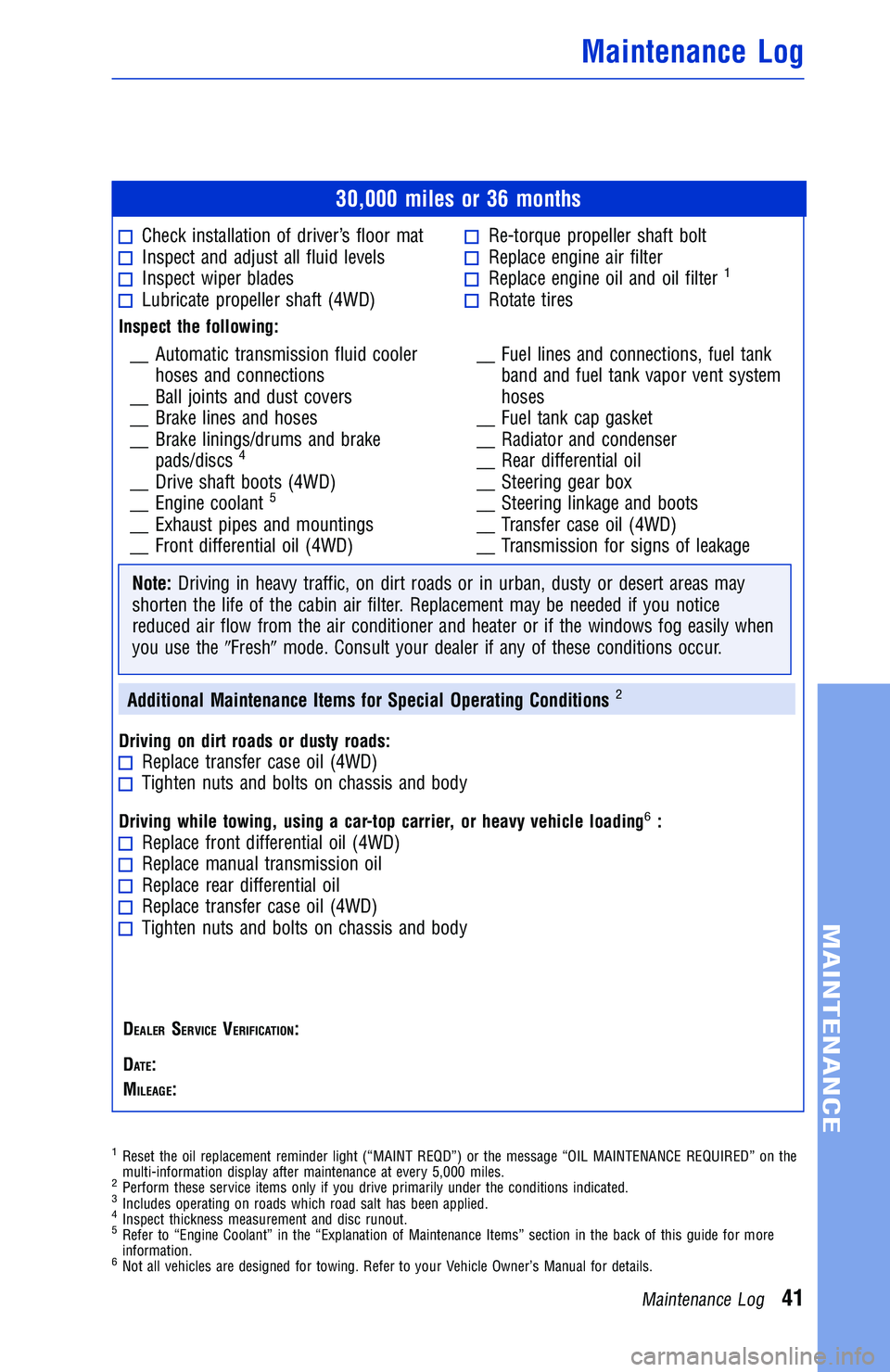

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)
Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Automatic transmission fluid cooler
hoses and connections
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake
pads/discs
4
__ Drive shaft boots (4WD)
__ Engine coolant5
__ Exhaust pipes and mountings
__ Front differential oil (4WD)__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
__ Transmission for signs of leakage
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log41

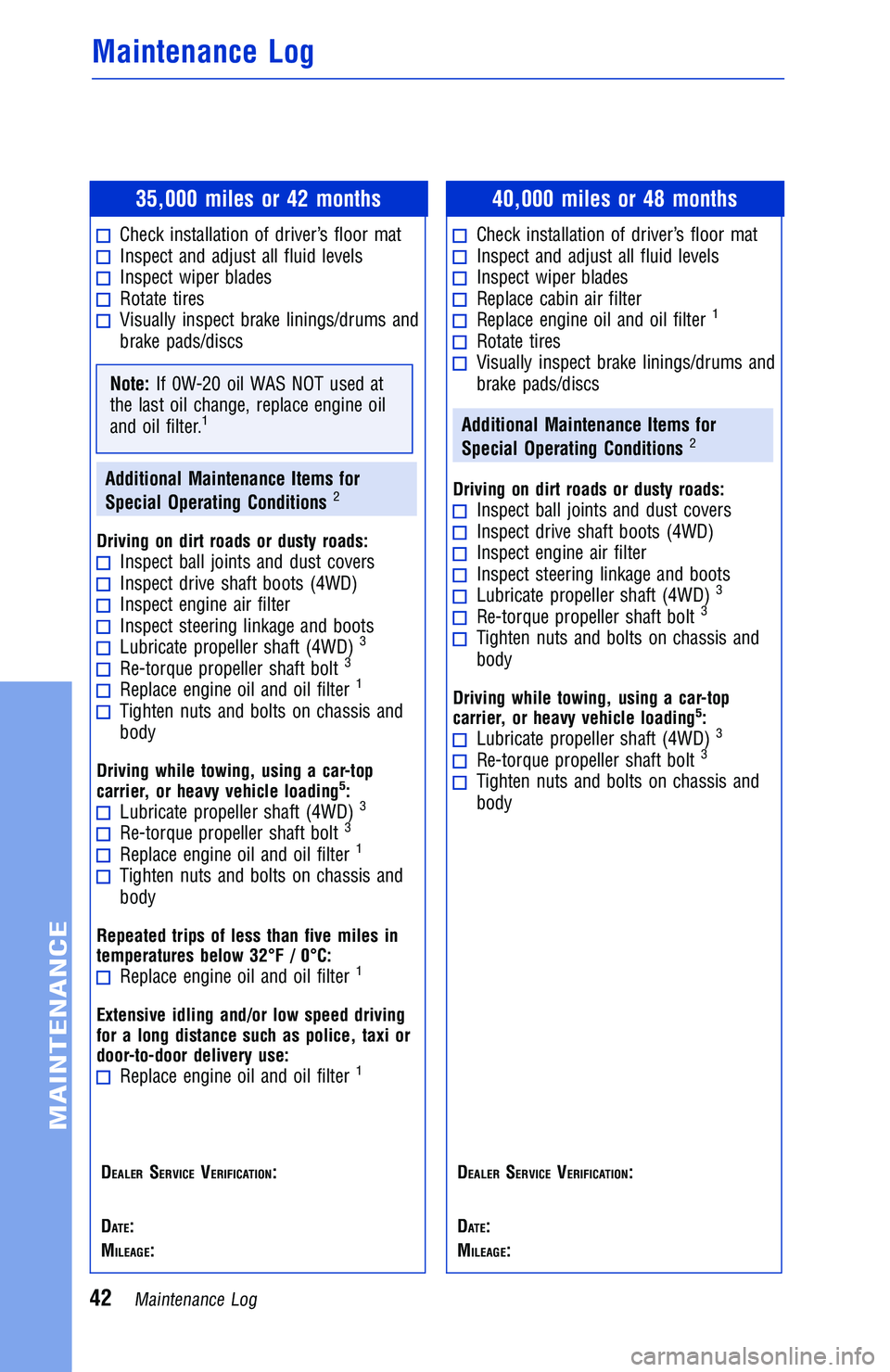

35,000 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
42Maintenance Log
