15,000 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots (4WD)
__ Engine coolant
4
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log39

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)
Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Automatic transmission fluid cooler
hoses and connections
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake
pads/discs
4
__ Drive shaft boots (4WD)
__ Engine coolant5
__ Exhaust pipes and mountings
__ Front differential oil (4WD)__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
__ Transmission for signs of leakage
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log41

45,000 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots (4WD)
__ Engine coolant
4
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log43

60,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft bolt
Replace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs (2GR-FKS engine
only)4
Rotate tires
Inspect the following:
__ Automatic transmission fluid cooler
hoses and connections
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake
pads/discs
5
__ Drive belts6
__ Drive shaft boots (4WD)
__ Engine coolant7
__ Engine valve clearance8
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
__ Transmission for signs of leakage
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading9:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Replace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.7Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.8Check for tappet noise and engine vibration and adjust if necessary, 2GR-FKS engine only.9Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log45

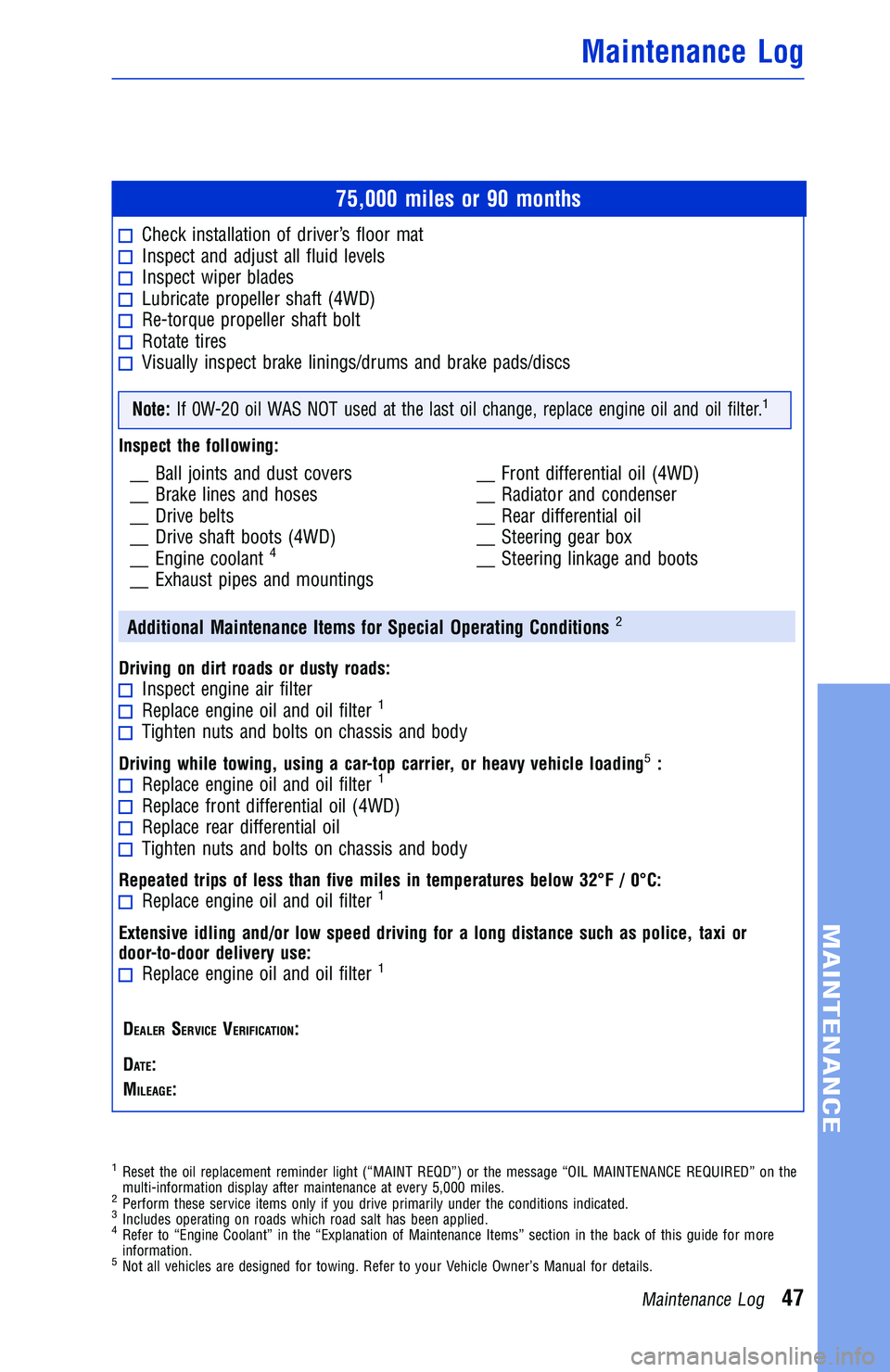

75,000 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots (4WD)
__ Engine coolant
4
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log47

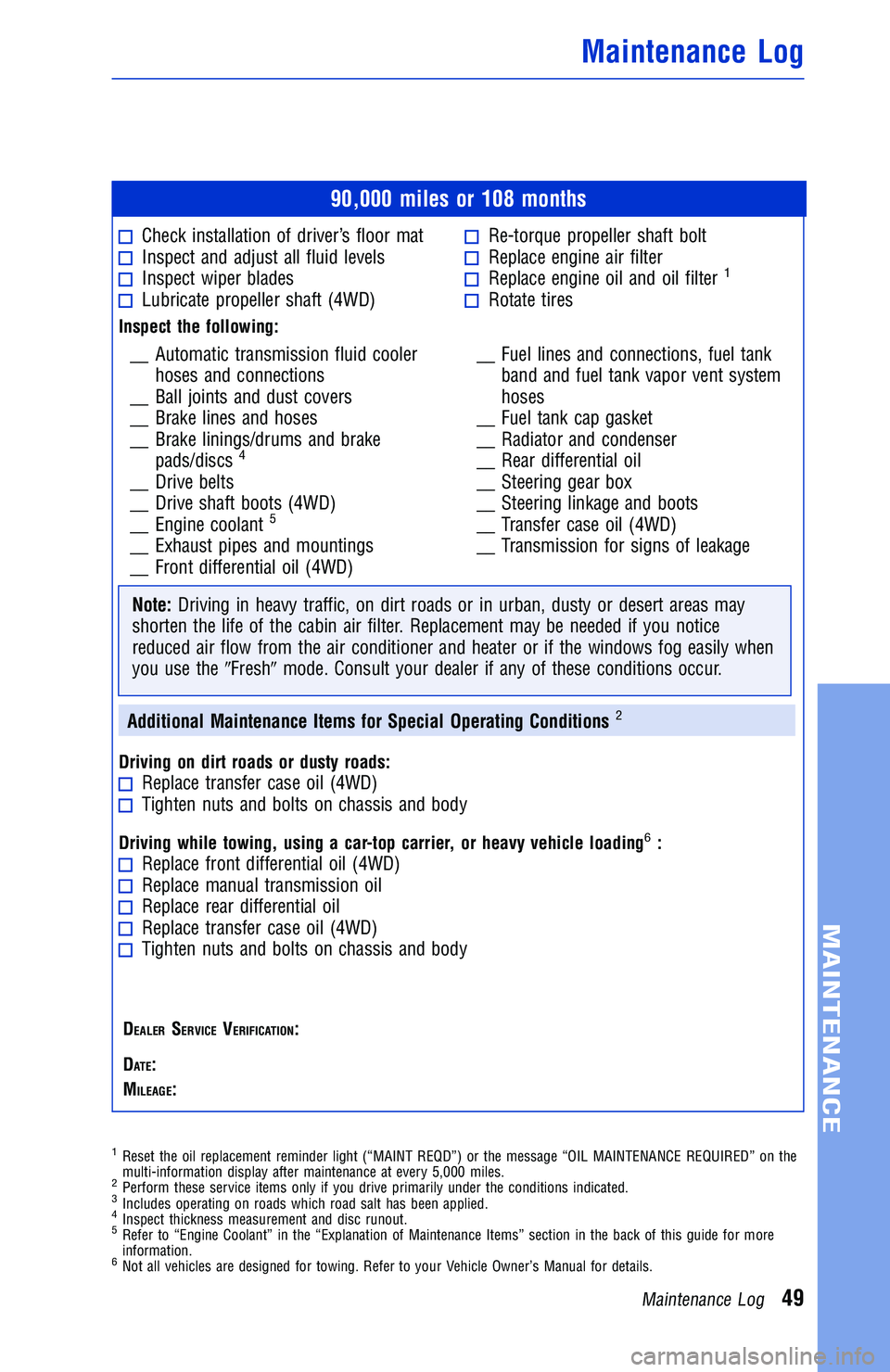

90,000 miles or 108 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)
Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Automatic transmission fluid cooler
hoses and connections
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake
pads/discs
4
__ Drive belts
__ Drive shaft boots (4WD)
__ Engine coolant
5
__ Exhaust pipes and mountings
__ Front differential oil (4WD)__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
__ Transmission for signs of leakage
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log49

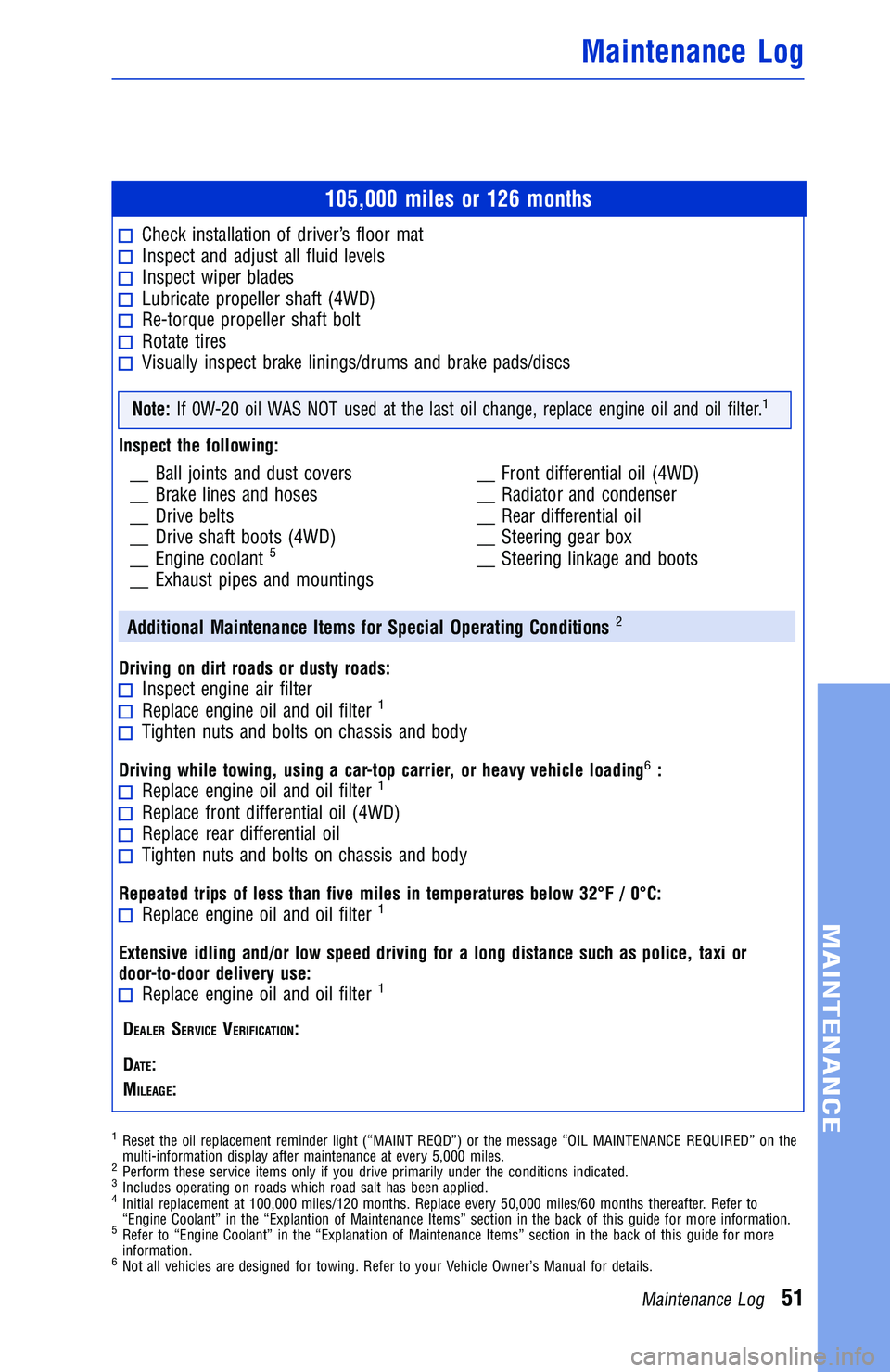

105,000 miles or 126 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots (4WD)
__ Engine coolant
5
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace engine oil and oil filter1
Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to
“Engine Coolant” in the “Explantion of Maintenance Items” section in the back of this guide for more information.
5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log51

120,000 miles or 144 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesLubricate propeller shaft (4WD)Re-torque propeller shaft bolt
Replace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs4
Rotate tires
Inspect the following:
__ Automatic transmission fluid cooler
hoses and connections
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake
pads/discs
5
__ Drive belts
__ Drive shaft boots (4WD)
__ Engine coolant
6
__ Engine valve clearance7
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
__ Transmission for signs of leakage
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading8:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Replace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7Check for tappet noise and engine vibration and adjust if necessary, 2GR-FKS engine only.8Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log53
