2016 TOYOTA RAV4 check engine

50,000 miles or 60 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading7:Re-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
55,000 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading7:Re-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
44Maintenance Log

60,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRe-torque propeller shaft bolt (4WD)Replace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Automatic transmission for signs of
leakage
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake
pads/discs
4
__ Drive belts5
__ Drive shaft boots
__ Engine coolant6
__ Exhaust pipes and mountings__ Front differential oil
__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading7:Replace automatic transmission fluidReplace front differential oilReplace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace automatic transmission fluid
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Inspect thickness measurement and disc runout.5Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
7Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log45

65,000 miles or 78 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Re-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
70,000 miles or 84 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Re-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
46Maintenance Log

75,000 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRe-torque propeller shaft bolt (4WD)
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
4
__ Exhaust pipes and mountings__ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log47

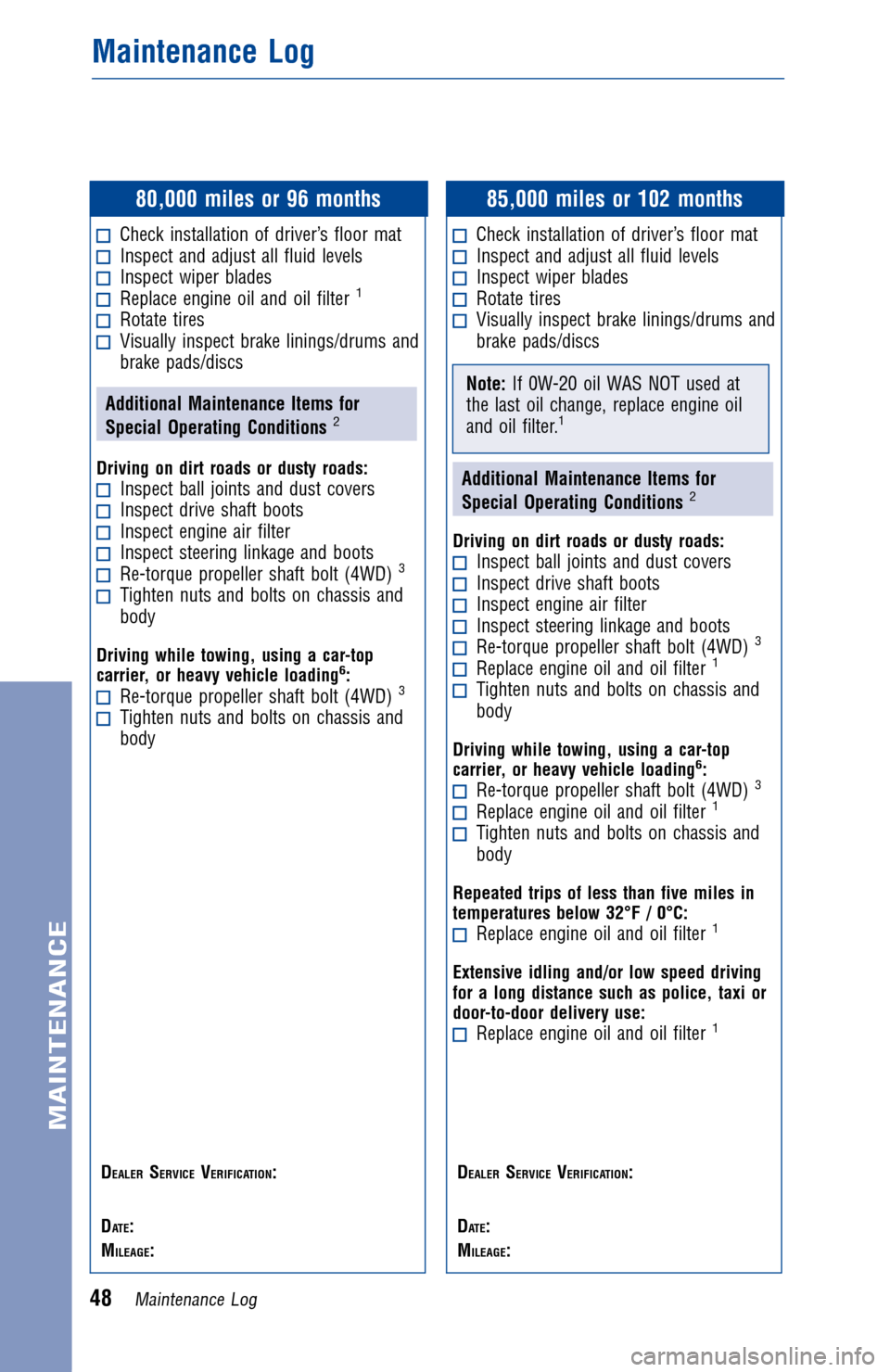

80,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
85,000 miles or 102 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
48Maintenance Log

90,000 miles or 108 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRe-torque propeller shaft bolt (4WD)Replace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Automatic transmission for signs of
leakage
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake
pads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
5
__ Exhaust pipes and mountings__ Front differential oil
__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log49

95,000 miles or 114 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt (4WD)3
Replace engine oil and oil filter1
Tighten nuts and bolts on chassis and
body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
100,000 miles or 120 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine coolant4
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt (4WD)3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
50Maintenance Log

105,000 miles or 126 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRe-torque propeller shaft bolt (4WD)
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.1
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
5
__ Exhaust pipes and mountings__ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter1
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:Replace engine oil and oil filter1
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter1
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to
“Engine Coolant” in the “Explantion of Maintenance Items” section in the back of this guide for more information.
5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log51
