2016 TOYOTA PRIUS V windshield wipers

PRIUS v_OM_OM47B12U_(U)
2034-3. Operating the lights and wipers
4
Driving
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Ty p e B
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is
selected.
Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
7
1
2
3
4
5
6

204
PRIUS v_OM_OM47B12U_(U)
4-3. Operating the lights and wipers
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
■The windshield wipers and washer can be operated when
The power switch is in ON mode.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid tank.
7
WARNING
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■To prevent 12-volt battery discharge
Do not leave the wipers on longer than necessary when the hybrid system
is off.

PRIUS v_OM_OM47B12U_(U)
2214-5. Using the driving support systems
4
Driving
■Set speed
The set speed may be unsustainable depending on driving circumstances.
■Automatic cancelation of vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the fol-
lowing situations:
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●Enhanced VSC is activated.
●The sensor cannot operate correctly because it is covered in some way.
●The windshield wipers are operating at high speed. (when the wiper switch
is set to the high speed wiper operation position).
If vehicle-to-vehicle distance control driving is automatically canceled for any
other reason, there may be a malfunction in the system. Contact your Toyota
dealer.
■Automatic cancelation of constant speed control
The cruise control will stop maintaining the vehicle speed in the following situ-
ations:
●Actual vehicle speed is more than approximately 10 mph (16 km/h) below
the set vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●Enhanced VSC is activated.
■Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-
vehicle distance control operates properly. (Some obstructions, such as
snow, ice and plastic objects, cannot be detected by the obstruction sensor.)
Dynamic radar cruise control (vehicle-to-vehicle distance control mode) is
canceled if an obstruction is detected. (Constant speed control mode can be
used.)
Grille cover
Radar sensor
1
2

PRIUS v_OM_OM47B12U_(U)
4177-2. Maintenance
7
Maintenance and care

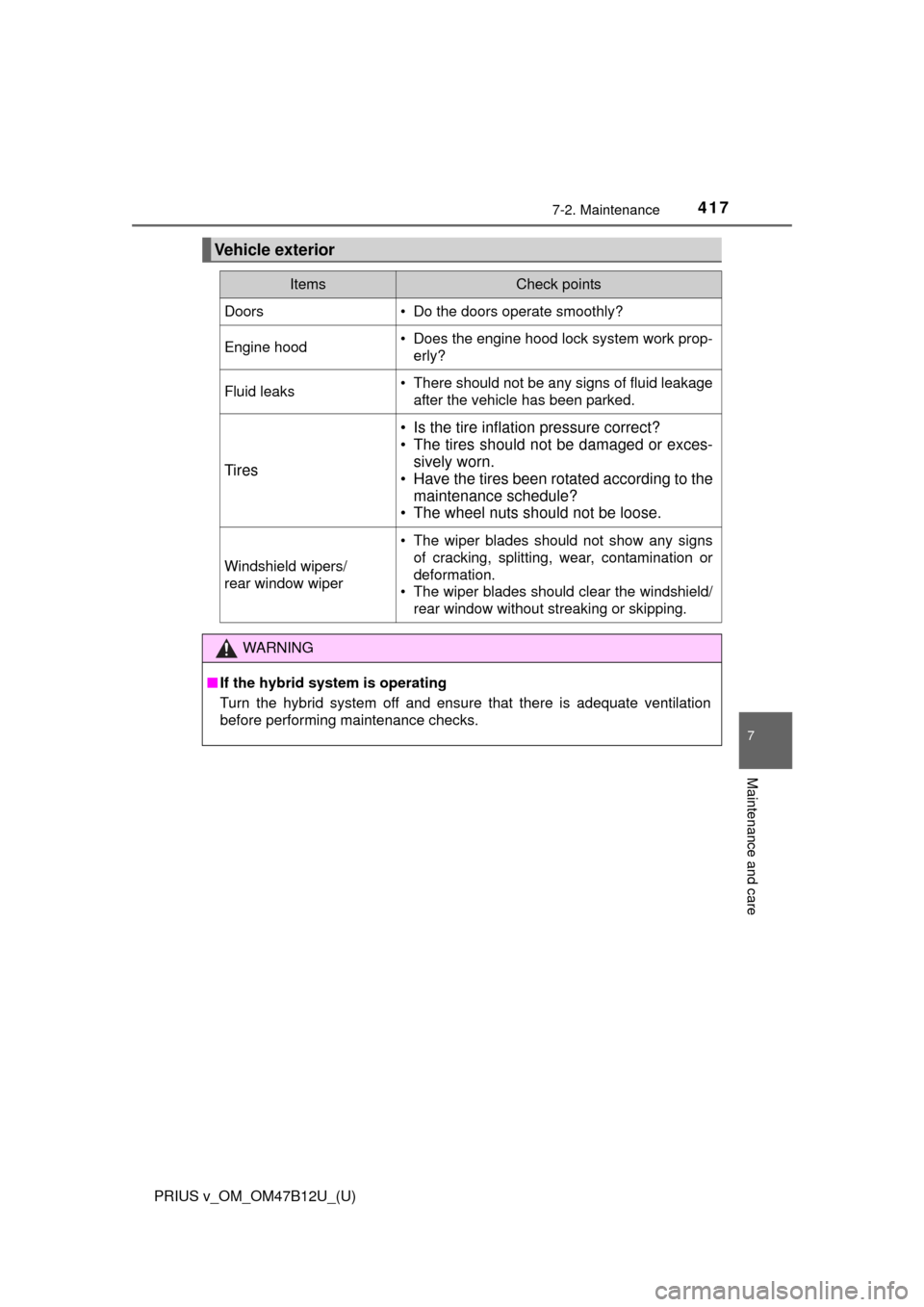

Vehicle exterior
ItemsCheck points
Doors• Do the doors operate smoothly?
Engine hood• Does the engine hood lock system work prop-
erly?
Fluid leaks• There should not be any signs of fluid leakage
after the vehicle has been parked.
Tires
• Is the tire inflation pressure correct?
• The tires should not be damaged or exces-
sively worn.
• Have the tires been rotated according to the
maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers/
rear window wiper
• The wiper blades should not show any signs
of cracking, splitting, wear, contamination or
deformation.
• The wiper blades should clear the windshield/
rear window without streaking or skipping.
WARNING
■If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation
before performing maintenance checks.

5068-2. Steps to take in an emergency
PRIUS v_OM_OM47B12U_(U)
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
If the windshield wipers are on, turn them
off or set them to either intermittent or slow
mode.
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the LDA malfunction
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the LDA temporarily stops (temper-
ature of white camera sensor is higher than oper-
ation range)
A buzzer also sounds.
Restart the LDA after driving for a while
(If equipped)
Indicates a malfunction in the pre-collision sys-
tem
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer immediately.
Warning messageDetails/Actions
(Flashes)

616Alphabetical index
PRIUS v_OM_OM47B12U_(U)
Stuck
If the vehicle becomes
stuck ................................... 548
Sun visors ................................ 385
Sunshade
Panoramic roof shades ......... 389
Switch
Audio remote control
switches.............................. 272
Automatic High Beam
switch ................................. 194
Climate remote control
switches.............................. 371
Clock adjustment buttons ..... 386
Cruise control switch..... 210, 214
DISP button ............................ 94
Door lock switch.................... 122
Driving mode select switch ... 245
Emergency flashers switch ... 482
Engine switch........................ 174
EV drive mode switch ........... 179
Fog light switch ..................... 200
Garage door opener
switches.............................. 391
Ignition switch ....................... 174
LDA (Lane Departure
Alert) ................................... 227
Light switches ....................... 189
MPH or km/h button ................ 93
Meter control switches .......... 100
Outside rear view mirror
switches.............................. 151Panoramic roof shades......... 389
PCS switch ........................... 254
Power door lock switch ......... 122
Power switch ........................ 174
Power window switch ........... 153
Rear window wiper and
washer switch..................... 205
Rear window and outside
rear view mirror
defoggers switch ................ 366
Seat heater switches ............ 372
“SOS” button......................... 398
Talk switch ............................ 337
Telephone switches .............. 337
Tire pressure warning
reset switch ........................ 445
TRIP button ............................ 93
Vehicle-to-vehicle
distance button ................... 217
VSC OFF switch ................... 248
Window lock switch .............. 153
Windshield wipers and
washer switch..................... 202

619Alphabetical index
PRIUS v_OM_OM47B12U_(U)
Open door ............................. 493
Parking lock system .............. 492
PCS ...................................... 491
Seat belt reminder light ......... 494
Slip indicator ......................... 492
SRS ...................................... 491
Tire pressure......................... 495
Warning messages .................. 503
Washer
Checking ............................... 437
Preparing and checking
before winter....................... 263
Switch ........................... 202, 205
Washing and waxing ............... 406
Weights
Cargo capacity ...................... 171
Load limits............................. 552
What to do if...
(Troubleshooting) ................. 600
Wheels ...................................... 455
Replacing wheels.................. 521
Size ....................................... 559
Window glasses....................... 153
Window lock switch ................ 153
Windows
Power windows ..................... 153
Rear window defogger .......... 366
Washer ......................... 202, 205
Windshield wipers ................... 202
Winter driving tips ................... 263
Wireless communication ........ 310
Wireless remote control
key .......................................... 116
Locking/Unlocking................. 116
Panic mode ........................... 117
Replacing the battery ............ 461
WMA disc ................................. 292
