2016 TOYOTA PRIUS navigation

16
1. BASIC FUNCTION
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45
3. HOME SCREEN
Three-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple information screens, such as the audio sys-
tem screen, hands-free screen and navigation screen, simultaneously. When
hands-free mode is selected, it is possible to make a call on the home screen if the
desired phone number is registered to one of the 4 displayed buttons. In order to
register the contact, select and hold the desired button and register the desired
contact by obey displayed messages on the screen. (P.162)
When a screen is selected, the selected screen is switched to a full-screen display.
The home screen can be set to either a three-way split screen or a two-way split
screen.
For details about setting the home screen: P.37

21
2. QUICK REFERENCE
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.57
Select to customize the home screen.37
Select to set the voice settings.63
Select to adjust the contrast and brightness of the screens.41
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
236, 246
Select to set audio settings.121
Select to set the phone sound, contacts, message settings, etc.172
Select to set Bluetooth® phones and Bluetooth® audio devices.49
Select to turn the screen off.
*Select to set Entune App Suite settings.276
*Select to set data services settings.150
Select to link the driver’s cellular phone settings. (audio presets, lan-
guage, etc.)64
Select to set vehicle information.“Owner’s
Manual”
*Select to set traffic information.250
*: Only for U.S.A.

22
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45
3. NAVIGATION OPERATION
1. REGISTERING HOME
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
Choose a search method.
There are different kinds of methods to
search for your home. (P.210)
1
PS081IO
2
3
4
5
6

23
3. NAVIGATION OPERATION
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45
QUICK GUIDE
1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
P.237
Editing the name, location, phone num-
ber and icon
P.237
Setting home as the destination
P.213
7
8

24
3. NAVIGATION OPERATION
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45

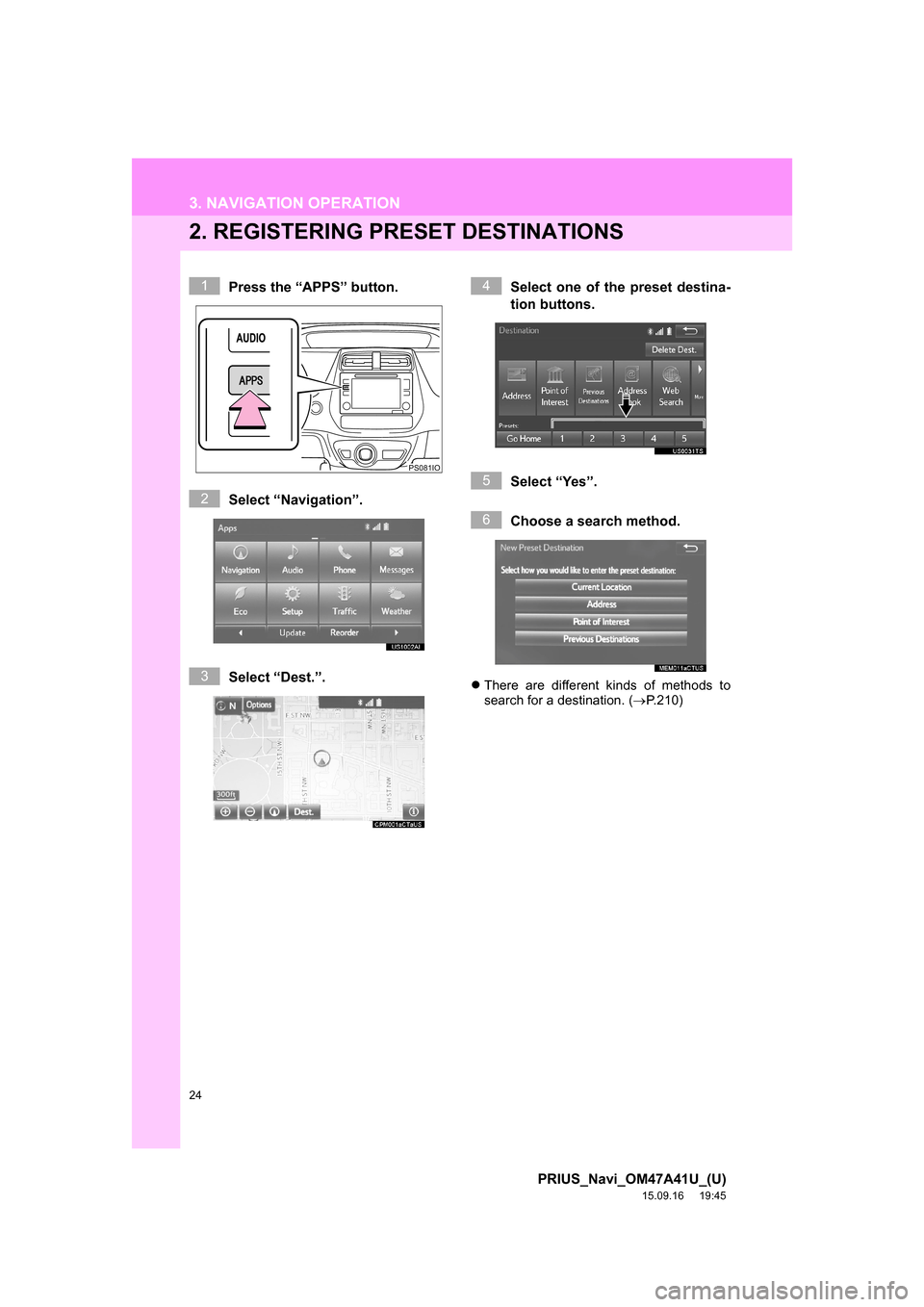

2. REGISTERING PRESET DESTINATIONS
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select one of the preset destina-
tion buttons.
Select “Yes”.
Choose a search method.
There are different kinds of methods to
search for a destination. (P.210)
1
PS081IO
2
3
4
5
6

25
3. NAVIGATION OPERATION
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45
QUICK GUIDE
1Select “Enter”.
Select a position for this preset
destination.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif-
ferent way
P.238
Editing the name, location, phone num-
ber and icon
P.239
Setting preset destinations as the desti-
nation
P.213
7
8
9

26
3. NAVIGATION OPERATION
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45
3. OPERATION FLOW: GUIDING THE ROUTE
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Choose a search method.
There are different kinds of methods to
search for a destination. (P.210)
Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended. (P.222)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
PS081IO
2
3
4
5
6

27
3. NAVIGATION OPERATION
PRIUS_Navi_OM47A41U_(U)
15.09.16 19:45
QUICK GUIDE
1
4. SETTING HOME AS THE DESTINATION
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”.Select “OK”.
Selecting routes other than the one recom-
mended. (P.222)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
PS081IO
2
3
4
5
