5838-2. Customization
8
Vehicle specifications
■Vehicle customization
●If the smart key system is turned off, unlock door cannot be selected.
● If the doors are not opened after unlocking and are then automatically re-
locked, a signal will be given if “Operation signal (Emergency flashers)” or
“Operation signal (Buzzer)” are set to on.
■ When setting using the mu lti-information display (vehicles with naviga-
tion system)
When using the multi-information display to set an item that can also be set
using the navigation system, the item displayed on the navigation system will
not change immediately.
If the engine switch is first turned off, the screen display will change once the
engine switch is turned to IGNITION ON mode again.
■ When customizing usi ng the navigation system
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

584
LC200_OM_OM60M88U_(U)

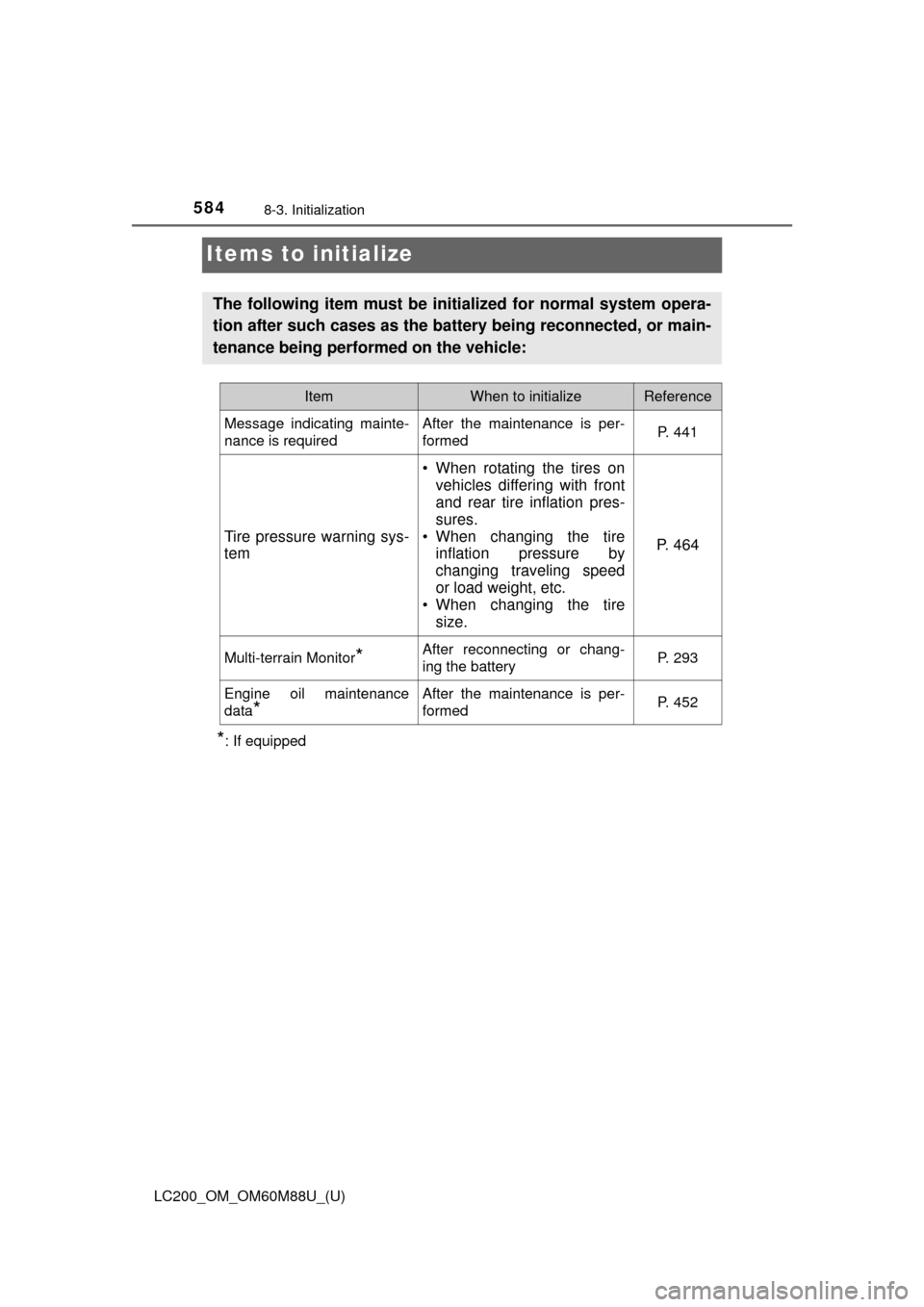

8-3. Initialization
Items to initialize
*: If equipped
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is requiredAfter the maintenance is per-
formedP. 441
Tire pressure warning sys-
tem
• When rotating the tires on vehicles differing with front
and rear tire inflation pres-
sures.
• When changing the tire inflation pressure by
changing traveling speed
or load weight, etc.
• When changing the tire
size.
P. 4 6 4
Multi-terrain Monitor*After reconnecting or chang-
ing the batteryP. 293
Engine oil maintenance
data
*
After the maintenance is per-
formedP. 452

588What to do if... (Troubleshooting)
LC200_OM_OM60M88U_(U)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by your Toyota dealer. (P. 103)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact your Toyota dealer immediately. ( P. 105)
●Is the electronic key battery weak or depleted? (P. 479)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 194)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 122)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 109)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

589What to do if... (Troubleshooting)
LC200_OM_OM60M88U_(U)
●Did you press the engine switch while firmly depressing the brake pedal?
( P. 193)
●Is the shift lever in P? ( P. 195)
●Is the electronic key anywhere detectable inside the vehicle? ( P. 121)
●Is the steering wheel unlocked? (P. 196)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 541)
●Is the battery discharged? (P. 543)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( P. 539)
●It is locked automatically to prevent theft of the vehicle. ( P. 196)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. (P. 150)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches

590What to do if... (Troubleshooting)
LC200_OM_OM60M88U_(U)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. (P. 195)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
( P. 512)
●The parking brake indicator is on
Is the parking brake released? ( P. 204)
Depending on the situation, other types of warning buzzer may also sound.
(  P. 510, 519)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 76)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
The engine switch is tu rned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds

595Alphabetical index
LC200_OM_OM60M88U_(U)
Child safety ................................ 57Airbag precautions .................. 41
Back door precautions .......... 117
Battery precautions ....... 460, 545
Child-protectors .................... 109
Child restraint system ............. 58
How your child should wear the seat belt ................. 34
Installing child restraints ......... 63
Moon roof precautions .......... 157
Power window lock switch .... 150
Power window precautions ......................... 153
Rear door child-protectors .... 109
Removed key battery
precautions ......................... 480
Safety information ................... 57
Seat belt extender
precautions ........................... 37
Seat belt precautions .............. 36
Seat heater precautions........ 389
Child-protectors....................... 109
Cleaning ........................... 434, 437 Aluminum wheels.................. 434
Exterior ................................. 434
Interior................................... 437
Radar sensor ........................ 346
Seat belts .............................. 438
Clock ......................................... 409
Coat hooks ............................... 420
Compass .................................... 89
Condenser ................................ 456
Console box ............................. 398
Coolant Capacity ................................ 556
Checking ............................... 455
Preparing and checking before winter....................... 369
Cool box ................................... 406
Cooling system ........................ 455
Engine overheating ............... 546 Crawl Control ........................... 284
Cruise control
Cruise control ....................... 269
Dynamic radar cruise control ................................ 257
Cup holders ............................. 400
Curtain shield airbags............... 38
Customizable features ............ 574
Daytime running light system.................................... 207
Defogger Outside rear view
mirrors ................................ 380
Rear window ......................... 380
Windshield ............................ 379
Differential................................ 557
Dimension ................................ 552
Dinghy towing.......................... 192
Display Drive information .................... 92
Dynamic radar cruise control ................................ 257
Fuel consumption information ........................... 98
Intuitive parking assist .......... 273
LDA (Lane Departure
Alert)................................... 252
Multi-information display ......... 89
Warning messages ............... 519
D
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

596Alphabetical index
LC200_OM_OM60M88U_(U)
Do-it-yourself maintenance .... 447
Door courtesy lightsLocation ................................ 393
Doors Automatic door locking and
unlocking system ................ 110
Back door.............................. 114
Door glasses ......................... 150
Door lock............................... 106
Open door warning buzzer ... 512
Open door warning light........ 512
Outside rear view mirrors...... 147
Rear door child-protectors .... 109
Side doors............................. 106
Drive information ....................... 92
Driver’s seat belt reminder light......................................... 512
Driver’s seat position memory .................................. 136
Driving ...................................... 160
Break-in tips .......................... 161
Correct posture ....................... 28
Driving in the rain .................. 161
Off-road precautions ............. 364
Procedures ........................... 160
Winter drive tips .................... 369
Driving position memory ........ 136
Driving position memory ....... 136
Memory recall function.......... 137
Dynamic radar cruise
control .................................... 257Function ................................ 257 Eco Driving Indicator ................ 96
EDR (Event data recorder)........ 10
Electronic key .......................... 102
Battery-saving function ......... 122
If the electronic key does not operate properly ........... 540
Replacing the battery............ 479
Emergency, in case of
If a warning buzzer sounds................................ 510
If a warning light
turns on .............................. 510
If a warning message is displayed ........................ 519
If the electronic key does not operate properly ........... 540
If the engine will not start ...... 537
If the shift lever cannot be
shifted from P ..................... 539
If the vehicle has
discharged battery.............. 543
If you have a flat tire ............. 524
If you lose your keys ..... 103, 105
If you think something is wrong ................................. 508
If your vehicle becomes stuck ................................... 549
If your vehicle has to be stopped in an
emergency ......................... 501
If your vehicle needs to be towed.................................. 502
If your vehicle overheats....... 546E

597Alphabetical index
LC200_OM_OM60M88U_(U)
Emergency flashers ................ 500
EngineAccessory mode ................... 194
Air cleaner............................. 448
Compartment ........................ 450
Engine switch........................ 193
Exhaust gas precautions ........ 73
Hood ..................................... 449
How to start the engine ......... 193
Identification number ............ 553
If the engine will not start ...... 537
If your vehicle has to be stopped in an
emergency.......................... 501
Ignition switch (engine switch) ................... 193
Overheating .......................... 546
Engine compartment cover .... 451
Engine coolant ......................... 455 Capacity ................................ 556
Checking ............................... 455
Preparing and checking before winter....................... 369
Engine coolant temperature gauge........................................ 85
Engine immobilizer system ...... 74
Engine oil ................................. 452 Capacity ................................ 554
Checking ............................... 452
Preparing and checking before winter....................... 369
Engine switch (ignition switch)..................... 193
Engine switch light (ignition switch light) ............ 393
Event data recorder (EDR) ........ 10
Exhaust gas precautions .......... 73 First-aid kit holder ................... 405
Flat tire ..................................... 524
Floor mats .................................. 26
Fluid
Automatic transmission ........ 557
Brake .................................... 558
Steering ................................ 558
Washer ................................. 462
Fog lights ................................. 214 Replacing light bulbs ............ 497
Switch ................................... 214
Four-wheel drive system Center differential lock/unlock ......................... 281
Four-wheel drive control switch ................................. 280
Warning light......................... 514
Front automatic air conditioning system ............. 374
Front doors .............................. 106F
