6-3. Do-it-yourself maintenance
■Front turn signal lightsFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
To allow enough working
space, remove the bulb base
of the front side marker light.
Wrap the removed bulb base
with cloth to prevent damage to
the bulb base.

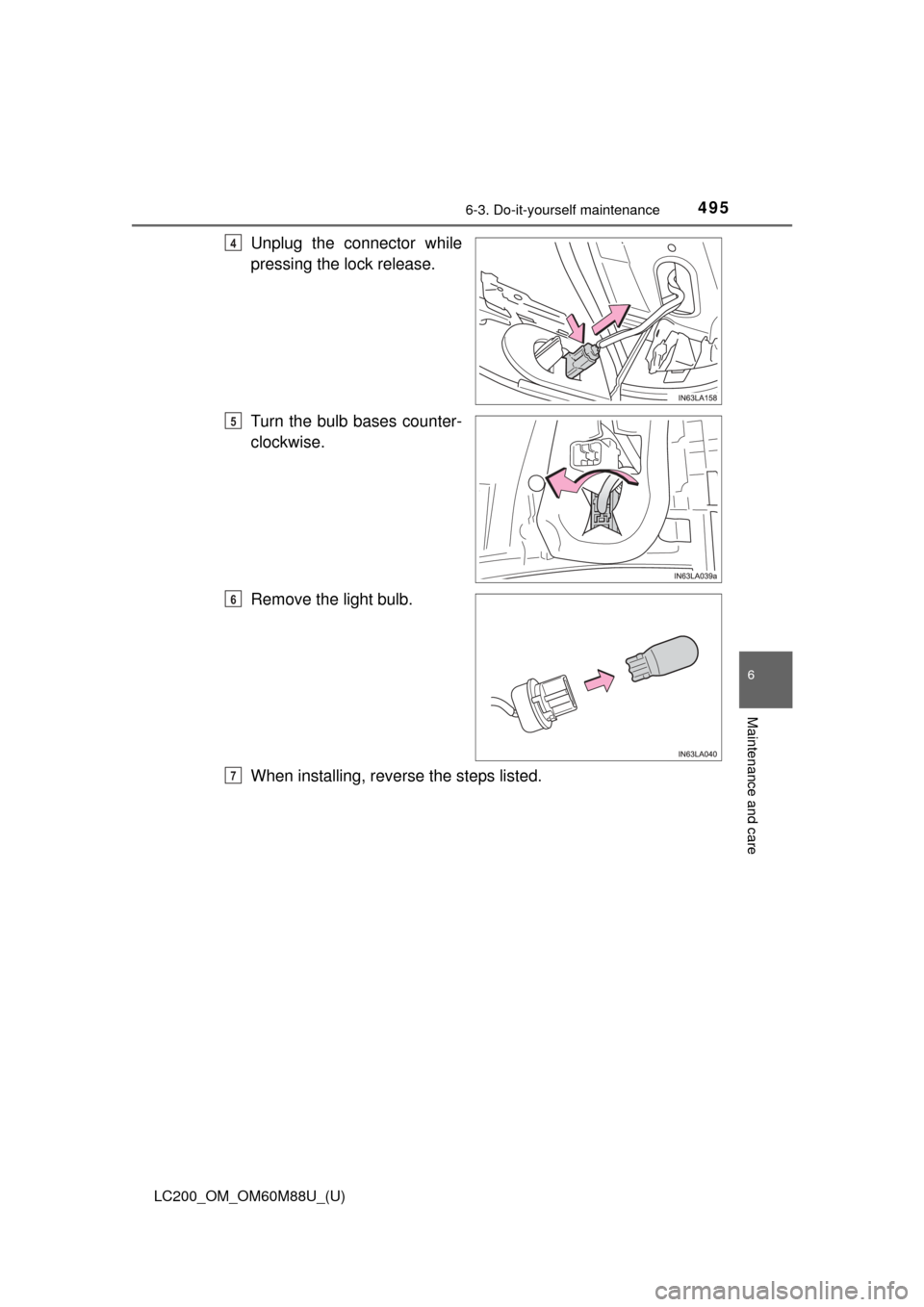

Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3
4

LC200_OM_OM60M88U_(U)
4916-3. Do-it-yourself maintenance
6
Maintenance and care

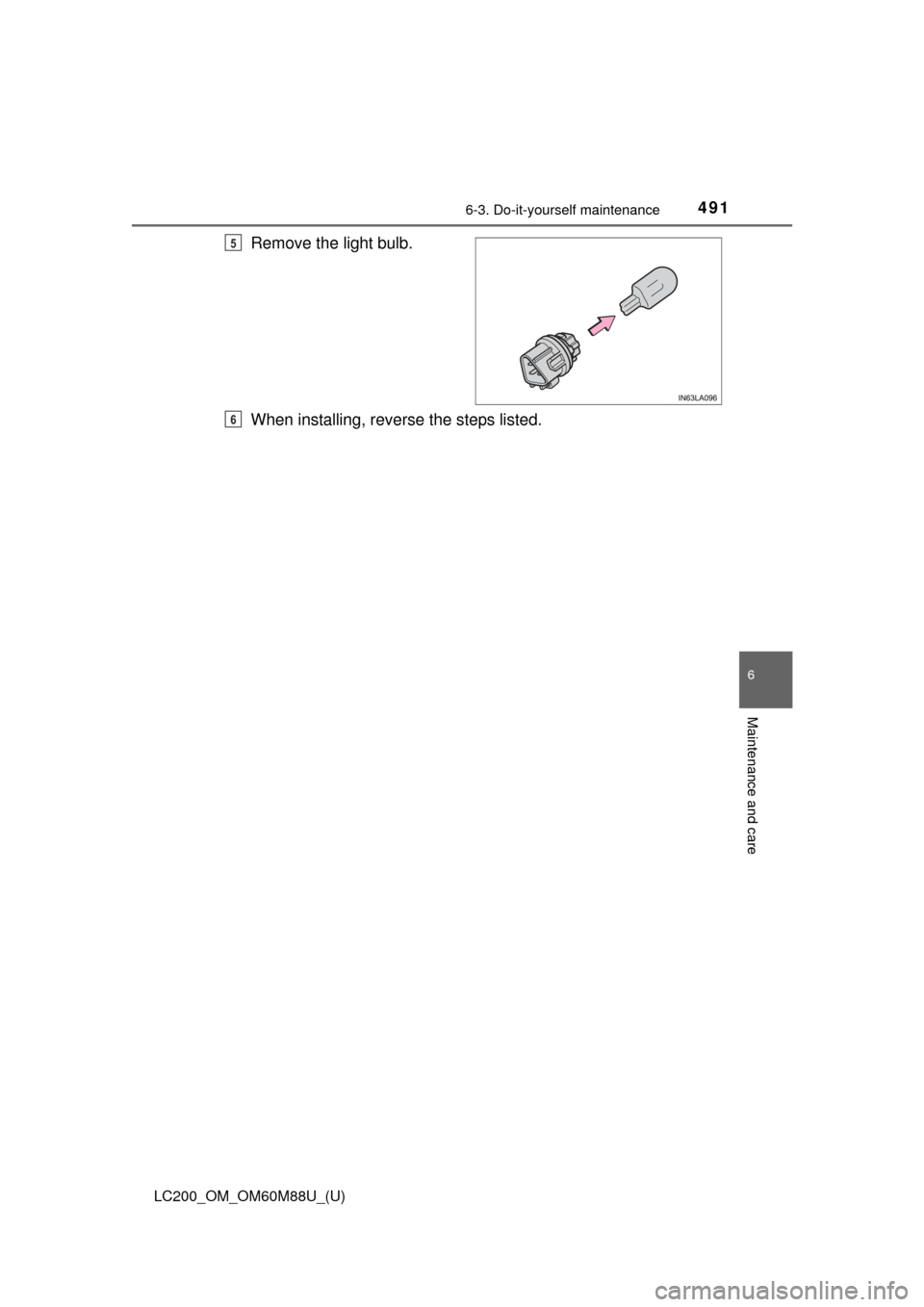

Remove the light bulb.
When installing, reverse the steps listed.5
6

492
LC200_OM_OM60M88U_(U)
6-3. Do-it-yourself maintenance

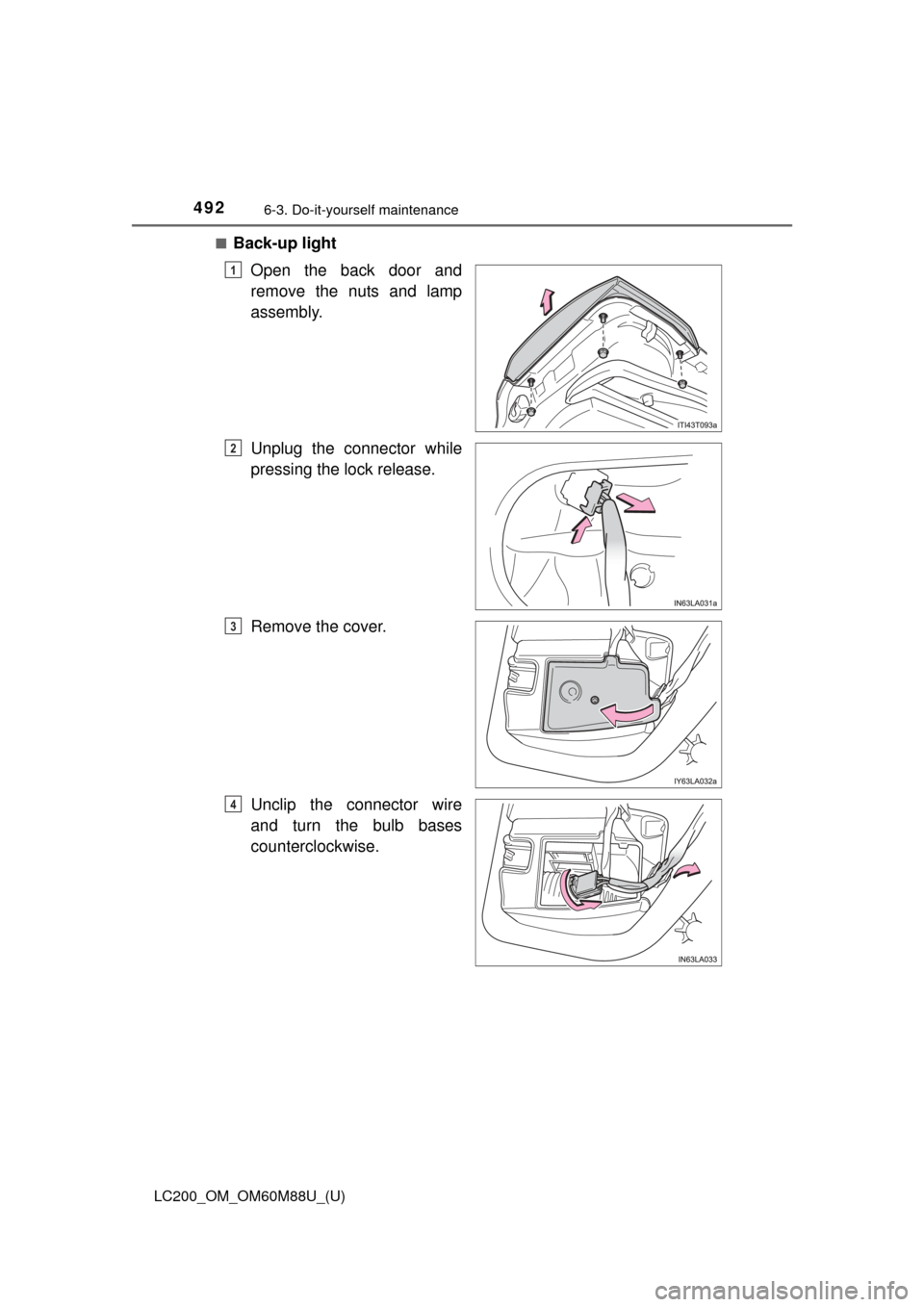

■Back-up lightOpen the back door and
remove the nuts and lamp
assembly.
Unplug the connector while
pressing the lock release.
Remove the cover.
Unclip the connector wire
and turn the bulb bases
counterclockwise.
1
2
3
4

LC200_OM_OM60M88U_(U)
4936-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the light bulb.
When installing, reverse the steps listed.5
6

LC200_OM_OM60M88U_(U)
4956-3. Do-it-yourself maintenance
6
Maintenance and care
Unplug the connector while
pressing the lock release.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.4
5
6
7

496
LC200_OM_OM60M88U_(U)
6-3. Do-it-yourself maintenance

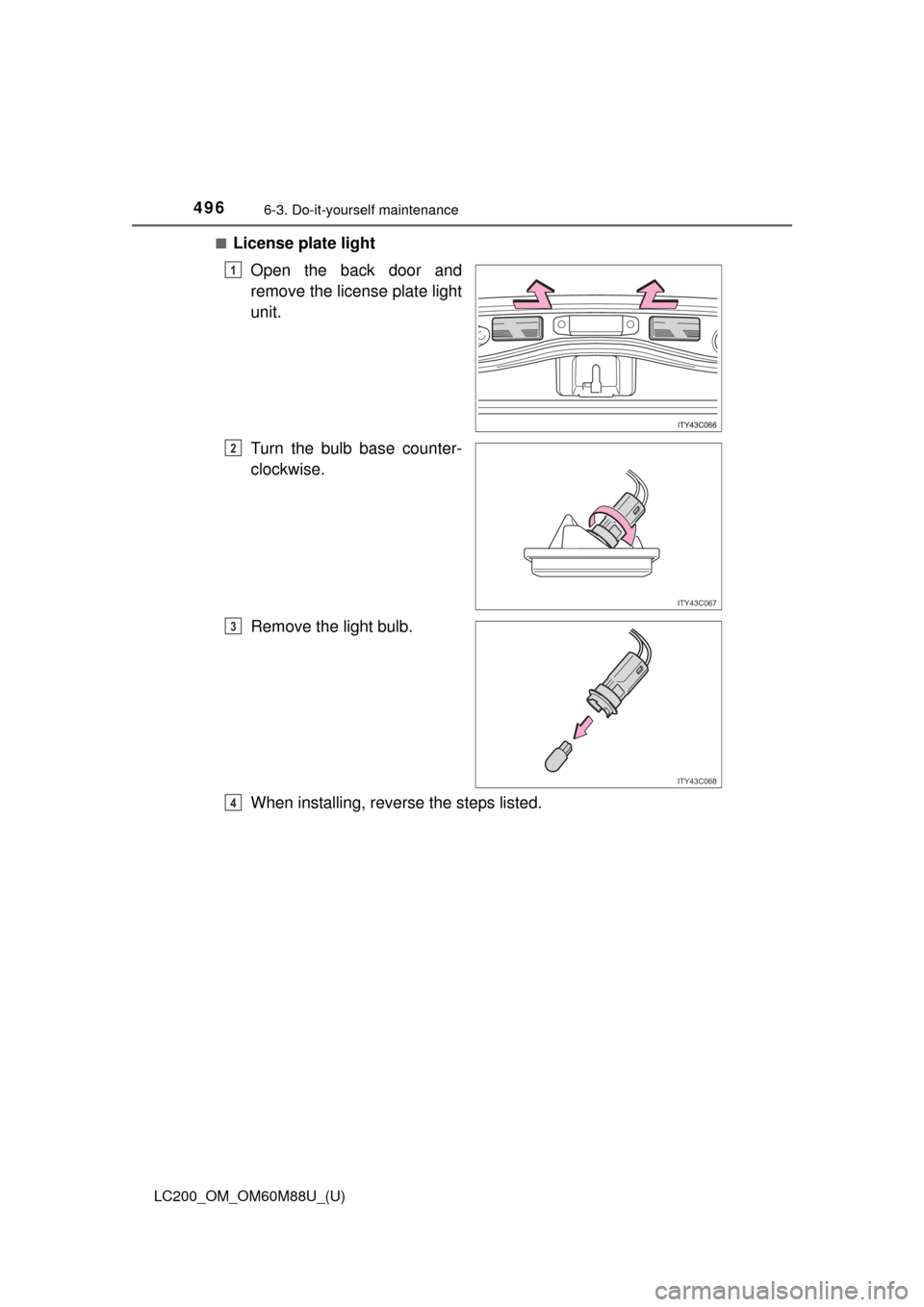

■License plate lightOpen the back door and
remove the license plate light
unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
ITY43C067
2
ITY43C068
3
4

LC200_OM_OM60M88U_(U)
4976-3. Do-it-yourself maintenance
6
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights/daytime running lights
● Parking lights
● Fog lights
● Side turn signal lights
● High mounted stoplight
● Stop/tail lights
● Stop lights
● Rear side marker lights
■LED lights
The headlights/daytime running lights, parking lights, fog lights, side turn sig-
nal lights, high mounted stoplight, stop/tail lights, stop lights and rear side
marker lights consist of a number of LEDs. If any of the LEDs burn out, take
your vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
●Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 484

498
LC200_OM_OM60M88U_(U)
6-3. Do-it-yourself maintenance
WARNING
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
●Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.
