Pictorial index
Pictorial index
■

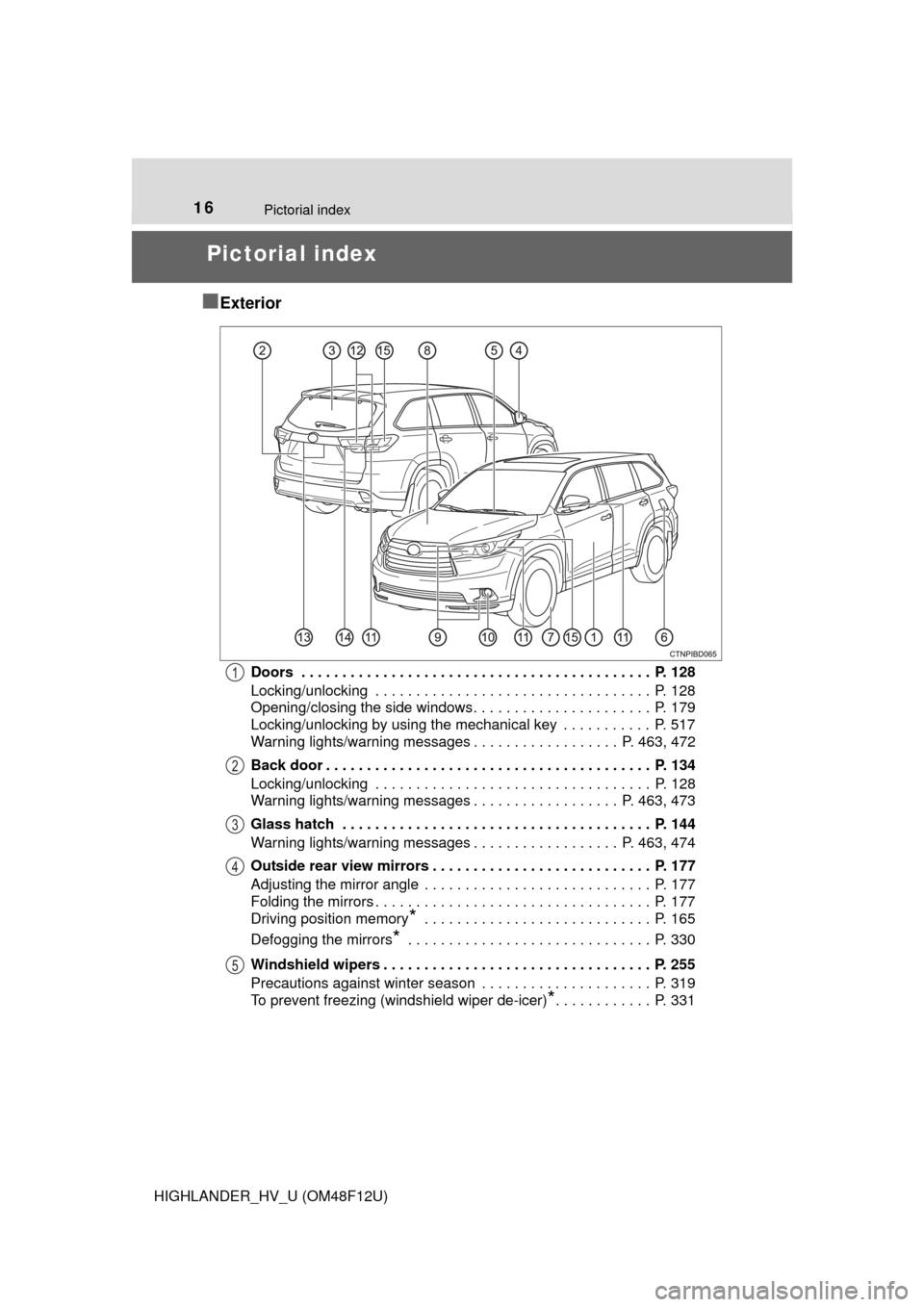

Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 128
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 128
Opening/closing the side windows. . . . . . . . . . . . . . . . . . . . . . P. 179
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 517
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 463, 472
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 128
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 463, 473
Glass hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 144
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 463, 474
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Driving position memory
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 319
To prevent freezing (windshield wiper de-icer)
*. . . . . . . . . . . . P. 331
1
2
3
4
5

17Pictorial index
HIGHLANDER_HV_U (OM48F12U)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 415
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 540
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 319
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 415
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 490
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 525
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 244
Front fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 295
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
6
7
8
Light bulbs of the exterior lights for driving

(Replacing method: P. 438, Watts: P. 543)
*: If equipped
9
10
11
12
13
14
15

19Pictorial index
HIGHLANDER_HV_U (OM48F12U)Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 320
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Headlights/tail lights/daytime running lights . . . . . . . . . . . . . . . P. 244
Front fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 255, 259
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255, 259
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 409
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 480
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 173
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Automatic air conditioning system . . . . . . . . . . . . . . . . . . . P. 328
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
Audio system
*
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 355
Power back door main switch . . . . . . . . . . . . . . . . . . . . . . . P. 136
Fuel filler door opener switch . . . . . . . . . . . . . . . . . . . . . . . . P. 263
*: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14

1012. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)

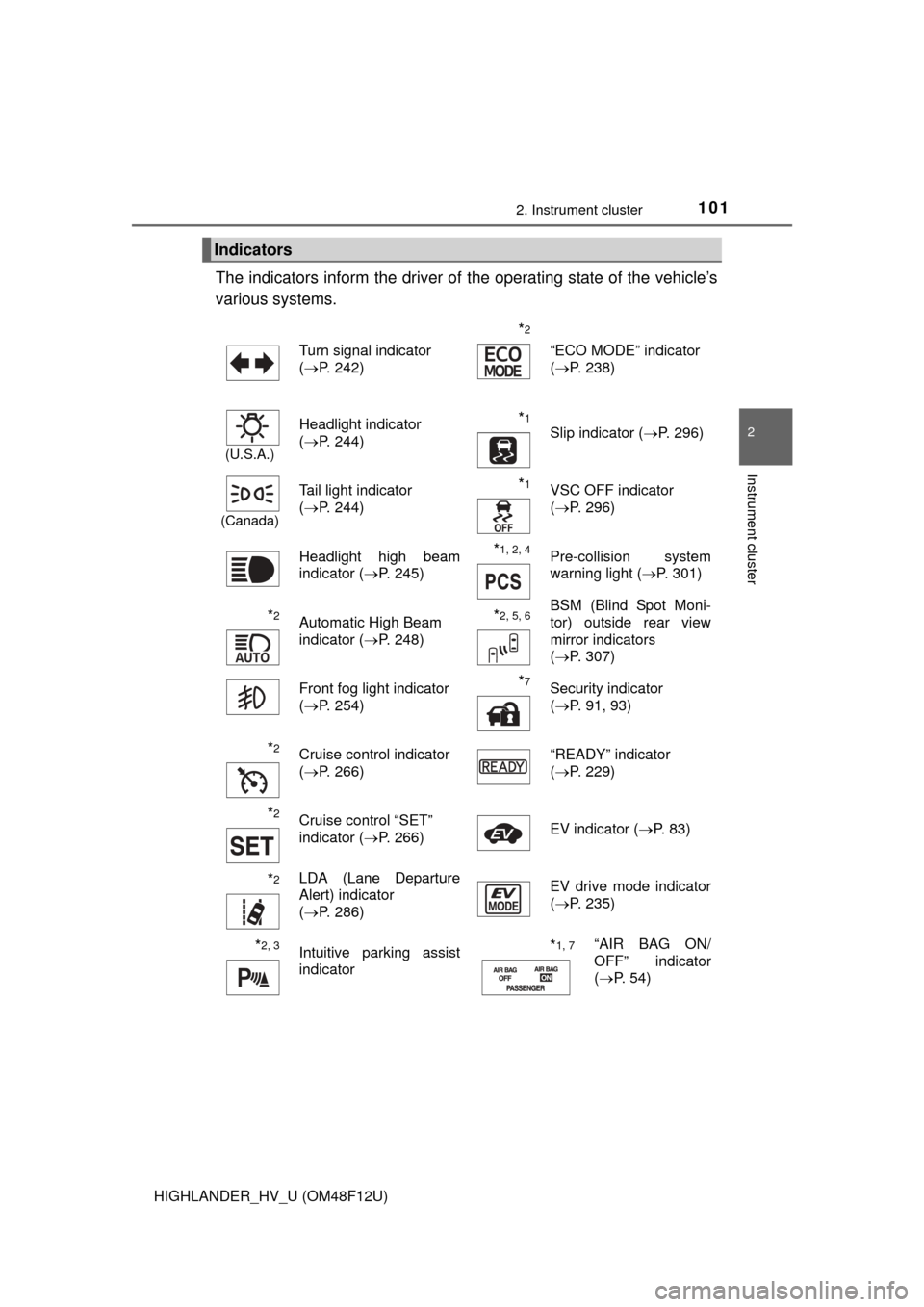

The indicators inform the driver of the operating state of the vehicle’s
