TABLE OF CONTENTS2
COROLLA_TMMMS_TMMC_U (OM12J84U)For your information....................... 8
Reading this manual .................... 12
How to search .............................. 13
Pictorial index .............................. 14
1-1. For safe use
Before driving ...................... 24
For safety drive ................... 26
Seat belts ............................ 28
SRS airbags ........................ 34
Front passenger occupant classification system ......... 46
Safety information for children ........................ 52
Child restraint systems ........ 53
Installing child restraints ...... 57
Exhaust gas precautions ..... 65
1-2. Theft deterrent system Engine immobilizer system............................... 66
Alarm ................................... 68
2. Instrument cluster Warning lights and indicators........................... 72
Gauges and meters (drive monitor display)....... 77
Gauges and meters (multi-information
display).............................. 82
Fuel consumption information ........................ 89
Eco Driving Indicator ........... 92 3-1. Key information
Keys..................................... 96
3-2. Opening, closing and locking the doors
Doors ................................. 101
Trunk ................................. 110
Smart key system .............. 115
3-3. Adjusting the seats Front seats......................... 124
Rear seats ......................... 126
Head restraints .................. 128
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 131
Inside rear view mirror ....... 133
Outside rear view mirrors ............................. 135
3-5. Opening and closing the windows
Power windows.................. 137
Moon roof .......................... 141
1For safety and security
2Instrument cluster
3Operation of each
component

14
COROLLA_TMMMS_TMMC_U (OM12J84U)
Pictorial index
Pictorial index
n
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 137
Locking/unlocking by using the mechanical key
*1. . . . . . . . . . P. 541
Warning lights
*2/warning messages*3 . . . . . . . . . . . . . . P. 498, 510
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Warning lights
*2/warning messages*3 . . . . . . . . . . . . . . P. 498, 510
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Defogging the mirrors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . P. 387, 395
1
2
3

18Pictorial index
COROLLA_TMMMS_TMMC_U (OM12J84U)
nSwitches
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 135
Instrument panel light control dial . . . . . . . . . . . . . . . . . . P. 78, 83
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
Tire pressure warning reset switch
*1 . . . . . . . . . . . . . . . . . P. 456
1
2
3
4
5
6

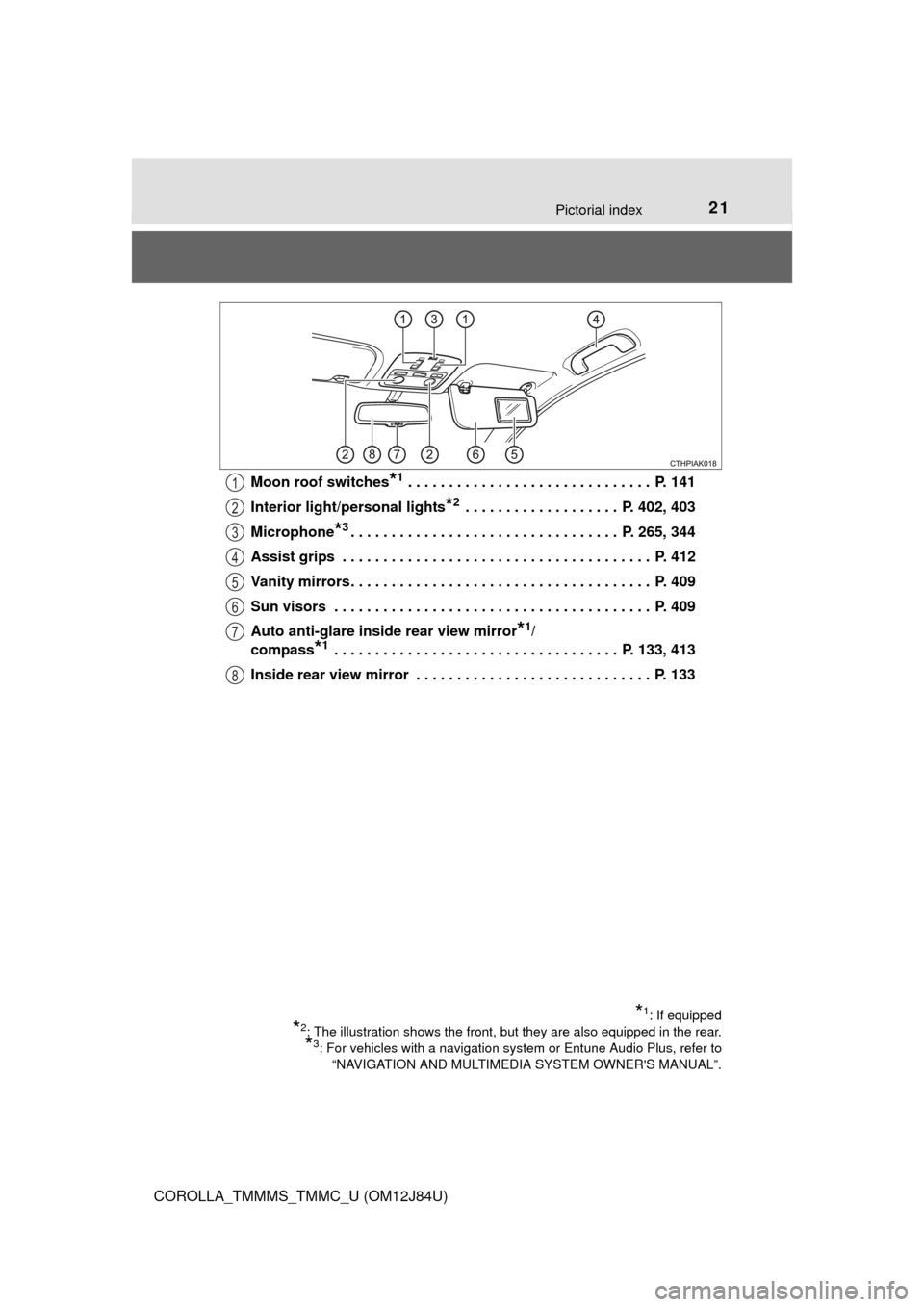

21Pictorial index
COROLLA_TMMMS_TMMC_U (OM12J84U)Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Interior light/personal lights
*2 . . . . . . . . . . . . . . . . . . . P. 402, 403
Microphone
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265, 344
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 409
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 409
Auto anti-glare inside rear view mirror
*1/
compass
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133, 413
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
*3: For vehicles with a navigation system or Entune Audio Plus, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
1
2
3
4
5
6
7
8

271-1. For safe use
1
For safety and security
COROLLA_TMMMS_TMMC_U (OM12J84U)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 133, 135)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
lDo not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
l Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
l Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
l When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

95
3
Operation of
each component
COROLLA_TMMMS_TMMC_U (OM12J84U) 3-1. Key information
Keys .................................... 96
3-2. Opening, closing and locking the doors
Doors ................................ 101
Trunk ................................. 110
Smart key system ............. 115
3-3. Adjusting the seats Front seats ........................ 124
Rear seats......................... 126
Head restraints.................. 128
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 131
Inside rear view mirror ...... 133
Outside rear view mirrors ............................. 135
3-5. Opening and closing the windows
Power windows ................. 137
Moon roof .......................... 141

1333-4. Adjusting the steering wheel and mirrors
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12J84U)
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

1343-4. Adjusting the steering wheel and mirrors
COROLLA_TMMMS_TMMC_U (OM12J84U)
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
Vehicles without a smart key sys-
tem: The function will set to ON
mode each time the engine switch
is turned to the “ON” position.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
Vehicles with a smart key system: The function will set to ON mode each
time the engine switch is turned to IGNITION ON mode.
Pressing the button turns the function to OFF mode. (The indicator also
turns off.)
n To prevent sensor error (vehicles with an auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
