5018-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
*1: Parking brake engaged warning buzzer: P. 510
*2: Open door warning buzzer:P. 510
*3: Vehicles with a drive monitor display
*4: Vehicles with a multi-information display
(U.S.A.)
Maintenance required reminder light*3
Indicates that maintenance is required according to the
driven distance on the maintenance schedule.
*7
Illuminates for about 3 seconds and then flashes for about
15 seconds approximately 4500 miles (7200 km) after the
reminder light has been reset.
 If necessary, perform maintenance.
Comes on and remains on if the distance driven exceeds
5000 miles (8000 km) after the reminder light has been
reset.
(The indicator will not work properly unless the reminder
light has been reset.)
 Perform the necessary maintenance.
Please reset the reminder light after the maintenance
is performed.
(P. 427)
Warning lightWarning light/Details/Actions

5038-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart key
system and with a drive monitor display)
InteriorbuzzerExterior buzzerWarning lightWarning light/Details/Action
Continuous Continuous
(Flashes in yel- low)
Smart key system indi cator light (except
vehicles with a manual transmission)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while any shift position other than P
was selected without turning off the engine
switch.
 Change the shift position to P.
 Bring the electronic key back into the vehi-
cle.
Once3 times
(Flashes in yel-
low)
Smart key system indi cator light (except
vehicles with a manual transmission) The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while the shift position P was selected
without turning off the engine switch.
 Turn the engine switch off or bring the
electronic key back into the vehicle.
Smart key system indicator light
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off and
the electronic key outside of the detection
area.
 Confirm the location of the electronic key.

5048-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
OnceContinuous
(5 seconds)
(Flashes in yel- low)
Smart key system indicator light
An attempt was made to exit the vehicle with
the electronic key and lock the doors without
first turning the engine switch off.
 Turn the engine switch off and lock the
doors again.
Once 
(Flashes in yel-
low for 15 sec- onds)
Smart key system indicator light
Indicates that the electronic key is not present
when attempting to start the engine.
 Confirm the location of the electronic key.
9 times
(Flashes in yel-
low)
Smart key system indicator light
An attempt was made to drive when the regu-
lar key was not inside the vehicle.
 Confirm that the el ectronic key is inside
the vehicle.
Once(Flashes in yel- low for 15 sec-
onds)
Smart key system indicator light
Indicates that the electronic key battery is low.
 Replace the battery.
( P. 469)
Once(Flashes quickly
in green for 15 seconds)
Smart key system indicator light
Indicates that the steering lock has not been
released.
 Release the steering lock. ( P. 173)
Once(Flashes in yel-
low for 30 sec- onds)
Smart key system indicator light
• When the doors were unlocked with themechanical key and then the engine switch
was pressed, the electronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle even after the engine switch was
pressed two consecutive times.
 Vehicles with a continuously variable
transmission: Touch the electronic key to
the engine switch while depressing the
brake pedal.
Vehicles with a manual transmission:
Touch the electronic key to the engine
switch while depressing the clutch pedal.
Interior
buzzerExterior buzzerWarning lightWarning light/Details/Action

5108-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.
If a war ning message or indicator is displayed
(vehicles with a multi-infor mation display)
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates that one or more of the doors is not fully
closed. The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5 km/
h), a buzzer sounds to indicate that the door(s)
are not yet fully closed.
 Make sure that all the doors are closed.
Indicates that the trunk is not fully closed.
If the vehicle reaches a speed of 3 mph (5 km/
h), a buzzer sounds to indicate that the trunk is
not yet fully closed.
 Close the trunk.
Indicates that the vehicle is being driven at 3 mph
(5 km/h) or more with the parking brake still
engaged.
A buzzer also sounds.
 Release the parking brake.
(U.S.A.) (Canada) (Flashes)

5118-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
Indicates a malfunction in the vehicle’s charging
system.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Indicates a malfunction in the smart key system
(if equipped). A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the cruise control sys-
tem (if equipped). • Press the “ON-OFF” button once to deacti-
vate the system, and then press the button
again to reactivate the system.
• A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates abnormal engine oil pressure.
The warning message is shown if the engine oil
pressure is too low.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Vehicles without a smart key system:
Indicates that the engine switch is turned off or
turned to the “ACC” position mode and the
driver’s door is opened while the lights are turned
on. A buzzer also sounds.
 Turn the lights off.
Vehicles with a smart key system:
Indicates that the engine switch is turned off or
turned to ACCESSORY mode and the driver’s
door is opened while the lights are turned on. A buzzer also sounds.
 Turn the lights off.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5138-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Have the malfunction repaired immediately. (vehicles with a
smart key system)
InteriorbuzzerExterior
buzzerWarning messageDetails/Actions
Con-
tinu-
ous 
(Vehicles with a continuously variable
transmission)
The driver’s door was opened
while any shift lever other than
P was selected without turning
off the engine switch.
Shift the shift lever to P.
Con-
tinu-
ousContin-
uous
(Vehicles with a continuously variable transmission)
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
engine switch was not turned
off.
Shift the shift lever to P.
 Bring the electronic key
back into the vehicle.
(Flashes)
(Displayed alternately)
(Flashes)

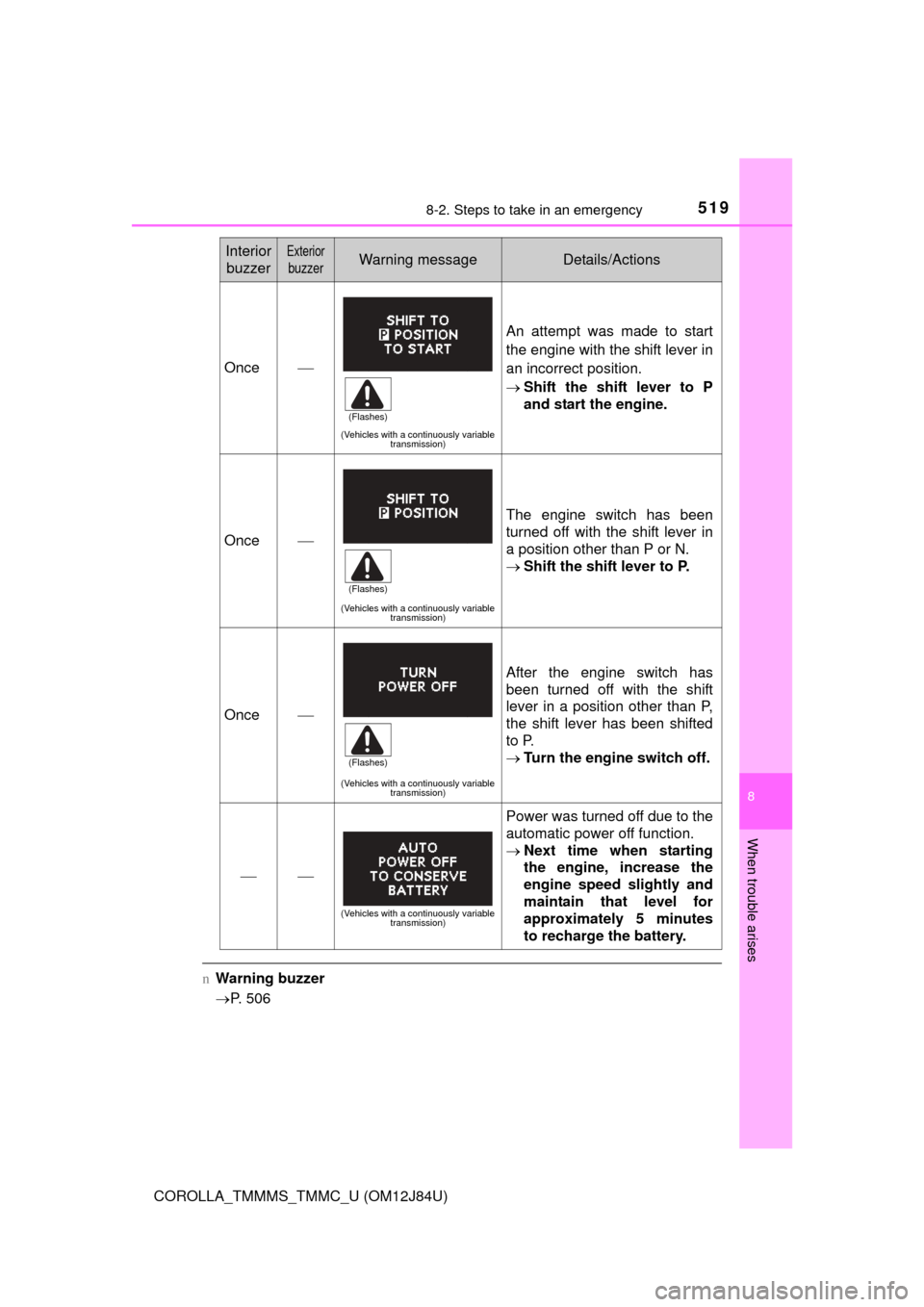

5198-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
nWarning buzzer
P. 506
Once
(Vehicles with a continuously variable
transmission)
An attempt was made to start
the engine with the shift lever in
an incorrect position.
Shift the shift lever to P
and start the engine.
Once
(Vehicles with a continuously variable
transmission)
The engine switch has been
turned off with the shift lever in
a position other than P or N.
Shift the shift lever to P.
Once
(Vehicles with a continuously variable
transmission)
After the engine switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
Turn the engine switch off.

(Vehicles with a continuously variable
transmission)
Power was turned off due to the
automatic power off function.
Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5599-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorHeadlights
High beam 9005 60 A
Front side marker
lights 
5B
Front turn signal/park-
ing lights 7444NA 28/8 C
Front fog lights
* 19 D
Side turn signal
lights
* 5C
Rear turn signal lights 21 C
Stop/tail and rear side
marker lights 7443 21/5 B
License plate lights 5B
Back-up lights 921 16 B
Interior Front personal/inte-
rior lights (vehicles
without a moon roof)

8B
Front personal/inte-
rior lights (vehicles
with a moon roof) 
5B
Rear interior light 8E
Trunk light 3.8 B
A: HB3 halogen bulbs
C: Wedge base bulbs (amber) E: Double end bulbs
*: If equipped B: Wedge base bulbs (clear)
D: H16 halogen bulbs
