2016 TOYOTA CAMRY Engine valve

2364-6. Driving tips
CAMRY_U (OM33D37U)
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the size specified.
● Maintain the recommended level of air pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
● Vehicles with LDA (Lane Departure Alert) system:
Do not use LDA (Lane Departure Alert) system.
NOTICE
■ Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

4057-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)■

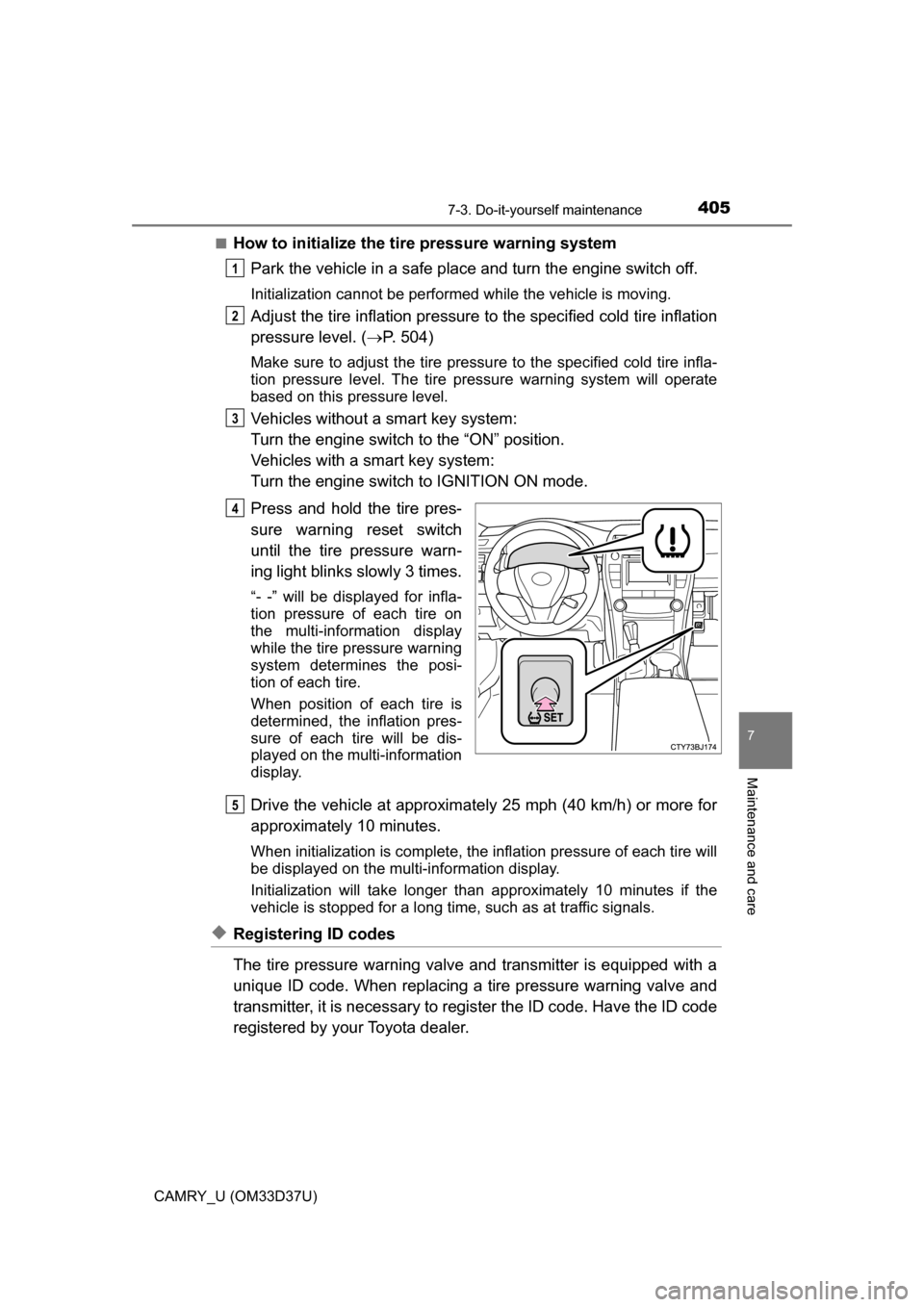

How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the engine switch off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( P. 504)
Make sure to adjust the tire pressu re to the specified cold tire infla-
tion pressure level. The tire pressure warning system will operate
based on this pressure level.
Vehicles without a smart key system:
Turn the engine switch to the “ON” position.
Vehicles with a smart key system:
Turn the engine switch to IGNITION ON mode.
Press and hold the tire pres-
sure warning reset switch
until the tire pressure warn-
ing light blinks slowly 3 times.
“- -” will be displayed for infla-
tion pressure of each tire on
the multi-information display
while the tire pressure warning
system determines the posi-
tion of each tire.
When position of each tire is
determined, the inflation pres-
sure of each tire will be dis-
played on the multi-information
display.
Drive the vehicle at approximately 25 mph (40 km/h) or more for
approximately 10 minutes.
When initialization is co mplete, the inflation pre ssure of each tire will
be displayed on the multi-information display.
Initialization will take longer than approximat ely 10 minutes if the
vehicle is stopped for a long time, such as at traffic signals.
◆Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by your Toyota dealer.
1
2
3
4
5

4508-2. Steps to take in an emergency
CAMRY_U (OM33D37U)■
When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat,
the tire pressure warning light will not
turn off even though the flat tire ha s been replaced with the spare tire.
Replace the spare tire with the repair ed tire and adjust the tire inflation
pressure. The tire pressu re warning light will go off after a few minutes.
■Conditions that the tire pressure warning system may not function
properly (vehicles with a tire pressure warning system)
 P. 4 0 8
■If the tire pressure warning light frequently comes on after blinking
for 1 minute (vehicles with a tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch is turned on, have it checked by your
Toyota dealer.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

5009-1. Specifications
CAMRY_U (OM33D37U)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model 2AR-FE 2GR-FE
Ty p e4-cylinder in line,
4-cycle, gasoline 6-cylinder V type,
4-cycle, gasoline
Bore and stroke
3.54 
3.86 in.
(90.0  98.0 mm) 3.70 
3.27 in.
(94.0  83.0 mm)
Displacement 152.2 cu. in. (2494 cm3) 210.9 cu. in. (3456 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold) Automatic adjustment
Fuel
Fuel type
Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)17.0 gal. (64.35 L, 14.2 Imp. gal.)
Lubrication system
Oil capacity
(Drain and refill
 reference*)
With filter
Without filter
2.5 L 4-cylinder (2AR-FE) engine
4.6 qt. (4.4 L, 3.9 Imp. qt.)
3.5 L V6 (2GR-FE) engine
6.4 qt. (6.1 L, 5.4 Imp. qt.)
2.5 L 4-cylinder (2AR-FE) engine
4.2 qt. (4.0 L, 3.5 Imp. qt.)
3.5 L V6 (2GR-FE) engine
6.0 qt. (5.7 L, 5.0 Imp. qt.)

564Alphabetical index
CAMRY_U (OM33D37U)
SwitchesAudio remote control
switches
*........................... 244
Automatic High Beam switch ................................. 170
BSM (Blind Spot Monitor) switch ................................. 226
Compass switch.................... 369
Cruise control switch............. 181
Door lock switches ................ 102
Dynamic radar cruise
control switch...................... 186
Emergency flasher switch ..... 438
Engine switch................ 153, 155
Garage door opener switches.............................. 358
Ignition switch ............... 153, 155
LDA (Lane Departure Alert)
switch ................................ 199
Light switches ....................... 166
Meter control switches ............ 82
Moon roof switches ............... 134
Outside rear view mirror
switches.............................. 129
Paddle shift switches ............ 162
PCS switch ........................... 219
Power door lock switch ......... 102
Power window switches ........ 131
Rear window and outside rear view mirror
defoggers switch ........ 327, 333
Seat heater switches ............ 337
“SOS” button ......................... 364
Steering switches.... 82, 244, 301
Talk switch
*.......................... 320
Telephone switches
*............ 301
Tire pressure warning reset switch ................................. 405
Vehicle-to-vehicle distance
button ................................. 186
VSC OFF switch ................... 215
Window lock switch............... 131
Windshield wiper and washer switch ..................... 176 Tachometer ................................ 77
Tail lights.................................. 166
Light switch ........................... 166
Replacing light bulbs ............ 431
Wattage ................................ 506
Talk switch
*............................. 320
Telephone switches
*.............. 301
Theft deterrent system
Alarm ...................................... 69
Engine immobilizer system ..... 67
Tire inflation pressure............. 413
Maintenance data ................. 504
Warning light......................... 448
Tire information ....................... 510
Glossary ............................... 517
Size....................................... 513
Tire identification number ..... 512
Uniform Tire Quality Grading .............................. 515
Tire pressure warning
system.................................... 404 Function ................................ 404
Initializing .............................. 404
Installing tire pressure warning valves and
transmitters ........................ 404
Registering ID codes ............ 405
Tire pressure warning reset
switch ................................. 405
Warning light......................... 448
Warning message......... 459, 460
