1454-1. Before driving
4
Driving
CAMRY_U (OM33D37U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When the vehicle is parked
● Always apply the parking brake, shift the shift lever to P, stop the engine
and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
● Do not touch the exhaust pipes while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.
■ When taking a nap in the vehicle
Always turn the engine off. Otherwise, if you accidentally move the shift
lever or depress the accelerator pedal, this could cause an accident or fire
due to engine overheating. Additionally, if the vehicle is parked in a poorly
ventilated area, exhaust gases may collect and enter the vehicle, leading to
death or a serious health hazard.
■ When braking
● When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause
one side of the vehicle to brake differently than the other side. Also, the
parking brake may not securely hold the vehicle.
● If the power brake assist function does not operate, do not follow other
vehicles closely and avoid hills or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be
depressed more firmly than usual. Also, the braking distance will increase.
Have your brakes fixed immediately.
● Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
● The brake system consists of 2 individual hydraulic systems; if one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and the braking distance will
increase.
Have your brakes fixed immediately.
4398-1. Essential information
8
When trouble arises
CAMRY_U (OM33D37U)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to the
“ACC” position.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.

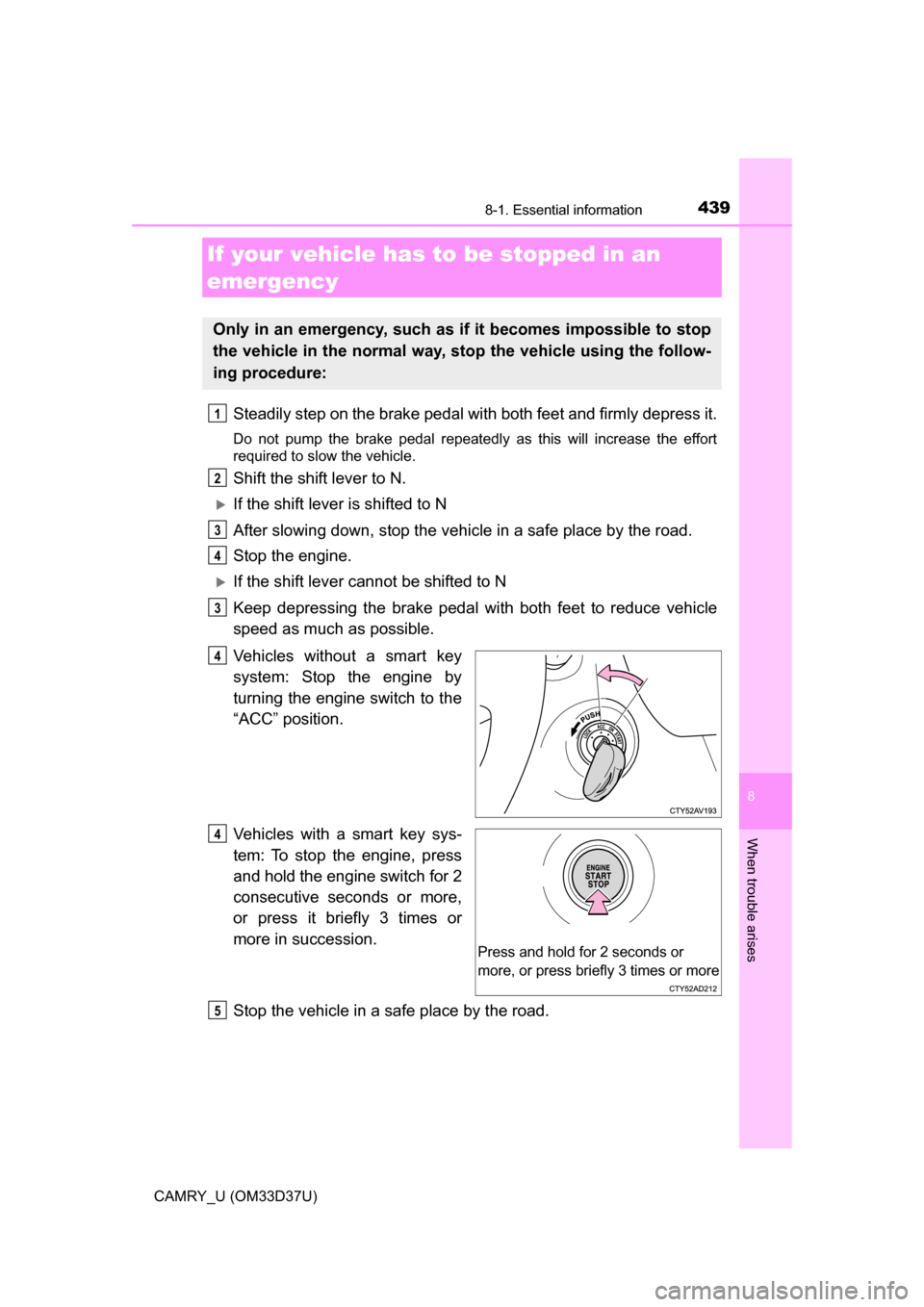

If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
5
557Alphabetical index
CAMRY_U (OM33D37U)
Flat tire...................................... 470
Floor mats .................................. 24
FluidAutomatic transaxle .............. 503
Brake .................................... 503
Washer ................................. 402
Front interior light ................... 340 Wattage ................................ 506
Front passenger occupant classification system .............. 47
Front personal lights ............... 340
Wattage ................................ 506
Front seats ............................... 119 Adjustment ............................ 119
Cleaning................................ 377
Correct driving posture ........... 26
Head restraints ..................... 123
Seat heaters ......................... 337
Front side marker lights.......... 166 Light switch ........................... 166
Replacing light bulbs............. 429
Wattage ................................ 506
Front turn signal lights ........... 164
Replacing light bulbs............. 430
Turn signal lever ................... 164
Wattage ................................ 506 Fuel ........................................... 178
Capacity................................ 500
Fuel gauge.............................. 77
Fuel pump shut off system ... 445
Information............................ 507
Refueling .............................. 178
Type.............................. 178, 500
Warning light......................... 447
Warning message................. 461
Fuel consumption ..................... 87
Fuel filler door ......................... 178 Refueling .............................. 178
Fuel pump shut off system..... 445
Fuses ........................................ 424
Garage door opener ................ 358
Gauges ....................................... 77
Glove box ................................. 343
Grocery bag hooks.................. 351
F
G
*: For vehicles with a navigation system or Entune Audio Plus, refer to
the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
