2016 TOYOTA CAMRY HYBRID engine coolant

882. Instrument cluster
CAMRY_HV_U (OM33C35U)
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 90)
Multi-information display
Presents the driver with a variety of driving-related data.
Displays warning messages in case of a malfunction ( P. 455)
Outside temperature display
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Speedometer
Display change button
P. 8 9
Fuel gauge
Odometer and trip meter display
P. 8 9
Shift position display
Displays the currently selected shift position.
P. 168
Engine coolant temperature gauge
Displays the engine coolant temperature.
Instrument panel light control button
P. 8 9

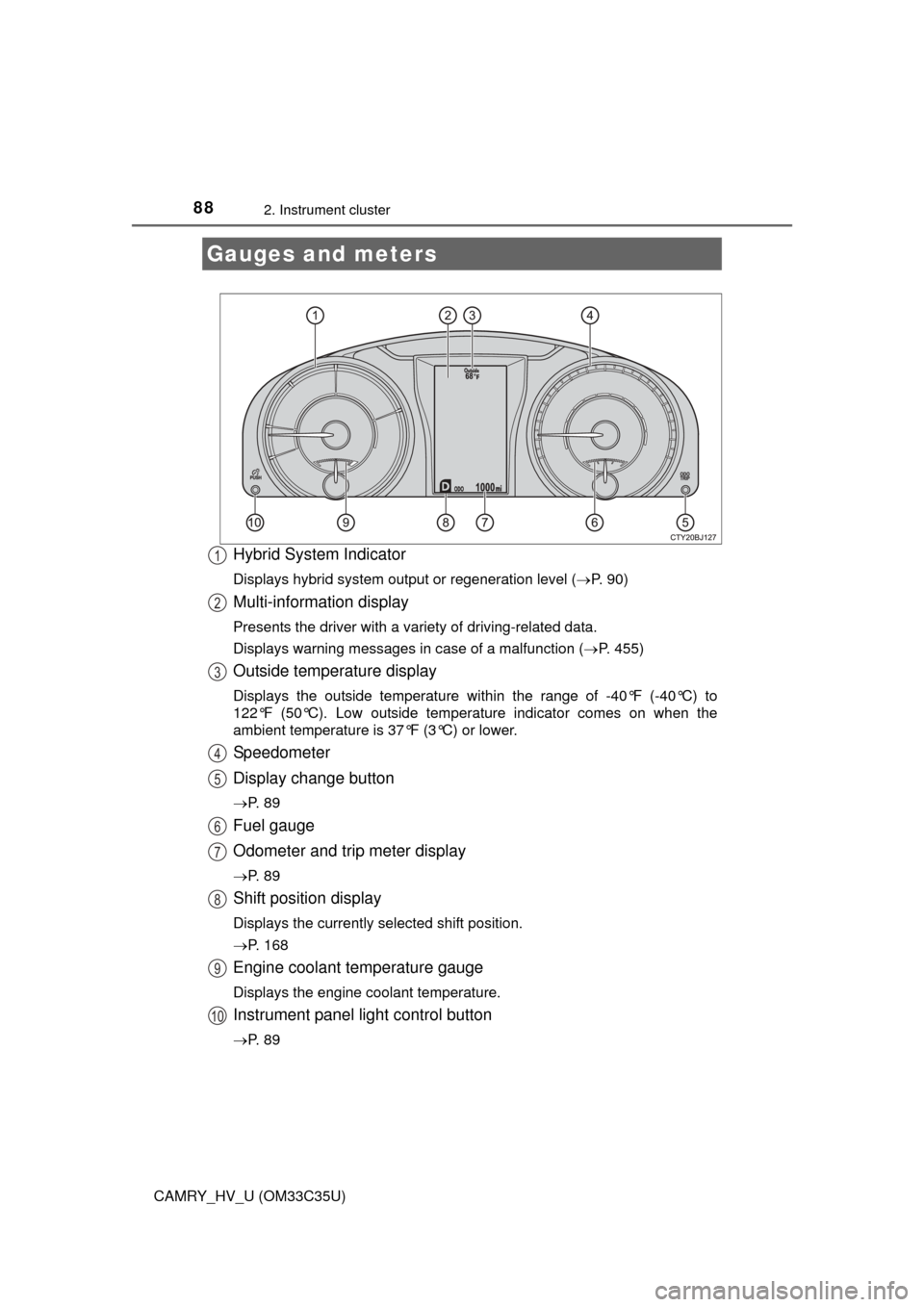

Gauges and meters
1
2
3
4
5
6
7
8
9
10

912. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33C35U)n
Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
lWhen stopped, or driving at low speeds (less than 16 mph [25 km/h])
l When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
NOTICE
n To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 496)

2424-6. Driving tips
CAMRY_HV_U (OM33C35U)
lUse fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
l Have a service technician inspec t the condition of the 12-volt bat-
tery.
l Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the specified size and brand, and that chains
match the size of the tires.
Perform the following accordin g to the driving conditions:
l Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
l To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
l Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, ve hicle’s roof, chassis, around the
tires or on the brakes.
l Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Winter driving tips
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

3877-2. Maintenance
7
Maintenance and care
CAMRY_HV_U (OM33C35U)

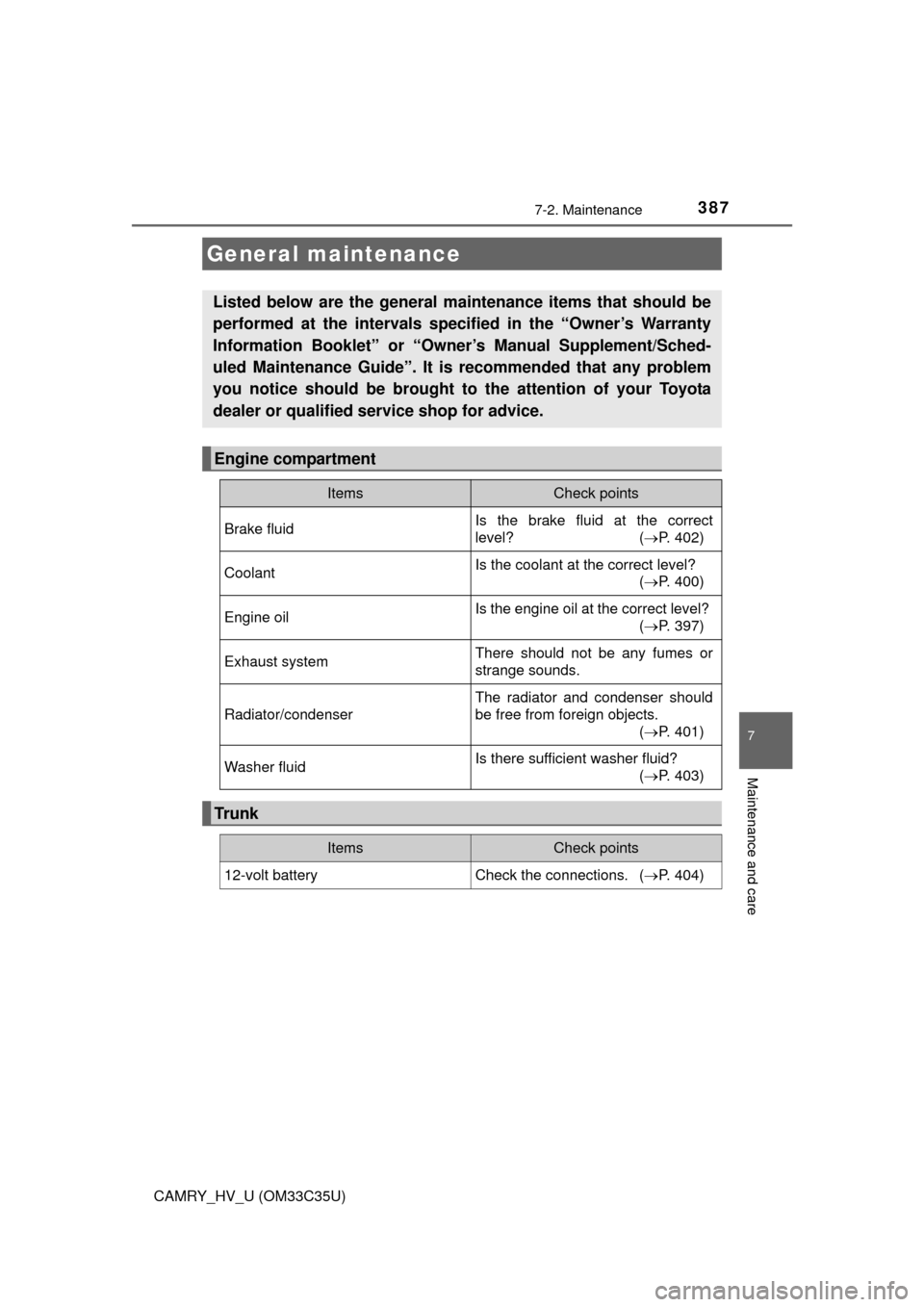

General maintenance
Listed below are the general maintenance items that should be
performed at the intervals specified in the “Owner’s Warranty
Information Booklet” or “Owner’s Manual Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you notice should be brought to the attention of your Toyota
dealer or qualified service shop for advice.
Engine compartment
ItemsCheck points
Brake fluidIs the brake fluid at the correct
level? ( P. 402)
CoolantIs the coolant at the correct level?
(P. 400)
Engine oilIs the engine oil at the correct level?
(P. 397)
Exhaust systemThere should not be any fumes or
strange sounds.
Radiator/condenser
The radiator and condenser should
be free from foreign objects.
(P. 401)
Washer fluidIs there sufficient washer fluid?
(P. 403)
Tr u nk
ItemsCheck points
12-volt battery Check the connections. ( P. 404)

392
CAMRY_HV_U (OM33C35U)
7-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
(P. 404)•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(P. 402)• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power
control unit cool-
ant level
(P. 400)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 397)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 427)• Fuse with same amperage rating as original
Light bulbs
(P. 430)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver• Wrench
Radiator/con-
denser (
P. 401)
Tire inflation
pressure
(  P. 418)• Tire pressure gauge
• Compressed air source
Washer fluid
(P. 403)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

3937-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_HV_U (OM33C35U)
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
nWhen working on the engine compartment
lMake sure that the “READY” indicator is off.
l Keep hands, clothing and tools away from the moving fans and engine
drive belt.
l Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
l Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
l Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.
n When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, t he electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. ( P. 401)
n Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
NOTICE
nIf you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

3967-3. Do-it-yourself maintenance
CAMRY_HV_U (OM33C35U)
Engine compartment
Fuse boxes (P. 427)
Engine oil filler cap ( P. 398)
Engine oil level dipstick ( P. 397)
Brake fluid reservoir ( P. 402)
Engine coolant radiator ( P. 400) Power control unit coolant
radiator
( P. 400)
Condenser ( P. 401)
Electric cooling fans
Engine coolant reservoir ( P. 400)
Washer fluid tank ( P. 403)
Power control unit
coolant reservoir ( P. 400)1
2
3
4
5
6
7
8
9
10
11

4007-3. Do-it-yourself maintenance
CAMRY_HV_U (OM33C35U)

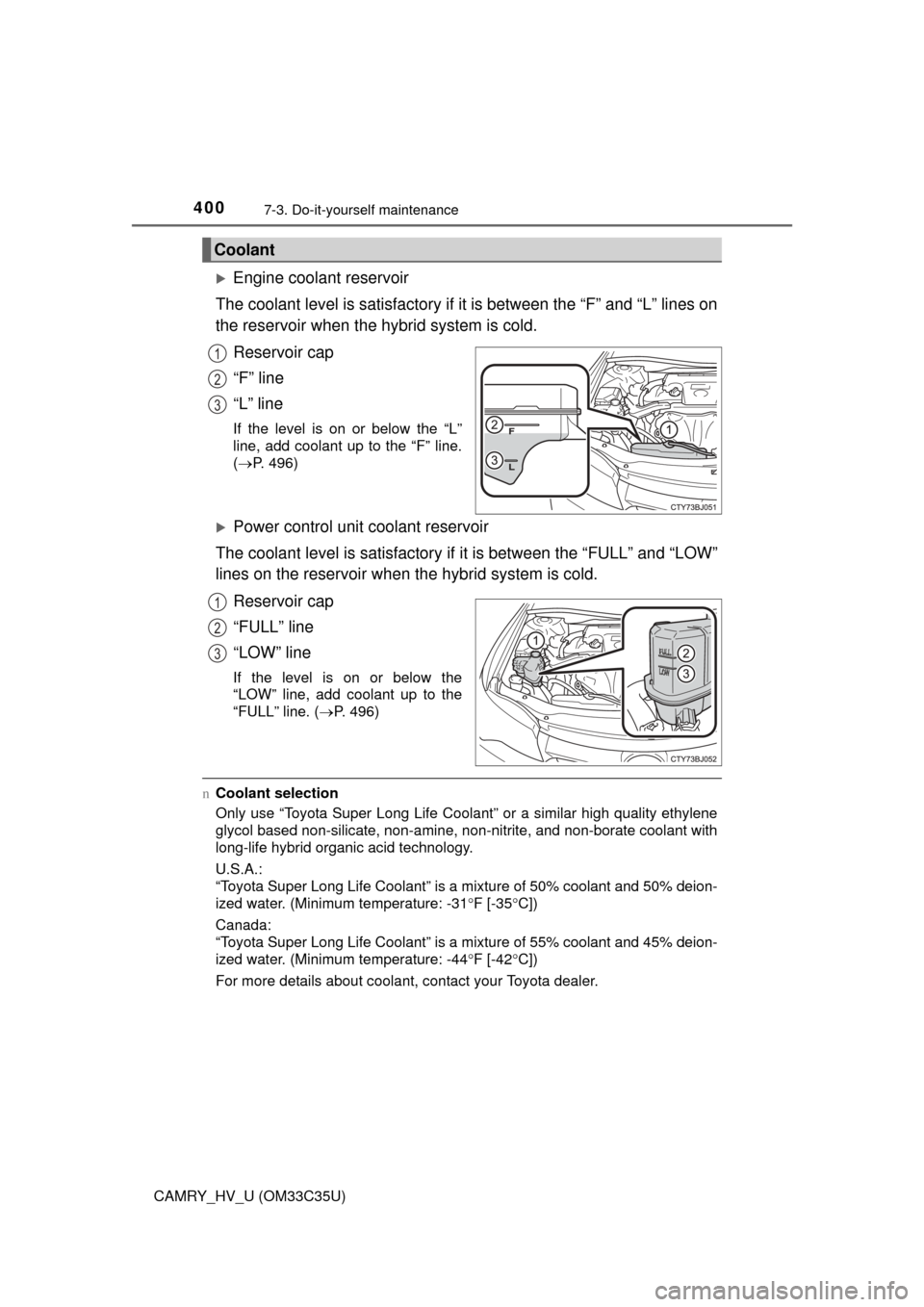

Engine coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the hybrid system is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F” line.
( P. 496)
Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when th e hybrid system is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. ( P. 496)
nCoolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31 F [-35 C])
Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deion-
ized water. (Minimum temperature: -44 F [-42 C])
For more details about coolant, contact your Toyota dealer.
Coolant
1
2
3
1
2
3
