• Immediately after the RCTA function is set to on
• Immediately after the engine is started with the RCTA function is set to on
● Instances of the RCTA function unnecessarily detecting a vehicle and/or
object may increase in the following situations:
• When a vehicle passes by the side of your vehicle
• When the distance between your vehicle and metal objects, such as a
guardrail, wall, sign, or parked vehicle, which may reflect electrical waves
toward the rear of the vehicle, is short
• When the sensors cannot detect a
vehicle due to obstructions
• When the parking space faces a
street and vehicles are being driven
on the street

4084-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
Toyota parking assist-sensor
: If equipped
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display
and a buzzer. Always check the surrounding area when using
this system.
Types of sensors
Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
Front side sensors
Rear side sensors
1
2
3
4
5
6

4094-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
This system can be enabled/disabled on the multi-information display.
Press “ ” or “” of the meter control switches, select .
Press “ ” or “” of the meter control switches, select .
Press on the meter control
switches to enable/disable the
system.
When enabled, the Toyota park-
ing assist-sensor indicator will
illuminate.
Once turned off, the Toyota parking assist-sensor will remain OFF until it is
turned ON again via the screen of the multi-information display. (The
system will not automatically turn ON even when the engine is restarted.)
When the sensors detect an obstacle, a graphic is shown on the multi
information display depending on the position and distance to the
obstacle.
Front center sensor operation
Front corner sensor operation
Front side sensor operation
Rear side sensor operation
Rear corner sensor operation
Rear center sensor operation
Enabling/disabling the Toyota parking assist-sensor system
1
2
3
Display
1
2
3
4
5
6

4104-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
When a sensor detects an obstacle, the direction of and the approxi-
mate distance to the obstacle are displayed and the buzzer sounds.
The volume and timing of the buzzer can be changed. ( P. 776)
■Corner sensors
The distance display and buzzer
Approximate distance to
obstacle
Multi-information
displayBuzzer
50 to 37.5 cm
(1.6 to 1.2 ft.) Medium
37.5 to 25 cm
(1.2 to 0.8 ft.) Fast
Less than 25 cm
(0.8 ft.) Continuous

4114-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
■Side sensors
Approximate distance to
obstacle
Multi-information
displayBuzzer
50 to 37.5 cm
(1.6 to 1.2 ft.) Medium
37.5 to 25 cm
(1.2 to 0.8 ft.) Fast
Less than 25 cm
(0.8 ft.) Continuous

4124-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
■Center sensors
*1: S-IPA is not operating.
*2: S-IPA is operating.
Approximate distance to
obstacle
Multi-information
displayBuzzer
Front: 100 to 55 cm
(3.3 to 1.8 ft.)
Rear: 150 to 55 cm
(4.9 to 1.8 ft.)
Slow
55 to 42.5 cm
(1.8 to 1.4 ft.) Medium
42.5 to 30cm
(1.4 to 1.0 ft.) Fast
Less than 30 cm*1 or 25cm*2
(1.0 ft. *1 or 0.8 ft. *2) Continuous

4134-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
Approximately 100 cm (3.3 ft.)
Approximately 150 cm (4.9 ft.)
Approximately 50 cm (1.6 ft.)
Approximately 50 cm (1.6 ft.)
• The detection range is shown in
the illustration to the right. How-
ever, the sensor will not detect
the obstacle if it is too close.
• For details regarding obstacle
detection in the side areas.
( P. 415)
• The distance at which an obstacle
can be detected and whether it
can be detected depends on the
shape and condition of the obsta-
cle.
The obstacle detection range can be changed. ( P. 776)
Detection range of the sensors
1
2
3
4

4144-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

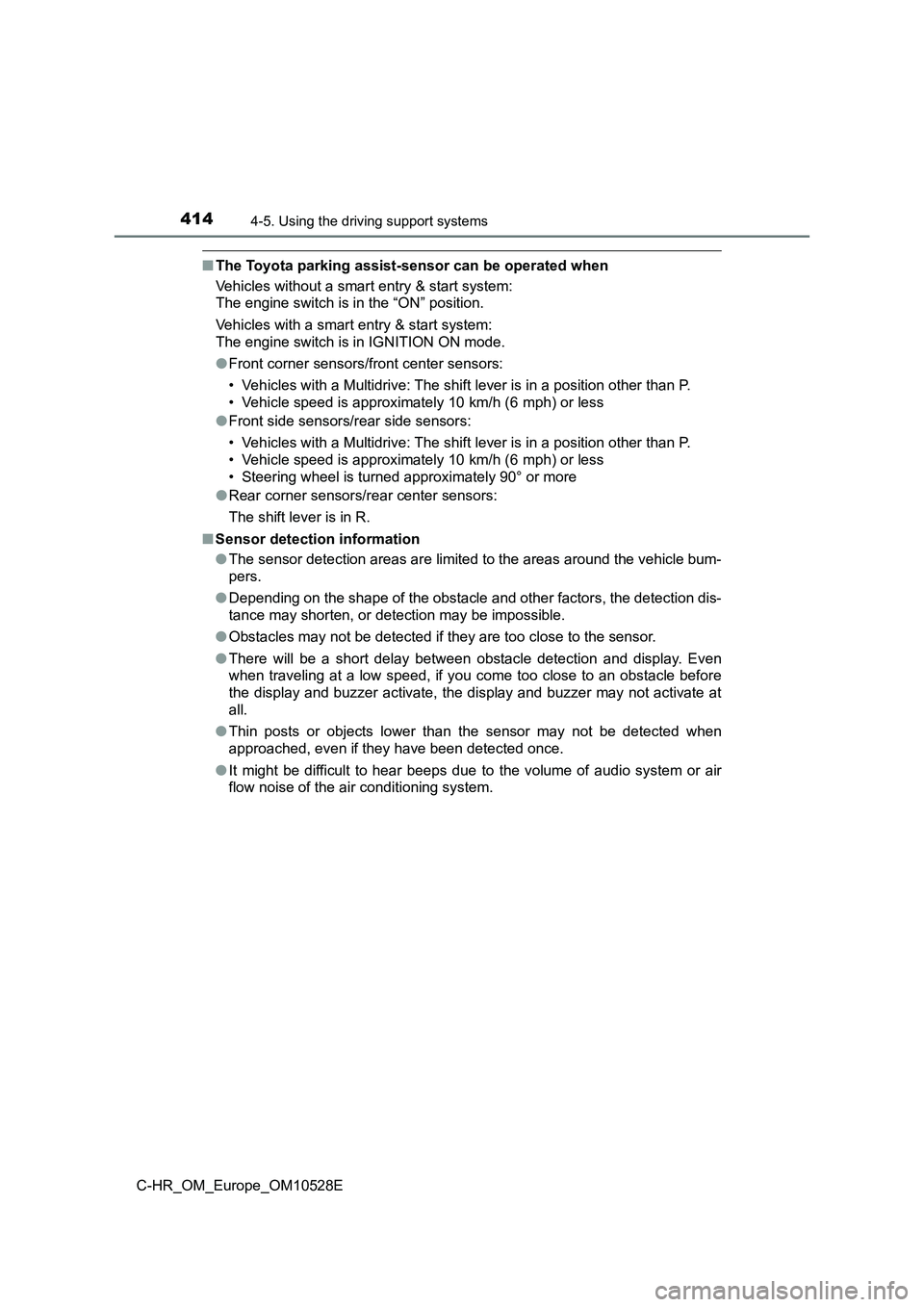

■The Toyota parking assist-sensor can be operated when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
● Front corner sensors/front center sensors:
• Vehicles with a Multidrive: The shift lever is in a position other than P.
• Vehicle speed is approximately 10 km/h (6 mph) or less
● Front side sensors/rear side sensors:
• Vehicles with a Multidrive: The shift lever is in a position other than P.
• Vehicle speed is approximately 10 km/h (6 mph) or less
• Steering wheel is turned approximately 90° or more
● Rear corner sensors/rear center sensors:
The shift lever is in R.
■ Sensor detection information
● The sensor detection areas are limited to the areas around the vehicle bum-
pers.
● Depending on the shape of the obstacle and other factors, the detection dis-
tance may shorten, or detection may be impossible.
● Obstacles may not be detected if they are too close to the sensor.
● There will be a short delay between obstacle detection and display. Even
when traveling at a low speed, if you come too close to an obstacle before
the display and buzzer activate, the display and buzzer may not activate at
all.
● Thin posts or objects lower than the sensor may not be detected when
approached, even if they have been detected once.
● It might be difficult to hear beeps due to the volume of audio system or air
flow noise of the air conditioning system.
