2844-3. Operating the lights and wipers
C-HR_OM_Europe_OM10528E
■The rear window wiper and washer can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
windshield washer fluid reservoir.
NOTICE
■ When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

3744-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
Stop & Start system
■Stopping the engine
With the clutch pedal fully
depressed, depress the
brake pedal, and stop the
vehicle.
Shift the shift lever to N
( P. 250), and release the
clutch pedal.
The Stop & Start indicator will
come on.
■Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The Stop & Start indicator will turn off.
: If equipped
The Stop & Start system stops and restarts the engine according
to the clutch pedal operation when the vehicle is stopped.
Stop & Start system operation
1
2

3844-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
WARNING
■When the Stop & Start system is operating
● Keep the shift lever in N and depress the brake pedal or apply the parking
brake while the engine is stopped by the Stop & Start system (while the
Stop & Start indicator is on).
● Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
● Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.
NOTICE
■ To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
● While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
● Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
● Even though the driver’s door is closed, the open door warning is dis-
played on the multi-information display or the interior light is illuminated
when the interior light switch is in the door position.
● Even though the driver’s door is open, the open door warning is not dis-
played on the multi-information display or the interior light does not illumi-
nate when the interior light switch is in the door position.
■ When the engine stalled
If the system is operational, the engine can restart by pressing the clutch
pedal immediately.

3904-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
■Exceeding the set speed
In the following situations, the vehicle speed exceeds the set speed and dis-
play characters will be highlighted:
■ Automatic speed limiter cancelation
The speed limiter is automatically canceled in any of the following situations:
● Cruise control is activated.
● When the VSC system and/or TRC system is turned off by pressing the
VSC off switch.
■ If the “Check speed limiter system” is displayed on the multi-information
display
Stop in a safe place, turn the engine switch off and back on again, and then
set the speed limiter. If the speed limiter cannot be set, the system may be
malfunctioning. Even though the vehicle can be driven normally, have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● When fully depressing the accelerator
pedal
● When driving down a slope (a buzzer
also sounds)

4394-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E
Shift the shift lever to R.
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, reverse the vehicle slowly while
checking the safety of the area behind the vehicle and assistance level
indicator.
Repeat steps through until the parking assist operation
has completed.
When the parking assist operation has completed, the buzzer sounds,
the S-IPA indicator turns off and the multi-information display changes.
Adjust the vehicle position and/or angle as necessary to complete park-
ing the vehicle.
■ Operation conditions of S-IPA
● The engine is started.
● The switch is on.
■ Perpendicular parking assist mode operating conditions
● In order to operate the function correctly, drive slowly (at a speed at which
the vehicle can be quickly stopped).
● The function cannot be used when the vehicle speed is approximately
20 km/h (13 mph) or higher.
● The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detection is not
possible ( P. 460), guidance is not issued.
● If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the perpendicular parking assist mode cannot be operated.
● If unable to detect the environment surrounding the parking space, the per-
pendicular parking assist mode may not be able to operate.
10
11610

599
7Maintenance and care
C-HR_OM_Europe_OM10528E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 600
Cleaning and protecting
the vehicle interior ........... 605
7-2. Maintenance
Maintenance
requirements.................... 609
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 612
Hood .................................. 615
Positioning a floor jack ....... 617
Engine compartment.......... 618
Tires ................................... 631
Tire inflation pressure ........ 644
Wheels ............................... 646
Air conditioning filter .......... 649
Wireless remote control/
electronic key battery....... 652
Checking and
replacing fuses ................ 656
Light bulbs ......................... 661

6107-2. Maintenance
C-HR_OM_Europe_OM10528E
■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Toyota retailers or repairers or other duly
qualified and equipped professionals. For repairs and services covered by
your warranty, please visit an authorized Toyota retailers or repairer, who will
use genuine Toyota parts in repairing any difficulties you may encounter.
There can also be advantages in utilizing authorized Toyota retailers or
repairers for non-warranty repairs and services, as members of the Toyota
network will be able to expertly assist you with any difficulties you may
encounter.
Your Toyota retailer or Toyota authorized repairer, or any reliable repairer will
perform all of the scheduled maintenance on your vehicle reliably and eco-
nomically due to their experience with Toyota vehicles.
■ Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
● Engine misses, stumbling, or pinging
● Appreciable loss of power
● Strange engine noises
● A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
● Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)

6197-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

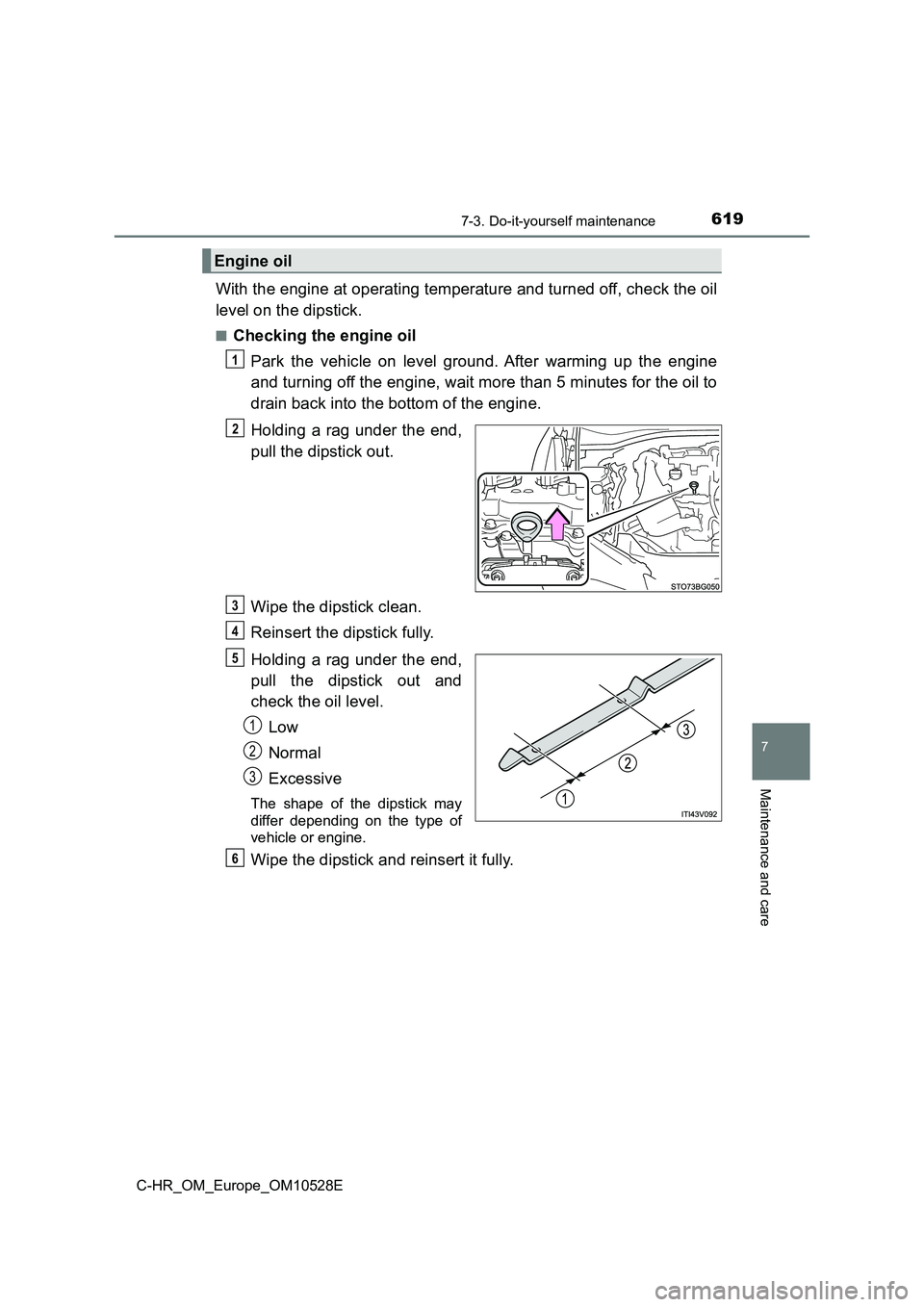

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the engine, wait more than 5 minutes for the oil to
drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull the dipstick out and
check the oil level.
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6
