The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 255
Tail light indicator P. 265
Headlight high beam indicator P. 266
Front fog light indicator (if equipped) P. 276
Rear fog light indicator P. 276
Automatic High Beam indi cator (if equipped) P. 272
Parking brake indicator P. 256
*1, 2Brake hold standby indicator P. 262
Toyota parking assist-sensor indicator (if
equipped) P. 4 0 9
S-IPA indicator (if equipped) P. 422
*3“iMT” indicator P. 251

1322. Instrument cluster
C-HR_OM_Europe_OM10528E
The settings of the following items can be changed, refer to P. 776.
For functions that can be enabled or disabled, the function switches
between on and off each time is pressed.
● LDA (Lane Departure Alert) (P. 315)*1
Select to set up the following items.
• Steering Assist on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity
● PCS (Pre-Collision System) (P. 298)*1
Select to set up the following items.
•PCS on/off
• PCS sensitivity
● BSM (Blind Spot Monitor) (P. 392)*1
Select to set up the following items.
• BSM function on/off
• RCTA function on/off*
*: The RCTA function can be enabled/disabled only when the BSM func-
tion is enabled.
● Toyota parking assist-sensor (P. 408)*1
Select to enable/disable the Toyota parking assist-sensor.
● RSA (Road Sign Assist) (P. 330)*1
Select to set up RSA (Road Sign Assist).
● Driving mode select (P. 385)*1
● Instrument cluster light
Select to adjust brightness of the instrument cluster light.
Settings display

155
3
3-2. Opening, closing and locking the doors
Operation of each component
C-HR_OM_Europe_OM10528E
Side doors
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Grip the front door handle to
unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.
Check that the door is securely locked.
*: The door unlock settings can be changed.( P. 162)
Unlocking and locking the doors from the outside
1
2

1583-2. Opening, closing and locking the doors
C-HR_OM_Europe_OM10528E
■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have been locked/
unlocked using the entry function or wireless remote control. (Locked: Once;
Unlocked: Twice)
Windows (vehicles with a smart entry & start system):
A buzzer sounds to indicate that the windows are operating.
■ Security feature
Vehicles without a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.
Vehicles with a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the entry function or wireless remote control, the security fea-
ture automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicles wi th a smart entry & start system)
Use your palm to touch the lock sensor.

1623-2. Opening, closing and locking the doors
C-HR_OM_Europe_OM10528E

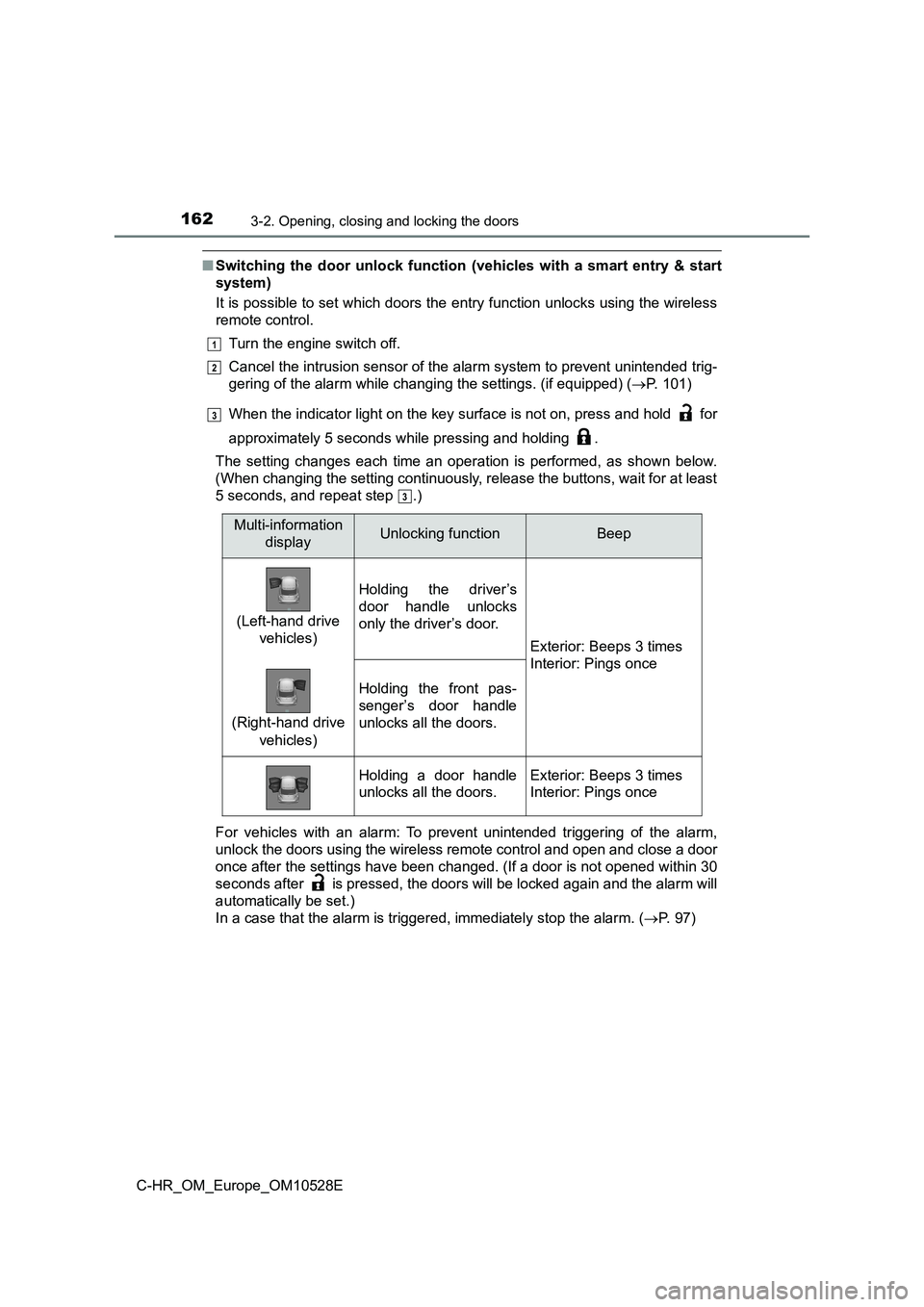

■Switching the door unlock function (vehicles with a smart entry & start
system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the engine switch off.
Cancel the intrusion sensor of the alarm system to prevent unintended trig-
gering of the alarm while changing the settings. (if equipped) ( P. 101)
When the indicator light on the key surface is not on, press and hold for
approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step .)
For vehicles with an alarm: To prevent unintended triggering of the alarm,
unlock the doors using the wireless remote control and open and close a door
once after the settings have been changed. (If a door is not opened within 30
seconds after is pressed, the doors will be locked again and the alarm will
automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. ( P. 97)
1
2
3
3
Multi-information
displayUnlocking functionBeep
(Left-hand drive
vehicles)
Holding the driver’s
door handle unlocks
only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
(Right-hand drive
vehicles)
Holding the front pas-
senger’s door handle
unlocks all the doors.
Holding a door handle
unlocks all the doors.
Exterior: Beeps 3 times
Interior: Pings once

1763-2. Opening, closing and locking the doors
C-HR_OM_Europe_OM10528E
● If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
● Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
● If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In that case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 2 m (6 ft.) or more away from the
vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart entry &
start system. ( P. 173)
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.
● The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.
● If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.
● Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

1973-4. Adjusting the steering wheel and mirrors
3
Operation of each component
C-HR_OM_Europe_OM10528E
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in on mode, the indica-
tor illuminates.
Vehicles without a smart entry &
start system: The function will be
set to on mode each time the
engine switch is turned to the “ON”
position.
Vehicles with a smart entry & start system: The function will be set to on
mode each time the engine switch is turned to IGNITION ON mode.
Pressing the button turns the function to off mode. (The indicator also turns
off.)
■ To prevent sensor error (vehicles with an auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

207
4Driving
C-HR_OM_Europe_OM10528E
4-1. Before driving
Driving the vehicle ............. 208
Cargo and luggage ............ 222
Trailer towing ..................... 223
4-2. Driving procedures
Engine (ignition) switch
(vehicles without
a smart entry & start
system) ............................ 233
Engine (ignition) switch
(vehicles with a smart
entry & start system)........ 236
Multidrive ........................... 244
Manual transmission.......... 250
Turn signal lever ................ 255
Parking brake .................... 256
Brake hold ......................... 262
4-3. Operating the lights
and wipers
Headlight switch ................ 265
Automatic High Beam ........ 271
Fog light switch .................. 276
Windshield wipers
and washer ...................... 278
Rear window wiper
and washer ...................... 283
4-4. Refueling
Opening the fuel tank
cap ................................... 285
4-5. Using the driving
support systems
Toyota Safety Sense ......... 290
PCS (Pre-Collision
System) ........................... 298
LDA (Lane Departure
Alert with steering
control)............................. 315
RSA (Road Sign Assist)..... 330
Dynamic radar cruise
control with full-speed
range ............................... 336
Dynamic radar cruise
control .............................. 351
Cruise control..................... 369
Stop & Start system ........... 374
Driving mode select .......... 385
Speed limiter ...................... 387
BSM
(Blind Spot Monitor) ......... 392
• BSM function ................. 398
•RCTA function................ 403
Toyota parking
assist-sensor ................... 408
S-IPA (Simple Intelligent
Parking Assist System).... 420
Driving assist systems ....... 462
4-6. Driving tips
Winter driving tips .............. 470
