2016 TOYOTA AURIS TOURING SPORTS audio

395
AURIS Touring Sports_EE (12K53E)
5
Audio system
5-10. Bluetooth®
■When using the Bluetooth® audio/Phone
● In the following situations, the system may not function.
• The portable player does not support Bluetooth
®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or is touching or covered by metal objects
● There may be a delay if a cellul ar phone connection is made during
Bluetooth
® audio playback.
● Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( →P. 381)
■ About Bluetooth
®
■Compatible models
●Bluetooth® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom- mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

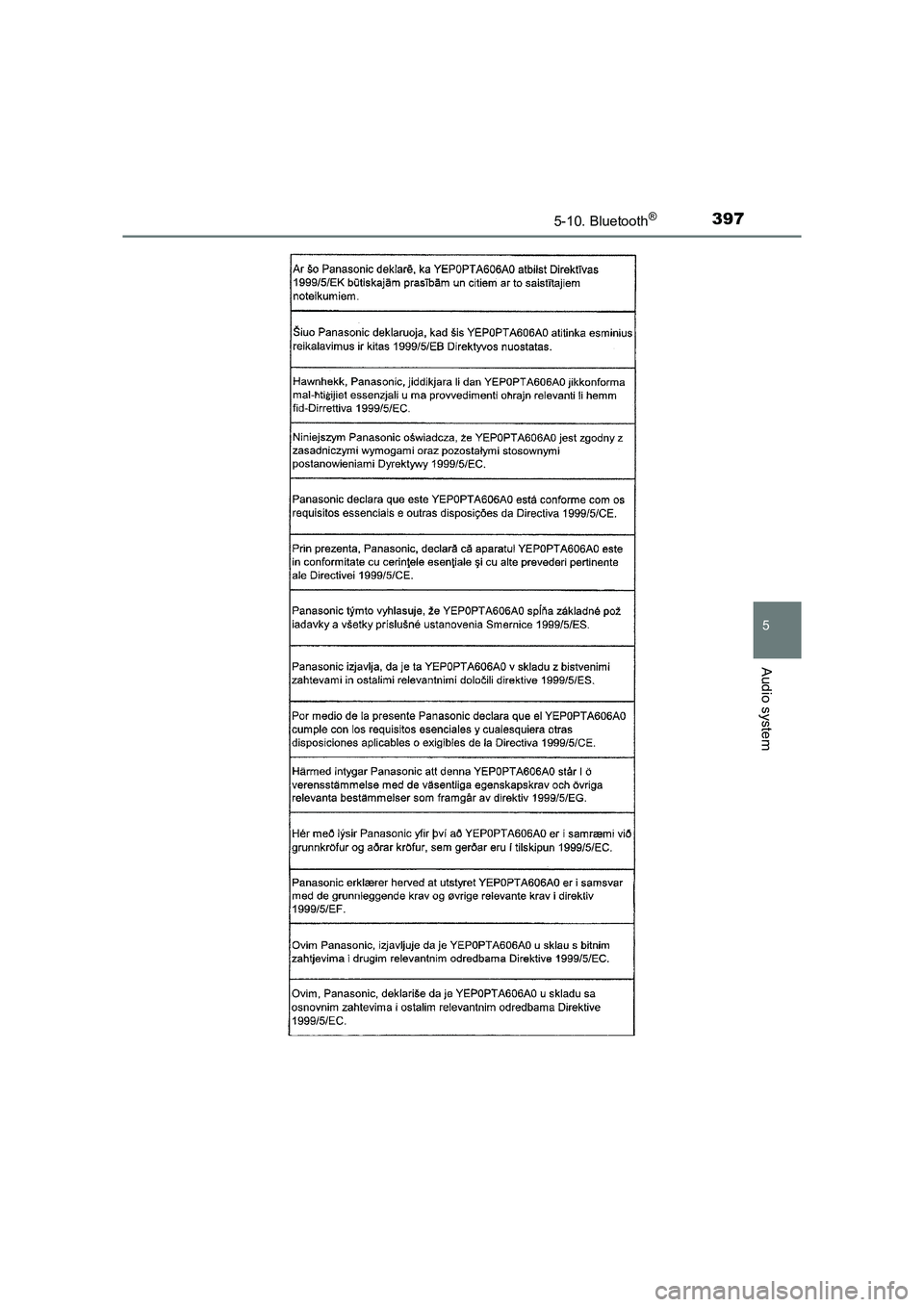

3975-10. Bluetooth®
AURIS Touring Sports_EE (12K53E)
5
Audio system

3985-10. Bluetooth®
AURIS Touring Sports_EE (12K53E)
WARNING
■ While driving
Do not operate the portable audio player, cellular phone or connect a device
to the Bluetooth
® system.
■ Caution regarding interferen ce with electronic devices
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.

4547-1. Maintenance and care
AURIS Touring Sports_EE (12K53E)NOTICE
■
Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco- hol
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
■ Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
● Be careful not to scratch or damage the heater wires.

5508-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)■
If the tire pressure warning light fre quently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
XVehicles without a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the “ON” position, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
XVehicles with a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to IGNITION ON mode, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ If the engine oil change reminder light flashes (diesel engine)
Repeated short trips and/or low-speed dr iving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder will flash.
■ Engine oil change reminder light comes on (diesel engine)
Replace the engine oil filter when t he engine oil change reminder light does
not come on even if you have driven over 15000 km (9300 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.

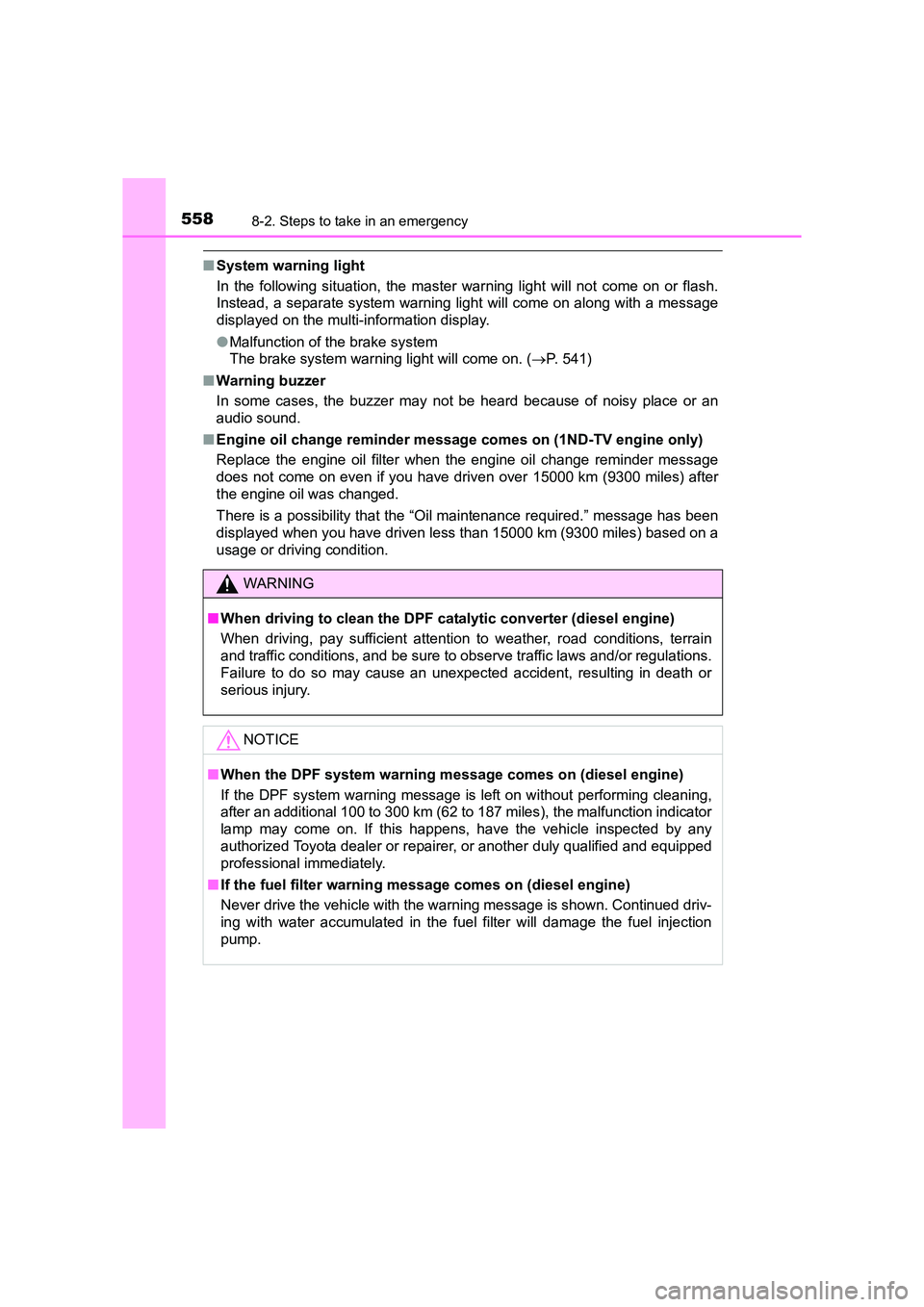

5588-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
■System warning light
In the following situation, the master warning light will not come on or flash.
Instead, a separate system warning light will come on along with a message
displayed on the multi-information display.
●Malfunction of the brake system
The brake system warning light will come on. ( →P. 541)
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ Engine oil change reminder message comes on (1ND-TV engine only)
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the “Oil maintenance required.” message has been
displayed when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
WARNING
■ When driving to clean the DPF cat alytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
NOTICE
■When the DPF system warning m essage comes on (diesel engine)
If the DPF system warning message is left on without performing cleaning,
after an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■ If the fuel filter warning m essage comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

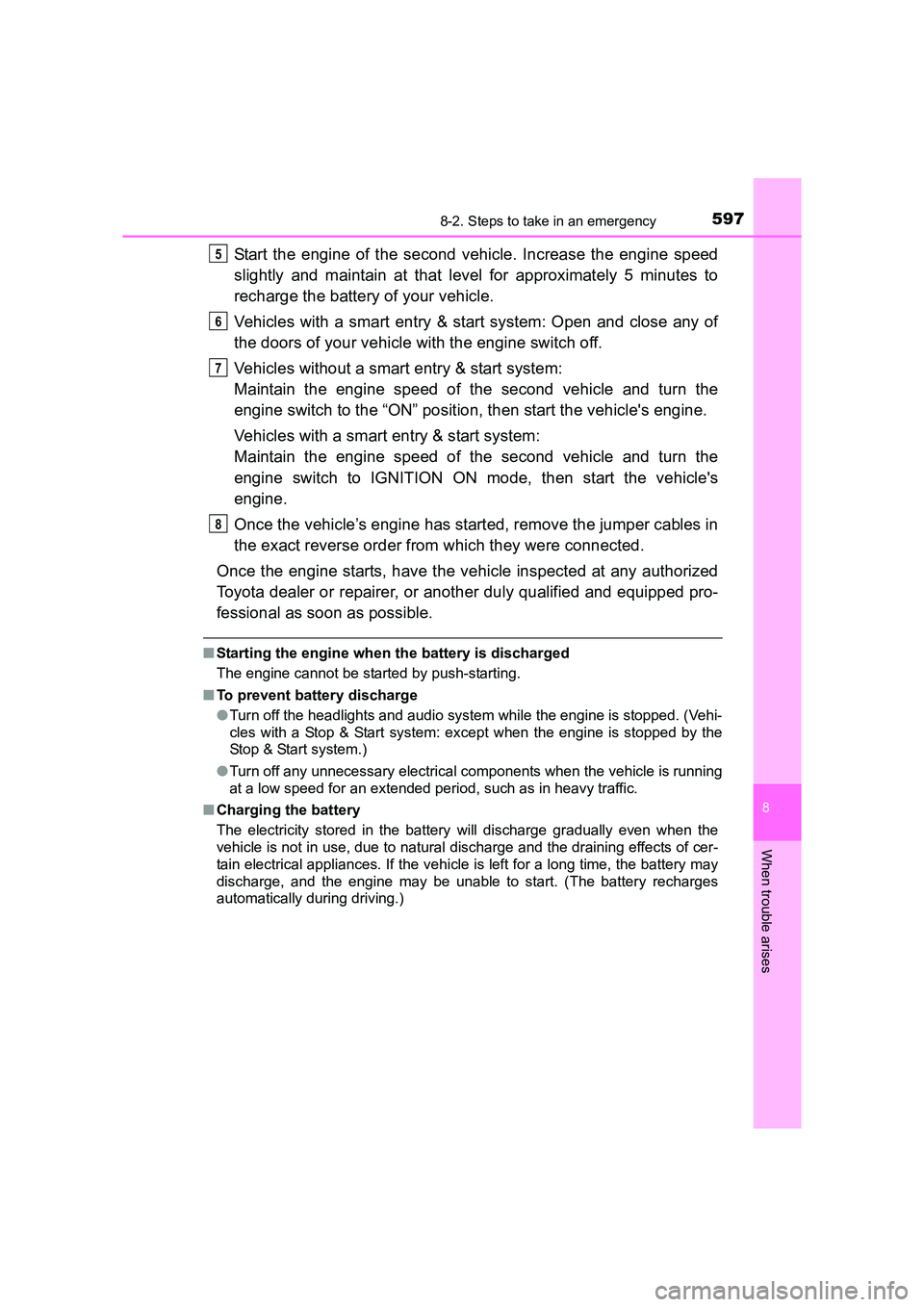

5978-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Vehicles with a smart entry & start system: Open and close any of
the doors of your vehicle with the engine switch off.
Vehicles without a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to the “ON” position, then start the vehicle's engine.
Vehicles with a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle's
engine.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
●Turn off the headlights and audio system while the engine is stopped. (Vehi-
cles with a Stop & Start system: except when the engine is stopped by the
Stop & Start system.)
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
5
6
7
8

645
AURIS Touring Sports_EE (12K53E)
Alphabetical index
Alphabetical index
A/C............................................. 405Air conditioning filter.............. 505
ABS (Anti-lock Brake System) ...... 328Warning light ......................... 542
Air conditioning filter .............. 505
Air conditioning system .................................... 405
Air conditioning filter.............. 505
Airbag manual on-off system ... 52
Airbags ....................................... 42 Airbag manual on-off system .................................. 52
Airbag operating conditions .... 48
Airbag precautions for your child .............................. 44
Correct driving posture............ 36
Curtain shield airbag operating conditions ............. 48
Curtain shield airbag precautions ........................... 46
General airbag precautions..... 44
Locations of airbags................ 42
Modification and disposal of airbags................ 47
Side airbag operating conditions ............................. 48
Side airbag precautions .......... 44
Side and curtain shield airbags operating conditions ............. 48
Side and curtain shield airbags precautions ........................... 44
SRS airbags ............................ 42
SRS warning light ................. 542 Alarm .......................................... 87
Warning buzzer............. 541, 553
Anchor brackets ........................ 64
Antennas (smart entry & start system) .......................... 145
Anti-lock Brake System (ABS) ........................ 328Warning light ......................... 542
Armrest ..................................... 442
Ashtrays ................................... 440
Assist grips .............................. 443
Audio input
*............................ 340
Audio system
*......................... 338
Audio input ............................ 340
AUX port/USB port................ 340
Bluetooth
® audio................... 370
CD player .............................. 346
iPod....................................... 354
MP3/WMA disc ..................... 346
Optimal use........................... 341
Portable music player ........... 369
Radio .................................... 343
Steering wheel audio switch ................................. 339
USB memory ........................ 362
Automatic headlight leveling system .................................... 238
Automatic High Beam ............. 273
Automatic light control system .................................... 233
AUX port
*................................. 369
Auxiliary boxes ................ 425, 431
A
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
