3
Operation of each component
3-5. Opening and closing the windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
XOne-touch opening/closing on driver’s window only type
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper- ate the switch in the opposite direc-
tion.
XOne-touch opening/closing on all windows type
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper- ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Power windows∗
∗: If equipped
Opening and closing procedures
1
2
3
4
1
2
3
4
Window lock switch

1843-5. Opening and closing the windows
AURIS Touring Sports_EE (12K53E)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
●The driver is responsible for all t he power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( →P. 181)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. T here may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function (windows with one-touch closing function
only)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.

4817-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
■After recharging/reconnecting the battery (vehicles with a smart entry &
start system)
●Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.
● Start the engine with the engine swit ch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.
● The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnecting the battery. Take extra care when connecting the bat-
tery if the engine switch mode prior to discharge is unknown.
If the system will not start even after multiple attempts, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
WARNING
■ Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:
●Do not cause sparks by touching the battery terminals with tools.
● Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.

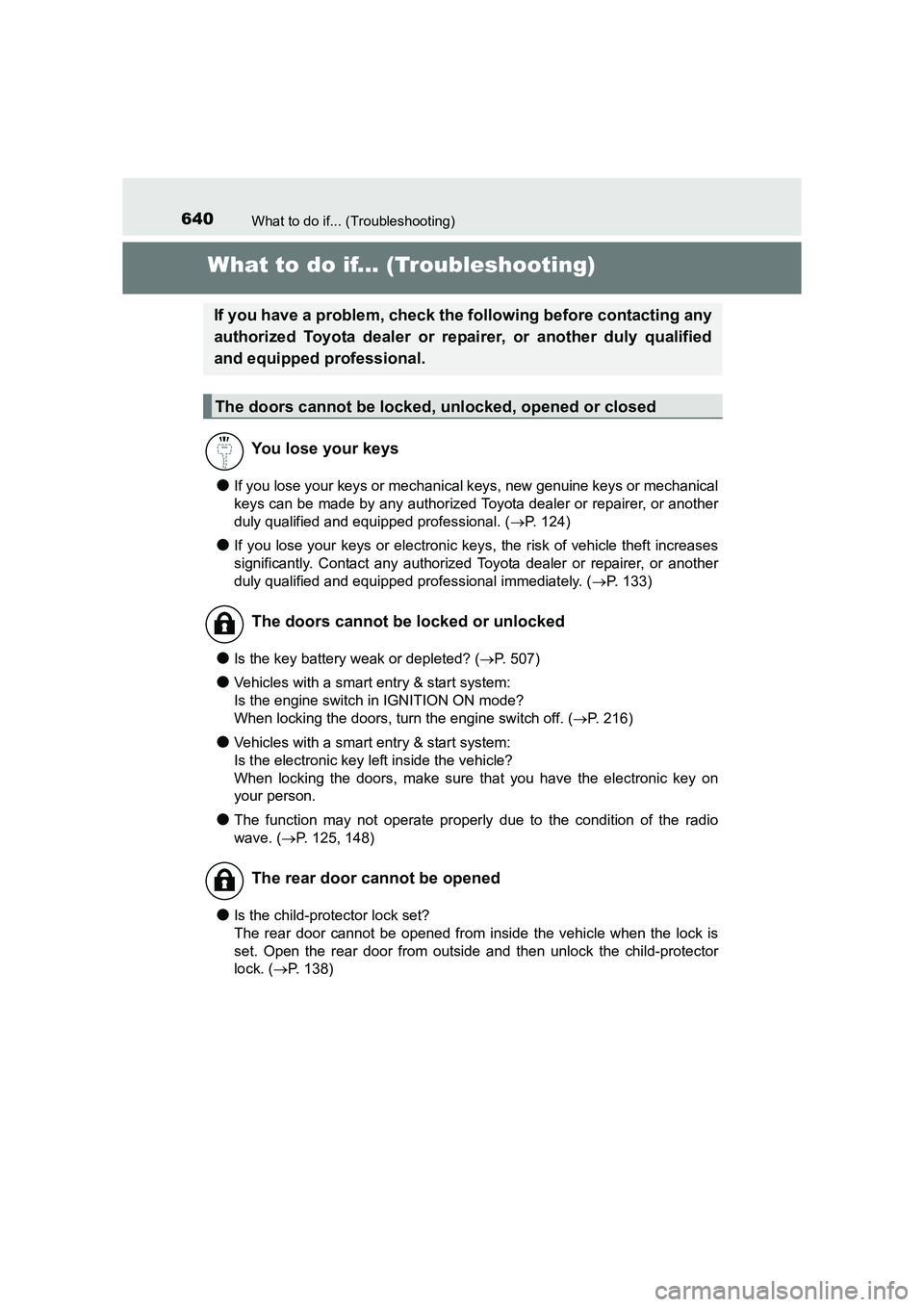

640
AURIS Touring Sports_EE (12K53E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. (→P. 124)
●If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately. ( →P. 133)
●Is the key battery weak or depleted? ( →P. 507)
●Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 216)
●Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( →P. 125, 148)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( →P. 138)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

645
AURIS Touring Sports_EE (12K53E)
Alphabetical index
Alphabetical index
A/C............................................. 405Air conditioning filter.............. 505
ABS (Anti-lock Brake System) ...... 328Warning light ......................... 542
Air conditioning filter .............. 505
Air conditioning system .................................... 405
Air conditioning filter.............. 505
Airbag manual on-off system ... 52
Airbags ....................................... 42 Airbag manual on-off system .................................. 52
Airbag operating conditions .... 48
Airbag precautions for your child .............................. 44
Correct driving posture............ 36
Curtain shield airbag operating conditions ............. 48
Curtain shield airbag precautions ........................... 46
General airbag precautions..... 44
Locations of airbags................ 42
Modification and disposal of airbags................ 47
Side airbag operating conditions ............................. 48
Side airbag precautions .......... 44
Side and curtain shield airbags operating conditions ............. 48
Side and curtain shield airbags precautions ........................... 44
SRS airbags ............................ 42
SRS warning light ................. 542 Alarm .......................................... 87
Warning buzzer............. 541, 553
Anchor brackets ........................ 64
Antennas (smart entry & start system) .......................... 145
Anti-lock Brake System (ABS) ........................ 328Warning light ......................... 542
Armrest ..................................... 442
Ashtrays ................................... 440
Assist grips .............................. 443
Audio input
*............................ 340
Audio system
*......................... 338
Audio input ............................ 340
AUX port/USB port................ 340
Bluetooth
® audio................... 370
CD player .............................. 346
iPod....................................... 354
MP3/WMA disc ..................... 346
Optimal use........................... 341
Portable music player ........... 369
Radio .................................... 343
Steering wheel audio switch ................................. 339
USB memory ........................ 362
Automatic headlight leveling system .................................... 238
Automatic High Beam ............. 273
Automatic light control system .................................... 233
AUX port
*................................. 369
Auxiliary boxes ................ 425, 431
A
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.

646Alphabetical index
AURIS Touring Sports_EE (12K53E)
Back door ................................ 140
Back-up lightsReplacing light bulb............... 515
Wattage................................. 628
Battery ...................................... 480 Battery checking ................... 480
If the vehicle has discharged battery................................. 594
Preparing and checking before winter ....................... 334
Warning light ......................... 541
Bluetooth
®*
Audio system ........................ 387
Hands-free system (for cellular phone).............. 390
Bottle holders........................... 423
Brake Emergency brake signal ....... 328
Fluid ...................................... 625
Parking brake........................ 232
Warning light ......................... 541
Brake assist.............................. 328
Break-in tips ............................ 189
Brightness control Meter light control ......... 103, 113 Care................................... 448, 452
Aluminum wheels.................. 449
Exterior ................................. 448
Interior................................... 452
Seat belts.............................. 453
Cargo hooks............................. 427
CD player
*................................ 346
Chains....................................... 335
Child restraint system ............... 55
Baby seats, definition.............. 55
Baby seats, installation ........... 65
Child seats, definition.............. 55
Child seats, installation ........... 65
Installing CRS with ISOFIX rigid anchors ......................... 69
Installing CRS with seat belts .............................. 65
Installing CRS with top strap... 70
Junior seats, definition ............ 55
Junior seats, installation ......... 67
Child safety ................................ 54
Airbag precautions .................. 44
Battery precautions ....... 481, 599
Child restraint system ............. 55
How your child should wear the seat belt.......................... 39
Installing child restraints ......... 64
Panoramic roof shade
precautions ......................... 445
Power window lock switch .... 181
Power window precautions ... 184
Rear door child-protectors .... 138
Removed electronic key battery precautions ............. 509
Seat belt precautions .............. 41
Seat heater precautions........ 415
BC

647Alphabetical index
AURIS Touring Sports_EE (12K53E)
Child-protectors ....................... 138
Cleaning............................ 448, 452Aluminum wheels.................. 449
Exterior.................................. 448
Interior................................... 452
Seat belts .............................. 453
Clock ......................................... 440
Coat hooks ............................... 443
Condenser ................................ 479
Console box ............................. 422
Cooling system ........................ 477 Engine overheating ............... 600
Cruise control .......................... 296
Cup holders .............................. 424
Curtain shield airbags ............... 42
Customizable features ............ 631
Daytime running light system .................................... 237
Deck board ............................... 428
Defogger
Outside rear view mirrors ........................ 402, 409
Rear window ................. 402, 409
Windshield .................... 402, 409
Dimensions .............................. 608
Display
Multi-information display ........................ 101, 107
Warning message ................ 553 Do-it-yourself maintenance .... 458
Door lock
Back door.............................. 140
Side doors............................. 134
Smart entry & start system ................ 134, 140
Wireless remote control......................... 134, 140
Doors Back door.............................. 140
Door lock....................... 134, 140
Door windows ....................... 181
Double locking system ............ 90
Open door warning buzzer......................... 138, 141
Open door warning light........ 545
Outside rear view mirrors...... 178
Rear door child-protector ...... 138
Side doors............................. 134
Double locking system ............. 90
DPF Diesel Particulate Filter system ................................ 326
Warning light ......................... 544
Drive information ..................... 111
Driving ...................................... 186 Break-in tips .......................... 189
Correct driving posture ........... 36
Procedures ........................... 186
Winter drive tips .................... 334
D
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.

654Alphabetical index
AURIS Touring Sports_EE (12K53E)
Radiator .................................... 479
Radio
*....................................... 343
Radio Data System (RDS)
*..... 344
Rear fog light............................ 239 Replacing light bulb............... 515
Switch ................................... 239
Rear personal lights ................ 419 Wattage................................. 628
Rear seat Folding down......................... 169
Rear turn signal lights ............. 231 Replacing light bulbs ............. 515
Turn signal lever ................... 231
Wattage................................. 628
Rear view mirror
Inside rear view mirror .......... 176
Outside rear view mirrors ...... 178
Rear view monitor system
*
Rear window defogger .... 402, 409
Rear window wiper .................. 245
Refueling .................................. 247 Capacity ................................ 614
Fuel types ............................. 614
Opening the fuel tank cap ..... 249
Replacing Electronic key battery............ 507
Fuses .................................... 510
Light bulbs............................. 515
Tires ...................................... 559
Wireless remote control battery................................. 507
Reset the maintenance data ... 474
Road Sign Assist (RSA) .......... 277
Roof rails .................................. 198
RSA (Road Sign Assist) .......... 277 Seat belt reminder light........... 545
Seat belts.................................... 38
Adjusting the seat belt ............ 39
Child restraint system installation ............................ 65
Cleaning and maintaining the seat belt........................ 453
Emergency Locking Retractor
(ELR) .................................... 39
How to wear your seat belt ..... 36
How your child should wear the seat belt.......................... 39
Pregnant women, proper seat belt use ......................... 40
Reminder light and buzzer .... 545
Seat belt pretensioners ........... 39
SRS warning light ................. 542
Seat heaters ............................. 415
Seats ................................. 167, 169 Adjustment ............................ 167
Adjustment precautions ........ 168
Child seats/child restraint system installation ................ 64
Cleaning................................ 452
Head restraints ..................... 172
Properly sitting in the seat ...... 36
Seat heaters ......................... 415
RS
