2016 TOYOTA AURIS TOURING SPORTS heater

400
AURIS Touring Sports_EE (12K53E)
6-1. Using the air conditioning system and defogger

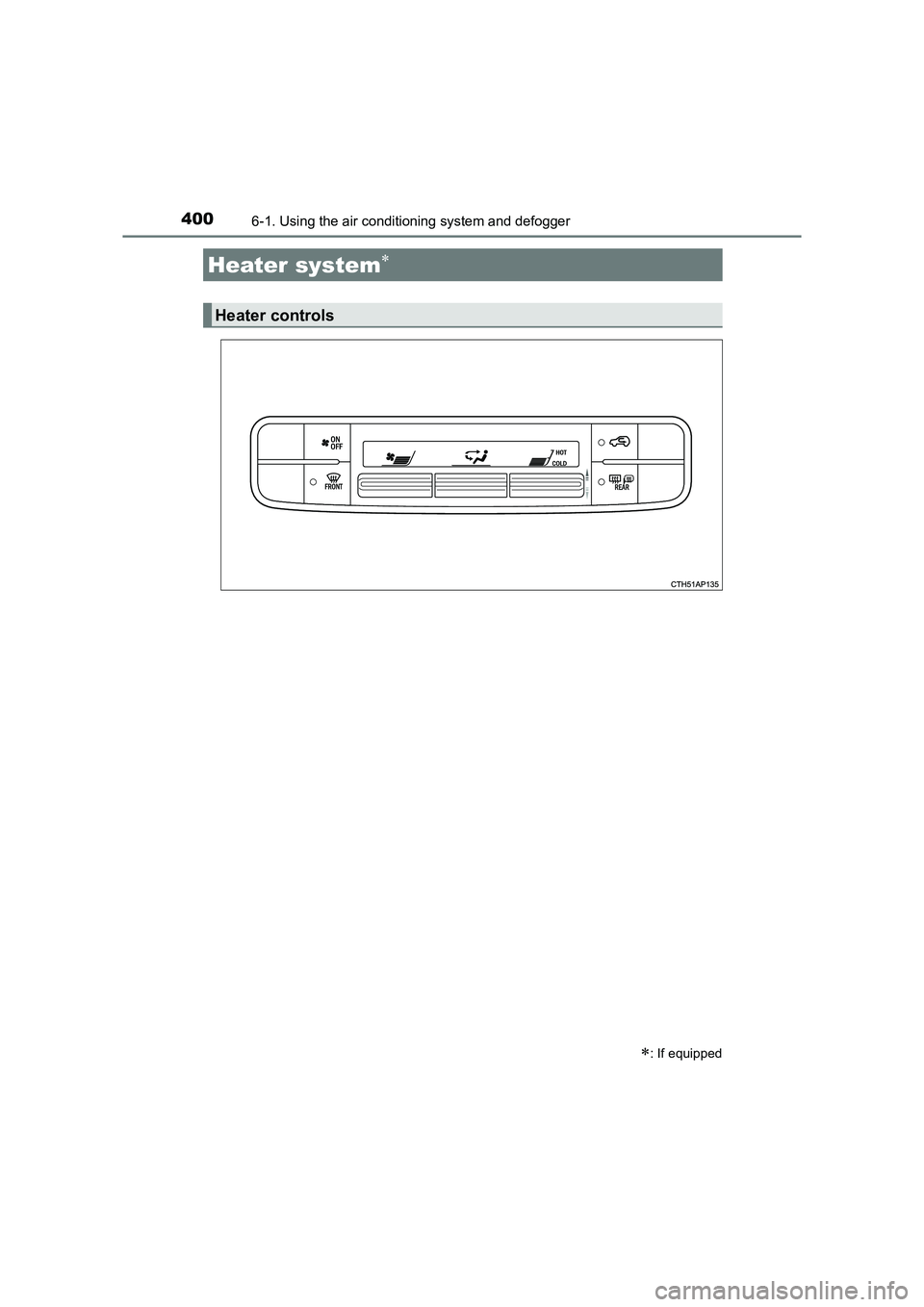

Heater system∗
∗: If equipped
Heater controls

4046-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
Open the vent
Close the vent
■Fogging up of the windows
The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior.
■ Air conditioning filter
→ P. 505
1
2
WARNING
■ To prevent the windshield from fogging up
■ To prevent burns
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■To prevent battery discharge
Do not leave the heater system on longer than necessary when the engine
is stopped.
Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers from
defogging.

4136-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features
On/off
The power heater turns on about
30 seconds after you press the
switch and it takes approximately
55 seconds to warm up.
■The power heater can be operated when
The engine is running.
■ Normal characteristics of power heater operation
The following cases do not indicate a malfunction:
●When the power heater is turned on or off, some white smoke and a slight
odor may be emitted from the power heater exhaust, located under the floor.
● When the power heater is being used under extremely cold conditions,
vapor may be visible from its exhaust.
● When the power heater is turned off, you may hear a sound in the engine
compartment for about 2 minutes until the power heater turns off completely.
■ After the heater is turned off
We recommend not restarting the heater for 10 minutes after you turn it off.
Otherwise, a noise may be heard as the heater ignites.
■ When refueling your vehicle
The engine must be turned off. Turning the engine off turns the power heater
off.

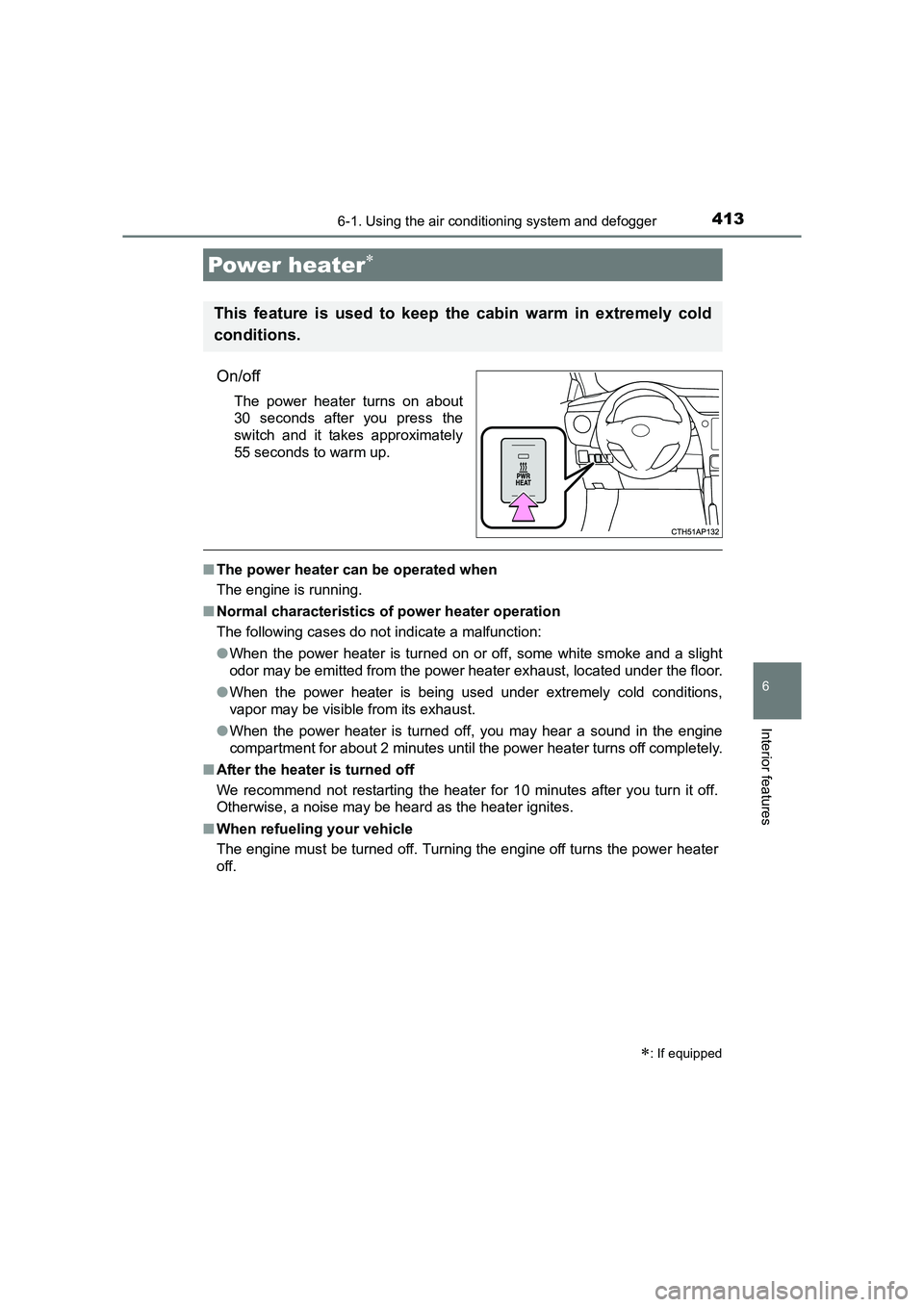

Power heater∗
∗: If equipped
This feature is used to keep the cabin warm in extremely cold
conditions.

4146-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)

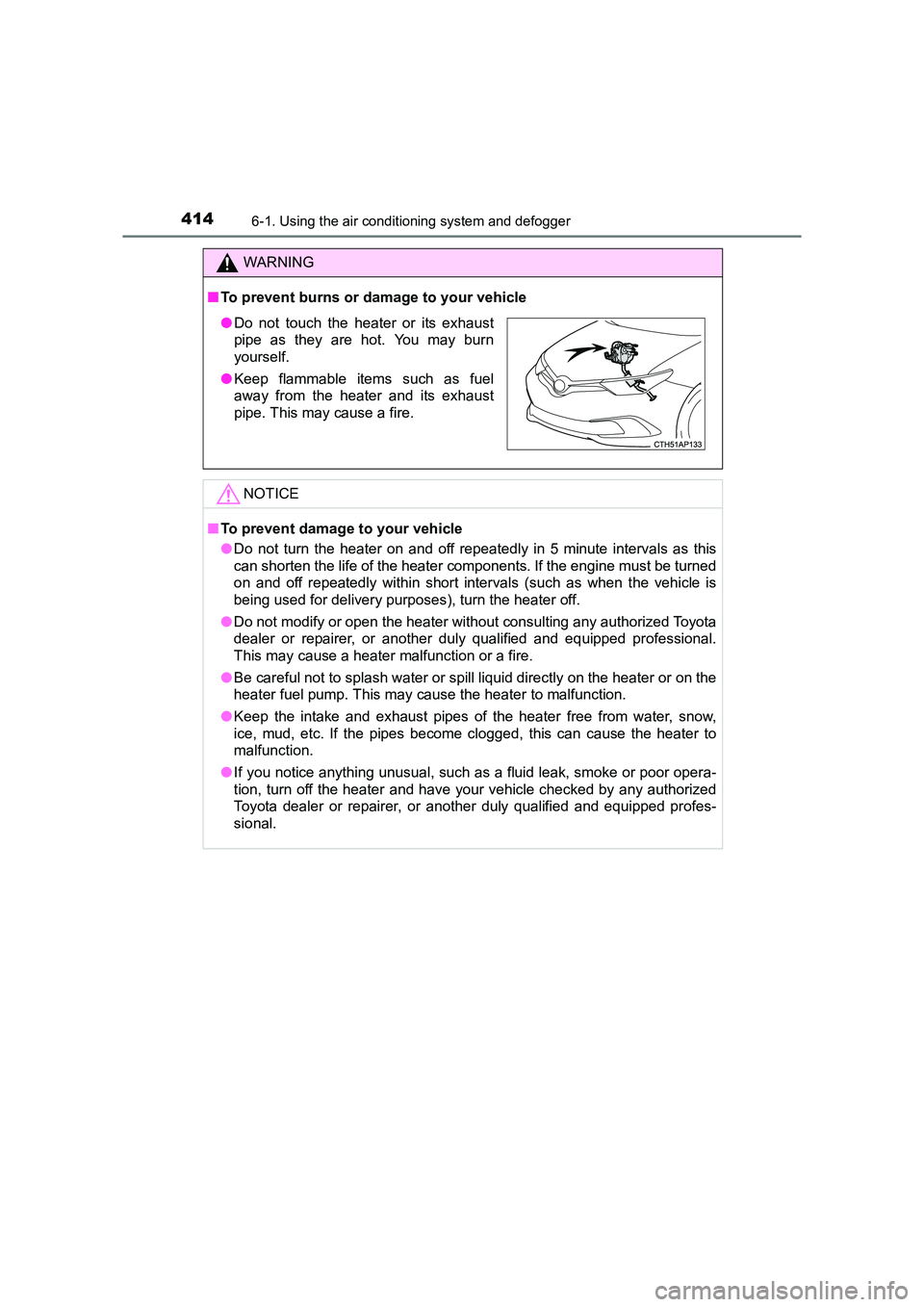

WARNING
■ To prevent burns or damage to your vehicle
NOTICE
■To prevent damage to your vehicle
●Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
● Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
This may cause a heater malfunction or a fire.
● Be careful not to splash water or spill liquid directly on the heater or on the
heater fuel pump. This may cause the heater to malfunction.
● Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
● If you notice anything unusual, such as a fluid leak, smoke or poor opera-
tion, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
●Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
● Keep flammable items such as fuel
away from the heater and its exhaust
pipe. This may cause a fire.

4156-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features
After pulling the lid to open, press
the switch.High temperature
Low temperature
The indicator light comes on when
the switch is on.

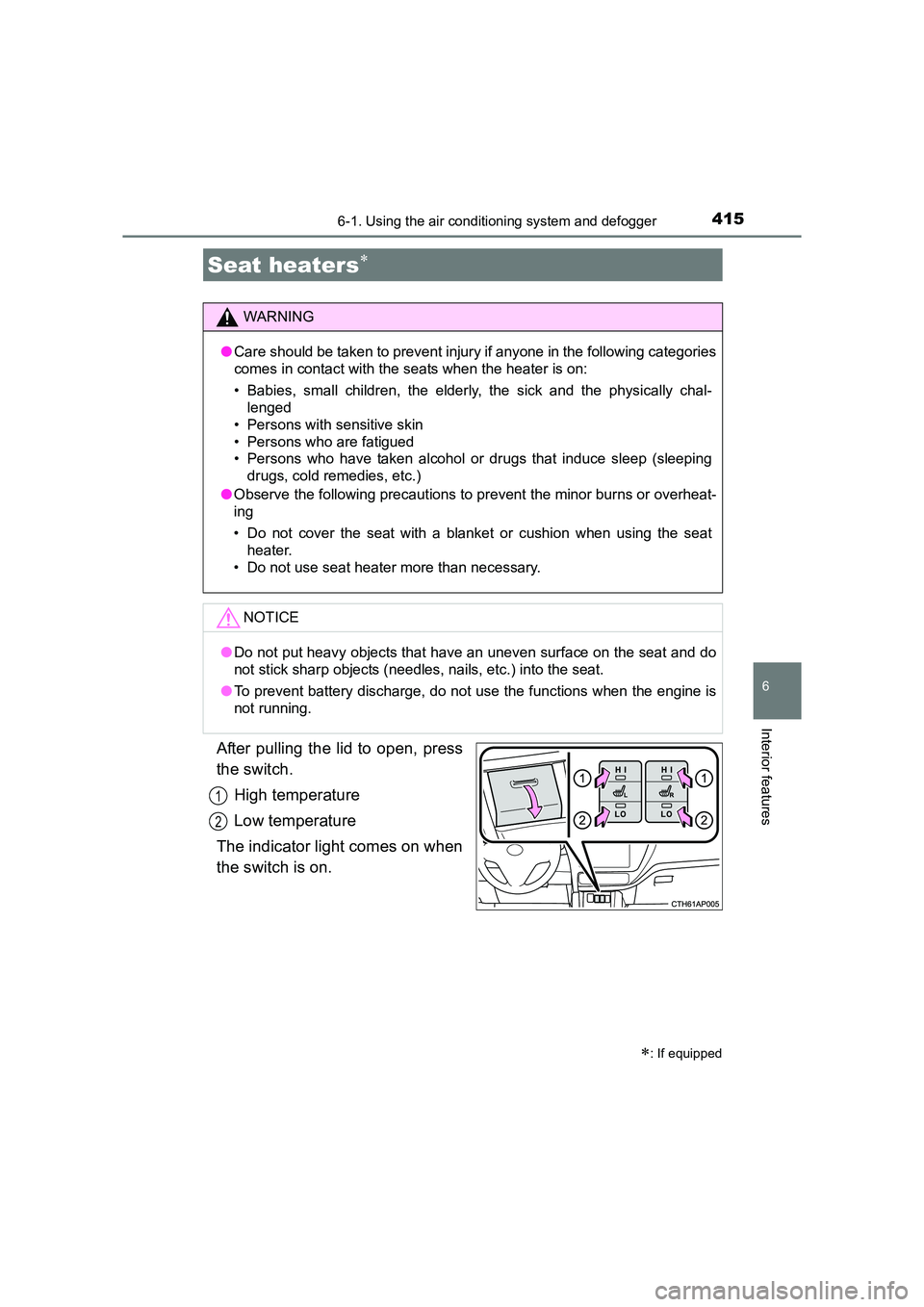

Seat heaters∗
∗: If equipped
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Observe the following precautions to prevent the minor burns or overheat-
ing
• Do not cover the seat with a blanket or cushion when using the seat heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent battery discharge, do not use the functions when the engine is
not running.
1
2

4166-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)

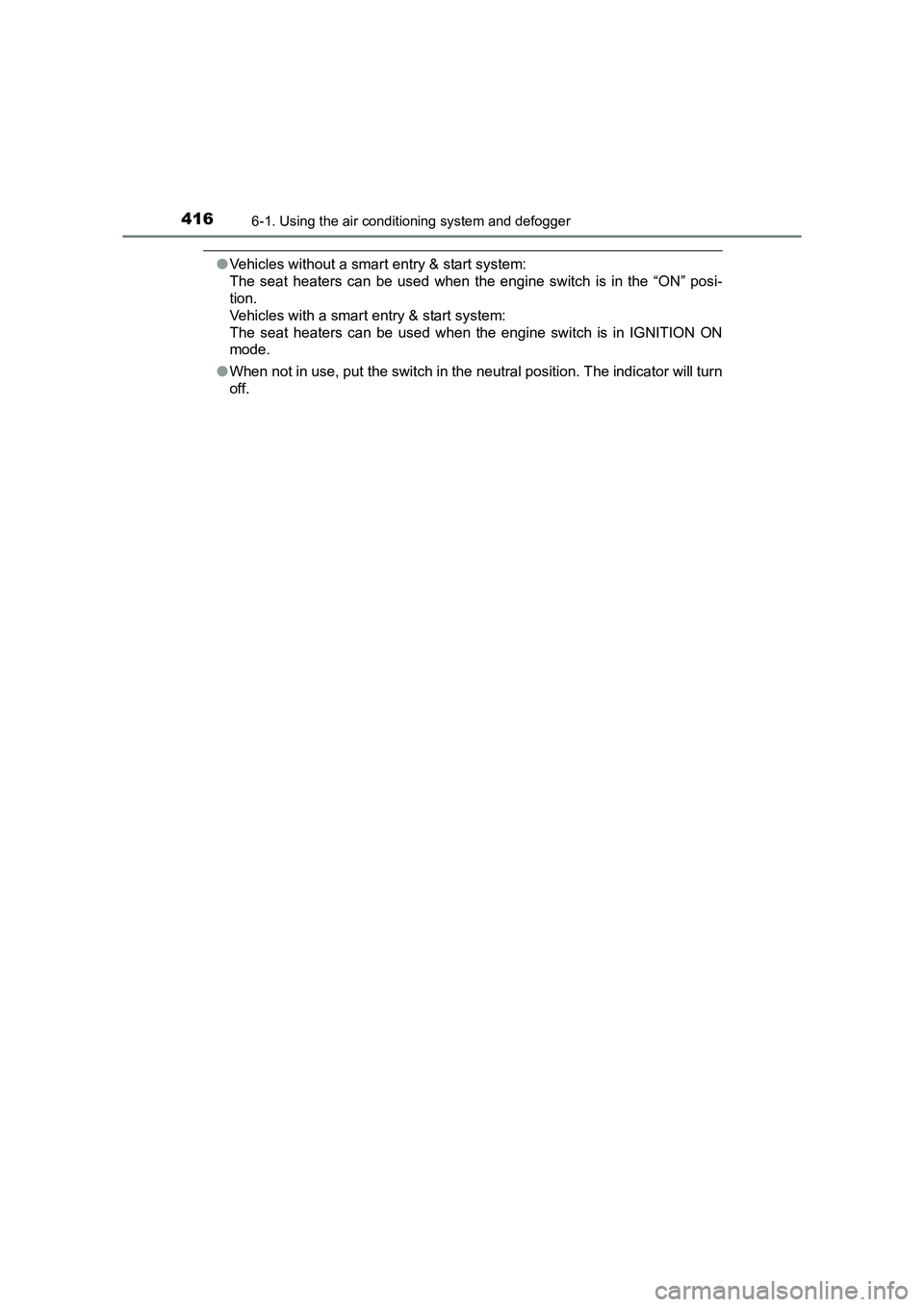

●Vehicles without a smart entry & start system:
The seat heaters can be used when the engine switch is in the “ON” posi-
tion.
Vehicles with a smart entry & start system:
The seat heaters can be used when the engine switch is in IGNITION ON
mode.
● When not in use, put the switch in the neutral position. The indicator will turn
off.

4547-1. Maintenance and care
AURIS Touring Sports_EE (12K53E)NOTICE
■
Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco- hol
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
■ Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
● Be careful not to scratch or damage the heater wires.

6219-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
X1NR-FE, 1ZR-FAE and 1ND-TV engines
X8NR-FTS engine
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
XWith exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
XWithout exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
XVehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
XVehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
XWith power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
XWithout power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Capacity (reference)
Gasoline engine
IntercoolerXVehicles with a Multidrive
6.4 L (6.8 qt., 5.6 Imp. qt.)
XVehicles with a manual transmission
6.2 L (6.6 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
