5057-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
Turn the engine switch off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the upper
claws. Then pull out the glove
box and disconnect the lower
claws.
Remove the filter cover.

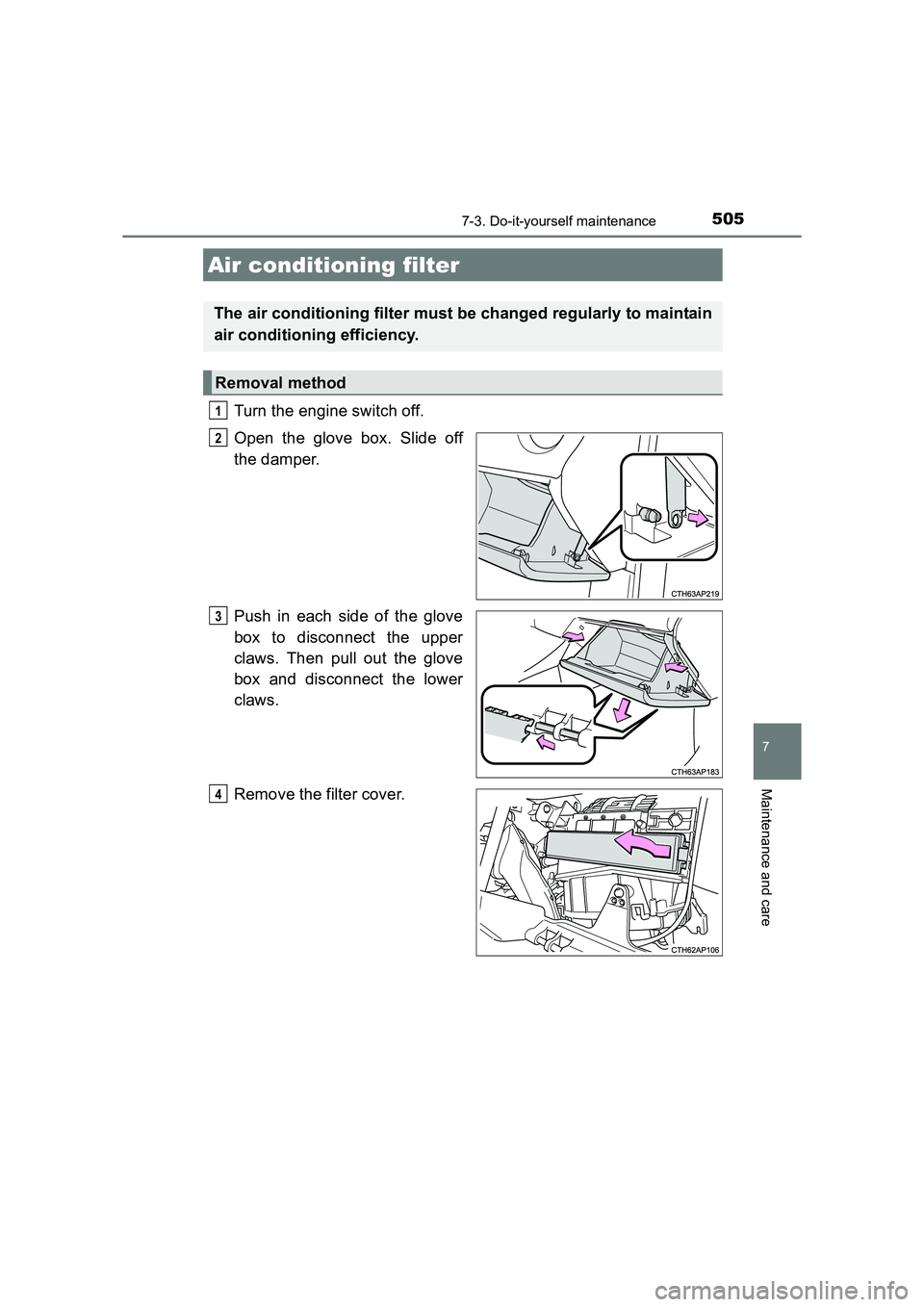

Air conditioning filter
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4

5127-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)

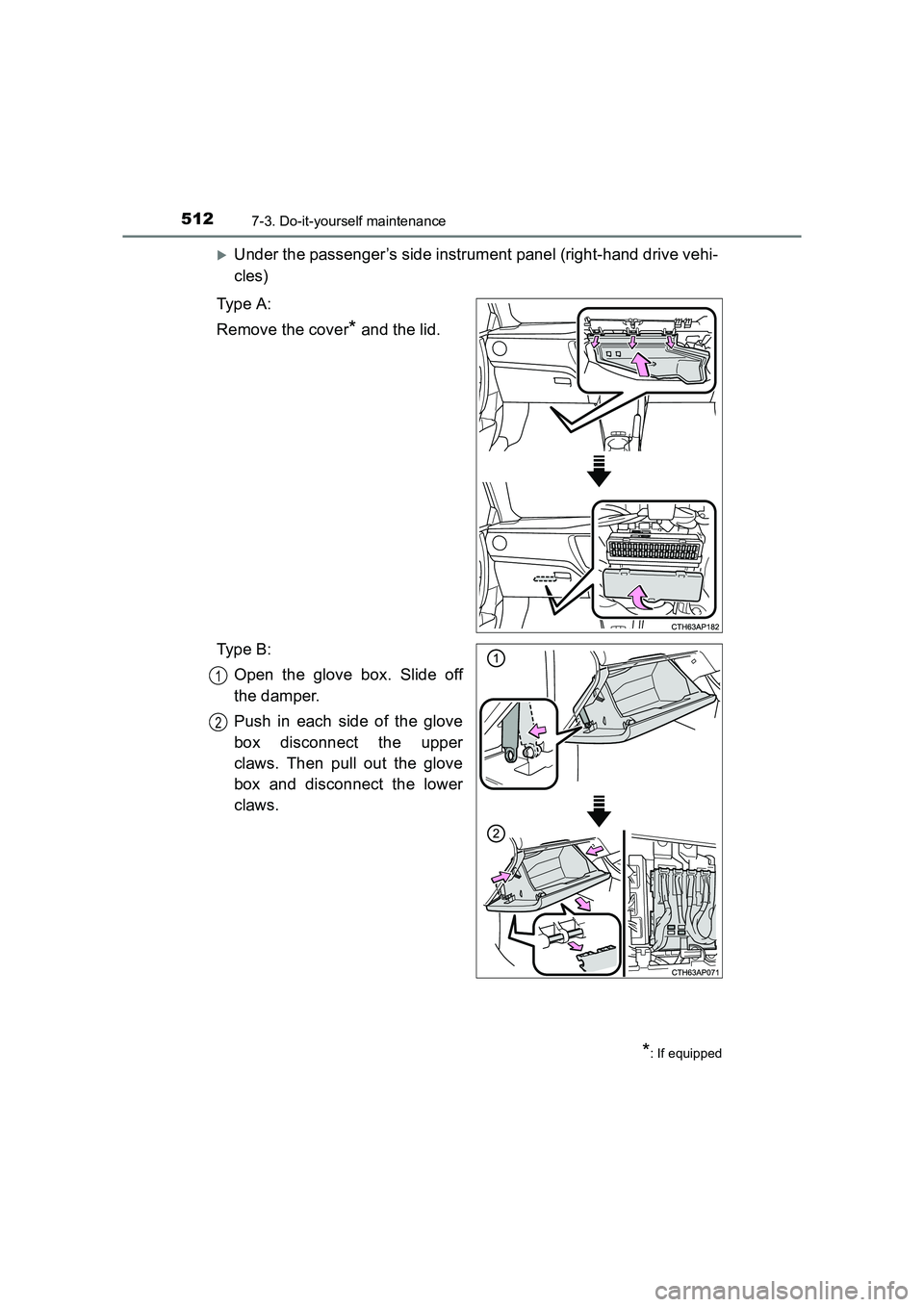

XUnder the passenger’s side instrument panel (right-hand drive vehi-
cles)
Type A:
Remove the cover
* and the lid.
Type B: Open the glove box. Slide off
the damper.
Push in each side of the glove
box disconnect the upper
claws. Then pull out the glove
box and disconnect the lower
claws.
*: If equipped
1
2

649Alphabetical index
AURIS Touring Sports_EE (12K53E)
Flat tireVehicles with a spare tire ...... 559
Vehicles without a spare
tire....................................... 572
Floor mats .................................. 34
Fluid Brake..................................... 625
Clutch.................................... 624
Multidrive............................... 623
Washer.................................. 483
Fog lights.................................. 239 Replacing light bulbs ............. 515
Switch ................................... 239
Wattage................................. 628
Follow me home system ......... 235
Front fog lights ........................ 239
Replacing light bulbs ............. 515
Switch ................................... 239
Wattage................................. 628
Front personal lights ............... 419 Wattage................................. 628
Front position lights ................ 233 Light switch ........................... 233
Replacing light bulbs ............. 528
Front seats ............................... 167 Adjustment ............................ 167
Cleaning ................................ 452
Correct driving posture............ 36
Head restraints...................... 172
Seat heaters.......................... 415 Front sensor............................. 251
Front turn signal lights ........... 231
Replacing light bulbs............. 528
Turn signal lever ................... 231
Wattage ................................ 628
Fuel ........................................... 247 Capacity ................................ 614
Fuel filter ............... 484, 485, 604
Fuel gauge .............................. 98
Fuel pump shut off system.... 540
If you run out of fuel and the engine stalls ................. 604
Information ............................ 629
Refueling............................... 247
Type .............................. 247, 614
Warning light ................. 544, 545
Fuel filler door.......................... 247 Refueling............................... 247
Fuel pump shut off system ..... 540
Fuses ........................................ 510
Gauges ....................................... 98
Gear Shift Indicator ................. 229
Glove box ................................. 422
Grocery bag hooks .................. 427
