1192. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
Press the “CAR” button on the
navigation/multimedia system.
Select “Trip information”.
■Trip information screenAverage vehicle speed since
the engine was started.
Cruising range ( →P. 120)
Fuel consumption in the past
15 minutes
Elapsed time since the
engine was started.
Resetting the consumption
data
Vehicles without a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position. Use the displayed aver-
age fuel consumption as a reference.
Vehicles with a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to IGNITION ON mode. Use the displayed
average fuel consumption as a reference.
The image is an example only.
Trip information
1
2
1
2
3
4
5
1202. Instrument cluster
AURIS Touring Sports_EE (12K53E)
Press the “CAR” button on the
navigation/multimedia system.
Select “Past record”.
■Past record screenBest recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■ Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
1
2
3
4
5
2004-1. Before driving
AURIS Touring Sports_EE (12K53E)
◆Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass),
MPAC (Maximum Permissible Axle Capacity), and permissible
drawbar load before towing. (→P. 608)
◆Towing hitch/bracket
Toyota recommends the use of the Toyota hitch/bracket for your
vehicle. Other products of a suitable nature and comparable quality
may also be used.
Trailer towing
Your vehicle is designed primarily as a passenger carrying vehi-
cle. Towing a trailer will have an adverse effect on handling, per-
formance, braking, durability, and fuel consumption. Your safety
and satisfaction depend on the proper use of correct equipment
and cautious driving habits. For your safety and the safety of
others, do not overload the vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with the trailer’s characteristics and operating con-
ditions.
Toyota warranties do not apply to damage or malfunction
caused by towing a trailer for commercial purposes.
Ask your local authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for further details
before towing, as there are additional legal requirements in
some countries.

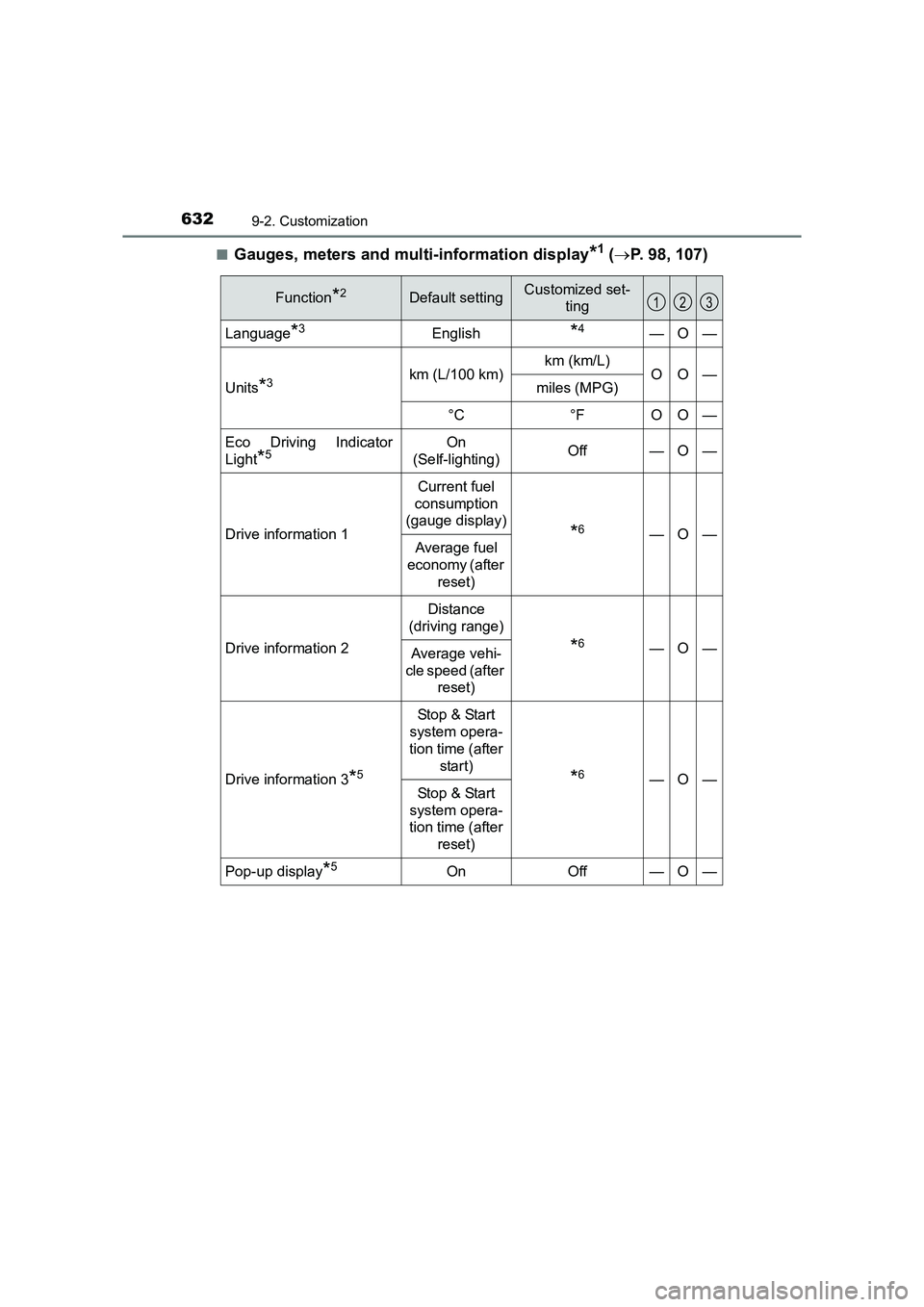

6329-2. Customization
AURIS Touring Sports_EE (12K53E)■
Gauges, meters and multi-information display*1 (
→ P. 98, 107)
Function*2Default settingCustomized set-
ting
Language*3English*4—O—
Units*3km (L/100 km)km (km/L)OO—miles (MPG)
°C°FOO—
Eco Driving Indicator
Light
*5On
(Self-lighting)Off—O—
Drive information 1
Current fuel
consumption
(gauge display)
*6—O—Average fuel
economy (after reset)
Drive information 2
Distance
(driving range)
*6—O—Average vehi-
cle speed (after reset)
Drive information 3*5
Stop & Start
system opera-
tion time (after
start)
*6—O—Stop & Start
system opera-
tion time (after
reset)
Pop-up display*5OnOff—O—
123
6339-2. Customization
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
*1: Vehicles with a 2-ring meter
*2: For details about each function: →P. 1 1 3
*3: The default setting varies according to country.
*4: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwe-
gian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungar-
ian, Czech, Slovak, Romanian
*5: If equipped
*6: 2 of the following items: current fuel consumption (gauge display), currentfuel consumption (numerical display) , average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
Stop & Start system operation time (after reset)
*5, Stop & Start system
operation time (after start)
*5, average vehicle speed (after reset), average
vehicle speed (after start), elapsed time (after reset), elapsed time (after
start), distance (driving range), distance (after start), blank.
■
Smart entry & start system*1 and wireless remote control
( → P. 134, 140, 145)
*1: If equipped
*2: Vehicles with a smart entry & start system
FunctionDefault settingCustomized set-
ting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock func-
tion is activated if door is
not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning
buzzer
*2OnOff——O
123
