2016 SUBARU OUTBACK display

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
125
PHONE
4
TALKING ON THE Bluetooth PHONE
While talking on the phone, this screen is displayed. The
operations outlined below can be performed on this screen.
No. Function Page
Select to display the dial pad to send tones. 122
Select to mute your voice to the other party. -
Select to change handset modes between
hands-free and cellular phone.-
Select to adjust your voice volume that the
other party hears from their speaker.126
No. Function Page
Select to send tones. This button only appears
when a number that contains a (w) is dialed in
hands-free mode.126
Select to hang up the phone. -
Select or to adjust the volume of the
other party’s voice.-
Select to start talking with the other party. 127
NOTE
OWhen cellular phone call is changed to hands-free call, the
hands-free screen will be displayed and its functions can be
operated on the screen.
OChanging between cellular phone call and hands-free call can be
performed by operating the cellular phone directly.
OTransferring methods and operations will be different depending
on the type of cellular phone you have.
OFor the operation of the cellular phone, see the manual that
comes with it.
OTurn the “POWER/VOLUME” knob, or use the volume control
switch on the steering wheel to adjust the volume of the other
party's voice.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
127
PHONE
4
3. Select OK (OK).
NOTE
OThe sound quality of the voice heard from the other party’s
speaker may be negatively impacted.
OTo reset the transmit volume, select
Default (Default).
OThe volume cannot be adjusted while muted.
INCOMING CALL WAITING
When a call is interrupted by a third party while talking, this
screen is displayed.
1. Select or press the switch on the steering
wheel to start talking with the other party.
To refuse to receive the call: Select or press the
switch on the steering wheel.

”Select
or press the switch on the steering
wheel to end the current call and return to the
conversation with the party on hold.
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
XWithout navigation function
1. Select .
2. Select .

”The phone top screen can be displayed by pressing
the
switch on the steering wheel.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
128
3. Check that the message inbox screen is displayed.
XWith navigation function
1. Select .
2. Select PHONE (PHONE).
3. Select .

”The phone top screen can be displayed by pressing
the
switch on the steering wheel.
4. Check that the message inbox screen is displayed.

” : Select to change to phone mode.
Function Page
Receiving a message 129
Checking messages 129
Replying to a message (quick reply) 130
Calling the message sender 131
Message settings 142

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
129
PHONE
4

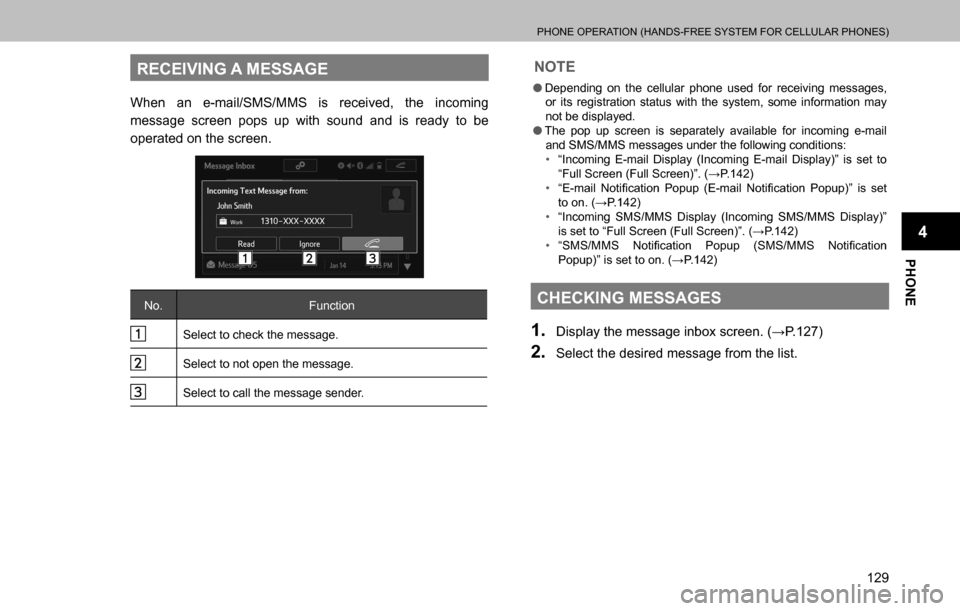

RECEIVING A MESSAGE
When an e-mail/SMS/MMS is received, the incoming
message screen pops up with sound and is ready to be
operated on the screen.
No. Function
Select to check the message.
Select to not open the message.
Select to call the message sender.
NOTE
ODepending on the cellular phone used for receiving messages,
or its registration status with the system, some information may
not be displayed.
OThe pop up screen is separately available for incoming e-mail
and SMS/MMS messages under the following conditions:
‡“Incoming E-mail Display (Incoming E-mail Display)” is set to

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
130
3. Check that the message is displayed.
No. Function
*Select
Mark Unread (Mark Unread) or Mark Read
(Mark Read) to mark mail unread or read on the
message inbox screen.
This function is available when “Update Message Read
Status on Phone (Update Message Read Status on
3KRQH

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
131
PHONE
4
4. Select the desired message.
5. Select Send (Send).

”While the message is being sent, a sending message
screen is displayed.
EDITING QUICK REPLY MESSAGES
This operation cannot be performed while driving.
1. Select Quick Message (Quick Message).
2. Select corresponding to the desired message to
edit.
3. Select OK (OK) when editing is completed.
NOTE
OTo reset the editquick reply messages, select Default
(Default).
O“Quick Message 1” (
I'm driving right now. I will call you back later.
(I'm driving right now. I will call you back later.)*1 or
I am driving and will arrive in approximately [ETA] minutes. (I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
<004800560057004c0050004400570048004700030057004c005000480003005200490003004400550055004c00590044004f00030052005100030057004b0048000300460052005100bf00550050000300500048005600560044004a004800030056004600
5500480048005100110003>
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
132
CALLING FROM E-MAIL/SMS/MMS MESSAGE
DISPLAY
1. 'LVSOD\WKHPHVVDJHLQER[VFUHHQ
:3
2. Select the desired message.
3. Select .

”If there are 2 or more phone numbers, select the
desired number.
4. Check that the “Call (Call)” screen is displayed.
CALLING FROM A NUMBER WITHIN A MESSAGE
&DOOV FDQ EH PDGH WR D QXPEHU LGHQWL

SETUP
133
PHONE
4
SETUP
PHONE/MESSAGE SETTINGS
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select Phone (Phone).
4. Select the item to be set.
PHONE/MESSAGE SETTINGS SCREEN
No. Information Page
Connect phone 179
Sound settings 134
Contact/call history settings 135
Messaging settings 142
Phone display settings 143
