2016 SUBARU IMPREZA light

About EyeSight
19
■ (Info)/SET switch
This is used in the following situations.
• When displaying the message that appeared in the pop-up screen area again.
Ÿ Refer to page 84.
• When changing the Warning Volume settings, etc.
Ÿ Refer to page 82.
■ (Pre-Collision Braking System OFF) switch
Press and hold this switch for approximately 2
seconds or longer to turn off the Pre-Collision
Braking System and Pre-Collision Throttle
Management.
When these functions are off, the Pre-Colli-
sion Braking System OFF indicator light on
the instrument panel illuminates.
Press and hold the switch again to turn on the
Pre-Collision Braking System and Pre-Colli-
sion Throttle Management. This turns off the
Pre-Collision Braking System OFF indicator
light.
Ÿ Refer to page 31.
■(Lane Departure Warning OFF) switch
Press and hold this switch for approximately 2
seconds or longer to turn off the Lane Depar-
ture Warning and Lane Sway Warning func-
tions.
When these functions are off, the Lane
Departure Warning OFF indicator light on the
instrument panel illuminates.
Press and hold the switch again to turn on the
Lane Departure Warning and Lane Sway
Warning functions. This turns off the Lane
Departure Warning OFF indicator light.
Ÿ Refer to page 61.
S02020
S02021

About EyeSight
20

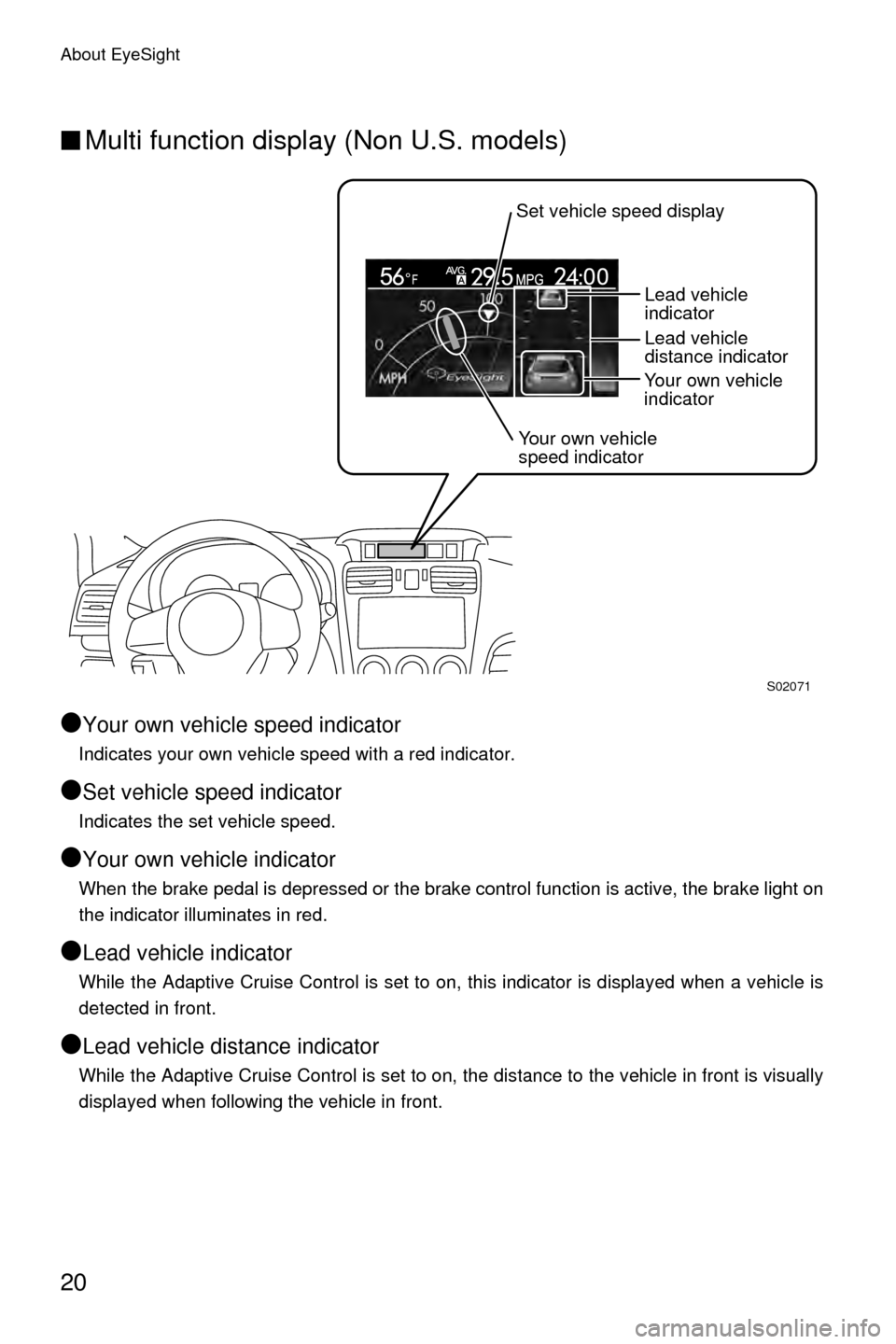

■Multi function display (Non U.S. models)
●
Your own vehicle speed indicator
Indicates your own vehicle speed with a red indicator.
●Set vehicle speed indicator
Indicates the set vehicle speed.
●Your own vehicle indicator
When the brake pedal is depressed or the brake control function is active, the brake light on
the indicator illuminates in red.
●Lead vehicle indicator
While the Adaptive Cruise Control is set to on, this indicator is displayed when a vehicle is
detected in front.
●Lead vehicle distance indicator
While the Adaptive Cruise Control is set to on, the distance to the vehicle in front is visually
displayed when following the vehicle in front.
Set vehicle speed display Your own vehicle
indicator
Your own vehicle
speed indicator Lead vehicle
indicator
Lead vehicle
distance indicator
S02071

Pre-Collision Braking System
22
Ÿ Continued from previous page
- When the detected object is something other than a vehicle, motorcycle,
bicycle or pedestrian• A domestic animal or other animal (a dog or deer, etc.)
• A guardrail, telephone pole, tree, fence or wall, etc.
- Even if the obstacle is a motorcycle, bicycle or pedestrian, depending on
the brightness of the surroundings as well as the relative movement, and
aspect or angle of the object, there may be cases when the system can-
not detect it.
- When the system determines that operation by the driver (based on accelerator pedal operation, braking, steering wheel angle, etc.) is
intended as evasive action
- Vehicle maintenance status (brake systems, tire wear, tire pressure, whether a temporary spare tire is being used, etc.)
- When towing a trailer or another vehicle, etc.
- When the brakes are cold due to outside temperature being low or just after starting the engine.
- When the brakes are overheated on downhill grades (braking effective- ness is reduced)
- When driving in rain or after washing the vehicle (the brakes are wet and
braking effectiveness is reduced)
- Recognition conditions of the stereo cameras In particular, the function may be unable to stop the vehicle or may not
activate in the following cases.
• Bad weather (for example heavy rain, a blizzard or thick fog)
• When visibility is poor due to sand, smoke or water vapor in the air or when the vehicle in front or oncoming traffic causes water, snow, dirt,
dust or other substances to obscure the view through the windshield
• When driving at night or in a tunnel without the headlights on
• When driving at night or in a tunnel when there is a vehicle in front that does not have its taillights on
• When approaching a motorcycle, bicycle or pedestrian at night
• When ambient light is poor in the evening or early morning
• When a vehicle, motorcycle, bicycle or pedestrian is outside the area illuminated by the headlights
• When affected by strong light from the front (for example, sunlight at
dawn, sunset or headlight beams, etc.)
• When there is snow, frost, dirt or dust on the windshield or it is clouded
• When fluid has not been fully wiped off the windshield during or after washer use
• When the target cannot be correctly recognized because the stereo cameras’ view is obstructed by water droplets from rain or the window
washer, or by the wiper blades.
• When the stereo cameras’ field of view is obstructed (for example by a canoe on the roof of the vehicle)

Pre-Collision Braking System
24
Ÿ Continued from previous page
• When driving on sharp curves, steep uphill grades or steep downhill
grades
• When driving on a bumpy or unpaved road
• When there are changes in brightness, such as at a tunnel entrance or exit
• Do not test Pre-Collision Braking System on its own. It may operate
improperly and cause an accident.
• The system may not operate correctly under the conditions listed below.
When these conditions occur, turn off the Pre-Collision Braking System.
- The tire pressure is not correct.
*1
- The temporary spare tire is installed on any wheel.*1
- Tires that are worn or have large variations in wear conditions are installed.*1
- Tires other than those of the designated size are installed.*1
- Flat tires have been fixed temporarily with a tire repair kit.
- The suspension has been modified (including a genuine SUBARU sus-
pension that has been modified).
- Any object that disturbs the stereo cameras’ view is installed on the vehi- cle.
- The headlights are dirty or they have snow and ice or dirt on them. (Objects are not correctly illuminated and are difficult to detect.)
- The optical axes are not aligned correctly. (Objects are not correctly illu-
minated and are difficult to detect.)
- The lights including headlights and fog lamps have been modified.
- Vehicle operation has become compromised due to an accident or mal-
function.
- The brake system warning light is illuminated in red.
- A heavy cargo is loaded onto or inside the vehicle.
- The maximum number of occupants is exceeded.
- There is something wrong with the combination meter; such as when the
lights do not illuminate, the beeps do not sound, the display is different
from when it is normal, etc.
*2
*1: The wheels and tires have functions that are critically important. Be sure to use the correct ones. For details, refer to the Owner’s Manual
for your vehicle.
*2: For details about the combination meter, refer to the Owner’s Manual for your vehicle.

Pre-Collision Braking System
28
When there is an obstacle in the forward direction during driving, the system activates in the
following sequence in order to warn the driver, activate braking control, and active the brake
lights.
Following Distance Warning:
When the system determines that there is a risk of collision, a buzzer sounds repeated short
beeps and the indicators on the multi information display illuminate to warn the driver.
The Following Distance Warning operates when Adaptive Cruise Control is not set.
When the driver depresses the brake pedal to decelerate and achieves a suitable following
distance, the warning is canceled.
First Braking and Warning:
When the system determines that there is a high risk of collision with an obstacle in front, a
buzzer sounds repeated short beeps and the indicators on the multi information display illu-
minate to warn the driver, and braking control is activated and the engine output, in some
situations, is also controlled. If the system determines that the amount of evasive action
(braking, steering, etc.) taken by the driver has reduced the risk of collision, braking activa-
tion is canceled.
Secondary Braking and Warning:
If the system then determines that the risk of collision is extremely high, the buzzer changes
to a continuous beeping sound and stronger braking control is activated. If, despite any eva-
sive action taken by the driver, the system subsequently determines that a collision is
unavoidable, braking control and the engine output control are continued.
Even after the vehicle has stopped, depress the brake pedal.
Vehicle restart:
After the vehicle is completely stopped by the automatic braking system, brake will be
slightly released 2 seconds after vehicle stop. After sounding a short tone “beep, beep,
ding”, the vehicle starts creeping.
Pre-Collision Braking System operation

Pre-Collision Braking System
30
Ÿ Continued from previous page
When the Pre-Collision Braking System is activated (when the system determines that there
is a high risk of collision with an obstacle in front), if the driver depresses the brake pedal,
the system determines that this is emergency braking and activates braking assist automat-
ically. •
Neither first braking nor secondary braking will operate in the following
cases.
- When your vehicle speed is approximately 1 MPH (1 km/h) or less (When the selector lever is in the position and your vehicle speed is
approximately 2 MPH (4 km/h) or less) or 100 MPH (160 km/h) or more
- When VDC is active
• If the system detects the brake lights of the vehicle in front, your vehicle
will start decelerating earlier than if it does not.
• There are some cases where the first braking is applied for a longer period
of time. One of the reasons for this is due to a large speed difference with
an obstacle in front. In those cases, stronger or weaker braking control
may be activated.
Pre-Collision Braking Assist operation
CAUTION
If the driver depresses the brake pedal manually while following distance
warning is activated, the Pre-Collision Braking Assist will not work. (The
vehicle decelerates with the normal braking force operated by the driver.)
NOTE
•Pre-Collision Braking Assist function does not operate when the vehicle
speed is approximately 7 MPH (10 km/h) or less or 100 MPH (160 km/h) or
more.
• For information about the braking assist function, refer to the Owner’s
Manual for your vehicle.
N

Pre-Collision Braking System
31
Pressing and holding the Pre-Collision Braking System OFF switch for approximately 2 sec-
onds (or longer) turns off the Pre-Collision Braking System (including Pre-Collision Brake
Assist). When 1 short beep sound emits, this control is turned off and the Pre-Collision
Braking System OFF indicator light on the instrument panel illuminates.
To turn the control back on, press and hold the Pre-Collision Braking System OFF switch for
approximately 2 seconds or longer again. When this control is turned on, the Pre-Collision
Braking System OFF indicator light turns off.
Turning off the Pre-Collision Braking System
NOTE
•When the Pre-Collision Braking System is turned off, the Pre-Collision
Throttle Management Control function is also turned off.
• Even when the Pre-Collision Braking System is turned off, if the ignition
switch is turned off and the engine is then restarted, the Pre-Collision
Braking System will be turned on. The system default setting when the
vehicle is restarted in “ON”.
S02020

Pre-Collision Braking System
32
■Pre-Collision Braking System OFF indicator light
This indicator light illuminates when the igni-
tion switch is turned to the ON position, and
remains illuminated for approximately 7 sec-
onds after the engine starts. It turns on when
the Pre-Collision Braking System is turned off.
It also illuminates under the following
conditions.
• When the EyeSight system has a
malfunction
Ÿ Refer to page 79.
• When the EyeSight system has stopped
temporarily
Ÿ Refer to page 80.
NOTE
When the Pre-Collision Braking System OFF indicator light is turned on, the
Pre-Collision Braking System (including the Pre-Collision Braking Assist
function) does not operate.
S01331
