2016 SUBARU FORESTER height

3
Seating
10-Way Power Driver’s Seat (if equipped)
1. Forward/Backward, Angle and Height
Move the switch toward the front
or rear to move the seat forward
or backward. Pull the switch up
or push down on the front of the
switch to adjust the angle of the
seat cushion. Pulling the switch
straight up or pushing the switch
straight down will adjust the height
of the entire seat cushion. 2. Seatback
Move the switch in the
corresponding direction to adjust
the angle of the seatback.
3. Lumbar Support Press the front part of the switch
to increase lumbar support;
press the rear part of the switch
to decrease lumbar support.
Heated Seats (if equipped)
Press the switch in the corresponding direction for the desired seat temperature. To
turn off the seat heater, slightly press in the opposite direction of the current position.
1
2
3
Getting
Started
1980916_16a_Subaru_Forester_QRG_061015.indd 36/10/15 10:59 AM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

4

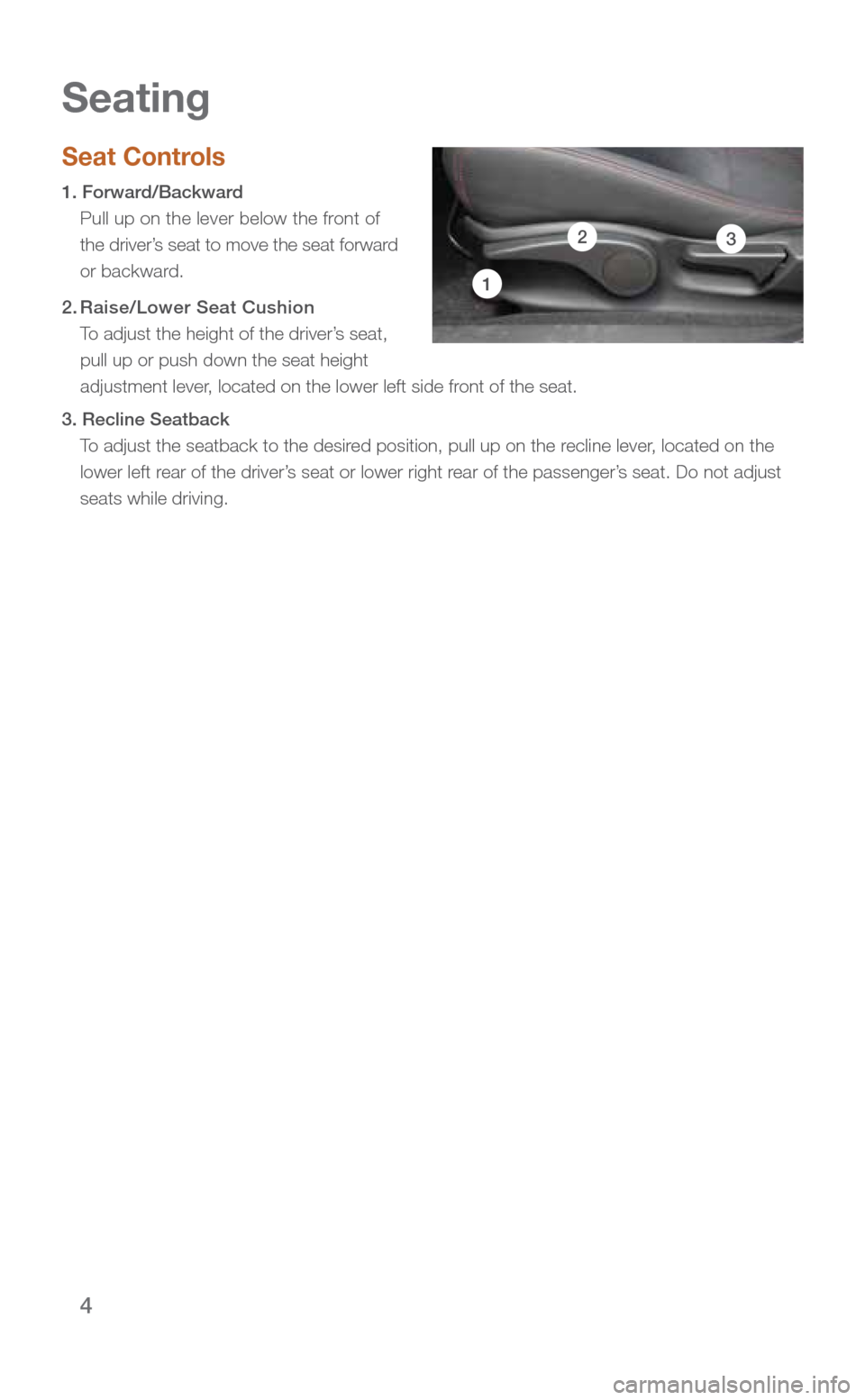

Seat Controls
1. Forward/Backward Pull up on the lever below the front of
the driver’s seat to move the seat forward
or backward.
2. Raise/Lower Seat Cushion
To adjust the height of the driver’s seat,
pull up or push down the seat height
adjustment lever, located on the lower left side front of the seat.
3. Recline Seatback To adjust the seatback to the desired position, pull up on the recline lever, located on the
lower left rear of the driver’s seat or lower right rear of the passenger’s seat. Do not adjust
seats while driving.
1
23
Seating
1980916_16a_Subaru_Forester_QRG_061015.indd 46/10/15 10:59 AM

12
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust the
right-hand mirror. Move the knob in the direction you want to move the mirror. Then return
the knob to the neutral/center position.
Personalize
Tilt and Telescopic Steering Column
Push the lever down firmly to adjust the height and lengthwise positio\
n of the column; firmly
push the lever back up to lock the column in place. Do not adjust while \
driving.
