2016 SKODA RAPID SPACEBACK display

Use the SIM card in the external moduleFig. 41
Insert SIM card into the external module
Fig. 42
Enter the PIN code of the SIM
card
The SIM card inserted in the external device can be used for telephone and da-
ta services.
Turn function on / off
The use of the SIM card requires the phone function of the device to the
switched on.
›
To switch on / off in the phone menu, Tap on the functional surface

→
Phone Interface “Business”
.
Insert the SIM card
The SIM card slot is located in an external module in the glove box on the front
passenger side.
A SIM card size mini (standard size 25x15 mm) is to be used.
›
Push the SIM card into the available slot with the truncated edge to the left
until it “locks” » Fig. 41.
If there was/were a phone/s connected to the device before inserting the SIM
card and the SIM card phone services are chosen, then the connection to previ-
ous connected phones will be terminated.
Using the SIM card for the first time
The first time you insert the SIM card in the external module, the following
menu appears.›Telephone calls
- Data and telephone services are enabled (the main menu
Phone is displayed).
›Data connections only
- Activates only the data services of the inserted SIM card.
If you want to change the enabled services later, then press the function sur-
face 

 Tap
→
Use SIM card only for data connection
.
Enter the PIN code and save
›
If the SIM card is protected by a PIN code, then the PIN code of the SIM card
must be entered » Fig. 42.
›
If you would like to save the entered PIN code in the device memory, then
tap the function surface  (The next time the SIM card is inserted the device
PIN code will not be required).
›
Confirm the PIN code entered.
Establish a data connection using the SIM-card
After entering the PIN code a request is made by the device for data connec-
tion.
›
Tap the function surface
connect
.
If the network is not sufficiently setup the device prompts for network set-
tings.
›
Tap on the functional surface
network preferences
.
›
Choose your data connection provider.
›
Set the parameters for the data connection.
Change PIN code
›
Press the  button, then tap on the function
 Tap
→
PIN settings
→
ChangePIN
.
›
Enter the new PIN code and confirm.
Remove the SIM card
›
Press on the inserted SIM card.
The SIM card “jumps” into the eject position.
›
Remove the SIM card from the slot. 
45Phone

CAUTION■When inserting an improperly sized SIM card, there is a risk of damaging the
device.■
Avoid using an adapter for the SIM card as the SIM card may fall out while
driving due to vehicle vibrations - There is a risk of damage to the external
module.
■
If you let the SIM card protrude out from the slot, then it may fall out of the
slot while driving due to vehicle vibrations.
rSAP
The Bluetooth ®
profile RSAP (remote transfer of SIM data) enables the use of
data services of the connected phone (if this profile is supported by the phone
and data services are enabled in this phone) » page 53.
Turn function on / off
The use of Bluetooth ®
-profile RSAP requires the phone function of the device
to be switched on.
›
To Power on / off in the menu Telephone tap on the functional surface

→
Phone Interface “Business”
.
The pairing and connection process is carried out in the same way to the Blue-
tooth ®
-profile HFP » page 42.
If the rSAP profile supported by the phone to be connected, the device will at-
tempt to connect using this profile. Depending on the phone, it is possible to
ban or release the connection using the rSAP profile in the phone.
If there is a SIM card with enabled telephone services in the external module, then it is not possible to connect the telephone to the device using the rSAP
profile.
Telephone functions
Enter telephone number and select
Fig. 43
Numeric keypad / editing the telephone number
Enter a telephone number and dial
›
In the Telephone main menu, tap on the function surface,
 surface.
›
Enter the telephone number using the numeric keypad
» Fig. 43 -
 .
›
Select the number entered by tapping on the function surface
.
Function surfaces of the numerical keyboard Enter the last dialled number / dial the telephone number entered
Dialling the emergency number (valid only in certain countries)
Dial the breakdown number in case of breakdown
Dial the info number (for information regarding the products and serv-
ices of the brand ŠKODA )
Dial the mailbox number
Delete the last number entered
Display of function surfaces  /
 for the movement of the cursor in the
input line » Fig. 43 -

Breakdown and info numbers
The breakdown and info numbers are free of charge. Charges are only made
for a telephone call in accordance with the fare conditions of your telephone
service provider.
The phone numbers are already set at the factory. If you want to change the
numbers, then consult a ŠKODA service partner.
If no breakdown or Info calls can be made then a ŠKODA service partner should
be consulted. 
46Phone

Search for a contact using the numeric keypad
The numeric keypad can also be used for a contact search.
For example, if you enter 32, the unit will display contacts with the letter se-
quence DA, FA, EB, etc. next to the numerical keypad in areas 1
» Fig. 43 .
Voice mailbox
If not import the voicemail number or was not imported or entered, then this
can be entered or changed as follows.
▶ In the Telephone main menu, tap on the function surface, 
Tap →
user profile
→
voicemail number:
.
▶ To select the voice mailbox number, tap the functional surface 
surface.
List of telephone contacts
Fig. 44
List of telephone contacts / contact details
›
In the Telephone main menu, tap on the function surface,
 a list of tele-
phone contacts is displayed » Fig. 44-
 ,
The main telephone is connected to the device, the telephone contacts from
the telephone are used.
If there is a SIM card with activated phone services in the external module, the
SIM card phone contacts are available. If necessary, you can choose another
external device to import the phone contacts by tapping the functional surface
D
» Fig. 37 on page 41 .
Function interfaces Contact search
Select a number in the telephone contact list - if a telephone contact con-
tains several telephone numbers, the system displays a menu containing
the telephone numbers for this contact after selecting the contact)
ABDisplay the contact details » Fig. 44 - 
The contact name can be read out by the device's generated voice
Select the number in the contact details
Opens the menu for sending a text message (SMS)
Processing the telephone number of the contact before dialling
Start the route guidance to the contact address (applies to Columbus,
Amundsen)
Import list
After the first connection of the primary telephone and/or the SIM card (ap-
plies to Columbus) with the device, the import of the telephone contacts to the
device memory starts. The import can take several minutes.
In the device phonebook there are 4000 (applies to Columbus) and 2000 (ap-
plies to Amundsen, Bolero) free storage locations for imported telephone con-
tacts. Each contact can contain up to 5 telephone numbers.
For the 4 last connected phones, the import of a maximum of 5000 takes place (applies to Columbus) and 1000 (applies to Amundsen, Bolero) images alloca-
ted to contacts in the device memory.
The number of imported contacts can be viewed in the menu item 
→ userprofile
→
Import contacts:
.
If an error occurs during the import, an appropriate message appears on the
screen.
Refresh list
When the telephone reconnects with the device the list is automatically upda-
ted.
The update can be performed manually as follows. ▶ In the Telephone main menu, tap on the function surface,
 Tap
→
User pro-file
→
Import contacts
.
During updating, the number of imported contacts to the device memory/the
number of contacts in the telephone is displayed.
C47Phone

Management of preferred contacts (favourites)Fig. 45
Favourite contacts
Connecting to a favourite
The functional surfaces of preferred contacts allow for an immediate dial of
the contact telephone number.
The favourites are available in two storage groups.
›
To the change Storage Group tap on the functional surface
B
» Fig. 45 .
›
To choose tap on the assigned function area
A
» Fig. 45 .
Assigning preferred favourite
›
In the main menu Telephone, tap on the desired function surface
A
» Fig. 45 .
›
Select the desired contact (if necessary one of the contact numbers).
Change allocated preferred favourites
›
In the Telephone main menu, hold the desired function surface
A
» Fig. 45 .
›
Select the desired contact (if necessary one of the contact numbers).
Clear preferred favourite
›
Press the  button, then tap on the function surface
 Tap
→
User profile
→
Manage favourites
.
›
Press the desired function surface of the preferred contact and confirm the
deletion.
You can delete all contacts by tapping on the function surface 
Delete all
and
confirm the deletion process.
Call listFig. 46
Call history / Contact details
›
In the Telephone main menu, tap on the function surface,
 a call list is dis-
played » Fig. 46 -
 .
The call list can also be displayed during a telephone call.
Function surfaces and symbols Setting the display depending on the type of call▶
All
- List of all calls
▶
Missed calls
- list of missed calls
▶
Dialled numbers
- list of dialled numbers
▶
Received calls
- list of received calls
Dial a number from the call list
Display the contact details » Fig. 46 -

Select the number in the contact details
Edit the phone number before dialling (the number is not assigned to any
telephone contact)
Answered call
Outgoing call
Missed call
ABC48Phone

Telephone callFig. 47
Incoming call / Current conversation
Fig. 48
Next incoming call / Next call taken
Depending on the conversation context, the following functions can be execu- ted.
End dialling / reject incoming call / end callAccept incoming call / return to held call
Switch on/off ringer
Hold a call
Switch off/on microphone
Connect conference call
Show caller details (if the contact is stored in the list)
  Switch on/off hands-free (call to the telephone / switch to device)
▶ To switch off the hands-free system, in the Telephone main menu, tap on
the function surface 
TapHands-free
during a call.
▶ To switch off the hands-free system, tap on the function surface 
during a
call.
Note
If the incoming call is answered by the auxiliary telephone and the caller has
been imported into your contact list from the main telephone, the caller details
are displayed.
Conference
Fig. 49
Conference call / Meeting details
The conference is a shared call with between three and six participants.
Start a conference/invite additional participants
›
During a call/conference, make the next call.
›
or: Take the new incoming call by tapping the functional surface 
.
›
To initiate conference call or. return to the conference call , tap on the func-
tional surface 
surface.
Ongoing conference
During an ongoing conference call, the call duration is displayed on the screen.
Depending on the context, the following functions can be selected.
Hold a conference - leave the conference temporarily (the conference
continues in your absence)
Return to the held conference
Switch off/on microphone 

49Phone

End conference call
Conference call details
Conference details ▶ During the ongoing conference call, press the function surface 
surface.
A list of other conference participants is displayed. The following functions can
be selected depending on the type of telephone.
View details of participant
Talk to a participant separately from the conference
End the call to a conference participant
Text messages (SMS)
Main menu
Fig. 50
Main menu text messages
›
In the Telephone main menu, tap on the function surface,
 A menu for text
messages appears » Fig. 50.
›
If necessary, Select whether the source of the text messages to be used
should be the SIM card inserted in the external module or the telephone (ap-
plies to Columbus).
Open a list for quick answer provided short messages (called templates)
New text message
- Creating and sending the message
Inbox
- Open a list of received messages
Sent
- Open a list of sent messages
Outbox
- Open a list of messages not sent
Drafts
- Open a list of drafts (messages in progress)
Deleted
- Open a list of deleted messages
Send contact details
- send the contact details (Contact business card) (applies
to Columbus)

1Display options to set the source of text messages (applies to Columbus)
If there is a SIM card with telephone services and it is connected to the device
at the same time, then it can be set for which source, after tapping on the
function surface. 
From the phone, main menu, a menu of text messages
should be displayed automatically.
▶ In the Telephone main menu, tap on the function surfaces 
Tap on → Textmessage settings
→
Standard account
.
▶ Select the desired menu item.
New text message
Fig. 51
Composing a text message / viewing a text message
Fig. 52
Contact list / recipient list
Creating and sending the message
›
In the main menu of the text messages press the function surface 
inter-
face » Fig. 50 on page 50 .
›
Write a message and press the function surface 
» Fig. 51 -
A text mes-
sage view is displayed » Fig. 51-
.
›
Tap on the function 
surface. 
50Phone

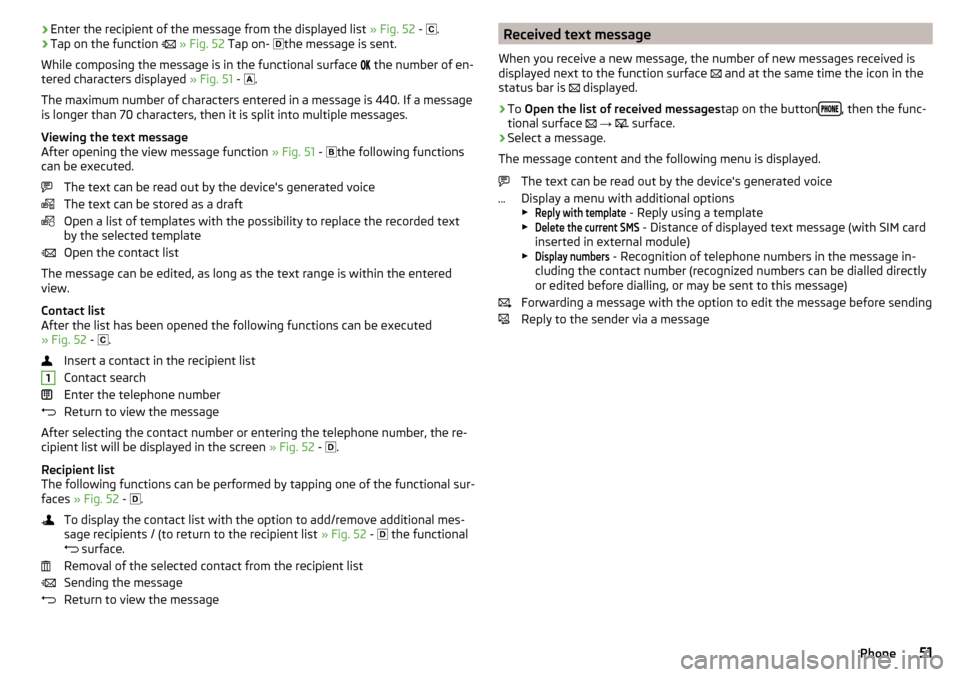

›Enter the recipient of the message from the displayed list
» Fig. 52 -  .›Tap on the function  » Fig. 52 Tap on- the message is sent.
While composing the message is in the functional surface 
the number of en-
tered characters displayed » Fig. 51 - 
.
The maximum number of characters entered in a message is 440. If a message
is longer than 70 characters, then it is split into multiple messages.
Viewing the text message
After opening the view message function » Fig. 51 - 
the following functions
can be executed.
The text can be read out by the device's generated voice
The text can be stored as a draft
Open a list of templates with the possibility to replace the recorded text
by the selected template
Open the contact list
The message can be edited, as long as the text range is within the entered
view.
Contact list
After the list has been opened the following functions can be executed
» Fig. 52 -
 .
Insert a contact in the recipient list
Contact search
Enter the telephone number
Return to view the message
After selecting the contact number or entering the telephone number, the re-
cipient list will be displayed in the screen » Fig. 52 -
 .
Recipient list
The following functions can be performed by tapping one of the functional sur-
faces » Fig. 52 -
 .
To display the contact list with the option to add/remove additional mes-
sage recipients / (to return to the recipient list » Fig. 52 -
 the functional
 surface.
Removal of the selected contact from the recipient list
Sending the message
Return to view the message1Received text message
When you receive a new message, the number of new messages received is
displayed next to the function surface 
and at the same time the icon in the
status bar is 
displayed.›
To Open the list of received messages tap on the button, then the func-
tional surface 
→ 
surface.
›
Select a message.
The message content and the following menu is displayed.
The text can be read out by the device's generated voice
Display a menu with additional options
▶
Reply with template
- Reply using a template
▶
Delete the current SMS
- Distance of displayed text message (with SIM card
inserted in external module)
▶
Display numbers
- Recognition of telephone numbers in the message in-
cluding the contact number (recognized numbers can be dialled directly or edited before dialling, or may be sent to this message)
Forwarding a message with the option to edit the message before sending
Reply to the sender via a message
51Phone

Hotspot (WLAN) and data connection
Hotspot (WLAN)
Introduction to the subject
Applies to Columbus, Amundsen (not applicable to Yeti).
WLAN can be used to connect to the Internet, to playback audio files in the menu media or for operating the device using an application in the external
device (e.g. ŠKODA Media Command).
The requirement for the WLAN function is the ignition is switched on. After
switching on the ignition, the last-used WLAN connection appears.
It is possible to connect up to 8 external devices on the device hotspot and at
the same time to connect the device to the Hotspot of other external devices.
Applies to Columbus: If there is a SIM card with active data services in the ex-
ternal module, or if there a connection to the telephone via Bluetooth ®profile
RSAP, it's not possible to connect to the external device hotspot.
connect an external device to the hotspot (WLAN) of the device
Device hotspot on / off
›
Press the  button, then tap on the function surface
 Tap
→
WLAN
→
Mo-bile hotspot
→
Mobile hotspot
.
Set device hotspot
▶ Press the 
button, then tap on the function surface
 Tap
→
WLAN
→
Mo-bile hotspot
→
Mobile hotspot
.
▶ Setting required menu items the following menu.
■
Security level:
- Setting connection security
■
Network key
- Entering the access password
■
SSID: ...
- Name of the device hotspot
■
Do not send network name (SSID)
-Turn WLAN hotspot visibility on/off
▶ Tap the functional surface
Save
to save the parameters of the devices hot-
spot.
Connect ▶ Enable the Wi-Fi in the external device and search for any available hotspots
▶ Select the device hotspot (if necessary enter the required password).
▶ Confirm the connection establishment.
Establish secure connection using WPS (applies to Amundsen) ▶ WLAN in device on.
▶ Press the 
button, then tap on the function

Tap →
WLAN
→
WLAN
→
WPS Quick Connect (WPS button)
.
▶ Turn on the option to connect to the device hotspot using WPS.
Connect device to the hotspot (WLAN) of the external device
Fig. 53
List of available wireless networks: Columbus / Amundsen
›
To Turn on / off the device WLAN press the button , then the functional
surface →
 Tap on
→
WLAN
→
WLAN
→
WLAN
.
Show Available Hotspots
▶ Press the 
button, then tap on the function surface
 Tap on
→
WLAN
→
WLAN
1)
.
With WLAN activated, a list of available hotspots with the following informa-
tion and functional areas is displayed » Fig. 53.
Searching for available hotspots
Turn the device WLAN on/off
Manual hotspot search and connect
Automatic connection of the secured connection to the hotspot via WPS
(applies to Amundsen) 
ABCD1)
As long as the device is connected to the hot spot of the external device, its name is displayed in this
functional surface.
52Hotspot (WLAN) and data connection
