SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual Delete the paired external device▶ To delete, tap on one of the following function surfaces.
- Delete all external devices
- Delete the desired external device
▶ Confirm the deletion by tapping on

Delete the paired external device▶ To delete, tap on one of the following function surfaces.
- Delete all external devices
- Delete the desired external device
▶ Confirm the deletion by tapping on the function surface Delete
.
Note
To the turn on / off the connectivity of Bluetooth ®
Player press the button
, then the functional surface  Tap →
Bluetooth
→
Bluetooth audio (A2DP /AVRCP)
.
Telephone functions
Enter telephone number and select
Fig. 31
Numeric keypad / editing the telephone number
Enter a telephone number and dial
›
In the Telephone main menu, tap on the function surface, 
surface.
›
Enter the telephone number using the numeric keypad » Fig. 31 - 
.
›
Select the number entered by tapping on the function surface 
.
Function surfaces of the numerical keyboard Enter the last dialled number / dial the telephone number entered
Dialling the emergency number (valid only in certain countries)
Dial the breakdown number in case of breakdown
Dial the info number (for information regarding the products and serv-
ices of the brand ŠKODA )
Dial the mailbox number
 Delete allDelete the last number entered
Display of function surfaces 
/ 
for the movement of the cursor in the
input line » Fig. 31 - 
Breakdown and info numbers
The breakdown and info numbers are free of charge. Charges are only made
for a telephone call in accordance with the fare conditions of your telephone
service provider.
The phone numbers are already set at the factory. If you want to change the
numbers, then consult a ŠKODA service partner.
If no breakdown or Info calls can be made then a ŠKODA service partner should
be consulted.
Search for a contact using the numeric keypad
The numeric keypad can also be used for a contact search.
For example, if you enter 32, the unit will display contacts with the letter se-
quence DA, FA, EB, etc. next to the numerical keypad in areas 1
» Fig. 31 .
Voice mailbox
If not import the voicemail number or was not imported or entered, then this
can be entered or changed as follows.
▶ In the Telephone main menu, tap on the function surface,

→
user profile
→
mailbox number:
surface.
▶ To select the voice mailbox number, tap the functional surface  surface.
List of telephone contacts
Fig. 32
List of telephone contacts / contact details
›
In the
Telephone main menu, tap on the function surface,
 a list of tele-
phone contacts is displayed » Fig. 32-
 . 

34Telephone

Page 41 of 76

SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual ›Select a message.
The message content and the following menu is displayed.
The text can be read out by the devices generated voice
Display a menu with additional options
▶Reply with template
-

›Select a message.
The message content and the following menu is displayed.
The text can be read out by the device's generated voice
Display a menu with additional options
▶Reply with template
- Reply using a template
▶
Display numbers
- Recognition of telephone numbers in the message in-
cluding the contact number (recognized numbers can be dialled directly or edited before dialling, or may be sent to this message)
Forwarding a message with the option to edit the message before sending
Reply to the sender via a message
Hotspot (WLAN) and data connection
Hotspot (WLAN)
Introduction to the subject
Applies to Amundsen (does not apply to Yeti).
WLAN can be used to connect to the Internet, to playback audio files in the menu media or for operating the device using an application in the external
device (e.g. ŠKODA Media Command).
The requirement for the WLAN function is the ignition is switched on. After
switching on the ignition, the last-used WLAN connection appears.
It is possible to connect up to 8 external devices on the device hotspot and at
the same time to connect the device to the Hotspot of other external devices.
connect an external device to the hotspot (WLAN) of the device
Device hotspot on / off
›
Press the  button, then tap on the function surface
 Tap on
→
WLAN
→
Mobile hotspot
→
Mobile hotspot
.
Set device hotspot
▶ Press the 
button, then tap on the function surface
 Tap on
→
WLAN
→
Mobile hotspot
→
Hotspot (WLAN) settings
.
▶ Setting required menu items the following menu.
■
Security level:
- Setting the connection security
■
Network key
- Entering the access password
■
SSID: ...
- Name of the device hotspots
■
Do not send network name (SSID)
-Turn WLAN hotspot visibility on/off
▶ Tap the functional surface
Save
to save the parameters of the devices hot-
spot.
Connect ▶ Enable the Wi-Fi in the external device and search for any available hotspots
▶ Select the device hotspot (if necessary enter the required password).
▶ Confirm the connection establishment. 
39Hotspot (WLAN) and data connection

Page 49 of 76

SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual ▶Route details - Displays the route details » page 57
▶Congestion ahead
- Manual adjusts traffic conditions » page 59
▶
Call destination
- Search / enter a new destination / stopover » pa

▶Route details - Displays the route details » page 57
▶Congestion ahead
- Manual adjusts traffic conditions » page 59
▶
Call destination
- Search / enter a new destination / stopover » page 47
▶
Stop route guidance
- Stops route guidance
The following menu is displayed
▶
Store position
- Store the current vehicle position as a flagged destination
» page 50
▶
Routes
- Display the list of saved routes » page 58
▶
Destinations
- Display the list of stored destinations » page 50
▶
Last destinations
- Display the list of recent destinations to which route
guidance was carried out » page 49
▶
Home address
- Route guidance to your home address » page 50
Search for POIs in the categories ,
 and

Map presentation options » page 53
Operation of
media
/
radio
-playback
Navigation settings
Additional windows
Fig. 50
Extra window
›
To switch on/off the traffic monitoring in the main menu Navigation, tap on
the functional surface  Tap
→
Split screen.
.
›
To select content of the additional window
A
» Fig. 50 tap the functional
surface  Tap and select one of the following menus, depending on the con-
text.
■
Audio
- Operation of
radio
/
media
playback
■
Compass
- Displays the current vehicle location in relation to the compass di-
rections
■
Freq. Routes
- Display the three most frequently traveled routes (if route guid-
ance is disabled) » page 56
■Manoeuvre - Display graphical driving recommendations (if route guidance is
enabled)
■Position
- Displays the geographical coordinates of the current vehicle location
Search for destination and enter
Search for POI/
Fig. 51
Destination search: Main menu / list of destinations found
The feature allows a full text search of locations or points of interest (POI) by
entering keywords.
Display main menu
›
Route guidance is disabled - From the main menu navigation the functional
surface  surface.
›
Route guidance is enabled
- From the main menu navigation, tap on the
functional surface 
→
call destination
.
›
If the menu is » Fig. 51 -
 not shown to search for a destination, then the
functional surface 
→
Search
.
Find destination
It is possible to enter the POI name or the POI category (POI) or the place and
street name or house number / postal code directly into the input line.
During input, destinations are shown in area
D
» Fig. 51 -
 that best corre-
spond to the instructions.
If route guidance e.g. Is required in a car park or restaurant which is close to
the chosen destination, then the
Nearby
function surface must be tapped in the
destination details of the chosen destination. Then search for and select the
desired destination. 
47Navigation

Page 50 of 76

SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual Description of the function surfaces A » Fig. 51
Choice of search
 - Searching for a destination or POI (point of interest) by name
 - Search for a point along the route (only works with acti

Description of the function surfaces A » Fig. 51
Choice of search
 - Searching for a destination or POI (point of interest) by name
 - Search for a point along the route (only works with active route guid-
ance)
 - Searching for a destination near the entered destination (after selec-
tion in destination details » page 54)
Input line
Depending on whether a mark is in the entry line, the following menu is
displayed
 - Map display with selected locations corresponding to the entered
characters » Fig. 51 -

 - Choose the type of destination search / destination entry (no charac-
ter is entered)
▶Search
- Destination / POI search
▶
Address
- Enter destination via the new address. » page 48, Enter desti-
nation using the address
▶
In map
- Enter destination via the map point / using the GPS coordinates
» page 49 , Enter destination on the map and using GPS coordinates
List of last destinations (no character is entered) » page 49 / List of se-
lected destinations
Alphanumeric keypad
List of destinations found ▶ To Display the list » Fig. 51 -
 the functional surface
 surface.
There is a maximum of 6 destinations shown in this list, each is identified with
a letter. Then these destinations are shown in the map with the icon  and a
letter, which coincides with the letter in the list of destinations found.
If several destinations were found, then the list can be scrolled through by
turning the controller  or sliding the slider.
ABCDEEnter destination using the addressFig. 52
Enter destination using the address: Main menu / list of places
found
Display main menu
›
Route guidance is disabled - From the main menu navigation the function
surface  surface.
›
Route guidance is enabled
- From the main menu navigation, tap on the
functional surface 
→
call destination
.
›
If the destination entry menu » Fig. 52 -
 is not shown using the address,
then tap on the function surface 
→
address
.
Enter destination
›
Enter the destination address and then confirm.
Relevant names (e.g. Place/street names) are offered in the entry line during entry, depending on the context. Previously entered names are offered on a
preferential basis.
The location of the destination offered, which is specified in the entry line in
parentheses, can be displayed in the map by tapping the functional surface
Map
.
List of places found
There is a possibility that a map with a list of places of the same name will be
displayed during entry » Fig. 52 -
 .
The list of places found can also be called up during address entry by pressing
the function area  .
In the list of towns that are found a maximum of 6 towns appear marked with
a letter. These towns are then marked in the map with the symbol  and a let-
ter, which coincides with the letter in the list of places found. 
48Navigation

Page 60 of 76

SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual Store route
▶ In the area A, tap the functional surface
Save
.
▶ Save the edited route as a new route or replace the existing saved route.
Stop route guidance ▶ In the area A
, tap the function

Store route
▶ In the area A, tap the functional surface
Save
.
▶ Save the edited route as a new route or replace the existing saved route.
Stop route guidance ▶ In the area A
, tap the functional surface
stop
.
Route management
›
In the Navigation main menu, tap on the functional surface
 Tap
→
routes
.
New route ▶ Tap the function surface
New route
.
Insert a route destination in one of the following ways.
▶ Tap on The functional surface
Name destination
and enter a new destination.
▶ or: Tap on the function key
destinations
and select a destination from the list
of saved destinations.
▶ To save the created route, tap the functional surface
Save
.
▶ Tap the functional surface
Start
to start route guidance.
Route management
▶ Choose the desired saved route, and then select one of the following menu
items.
Clear saved route
- Edit route
- Calculate route and start route guidance
Traffic reports
List of traffic reports
Fig. 63
List of traffic reports
DeleteEditStartThe device allows you to receive TMC traffic reports (Traffic Message Channel),
which contain information regarding traffic obstructions.›
To Display the list of traffic incidents press the button  or .
In the list of traffic messages and the map, a max. of 6 messages are dis-
played, that have a traffic obstruction symbol and a letter
A
» Fig. 63 .
When multiple traffic messages are available, then the list can be scrolled
through by rotating the controller 
or sliding the slider.
If the icon 
in the list of traffic reports is crossed out, then the device is out-
side the range of the traffic report provider.
At present on the route traffic information is taken by using a corresponding
navigation announcement.
Display options ▶ Route guidance is disabled - All traffic messages are displayed.
▶ Route guidance is enabled - After tapping the functional surface
B
» Fig. 63
all available traffic messages or only those on route can be selected.
A traffic report may contain some of the following information. ▶ Symbol of the traffic obstruction
▶ Number of road affected
▶ Name of the location in question
▶ Description of the traffic obstruction
Update
The reception of traffic reports is always switched on and cannot be turned
off.
The traffic reports are continuously received from the device in the back-
ground and there is a regular update of the list of traffic incidents.
The list of traffic messages can be updated manually by press 
or .
58Navigation

Page 68 of 76

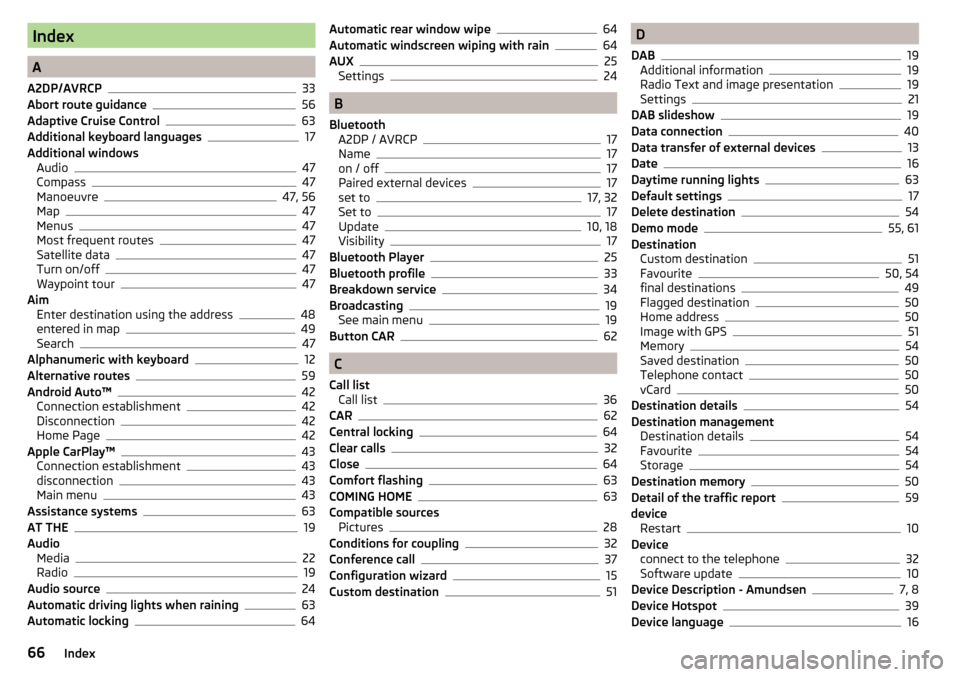

SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual Index
A
A2DP/AVRCP
33
Abort route guidance56
Adaptive Cruise Control63
Additional keyboard languages17
Additional windows Audio
47
Compass47
Manoeuvre47, 56
Map47
Menus47
Most frequent routes47
Satell

Page 69 of 76

SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual Device menuCAR62
Media Command29
Media (Audio)22
Navigation46
Radio19
Sound16
Device Menu Pictures
27
SmartLink41
Telephone31
Device operation11
Device screen11
Device operation using an application i

Page 72 of 76

SKODA FABIA 2016 3.G / NJ Amundsen Bolero Infotainment System Navigation Manual Route54
New route58
Route import58
Route memory58
Route calculation55
Trailer towing55
Route import58
Route information57
Route memory58
Route options59
Route plan57
Route schedule57
S
Safe removal of

Page: < prev 1-8 9-16

refuelling ESP inoperative fuel fill door release remote control phone suspension
