In right-hand drive vehicles the brake fluid
r e
ser
voir is on the other side of the engine
compartment.
Changing brake fluid
The regular intervals at which the brake fluid
should be replaced are listed in the Mainte-
nance Programme. We recommend you have
it replaced at a SEAT Official Service, during
an Inspection Service. WARNING
● Brak e fluid shou

ld be stored in the closed
original container in a safe place out of reach
of children. Risk of poisoning!
● If the brake fluid is left in the system for
too long and the br
akes are subjected to
heavy use, vapour bubbles may form in the
brake system. This would seriously affect the
efficiency of the brakes and the safety of the
vehicle. This may cause an accident. CAUTION
Brake fluid should not come into contact with
the v ehic

le paintwork, as it is abrasive. Windscreen washer reservoir
Chec k
in

g and topping up the wind-
screen washer reservoir Read the additional information carefully
›› ›

 page 52
Check the water level in the windscreen
washer reservoir regularly and top up as re-
quired.
The container for the windscreen washer con-
tains the cleaning fluid for the windscreen,
the rear window and the headlight washer
system*.
● Open the bonnet  ››
›

page 262.
● The windscreen washer reservoir is marked
with the symbol
 on the cap.
● Check there is enough windscreen water in
the reser
voir.
Recommended windscreen wipers
● For the hottest seasons we recommend
summer G 052 184 A1 for c
lear glass. Propor-
tions of the mixture in the washer fluid tank:
1:100 (1 part concentrate per 100 parts wa-
ter).
● All year round, G 052 164 A2 for clear
glas
s. Approximate proportion of the winter
mixture, up to -18°C (0°F): 1:2 (1 part con-
centrate per 2 parts water); otherwise, a 1:4 proportion of mixture in the washer fluid
tank.
Cap

acity
The reservoir holds approximately 3 litres in
versions without headlight washer and 5 li-
tres in versions with headlight washer. WARNING
If the water from the windscreen washer does
not c ont

ain enough anti-freeze, it may freeze
on the windscreen and rear window, reducing
forward and rear visibility.
● In winter, ensure the windscreen washer
contain
s enough anti-freeze.
● In cold conditions, you should not use the
winds
creen wiper system unless you have
warmed the windscreen with the ventilation
system. The antifreeze could freeze on the
windscreen and reduce visibility. WARNING
Never mix an unsuitable antifreeze or other
simi l

ar additives with the windscreen washer
water. A greasy layer may be formed on the
windscreen which will impair visibility.
● Use clean water with a window cleaner rec-
ommended by
SEAT.
● If necessary, add a suitable antifreeze to
the water in the r
eservoir.268

Checking and refilling levels
CAUTION
● Do not mi x
cleaning products recommen-
ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.
● When topping up service fluids, make abso-
lutely c
ertain that you fill the fluids into the
correct reservoirs. Using the wrong fluids
could cause serious malfunctions and engine
damage!
● Not having windscreen wiper fluid reduces
vis
ibility through the windscreen, and leads
to loss of visibility in headlights in models
with headlight washer. Battery
Gener a
l

informationRead the additional information carefully
› ›
›

 page 52.
The battery is located in the engine compart-
ment and is almost maintenance-free. It is
checked as part of the Inspection Service.
Nevertheless, check the terminals are clean
and have the correct tightening torque, espe-
cially in summer and winter.
Disconnecting the battery
The battery should only be disconnected in
exceptional cases. When the battery is dis- connected, some of the vehicle's functions
are “los

t” (››› table on page 269). These
functions will require resetting after the bat-
tery is reconnected.
Deactivate the anti-theft alarm* before you
disconnect the battery Otherwise the alarm
will be triggered.
FunctionReprogramming
One-touch function of
the electric windows››› page 128, One-touch
opening and closing*.
Remote control key
If the vehicle does not re-
spond to the key, they
should be synchronised
››› page 123.
Digital clock››› page 106.
ESC warning lampAfter driving for a few me-
tres, the warning lamp goes
out again. If the vehicle is not used for long periods
The
v
ehic

le has a system for monitoring the
current consumption when the engine is left
unused for long periods of time ››› page 255.
Some functions, such as the interior lights, or
the remote door opening, may be temporarily
disabled to prevent the battery from running
flat. These functions will come back on as
soon as the ignition is switched on and the
engine started. Winter conditions
During the w

inter, the starting power may be
reduced, and if necessary, the battery should
be charged ››› in Important safety warn-
in g
s

for handling a vehicle battery on
page 270
Important safety warnings for han-
dling a v
ehicle battery All work on batteries requires specialist
kno
wl
edg

e. Please refer to a SEAT Official
Service or a workshop specialising in batter-
ies: risk of burns or exploding battery!
The battery must not be opened. Never try to
change the fluid level of the battery. Other-
wise explosive gas is released from the bat-
tery that could cause an explosion. 
Wear eye protection.

Battery acid is very corrosive and caustic. Wear
protective gloves and eye protection. In the event
of electrolyte splashes, rinse off with plenty of
water.

Fires, sparks, open flames and smoking are pro-
hibited.

The battery should only be charged in a well-ven-
tilated zone. Risk of explosion!

Keep children away from acid and batteries!»
269
Technical data
Advice
Operation
Emergencies
Safety

Index
selector lever lock . . . . . . . . . . . . . . . . . . . . . . . 181
sel ect
or l
ever positions . . . . . . . . . . . . . . . . . . 180
steering wheel with gearshift paddles . . . . . . 182
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . 180, 182
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
B Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Before starting the vehicle . . . . . . . . . . . . . . . . . . 65
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 262 opening the bonnet . . . . . . . . . . . . . . . . . . . . . 263
Brake emergency braking function . . . . . . . . . . . . . . 173
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . 176
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
electronic parking brake . . . . . . . . . . . . . . . . . 172
new brake pads . . . . . . . . . . . . . . . . . . . . . . . . 175
Braking brake assist system . . . . . . . . . . . . . . . . . . . . . 176
moving off on hills . . . . . . . . . . . . . . . . . . . . . . 179
C
Camera cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
windscreen washer water . . . . . . . . . . . . . . . . 268
Capacity natural gas tank . . . . . . . . . . . . . . . . . . . . . . . . 257 Car-care products . . . . . . . . . . . . . . . . . . . . . . . . . 246
Catalytic
converter . . . . . . . . . . . . . . . . . . . . . . . . 189
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CD-ROM player (navigation) . . . . . . . . . . . . . . . . 149
Central locking anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . 124
central locking switch . . . . . . . . . . . . . . . . . . . . 119
electric windows . . . . . . . . . . . . . . . . . . . . . . . . 128
Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . . 120
manual locking . . . . . . . . . . . . . . . . . . . . . . . . . . 11
programming . . . . . . . . . . . . . . . . . . . . . . . . . . 119
remote control key . . . . . . . . . . . . . . . . . . . . . . 118
selective unlocking system . . . . . . . . . . . . . . . 118
sliding/tilting sunroof . . . . . . . . . . . . . . . . . . . 128
Central locking system . . . . . . . . . . . . . . . . . . . . . 116
Cetane number (diesel fuel) . . . . . . . . . . . . . . . . 259
Changing parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 rear light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 97
rear light in the side panel . . . . . . . . . . . . . . . . . 98
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 57 subsequent work . . . . . . . . . . . . . . . . . . . . . . . . 59
Changing bulbs fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
number plate light . . . . . . . . . . . . . . . . . . . . . . 100
Changing gear engaging gears (manual gearbox) . . . . . . . . . 179
Changing main headlight turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Changing settings CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 87
Changing the main beam headlight bulb main beam headlight . . . . . . . . . . . . . . . . . . . . . 96 Changing the main headlight bulb
day light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
dipped headlight . . . . . . . . . . . . . . . . . . . . . . . . 95
Changing the wiper blades . . . . . . . . . . . . . . . . . . 63
Charging the battery . . . . . . . . . . . . . . . . . . . . . . 270
Checking levels engine compartment . . . . . . . . . . . . . . . . . . . . 262
Child-proof locking electric windows . . . . . . . . . . . . . . . . . . . . . . . . 127
Child seat categorisation in groups . . . . . . . . . . . . . . . . . . 84
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 84 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
safety instructions . . . . . . . . . . . . . . . . . . . . 19, 83
securing with seat belt . . . . . . . . . . . . . . . . . . . . 20
Top Tether system . . . . . . . . . . . . . . . . . . . . . 21, 23
City Emergency braking function . . . . . . . . . . . . . 211
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
carbon parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Easy Connect control panel . . . . . . . . . . . . . . . 250
exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 252
plastic parts . . . . . . . . . . . . . . . . . . . . . . 249, 250
radio display . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 246
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
308

Index
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
263
p anor
amic sliding sunroof . . . . . . . . . . . . . . . . 129
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . . . 186
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Connectivity Box . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Control and warning lamps diesel particulate filter . . . . . . . . . . . . . . . . . . . 189
emission control . . . . . . . . . . . . . . . . . . . . . . . . 190
Controls and displays general instrument panel . . . . . . . . . . . . . . . . . 103
Controls on the steering wheel operating the audio system . . . . . . . . . . . . . . . 112
operating the telephone and audio system . . 113
Convenience closing panoramic sliding sunroof . . . . . . . . . . . . . . . . 130
Convenience opening panoramic sliding sunroof . . . . . . . . . . . . . . . . 130
Coolant checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Cooling system checking coolant . . . . . . . . . . . . . . . . . . . . . . . 266
coolant temperature gauge . . . . . . . . . . . . . . . 107
topping up coolant . . . . . . . . . . . . . . . . . . . . . . 266
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Correct sitting position front passenger . . . . . . . . . . . . . . . . . . . . . . . . . 67
rear seat passengers . . . . . . . . . . . . . . . . . . . . . 68
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . 39, 195 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 195 warning and indication lamp . . . . . . . . . . . . . . 195 D
Danger
s in not using the seat belt . . . . . . . . . . . . 73
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Data sticker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Deactivating the front passenger front airbag . . . 17
Deactivation of front airbag . . . . . . . . . . . . . . . . . . 80
Defective bulbs changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
Detachable ball assembling . . . . . . . . . . . . . . . . . . . . . . . 236, 237
checking attachment . . . . . . . . . . . . . . . . . . . . 237
placing in standby position . . . . . . . . . . . . . . . 235
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
standby position . . . . . . . . . . . . . . . . . . . . . . . . 236
Diesel diesel particulate filter . . . . . . . . . . . . . . . . . . . 189
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Diesel particulate filter malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Direction of rotation tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104, 105
Display of traffic signs on the instrument panel activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
deactivate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Disposal seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 75
Distance control see Adaptive cruise control . . . . . . . . . . . . . . . 196
Door cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Door handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 103 Doors
chil dproof locks . . . . . . . . . . . . . . . . . . . . . . . . 123
opening and closing . . . . . . . . . . . . . . . . . . . . . 10
Downhill speed control . . . . . . . . . . . . . . . . . . . . 185
Downhill speed control function . . . . . . . . . . . . . 185
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Driver see Correct sitting position . . . . . . . . . 66, 67, 68
Driver information system CD/radio indication . . . . . . . . . . . . . . . . . . . . . . 30
engine oil temperature display . . . . . . . . . . . . . 35
operation with the windscreen wiper lever . . . . 30
Driving driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 136
with a trailer . . . . . . . . . . . . . . 234, 239, 241, 242
Driving abroad headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Driving data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 data summary . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Driving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Driving profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Driving through water . . . . . . . . . . . . . . . . . . . . . 191
DSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Dust and pollen filter . . . . . . . . . . . . . . . . . . . . . . 163
Dynamic headlight range control . . . . . . . . . . . . 137
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 258
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . 27, 110
Economical driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
309

Index
EDL se
e
Electronic differential lock . . . . . . . . . . . . . 176
Efficiency programme additional electrical appliances . . . . . . . . . . . . 35
saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Electrical accessories see Power socket . . . . . . . . . . . . . . . . . . . . . . . 150
Electrical socket trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Electric windows . . . . . . . . . . . . . . . . . . . . . . 13, 127 convenience opening and closing . . . . . . . . . 128
Electromechanical steering . . . . . . . . . . . . . . . . . 253 lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Electronic differential lock . . . . . . . . . . . . . . . . . . 176
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . 10
Electronic self-locking . . . . . . . . . . . . . . . . . . . . . 176
Electronic Stability Control (ESC) . . . . . . . . . . . . 176
Electronic torque management (XDS) . . . . . . . . . 177
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . . 85
automatic gearbox backup programme . . . . . 186
bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 57
emergency towing of the vehicle . . . . . . . . . . . . 60
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
hazard warning lights . . . . . . . . . . . . . . . . . . . 135
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
manual unlocking and locking . . . . . . . . . . . . . 87
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 54
replacing the battery . . . . . . . . . . . . . . . . . . . . 270
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . . . 217 see Emergency Assist . . . . . . . . . . . . . . . . . . . . 217
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Emergency braking function . . . . . . . . . . . . . . . . 173 Emergency braking warning . . . . . . . . . . . . . . . . 136
Emergency
operation
passenger door . . . . . . . . . . . . . . . . . . . . . . . . . . 11
selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Emission control system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 61
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 191
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
starting up (driver messages with the mechan-ical contact) . . . . . . . . . . . . . . . . . . . . . . . . . . 168
switching off (key) . . . . . . . . . . . . . . . . . . . . . . 169
Engine and ignition automatic ignition switch-off . . . . . . . . . . . . . . 170
My Beat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
preheating the engine . . . . . . . . . . . . . . . . . . . 171
starting the engine . . . . . . . . . . . . . . . . . . . . . . 171
starting the engine with Press & Drive . . . . . . 171
stopping the engine . . . . . . . . . . . . . . . . . . . . . 171
Engine compartment . . . . . . . . . . . . . . . . . . 12, 262 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 269
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 52, 267
closing the bonnet . . . . . . . . . . . . . . . . . . . . . . 263
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 51, 266
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . 50, 265
opening the bonnet . . . . . . . . . . . . . . . . . . . . . 263
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
windscreen washer reservoir . . . . . . . . . . 52, 268
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . 51
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284 Engine fault
contro l lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine management . . . . . . . . . . . . . . . . . . . . . . 189 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 50, 264 changing . . . . . . . . . . . . . . . . . . . . . . . . . 264, 266
checking oil level . . . . . . . . . . . . . . . . . . . . . . . 265
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
inspection service . . . . . . . . . . . . . . . . . . . . . . 264
maintenance intervals . . . . . . . . . . . . . . . . . . . 264
oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 264
temperature display . . . . . . . . . . . . . . . . . . . . . . 35
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Environment ecological driving . . . . . . . . . . . . . . . . . . . . . . . 188
environmental compatibility . . . . . . . . . . . . . . 187
Environmental tips filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . 257
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 150, 245
ESC electronic stability control . . . . . . . . . . . . . . . . 176
multi-collision brake . . . . . . . . . . . . . . . . . . . . . 177
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Exhaust gas purification system catalytic converter . . . . . . . . . . . . . . . . . . . . . . 189
diesel particulate filter . . . . . . . . . . . . . . . . . . . 189
Exhaust pipe: Cleaning . . . . . . . . . . . . . . . . . . . . 250
Extending the luggage compartment . . . . . . . . . . . . . . . . 146
Exterior lighting changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
Exterior mirrors adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
310

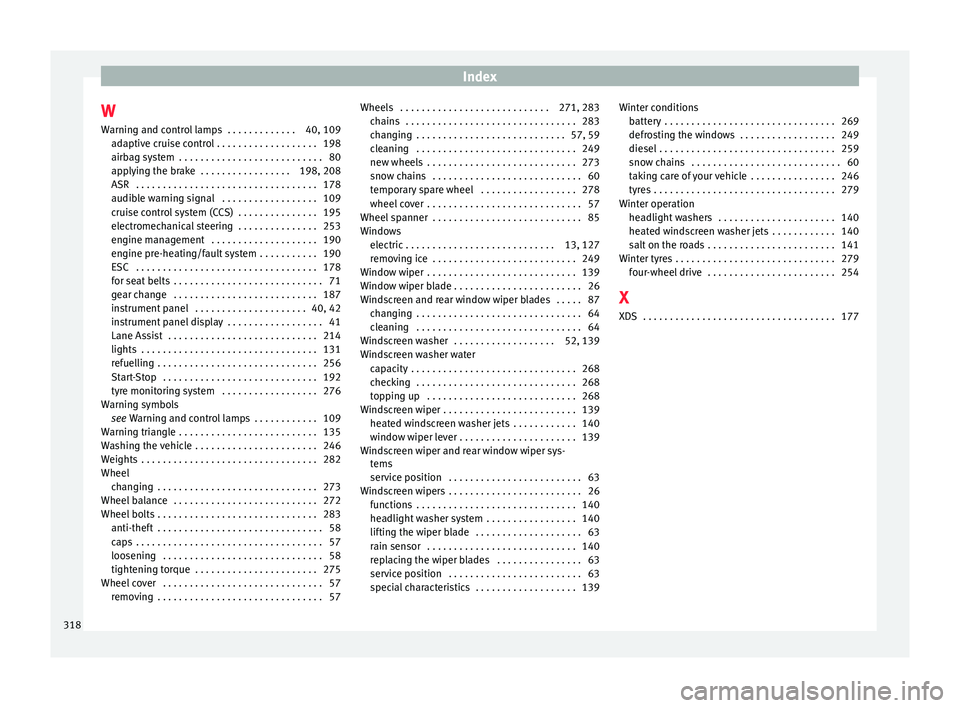

Index
W
W arnin
g and c
ontrol lamps . . . . . . . . . . . . . 40, 109
adaptive cruise control . . . . . . . . . . . . . . . . . . . 198
airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
applying the brake . . . . . . . . . . . . . . . . . 198, 208
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
audible warning signal . . . . . . . . . . . . . . . . . . 109
cruise control system (CCS) . . . . . . . . . . . . . . . 195
electromechanical steering . . . . . . . . . . . . . . . 253
engine management . . . . . . . . . . . . . . . . . . . . 190
engine pre-heating/fault system . . . . . . . . . . . 190
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
for seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
instrument panel . . . . . . . . . . . . . . . . . . . . . 40, 42
instrument panel display . . . . . . . . . . . . . . . . . . 41
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
tyre monitoring system . . . . . . . . . . . . . . . . . . 276
Warning symbols see Warning and control lamps . . . . . . . . . . . . 109
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 246
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Wheel changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Wheel balance . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283 anti-theft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
loosening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
tightening torque . . . . . . . . . . . . . . . . . . . . . . . 275
Wheel cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271, 283
chain s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57, 59
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
new wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
temporary spare wheel . . . . . . . . . . . . . . . . . . 278
wheel cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Wheel spanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Windows electric . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 127
removing ice . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Window wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Window wiper blade . . . . . . . . . . . . . . . . . . . . . . . . 26
Windscreen and rear window wiper blades . . . . . 87 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Windscreen washer . . . . . . . . . . . . . . . . . . . 52, 139
Windscreen washer water capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Windscreen wiper . . . . . . . . . . . . . . . . . . . . . . . . . 139 heated windscreen washer jets . . . . . . . . . . . . 140
window wiper lever . . . . . . . . . . . . . . . . . . . . . . 139
Windscreen wiper and rear window wiper sys- tems
service position . . . . . . . . . . . . . . . . . . . . . . . . . 63
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . . . . 26 functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
headlight washer system . . . . . . . . . . . . . . . . . 140
lifting the wiper blade . . . . . . . . . . . . . . . . . . . . 63
rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
replacing the wiper blades . . . . . . . . . . . . . . . . 63
service position . . . . . . . . . . . . . . . . . . . . . . . . . 63
special characteristics . . . . . . . . . . . . . . . . . . . 139 Winter conditions
batter y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
defrosting the windows . . . . . . . . . . . . . . . . . . 249
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
taking care of your vehicle . . . . . . . . . . . . . . . . 246
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Winter operation headlight washers . . . . . . . . . . . . . . . . . . . . . . 140
heated windscreen washer jets . . . . . . . . . . . . 140
salt on the roads . . . . . . . . . . . . . . . . . . . . . . . . 141
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279 four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . 254
X
XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
318
