2016 Seat Ibiza SC technical specifications

Technical specifications
Petrol engine 1.0 EcoTSI 81 kW (110 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,000-5,500200/2,000-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZA
ManualIBIZA
AutomaticIBIZA SC ManualIBIZA SC
Automatic
Top speed (km/h)197197197197
Acceleration from 0-80 km/h (seconds)6.36.26.36.2
Acceleration from 0-100 km/h (seconds)9.29.39.29.3
Maximum authorised weight (kg)1,6001,6301,6001,630
Weight in running order (with driver) (kg)1,1091,1401,1091,140
Maximum authorised weight on front axle (kg)860900860900
Maximum authorised weight on rear axle (kg)790780790780
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)550570550570
Weight of trailer with brakes, gradients up to 8% (kg)1,1001,1001,1001,100
Weight of trailer with brakes, gradients up to 12% (kg)1,0001,0001,0001,000 223
Technical data
Advice
Operation
Emergencies
Safety

Technical specifications
Petrol engine 1.6 MPI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,800155/3,800-4,0004/1,598Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZA
ManualIBIZA
AutomaticIBIZA SC ManualIBIZA SC
Automatic
Top speed (km/h)196197196197
Acceleration from 0-80 km/h (seconds)6.46.66.46.6
Acceleration from 0-100 km/h (seconds)9.88.79.88.7
Maximum authorised weight (kg)1,5801,6201,5801,620
Weight in running order (with driver) (kg)1,0851,1261,0851,126
Maximum authorised weight on front axle (kg)840890840890
Maximum authorised weight on rear axle (kg)790780790780
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)540560540560
Weight of trailer with brakes, gradients up to 8% (kg)1,1001,1001,1001,100
Weight of trailer with brakes, gradients up to 12% (kg)1,1001,1001,1001,100 225
Technical data
Advice
Operation
Emergencies
Safety

Technical specifications
Petrol engine 1.8 TSI 141 kW (192 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
141 (192)/4,300-6,200320/1,450-4,2004/1,798Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZA SC
Top speed (km/h)235
Acceleration from 0-80 km/h (seconds)5.1
Acceleration from 0-100 km/h (seconds)6.7
Maximum authorised weight (kg)1,700
Weight in running order (with driver) (kg)1,260
Maximum authorised weight on front axle (kg)950
Maximum authorised weight on rear axle (kg)800
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)–
Weight of trailer with brakes, gradients up to 8% (kg)–
Weight of trailer with brakes, gradients up to 12% (kg)– 227
Technical data
Advice
Operation
Emergencies
Safety

Technical specifications
Diesel engine 1.4 TDI 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/2,750-3,500230/1,500-2,5003/1,422Min, diesel acc. to DIN EN 590 51 CN
Outputs and weightsIBIZAIBIZA
Start-StopIBIZA
AutomaticIBIZA SCIBIZA SC
Start-StopIBIZA SC
Automatic
Top speed (km/h)182182182182182182
Acceleration from 0-80 km/h (seconds)7.47.47.47.47.47.4
Acceleration from 0-100 km/h (seconds)10.910.910.910.910.910.9
Maximum authorised weight (kg)1,6401,6401,6701,6401,6401,670
Weight in running order (with driver) (kg)1,1501,1551,1651,1501,1551,165
Maximum authorised weight on front axle (kg)900910940900910940
Maximum authorised weight on rear axle (kg)790780780790780780
Permitted roof load (kg)757575757575
Maximum trailer weight without brakes (kg)570570580570570580
Weight of trailer with brakes, gradients up to 8% (kg)1,2001,2001,2001,2001,2001,200
Weight of trailer with brakes, gradients up to 12% (kg)1,1001,1001,1001,1001,1001,100 229
Technical data
Advice
Operation
Emergencies
Safety

Technical specifications
Dimensions Fig. 182
DimensionsFig. 182 IBIZAIBIZA SC
A/BFront and rear projections (mm)857/735857/717
CWheelbase (mm)2,4692,469
DLength (mm)4,0614,043
E/FFront/rear a)
track width (mm)1,465/1,4571,465/1,457
GWidth (mm)1,6931,693
HHeight at kerb weight (mm)1,4451,428
Turning radius (m)10.710.7
a) This data will change depending on the type of wheel rim.
231
Technical data
Advice
Operation
Emergencies
Safety

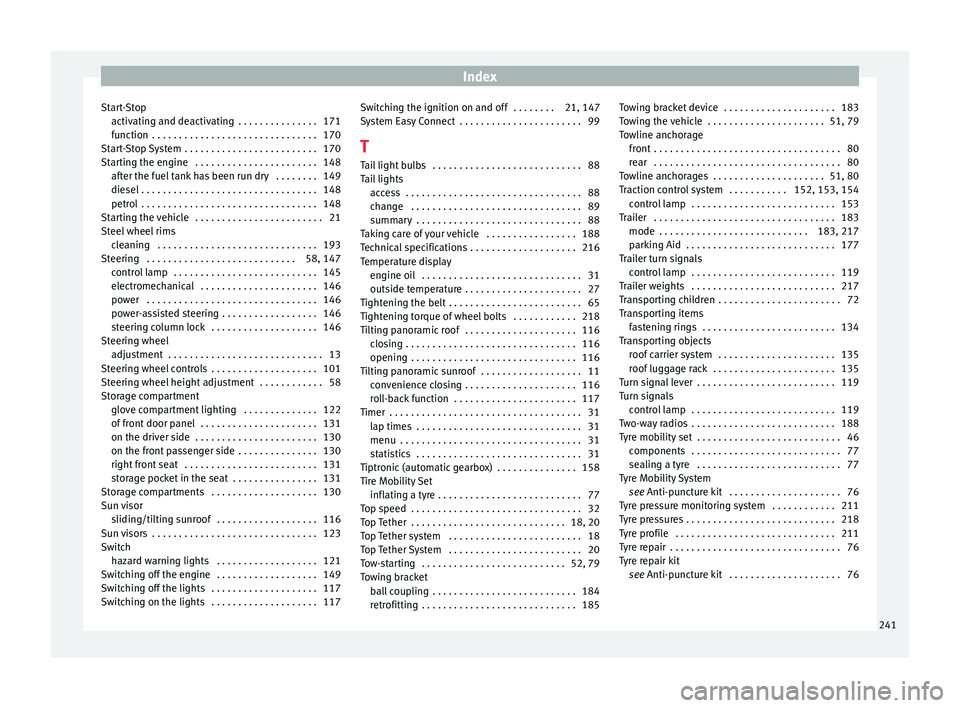

Index
Start-Stop activ atin
g and de
activating . . . . . . . . . . . . . . . 171
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Start-Stop System . . . . . . . . . . . . . . . . . . . . . . . . . 170
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 148 after the fuel tank has been run dry . . . . . . . . 149
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 21
Steel wheel rims cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 147 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
electromechanical . . . . . . . . . . . . . . . . . . . . . . 146
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
power-assisted steering . . . . . . . . . . . . . . . . . . 146
steering column lock . . . . . . . . . . . . . . . . . . . . 146
Steering wheel adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Steering wheel controls . . . . . . . . . . . . . . . . . . . . 101
Steering wheel height adjustment . . . . . . . . . . . . 58
Storage compartment glove compartment lighting . . . . . . . . . . . . . . 122
of front door panel . . . . . . . . . . . . . . . . . . . . . . 131
on the driver side . . . . . . . . . . . . . . . . . . . . . . . 130
on the front passenger side . . . . . . . . . . . . . . . 130
right front seat . . . . . . . . . . . . . . . . . . . . . . . . . 131
storage pocket in the seat . . . . . . . . . . . . . . . . 131
Storage compartments . . . . . . . . . . . . . . . . . . . . 130
Sun visor sliding/tilting sunroof . . . . . . . . . . . . . . . . . . . 116
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Switch hazard warning lights . . . . . . . . . . . . . . . . . . . 121
Switching off the engine . . . . . . . . . . . . . . . . . . . 149
Switching off the lights . . . . . . . . . . . . . . . . . . . . 117
Switching on the lights . . . . . . . . . . . . . . . . . . . . 117 Switching the ignition on and off . . . . . . . . 21, 147
Sys
tem Easy Connect . . . . . . . . . . . . . . . . . . . . . . . 99
T Tail light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Tail lights access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Taking care of your vehicle . . . . . . . . . . . . . . . . . 188
Technical specifications . . . . . . . . . . . . . . . . . . . . 216
Temperature display engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
outside temperature . . . . . . . . . . . . . . . . . . . . . . 27
Tightening the belt . . . . . . . . . . . . . . . . . . . . . . . . . 65
Tightening torque of wheel bolts . . . . . . . . . . . . 218
Tilting panoramic roof . . . . . . . . . . . . . . . . . . . . . 116 closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Tilting panoramic sunroof . . . . . . . . . . . . . . . . . . . 11 convenience closing . . . . . . . . . . . . . . . . . . . . . 116
roll-back function . . . . . . . . . . . . . . . . . . . . . . . 117
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 lap times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Tiptronic (automatic gearbox) . . . . . . . . . . . . . . . 158
Tire Mobility Set inflating a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Top speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 20
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . . 18
Top Tether System . . . . . . . . . . . . . . . . . . . . . . . . . 20
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 79
Towing bracket ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
retrofitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Towing bracket device . . . . . . . . . . . . . . . . . . . . . 183
Tow
ing the vehicle . . . . . . . . . . . . . . . . . . . . . . 51, 79
Towline anchorage front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Towline anchorages . . . . . . . . . . . . . . . . . . . . . 51, 80
Traction control system . . . . . . . . . . . 152, 153, 154 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183, 217
parking Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Trailer turn signals control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Transporting children . . . . . . . . . . . . . . . . . . . . . . . 72
Transporting items fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 134
Transporting objects roof carrier system . . . . . . . . . . . . . . . . . . . . . . 135
roof luggage rack . . . . . . . . . . . . . . . . . . . . . . . 135
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Turn signals control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Two-way radios . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Tyre mobility set . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
sealing a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Tyre Mobility System see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 76
Tyre pressure monitoring system . . . . . . . . . . . . 211
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Tyre profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Tyre repair kit see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 76
